Frameless & Framed Shower Door Gaps: Why They Exist & How to Seal Them (2026 UK Guide)

While these openings might seem like a design flaw, a shower door gap does not always mean a leak.

In this guide, the SIMBA team will walk you through the five most common types of shower door gaps, including the gap between shower doors, sliding panel overlaps, wall gaps, frame gaps and bottom gaps.

You’ll learn how to identify where water is escaping and how to choose the right shower door gap filler for a cleaner, more watertight finish.

Quick Match: Expert Solutions for 5 Common Gaps

To help you diagnose your gap between shower doors quickly, we’ve simplified the complex world of shower hardware into this easy-to-reference table:

Once you know where the gap is — at the bottom, side, hinge area or closing edge — it becomes much easier to choose the right seal for your shower door gap.

Why Is There a Gap in My Shower Door?

In the UK, many shower screens are fitted with a transparent shower screen seal to bridge the space between glass panels, the tray or the frame.

These gaps typically range from 1mm to 35mm, and as there is no universal industry standard, they can vary significantly from home to home. A larger or smaller gap is not automatically right or wrong — what matters is where the gap is, whether the door opens properly, and whether water is escaping.

Before ordering a new seal, measure the glass thickness and the size of the gap. A few millimetres can make the difference between a snug fit and a poor seal.

If this step was missed during installation, or if your original seal has perished over time, it may be one of the reasons water is reaching the bathroom floor.

It can be frustrating to see a shower door gap, but it’s usually a deliberate design feature rather than a defect. These spaces allow for natural movement, glass clearance and a safe opening arc. Without a small clearance, glass panels could rub against each other, the tray or the frame.

If one side of the gap is larger than the other, you may be dealing with an uneven gap under the shower door rather than a simple seal problem.

A visible gap is not always a fault. But if water is escaping under the door, check why a shower door leaks at the bottom before buying a replacement seal.

At SIMBA, we do not try to remove the gap completely. The aim is to choose a seal that manages the gap properly, helps direct water back into the shower area, and still allows the door to open and close safely.

Whether you are dealing with a frameless shower door gap, a gap between sliding shower doors, or a bottom gap above the tray, the right seal depends on the gap position, glass thickness and how the water is escaping.

SIMBA seals are made from REACH-certified, virgin PVC, designed to bridge these gaps without losing clarity too quickly in normal bathroom use.

If the gap is under the door, the next step is to choose the right shower door bottom seal rather than trying to fill the space with silicone.

Gap Between Shower Doors: 180° Glass Join

A gap between shower doors often appears where two glass panels meet in a straight 180° line. This is common on frameless and semi-frameless enclosures, especially where the doors need clearance to open, close or align without glass touching glass.

The solution is usually a magnetic or H-shape seal, depending on the angle, gap width and whether the panels meet in a true 180° line.

Best Use Case: Magnetic seals use magnetic attraction to “snap” together, helping to close the gap between shower doors. This is often used for gaps of approximately 22mm.

Gap Between Sliding Shower Doors: The Overlap

When a sliding door is closed, the two glass panels sit parallel to each other. To prevent scratching, manufacturers typically leave a 10mm to 30mm gap between sliding shower doors.

An F-Shape vertical seal is usually the right fit for this overlap. Its extended fin bridges the gap, while SIMBA’s dual-hardness design keeps the U-channel rigid for grip and the fin flexible enough to block side spray. In testing, a correctly installed F-Shape seal reduced lateral water leakage by up to 96%.

Gap Between Shower Door and Frame

It is common to see a vertical gap where a shower door meets the wall or frame, especially if the wall is slightly out of plumb.

For this type of irregular or tapering gap, a frame bulb seal is often a good option. The soft rounded edge compresses gently against the wall or frame, helping to reduce splash without making the door difficult to open.

Seal a Gap Between a Glass Shower Door and the Wall

I came across a very typical Reddit-style problem: someone had a gap between the glass shower door and the wall of about 34mm, and water was splashing out through the side. The question was basically: can a normal shower door seal fix this, or is the gap too big?

The first thing to check is the width of the gap.

And honestly, I would not replace an expensive shower door just because of a side gap like this. In most cases, you can deal with it with the right type of seal.

For a small side gap, say under 10mm, it is usually straightforward. A bubble-style vertical seal is normally enough, as long as you choose one that fits your glass thickness. It clips onto the edge of the glass and gently fills the space between the door and the wall, without making the door hard to open.

For a slightly wider gap, around 10–20mm, a standard bubble seal may not reach far enough. That is where a Y-shaped shower door seal can work better. The fin is longer, so it can cover a wider gap between the shower door and the wall, especially if the wall is a bit uneven.

But once the gap gets to 30mm or more, like the Reddit example at around 34mm, I would stop looking at ordinary vertical seals. Most of them simply are not made to cover that much space. They might look like they work at first, but they usually will not block water properly for long.

For a gap that wide, I would use a different approach. A practical option is to fit two self-adhesive bottom seals, such as our V312S1235H, which has a 35mm soft fin. Because it sticks onto the glass instead of clipping over the glass edge, it is not restricted by glass thickness in the same way. It can work well for filling a gap between a shower door and wall from around 10mm up to 35mm.

One thing to watch: if your gap is only 20mm or 25mm, the 35mm fin may be too long. If it drags against the wall, the door can feel stiff, the fin may curl, or the seal may not sit nicely. In that case, trim the soft fin down to the right length before fitting it. Follow the cutting and installation method on the product page rather than forcing it in as it is.

This is usually a much cleaner fix than trying to fill the whole side gap with silicone. Silicone is not ideal on the moving edge of a glass shower door. It can look messy, it can stop the door moving properly, and it is not really designed for that job. A flexible fin seal gives you water protection while still letting the door open and close normally.

What if the vertical gap is wider than 35mm?

If your gap is wider than 35mm, then yes, that is a pretty large gap for a shower door. It usually means the door was not measured or installed very well.

For example, if the gap is around 45mm, you can still deal with it without replacing the whole door. One option is to use the V312S1235H self-adhesive seal on the glass, then add RY3463 on the wall to make up the remaining space. RY3463 is 13mm high, and with the 35mm fin on the V312, you can cover up to roughly 47mm.

It is not the neatest solution compared with a properly sized installation, but for an awkward oversized gap between a glass shower door and the wall, it is a practical fix. It saves you from having to replace the door or add another glass panel, and in most cases, it will do a much better job than trying to build up a huge bead of silicone.

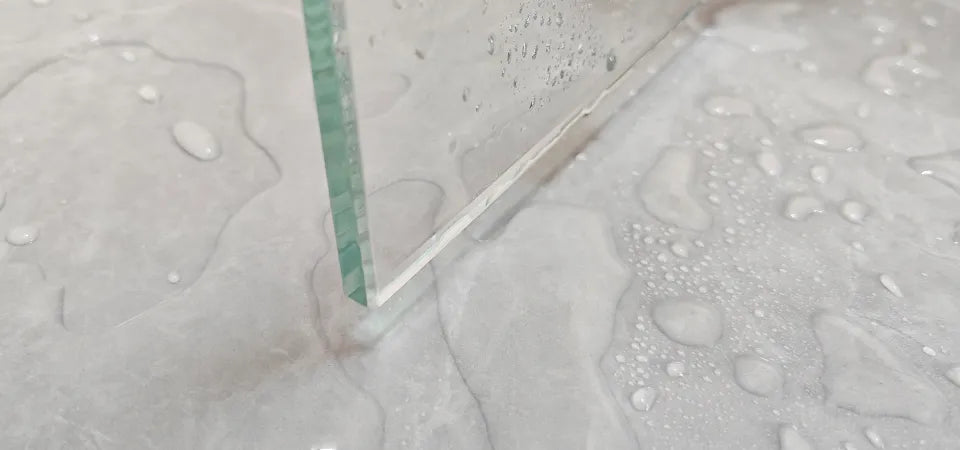

Frameless Gap Under the Shower Door

This is one of the most common places for water to escape. To allow the door to swing freely, there is usually a small clearance between the bottom of the glass and the shower tray.

The solution: A bottom drip seal is usually the best starting point. Its angled deflector fin helps guide water back into the tray instead of letting it run onto the bathroom floor.

Pro tip: Measure the gap at the left, centre, and right side of the door. If the tray is not perfectly level, you may find the gap changes across the width. In that case, a standard short-fin seal may not give enough coverage.

Gap Above the Shower Door (Heat Loss)

While rare for water to leak, a significant gap above the shower door can let steam escape, causing the area to feel chilly.

• The Solution: For standard bathrooms, we recommend leaving this open for ventilation to prevent mould.
• Pro Tip for Steam Rooms: Opt for a high-performance TPE (Thermoplastic Elastomer) seal, designed to withstand extreme heat (up to 120°C).

Why Is SIMBA the Expert in Sealing Gaps?

At SIMBA, we understand that every frameless shower door gap is unique. We don’t just sell replacement parts; we provide technical expertise.

Once you have checked the gap position and glass thickness, you can compare replacement shower door seals for framed and frameless doors and choose the closest match.

Still unsure which seal you need? Just snap a photo of your shower door gap and send it to us. The SIMBA Technical Team will provide a personalised matching recommendation within 24 hours.
