Last updated: 14 May 2026
You replaced the pivot shower door seal not long ago.
At first, it seemed to work. Then the same corner started getting wet again. Or the bottom strip began to curl, rub near the hinge, or lose its grip on the glass sooner than expected.
At that point, it is easy to wonder whether pivot shower door seals simply need replacing more often, or whether the wrong type has been fitted again.
With pivot shower doors, several things affect the fit: the hinge, brackets, swing direction, threshold and glass thickness. They can all change how the seal sits, how it wears, and how long it lasts, especially near the pivot fitting.
Before buying another replacement, check two things: where the water starts, and where the seal is wearing first. Your door may need a shower bottom seal, a vertical seal, a threshold strip, a magnetic seal, or a closer trim around the pivot fitting.
First, Work Out Where the Water Starts
Before choosing another shower door seal for a pivot door, start by finding out where the water first shows up.
Water can travel along the tray, run down the glass, or come from behind the wall profile before it appears near the hinge. Dry the area first, run the shower gently, and watch where the water shows up. Do not aim strong pressure straight at the gap, as that can make the problem look worse than normal use.
If the leak does not seem to be coming from the seal itself, it may be worth checking the wider Fixing Shower Leaks section before ordering another replacement.
| What you see | Check first | What to do next |
|---|---|---|
| Water escapes from under the glass | bottom shower door seal | Measure the glass thickness and bottom gap |
| The old bottom seal is yellowed, cracked or stiff | replacement bottom seal | Do not rely only on the distorted old shape |
| Water sprays from the vertical gap near the hinge side | vertical seal / H-type seal | It may need trimming around the hinge plate |
| The bottom seal is fitted, but the pivot corner still leaks | Trim the bottom seal; consider a threshold strip if needed | Check whether a gap remains around the fitting |
| The original pivot door shower seal is no longer available | universal replacement seal | Match by glass thickness, gap, position and profile shape |
| Water runs down from behind the wall profile | Fixed silicone / wall profile | Do not silicone around the moving hinge |
Do Not Copy the Old Seal Too Closely
It is natural to start with the old shower door seal for a pivot door.
Most people remove the strip, hold it against a new one, and look for the closest match. If the old seal has only gone yellow, stiff or split with age, a like-for-like replacement may be enough.
But if the same hinge-side corner has been getting wet for months, or the strip keeps curling, dragging or coming loose, the old seal may be part of the problem. Buying the same shape again can simply give you a newer version of the same weak point.
Old PVC can also stretch, flatten or twist over time, so the profile you are copying may no longer show its original shape clearly.
Treat the old seal as a starting point. Match the glass thickness first, then check the bottom gap, door swing and how close the strip can sit to the pivot fitting. On some pivot doors, a different bottom seal, side seal, threshold strip, or closer trim around the fitting may work better than a direct copy.
Why Pivot Shower Door Seal Replacement Is Easier to Misread
At first glance, a pivot shower door seal replacement can look much like a normal bottom seal replacement. You line the new seal along the lower glass edge, press it into place, and close the door. The strip may grip the glass, follow most of the bottom edge, and let the door swing as it should.
That is why the job can look finished, even though the hinge-side corner has not really been dealt with.
The awkward part usually starts when the seal reaches the hinge side. Many pivot doors have a pivot hinge, pivot block, bottom pivot fitting or bracket near the lower corner. This hardware can sit exactly where a bottom shower door seal would normally carry on in a straight line.
The seal may fit most of the glass, then stop short, sit under pressure, or leave a small gap in the final few centimetres. That does not automatically mean you bought the wrong product. In many cases, the seal is suitable, but the small area around the pivot fitting has not been trimmed or checked closely enough.
We see this often in SIMBA customer enquiries. Someone may have tried more than one shower seal for a pivot door, but water still appears near the hinge. In many photos, the problem is not the whole strip. It is the small gap left around the bottom fitting.
That is the key difference between pivot shower door seal replacement and a standard bottom seal replacement. With a standard door, glass thickness and gap size often solve most of the problem. With a pivot door, the hinge-side hardware also matters.
Where Does This Type of Pivot Shower Door Need Sealing?
A pivot shower door may look simple: one moving glass door, one fixed glass panel, and a bottom seal. But a proper pivot shower door seal replacement often needs to deal with four areas.
1. Bottom seal
The first area is the bottom of the glass door. This is where you fit a pivot shower door bottom seal, also called a bottom sweep. Its job is to reduce the gap under the glass and direct water back into the shower area.
2. Hinge-side vertical seal
The hinge side needs clearance so the door can open and close. Because of this, it is harder to seal than a fixed glass panel. If the gap is too wide, water can run down the glass edge or escape near the wall.
3. Closing edge / door gap seal
This is the vertical edge where the moving door closes against the neighbouring glass panel. It may use an H-shaped seal, a side seal, or a magnetic shower door seal for pivot door installations.
This is one of the most important points to check because it is the active closing edge, not a fixed panel joint.
4. Bottom corner leak points
The bottom corners are often the real trouble spots. Even if the bottom seal and side seal are fitted, the small joint between them can still leave a path for water.
That is why you should not only ask, “Which bottom seal should I buy?”
You should also ask, “Where is the water escaping after it reaches the bottom edge?”
Start with the Bottom Seal When the Old Strip Has Worn Out
Some leaks are fairly straightforward. The old bottom seal has simply reached the end of its life.
It may have gone yellow, blackened, turned stiff, or split along the soft fin. The U-channel may no longer grip the glass properly. The strip is still hanging on, but after every shower, water runs along the lower edge of the door. In other cases, the seal has distorted and starts dragging on the shower tray or bath rim when the door opens.
When that happens, replacing the pivot shower door bottom seal is a sensible first step.
Remove the old strip and clean the lower edge of the glass first. Limescale, soap residue and mould can all affect how well the new seal grips. Then measure the glass itself, not just the old seal, as old PVC can stretch, flatten or change shape over time. After that, measure the gap between the bottom of the glass and the shower tray or bath rim. This tells you how deep the soft fin needs to be.
When test-fitting the new seal, do not cut it to its final length straight away. Push it onto the lower glass edge first. Check that the U-channel grips securely and that the bottom fin sits naturally close to the tray or bath rim. If the seal has a guide edge or drip rail, make sure it faces into the shower area, rather than directing water outwards.
The Awkward Part Is Usually the Bottom Fitting
A pivot door is not always as simple as a standard straight door edge.
The bottom seal may fit neatly along most of the glass, then meet the pivot hinge, pivot block or bottom fitting near the end. From a quick look, it may seem as though the strip has gone as far as it can. In use, though, that interrupted section can leave a small route for water to get past.
This does not always mean the seal is the wrong type.
In this situation, avoid simply cutting the strip short in a straight line. It is usually better to test-fit the seal, mark it, and trim it gradually around the shape of the fitting. The aim is to bring the seal as close as possible to the edge of the pivot fitting, so less of the lower edge is left uncovered.
The exact cut depends on the shape of the hinge block. Our shower door hinge leaking guide includes a video showing this kind of trimming around hinge-side hardware.
When the Seal Looks Right but the Pivot Area Still Gets Wet
There is another common situation: the bottom seal appears to be fitted properly.
It grips the glass. The soft fin sits close to the tray. The door opens and closes as it should. Yet after showering, there is still a wet patch near the bottom fitting.
That does not necessarily mean the whole bottom seal has failed. In many cases, it is already stopping most of the water under the door. The problem is the small section near the pivot fitting, where the vertical seal or wall breaks up what would normally be a continuous seal.
A few occasional drops may not be a serious issue. But if the shower flow is strong, or the shower head often points towards the pivot side, the same small gap can become a regular nuisance.
In that case, a threshold strip can help as a second barrier. It does not replace the bottom seal. It creates a low raised edge on the shower tray or bath rim, helping guide water back towards the shower area if it gets past the soft fin.
Check the door movement before fitting one. A pivot door swings through that space, so the threshold strip must not sit too high or too close to the door path. If the bottom seal already sits very low, the two parts may rub.

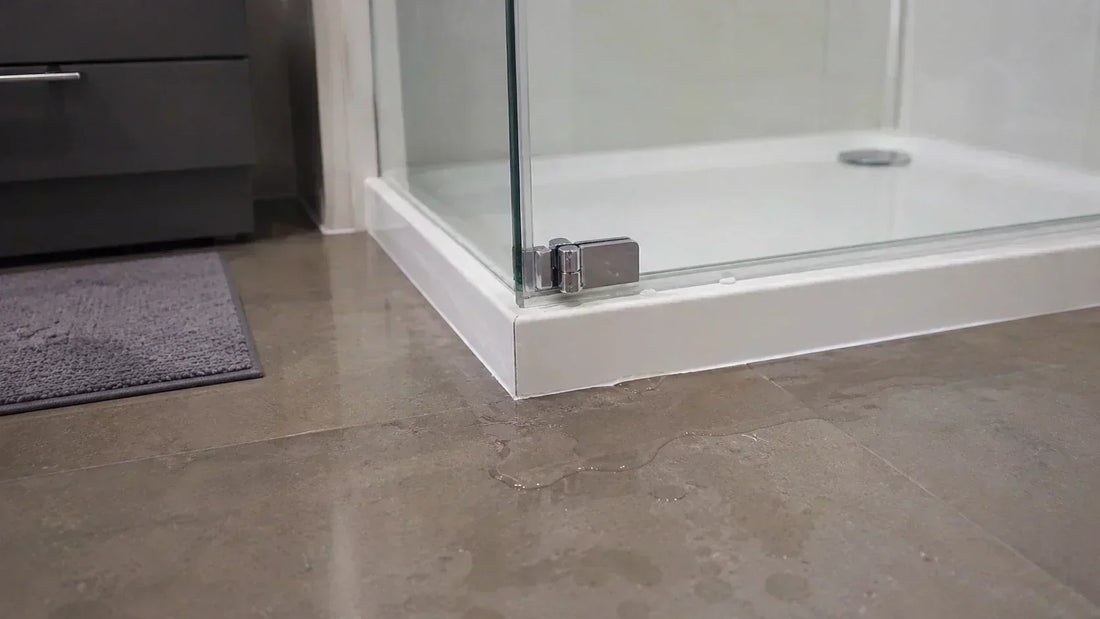

The Hinge-Side Corner: A Small Gap Can Cause a Big Leak
The hinge-side bottom corner is easy to miss because it is not always the most visible part of the door.
This is where the wall, glass door, bottom seal and threshold all meet. On a pivot door, the hinge side also needs enough clearance for the door to move, so it cannot be sealed too tightly.
This is why it can behave like other shower door corner leaks. Water does not always come through as an obvious stream. It may run along the base of the door first, then slip out through the small joints where the bottom seal, side gap and threshold come together.
A practical solution is to use a flexible threshold strip, such as PV29, and fit it close to the wall. At the hinge-side corner, the strip can be turned slightly upwards so it covers the joint between the wall and the end of the bottom seal.
This small detail helps prevent water from slipping out at the corner, especially when water runs along the base of the door.
If Water Comes from the Vertical Side Gap
Not every leak near a pivot hinge comes from the bottom of the door.
On a frameless pivot shower door or semi-frameless shower screen, water can spray through the vertical gap near the hinge side. From outside the shower, it still looks like a hinge leak, but a bottom seal will not solve it.
This vertical gap is not always even. It may be narrow at the top and wider lower down. It may also be interrupted by a hinge plate, which means a full-length vertical seal may not sit neatly from top to bottom.
When the gap is uneven or broken up by hinge plates, a vertical shower door seal or H-type seal may need to be cut into sections. One section may sit above the hinge, another between hinges, and another below.
The important point is that side spray and bottom leakage are different problems. A bottom seal controls water under the door. A vertical or H-type seal helps reduce spray through the side gap.
Do not use silicone around a moving pivot hinge. Silicone is suitable for some fixed joints, such as a wall profile, tray joint or bath joint, but it should not be used to seal moving pivot parts. It can restrict the door and make future adjustment difficult.
If the Original Pivot Door Shower Seal Is No Longer Available
Many pivot shower doors in UK bathrooms have been in use for years. The brand may be unknown, or the door may come from an older Aqualux, Coram, Mira, Roman, Ideal Standard, Victoria Plum or similar enclosure.
In many cases, the original pivot door shower seal is no longer available.
That does not always mean the whole door needs replacing.
A universal replacement seal can still work if the important details match: glass thickness, gap size, fitting position and profile direction. With older doors, the goal is not always to find an identical original part. The goal is to find a seal that works with the door you still have.
Do not rely on the old seal shape alone. Old PVC can change shape over time. Compare the glass thickness, gap, fitting position and the old seal cross-section together.
Real Case: Why a Pivot Shower Door Seal Replacement May Still Leak
A leaking pivot shower door is not always fixed by replacing the bottom seal.
In one DIY case, the homeowner had already tried several bottom shower door seals, including a water deflector seal, a longer sweep and a standard bottom seal. Water still escaped from the bottom of the door, the hinge side and the lower corners.
The issue was not one faulty seal. It was the way several sealing points met at the bottom of the door: the bottom seal, side seal, glass edge and threshold area. When those small joints do not line up well, water can still find a way out even after a new seal has been fitted.
The biggest missing piece was a raised external threshold strip. A bottom sweep can guide most water back into the shower area, but it is not designed to hold back standing water on its own. If water builds up near the door, or the shower spray is aimed towards the gap, some water can still pass under the soft fin.
A better setup would be:
pivot shower door bottom seal + external threshold strip
The bottom seal deals with the gap under the glass. The threshold strip catches water that gets past the soft fin before it reaches the bathroom floor.
For some doors, a magnetic shower seal for pivot door use may give a neater closing edge than a standard H-shaped profile. But the main point is the same: the leak is often caused by the way the bottom seal, side seal and threshold work together, not by one strip alone.
If a pivot shower door still leaks after replacing the seal, do not immediately buy another bottom sweep. First, check the bottom corners, the closing edge, and whether the door has an external threshold strip.
How to Fit the PV29 Threshold Strip
When fitting a PV29 or a similar flexible threshold strip, placement matters.
It needs to sit close enough to the pivot shower door bottom seal to catch any water that gets past the soft fin, but not so close that it stops the door opening and closing smoothly.
As a guide, let the threshold strip overlap the soft fin of the bottom seal by around 3–5 mm. Too small a gap, and water may still pass through. Too much overlap, and the door may rub against the strip and wear the seal down over time.
If you are still deciding which strip suits your shower tray or bath edge, our guide to choosing the right shower door threshold strip covers the main things to check before fitting one.
After fitting, test the shower for a few minutes. Check the hinge-side bottom corner, the closing-side bottom corner, and the joint between the bottom seal and the threshold strip before replacing the seal again.
What This Case Teaches Us
This case is a useful reminder that a leaking pivot shower door is not always down to one faulty strip. Often, it is the way the bottom seal, side gap, closing edge and threshold meet at the lower part of the door.
If your pivot shower door still leaks after replacing the seal, do not rush into buying another bottom sweep. Check the bottom corners, the closing edge, and whether there is an external threshold strip to catch water that gets past the soft fin.
Can an Aqualux 6mm Shower Door Seal for Pivot Door Be Replaced with a Universal Seal?
Sometimes, yes, but it depends on more than the brand name.
Many older Aqualux-style pivot doors use 6mm glass, but the seal position and profile shape can still vary. The old strip may be a bottom seal, a side seal, or a closing seal.
If you are looking for an Aqualux 6mm shower door seal for pivot door, start by measuring the glass thickness. Then check the old profile, the bottom gap, and the hinge-side hardware. If the glass thickness, gap size, seal position and profile direction match, a universal shower seal for pivot door may be suitable.
If the pivot fitting interrupts the bottom seal, trimming may still be needed even when the glass thickness is correct.
Common Reasons People Buy the Wrong Pivot Shower Door Seal
Wrong purchases usually happen because the door is misread, not because the buyer is careless.
The old seal shape is the most common trap. It may look like a standard U-channel bottom strip, but it may have stretched, flattened or distorted over time.
Measuring the old seal instead of the glass is another problem. The new seal grips the glass, not the old plastic. The U-channel must match the glass thickness.
The hinge block is easy to miss as well. A seal may look right in the product image, then stop short when it meets the pivot hardware.
A deeper fin is not always safer. If the bottom gap is too small, a long fin may drag, fold, or make the door harder to close.
And if water appears near the hinge, do not rush to silicone the moving parts. Seal fixed joints where appropriate, but leave moving pivot hardware free to operate.
Take a Few Photos Before Ordering
If you are not sure which seal to choose, photos are often more useful than a long description.
Start with a close-up of the old seal, especially if it shows the cross-section, U-channel and fin direction. For a pivot shower door, also take a clear photo of the hinge side, including the pivot hinge, bottom fitting and lower corner.
Then take one photo showing the gap between the bottom of the glass and the shower tray or bath rim. This helps confirm the fin depth and whether there is enough clearance for a threshold strip.
Two pivot doors can need completely different solutions. One may need a bottom seal, another an H-type seal, and another a threshold strip as part of the fix.
If you are not sure, it is worth sending the photos to us on WhatsApp before ordering. A clear view of the old seal, glass thickness, bottom gap and pivot fitting is usually more useful than guessing from the old strip alone.
SIMBA Note: If You Are Choosing a New Shower Enclosure
If you are only replacing a seal, you have to work with the door already fitted in your bathroom.
But if you are choosing a new shower enclosure, simpler bottom hardware is usually easier to maintain.
A gap itself is not always the problem. The right seal can cover many bottom gaps when the glass thickness, gap size and profile match. The harder situation is when the hardware sits directly in the seal path.
Some older pivot doors use a bottom pivot block that interrupts the seal. Later replacement may then require trimming, adjustment, or a threshold strip as a second barrier.
This does not make every pivot shower door a bad choice. It simply means the hardware design matters when it comes to long-term sealing.
Final Choice: What Should You Check First?
Pivot shower door seal replacement often goes wrong when it is treated like a standard seal replacement.
If the old clear strip sits along the bottom edge of the glass and is yellowed, cracked, loose or leaking underneath, start with replacement shower door bottom seals.
If water comes from the vertical gap near the hinge side, look at vertical shower door seals instead of buying another bottom seal.
If the bottom seal has already been replaced but the pivot bottom corner or bath rim still gets wet, check whether the seal needs trimming closer to the fitting. For heavier water flow, a threshold water barrier may help as a second line of defence.
The best replacement is not simply the one that looks most like the old strip. It is the one that matches your glass thickness, gap, door type and pivot hinge layout.
When in doubt, do not guess from the old seal alone. Clear photos of the old seal, glass thickness, bottom gap and pivot hinge position usually make it much easier to identify whether you need a bottom seal, vertical seal, threshold strip, or a combination.
FAQ
What seal do I need for a pivot shower door?
It depends where the water starts. Water under the door usually needs a bottom shower door seal. Water from the vertical gap near the hinge side usually needs a vertical seal or H-type seal. Water at the bottom pivot corner may mean the bottom seal needs trimming closer to the fitting, with a threshold strip as a possible second barrier.
How do I replace a pivot shower door seal?
Find where the old seal sits first. For a bottom seal, measure the glass thickness and bottom gap. For a side seal, check whether a vertical or H-type profile is needed. Remove the old seal, clean the glass edge, test-fit before cutting, and check whether the pivot hardware blocks the seal.
Can I use a standard bottom seal on a pivot shower door?
Sometimes, yes. A standard bottom seal can work on a pivot shower door if it matches the glass thickness, bottom gap and profile direction. The difficult part is the pivot fitting. If the hinge block interrupts the seal path, the strip may still need trimming near the corner. For a fuller overview of bottom seal profiles, gap coverage and measuring, see our complete guide to shower door bottom seals.
What is the difference between a pivot shower door seal and a normal shower door seal?
A normal shower door seal usually needs to match glass thickness, gap and profile. A pivot shower door seal also has to work around the pivot hinge, pivot block or bottom pivot fitting. That hardware can affect how the seal is cut and fitted.
Can I replace an Aqualux 6mm shower door seal for a pivot door with a universal seal?
Sometimes. Many Aqualux-style pivot doors use 6mm glass, but brand and thickness are not enough. You also need to check the old seal position, profile shape, bottom gap and hinge-side fitting. If those details match, a universal replacement seal may work.
Why does my pivot shower door seal not reach the hinge side?
The pivot fitting may be blocking the final section. The seal is not always too short; it may simply be stopping against the hinge block. In that case, it may need trimming closer to the hardware rather than being left short.
Do I need a vertical seal or bottom seal for a pivot door?
Use a bottom seal when water escapes under the glass. Use a vertical or H-type seal when water sprays from the side gap near the hinge. They solve different leak points.
Do I need a threshold strip for a pivot shower door?
Not always. A threshold strip is most useful when the bottom seal is already fitted or trimmed, but the bottom pivot corner still gets wet. Check clearance first, so it does not rub against the door.
Should I use silicone around a pivot shower door hinge?
No, not around the moving hinge. Silicone may be suitable for fixed joints such as a wall profile, tray joint or bath joint, but it should not be used to seal moving pivot parts.
What if the original pivot door shower seal is discontinued?
A discontinued original seal does not automatically mean the door must be replaced. A universal replacement may still work if the glass thickness, gap size, fitting position and profile direction match. Photos of the old seal, glass edge and pivot fitting can help confirm the closest option.
Technical accuracy checked by the SIMBA product team.
This guide is based on the replacement questions SIMBA regularly receives about pivot shower door, shower screen seal for pivot door, over-bath screen and older shower enclosure seals. Our advice usually considers glass thickness, gap size, old seal condition, pivot hinge position and the actual leak path, rather than the old seal shape alone.
