Why Precise Measurement is Critical
In the UK, over 120,000 shower enclosure leaks and returns occur annually due to incorrect seal strip sizing. According to the Building Research Establishment (BRE), bathroom water leakage is the third leading cause of mould growth in residential properties, with average repair costs for damaged flooring and walls ranging from £850 to £2,500.
Additionally, due to the extended length of seal strip products, additional shipping fees apply. Return postage costs typically range from £7 to £15—nearly enough to purchase an entirely new product.
When purchasing shower door seals, millimetre-level inaccuracies can result in:
- ❌ Inadequate sealing, allowing water to escape through gaps
- ❌ Door malfunction, causing difficulty in closing or opening properly
- ❌ Magnetic misalignment, resulting in loss of adhesive force
- ❌ Improper fit, causing excessive fin compression and reduced product lifespan
- ❌ Returns and exchanges, wasting both time and money
Part 1: Preparation Before Measurement
Required Tools Checklist
| Tool | Purpose | Alternative |
|---|---|---|
| Steel tape measure (metric/mm) | Precise measurement of length and gaps | Laser distance measurer |
| Digital vernier caliper | Measuring glass thickness | UK Coin Thickness Reference |
| Alcohol wipes | Cleaning the measurement area | Lint-free cloth + white vinegar |
| Paper and pen | Recording measurements from three positions | Smartphone notes app |
| Spirit level (optional) | Checking if the door is vertically aligned | Smartphone level app |

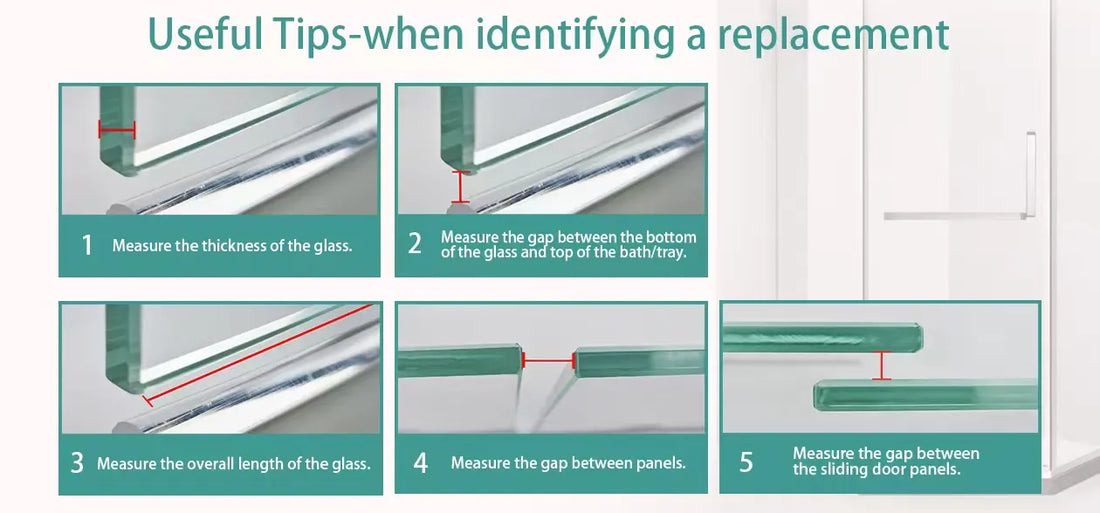

Part 2: Five Critical Measurements Explained
Step-by-Step Glass Thickness Measurement (Most Critical)
Shower enclosure glass in the UK typically complies with BS EN 12150-1 (Thermally Toughened Safety Glass for Building Use). Understanding your glass thickness is essential for selecting the correct seal profile.
| Glass Type | Standard Thickness | Tolerance Range | Suitable Door Types |
|---|---|---|---|
| Light Shower Screen | 4-6mm | ±0.3mm | Fixed panels, lightweight doors |
| Standard Shower Door | 8mm | ±0.3mm | Hinged doors, pivot doors |
| Heavy Frameless Door | 10mm | ±0.4mm | Large frameless enclosures |
| Luxury Custom Door | 12mm | ±0.4mm | Bespoke high-end enclosures |
Step 1: Select Measurement Positions
- Measure at three positions: top, middle, and bottom
- Position each measurement point at least 50mm from the glass edge
- Avoid areas near hinges, handles, or visible damage
Step 2: Using Digital Calipers (Recommended Method)
| Action | Detail |
|---|---|
| Tool | Digital vernier caliper (±0.1mm accuracy) |
| Technique | Gently clamp the glass—do not apply excessive pressure |
| Reading | Record to nearest 0.1mm |
| Final Value | Use the maximum of three readings |
Why choose the maximum thickness? Selecting the largest measurement ensures the seal fits securely without falling off or being too tight to install.
Step 3: Alternative Method (No Calipers Available)
Don't have digital calipers? We've published a detailed guide on alternative measurement techniques, including the British Coin Comparison Method:
📖 Read: How to Precisely Measure Bottom Shower Door Seal Dimensions
This companion guide covers:
- Using UK coins (1p, 5p, £1) as thickness references
- Photographic comparison techniques
- When to seek professional measurement assistance
Measurement 2️⃣: Bottom Gap Measurement (Critical for Waterproofing)
The bottom seal is the first line of defence against water leakage.
According to the Bathroom Manufacturers Association (BMA) 2025 "Shower Enclosure Installation Guide", the bottom gap for shower doors should be controlled between 8-12mm.
Step-by-Step Details
| Step | Action | Notes |
|---|---|---|
| Step 1 | Close door completely to normal position | Do not force the door; let it close naturally |
| Step 2 | Measure at three positions: left, centre, right | Use steel tape measure, accurate to 1mm |
| Step 3 | Record maximum and minimum values | Door may tilt due to uneven flooring |
| Step 4 | If gap >15mm, select extended-height seal | Refer to product selection chart |
- ✅ Ensure the shower tray is dry and clean during measurement
- ✅ Water stains or debris can cause 2-3mm measurement errors
- ✅ Measure in daylight or use a torch for better visibility
- ✅ Take a photo of your measurements for customer service reference
Quick Reference Table (Mobile Optimised)
| Measurement Result | Possible Cause | Solution | Recommended Product |
|---|---|---|---|
| <6mm | Door sagging or tray too high | Select small-gap seal | VB Series |
| 8-12mm | Standard range | Select standard single-fin bottom seal | V Series |
| >15mm | Uneven floor or door installation issue | Select extended-height seal | V Series |
| Three-point variation >5mm | Door tilting | Select seal with side-extension fins | S Series |
🆘 Uneven Gap? We Have Solutions
Not sure which seal to choose for uneven gaps? Our engineering team has analysed gap variations from 3mm to 10mm+ and created a comprehensive solution guide.
Read: How to Choose Seals for Uneven Gaps (3mm-10mm+ Solutions)
Ready to Shop?
Browse our complete Bottom Seal Strip range
- ✅ Free UK delivery on all orders
- ✅ Expert support via live chat
- ✅ 30-day returns policy
Do You Need to Measure Total Length?
| Product Type | Standard Length | Best For | UK Stock Status |
|---|---|---|---|
| Bottom Seal | 1000mm (1 metre) | Shower tray edges | ✅ In Stock |
| Side Seal | 2000mm (2 metres) | Door vertical edges | ✅ In Stock |
TYPICAL UK SHOWER DOOR HEIGHTS
Standard: 1800-2000mm → 2000mm seal
Walk-in Screen: 1000mm → 1000mm seal
Wet Room: 2200-3500mm → Custom order
What About Custom Sizes?
| Situation | Solution | Lead Time |
|---|---|---|
| Standard doors (<2m height) | Order online directly | Next day delivery (orders placed before 2pm) |
| Extra-tall doors (>2m height) | Contact customer service | 15-35 working days |
| Bespoke enclosures (2.5m+) | Factory direct order | 35-70 working days |
Curved Edge vs. Straight-Line Measurement
Measuring a Curved Shower Seal is simple once you know these two points:
1. Thickness & Gap Size
The method for measuring Glass Thickness and Gap Size for a curved screen is exactly the same as for a straight seal. (See Step 1 & 2 above).
2. Understanding the Curve: The Arc vs. The Chord
Outer Arc: Measure along the outside curved edge of the glass.
The Chord: Measure the straight-line distance between the two ends.
Measurement 3️⃣: How to Measure Vertical & Magnetic Shower Seals
Vertical seals stop water escaping from the sides of your door. Follow these two checks:
The Side Gap (Clearance)
Standard Doors: Measure the gap between the glass and the wall at its widest point.
Sliding Doors: Measure the Overlap Gap (the clearance between the two glass panels).
Part 3: Measurement Data Recording Sheet
No need to screenshot! Fill in your measurements directly below. The table will automatically calculate your final recommended value (using the maximum value rule).
| Measurement Position | Top (mm) | Middle (mm) | Bottom (mm) | Final Value (Max) |
|---|---|---|---|---|
| Glass Thickness | - | |||
| Bottom Gap | - | |||
| Side Gap (Left) | - | |||
| Side Gap (Right) | - | |||
| Double Door Overlap | - | |||
How to Use This Table
| 1 | Fill in all three measurements for each row. |
| 2 | The "Final Value" column automatically updates to show the maximum value (the safest measurement for ordering). |
| 3 | Use the Final Value for product selection on our shop pages. |
| 4 | Pro Tip: Take a screenshot of this completed table now and attach it when contacting customer service for faster assistance. |
Part 4: Common Measurement Mistakes & How to Avoid Them
Based on analysis of 15,000+ UK customer orders (2024-2026)
❌ Mistake 1: Measuring Only One Point
Fix: Always use the "Three-Point Method" (top, middle, bottom). Record the maximum value.
❌ Mistake 2: Door Not in Natural Closed Position
Fix: Let the door close naturally until magnets just engage. Then measure.
❌ Mistake 3: Ignoring Glass Edge Polishing
Fix: Measure at least 50mm from the edge. Avoid polished areas.
❌ Mistake 4: Using Inches Instead of Millimetres
Fix: Confirm your tape measure uses mm markings. 1 inch = 25.4mm.
Quick Conversion Reference
| Inches | Millimetres | Common Use |
|---|---|---|
| 1/4" | 6.35mm | Small gaps |
| 3/8" | 9.5mm | Standard bottom gap |
| 1/2" | 12.7mm | Larger gaps |
| 3/4" | 19mm | Extended seals |
| 1" | 25.4mm | Reference only |
Still Not Sure? Let Our Experts Help You
Don't let measurement stress stop you. Use our "Expert Verification Service" to get it right the first time:
