A small puddle on the bathroom floor usually leads to one quick conclusion: the shower door bottom seal must have failed.
Sometimes, that is exactly what has happened. If water is escaping along most of the bottom edge of the glass, or the old seal has turned yellow, stiff, cracked, or misshapen, the bottom seal is the right place to start.
But not every leak begins along the full bottom edge of the door. In many bathrooms, water finds a much smaller escape route. It may creep out from the hinge-side corner, run past the end of a fixed glass panel, slip through a glass joint, or spill over one small section of the shower tray edge.
From the outside, it still looks like a “bottom leak”. In reality, the problem may be a local weak point rather than the whole bottom seal.
That is where a shower threshold strip can make a difference.

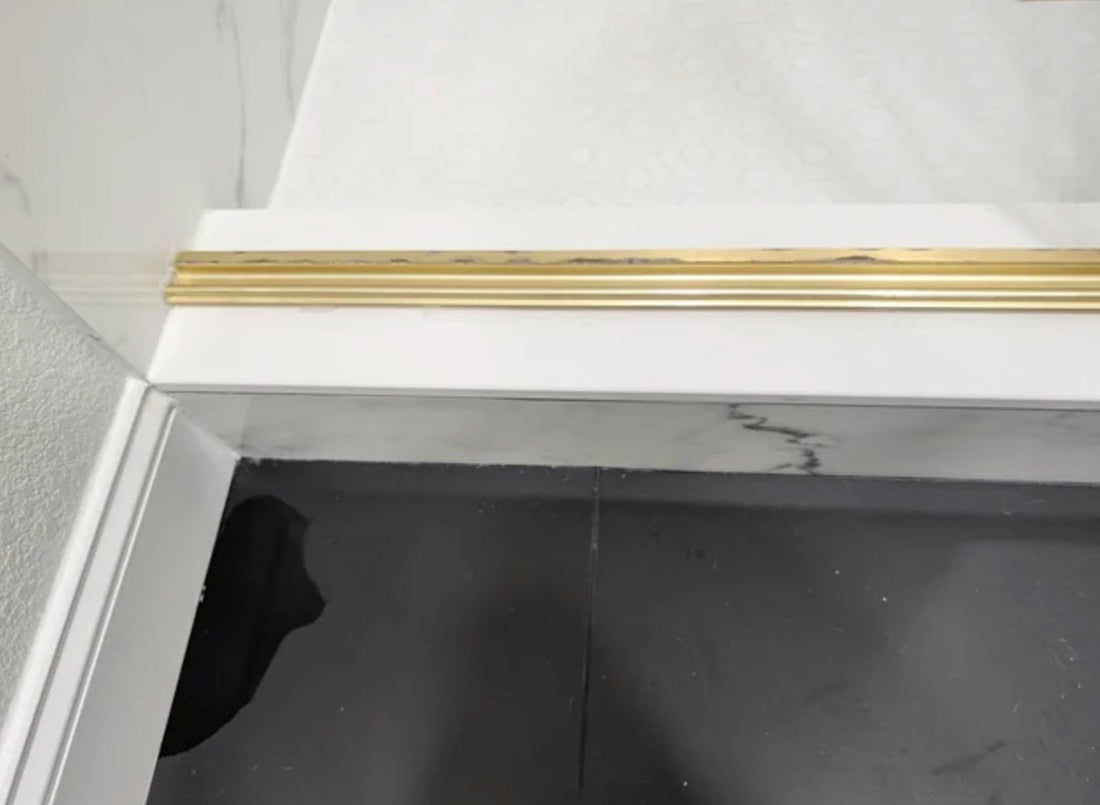

A shower door bottom seal fits onto the lower edge of the glass and helps guide water back into the shower tray. A threshold strip sits on the tray or floor edge, acting as a low water barrier where water is already trying to escape.
Quick chooser
If you are trying to choose between D510, PV29, and RY3463, start with the shape of your shower and the position of the leak.
| If your shower looks like this | Start with |
|---|---|
| Large straight frameless screen with a flat tray edge | D510 |
| Curved tray, quadrant enclosure, or awkward hinge area | PV29 |
| Straight glass with a narrow fitting area and a need for a taller stop | RY3463 |
| Not sure, mixed shape, or awkward corner | PV29 |
As a quick rule, if water is escaping along the full bottom edge of the glass, check the bottom seal first. If water is escaping from one corner, one end, or a localised area, a threshold strip is usually more worth considering.
Bottom Seal or Threshold Strip?
A bottom seal and a threshold strip are often used for the same overall problem — water escaping from a shower area — but they do different jobs.
The bottom seal clips or slides onto the lower edge of the glass door. Its job is to help control water as it runs down the glass and guide it back into the tray.
A threshold strip is fixed to the tray or floor edge. It works more like a small dam, helping stop water that has already reached the edge from continuing onto the bathroom floor.
Some leaks only need a replacement bottom seal. Others need the bottom seal and threshold strip to work together. The key is to understand where the water is escaping before choosing the part.
Start with the leak, not the product
Two showers can both be described as “leaking at the bottom”, but the right fix may be completely different.
If water is escaping along most of the lower edge of the glass, the bottom seal is usually the first thing to check. It may be worn, too short, too stiff, or fitted the wrong way round. In that situation, replacing the bottom seal is usually a better starting point than adding a threshold strip.
A shower threshold strip becomes more useful when the leak is localised. Common examples include water escaping from the hinge-side lower corner, the outside edge of the shower tray, the end of a fixed screen, or a small area where water gets past the existing seal.
Think of it this way: a threshold strip is not there to replace the bottom seal. It is there to protect the small escape routes that a bottom seal may not fully cover.
D510: Best for Straight Screens with a Clear Tray Edge
D510 is the most straightforward option when the fitting area is also straightforward.
It suits clean, straight tray edges — the kind you often see with a large frameless shower screen, a flat tray edge, and no awkward hinge detail in the way.
D510 is a solid rigid PVC threshold strip with a height of around 5mm. When it sits on a straight tray edge, it creates a neat, firm barrier without adding much height or visual bulk.
The important condition is that it must sit flat.
A rigid strip does not forgive an awkward surface very well. If the tray edge is curved, raised near the hinge, uneven, or difficult to follow in a straight line, D510 may lift, twist, or fail to bond properly in one section. Once that weak point appears, water can still find its way through.
So the decision is simple: if the edge is straight, flat, and open, D510 is a strong option. If the edge is curved, awkward, or uncertain, it is better not to force a rigid strip into place.
PV29: A More Forgiving Choice for Curves and Awkward Corners
PV29 is better suited to the areas where showers are rarely perfect.
It is a soft, hollow, half-round PVC threshold strip with a height of around 5mm. Because it is softer than a rigid strip, it is easier to fit around curved trays, quadrant enclosures, hinge-side areas, fixed screen ends, and edges that are not perfectly straight.
This matters because many leaks hide in small details. From the front, the shower may look simple. But water can travel along the glass, metalwork, or tray edge and escape from a small corner that is difficult to seal with a rigid strip.
In that situation, the best solution is not always the tallest barrier. Often, it is the strip that can sit neatly against the problem area without getting in the way of the door.
PV29’s main advantage is not height. Its advantage is that it is more forgiving. If you are unsure whether D510 will sit flat, PV29 is usually the safer starting point.
RY3463: Useful When You Need a Taller Stop
RY3463 has a different purpose. It is useful when you need a taller water stop on a straight, narrow fitting area.
At around 13mm high, it creates a more noticeable barrier than D510 or PV29. This can help when the leak is concentrated near a side gap, hinge-side lower corner, or narrow straight section of the tray.
However, RY3463 is not a product to choose by guesswork.
Because it is much taller, it needs to be matched carefully with the bottom seal. If the bottom seal fin is too long, the door may drag or feel stiff when closing. If the fin is too short, it may not reach the threshold strip at all, leaving water a path through the gap.
Before choosing RY3463, measure the gap under the glass first. Then choose the bottom seal and threshold strip together, so they can meet properly when the door is closed.
The Threshold and Bottom Seal Need to Meet Lightly
A threshold strip does not work simply because it has been stuck somewhere on the tray edge.
For it to help properly, it normally needs to sit on the outside of the shower door, close enough for the bottom seal fin to touch it lightly when the door is closed.
That light contact is the important part.
If the threshold strip and bottom seal fin are too far apart — for example, 5–10cm away from each other — water can still run straight through the space between them. The threshold may look installed, but it is not working together with the bottom seal.
Heavy contact is a problem too. If the fin is pressed too hard against the threshold, the door may rub every time it opens and closes. Over time, this can make the door feel stiff or deform the soft fin.
The ideal position is light contact. The fin should touch the threshold, but it should not be forced down against it.
As a rough guide, a light overlap of around 3–5mm is usually enough.
For example, if the distance between the bottom of the glass and the shower tray is around 30mm, the correct bottom seal fin length will depend on the height of the threshold strip.
With RY3463, which is around 13mm high, a bottom seal fin of around 18–22mm is usually more suitable. That gives light contact without too much pressure.
With PV29, which is only around 5mm high, the bottom seal needs to reach further down. In that case, a fin closer to 26–30mm may be needed for the seal to meet the threshold properly.
The simple rule is this: the higher the threshold, the shorter the bottom seal fin can be. The lower the threshold, the longer the fin may need to be.
Many leaks continue not because the threshold strip is useless, but because the bottom seal and threshold strip were chosen separately. If the two parts do not meet lightly, water can still escape between them.
How to Properly Install Shower Threshold Strips
Fitting a threshold strip is not complicated, but the position matters.
Before removing the adhesive backing, place the strip where you think it should sit. Then slowly close the shower door and check three things: the door should open and close normally, the bottom seal fin should lightly touch the threshold, and the ends of the threshold should sit close to the wall, glass joint, or vertical profile.
Once the position looks right, clean the fitting surface properly. A self-adhesive threshold strip needs a dry, clean surface with no limescale, soap residue, grease, old adhesive, or cleaning product residue. A shower tray may look clean but still have a thin film on the surface, so this step is worth taking seriously.
When you are ready to fit the strip, remove the backing and press it firmly into place. Pay particular attention to the ends near the wall, corner, or glass profile. Even a small gap at the end can allow water to run behind the strip.
If you are using PV29 on a curved tray or quadrant enclosure, you can gently lift the last few millimetres of the strip at the end to create a small stop. Keep this subtle. The strip still needs enough flat contact with the tray for the adhesive to bond properly.
Where a Threshold Strip Is Most Useful
A threshold strip is especially useful where a bottom seal cannot fully protect the area on its own.
Typical examples include the hinge-side lower corner, a glass joint, the end of a fixed screen, or a small corner along the tray edge. These leaks are usually not caused by the entire bottom seal failing. Instead, water is finding one specific escape route.
The bottom seal deals with the gap under the glass. The threshold strip helps protect the tray edge or corner where water is getting past.
If water is leaking along the full bottom edge of the glass, check the bottom seal first. If water is concentrated near a hinge, joint, fixed screen end, or one small corner, a threshold strip is usually more worth considering.
Final Choice: D510, PV29, or RY3463?
Choose D510 if the fitting area is straight, flat, and open.
Choose PV29 if the tray is curved, the enclosure is quadrant-shaped, the leak is near a hinge or awkward corner, or you are unsure whether a rigid strip will sit flat.
Choose RY3463 if you need a taller water stop on a narrow straight area and there is enough clearance under the door.
The simplest way to remember it is:
Straight, flat edge: D510
Curved, awkward, or uncertain area: PV29
Narrow straight area needing a taller stop: RY3463
If you are still unsure, send us a few photos of the tray edge, glass bottom, existing bottom seal, hinge area, and leaking point. We can help you decide whether to replace the bottom seal first, add a threshold strip, and whether D510, PV29, or RY3463 is the closer match.
