Last updated: 27 April 2026
Not all shower door seals are the same.
Choosing the wrong type is one of the most common reasons for leaks, poor door movement, or seals wearing out too quickly.
This guide explains the main types of shower door seals used in UK bathrooms and how to choose the right one for your setup.
Quick Guide: Which Seal Do You Need?
- Sliding doors → Side fin or offset seals
- Hinged doors → Single fin or H-type seals
- Glass-to-glass → Magnetic seals
- Uneven gaps → Bubble or flexible seals

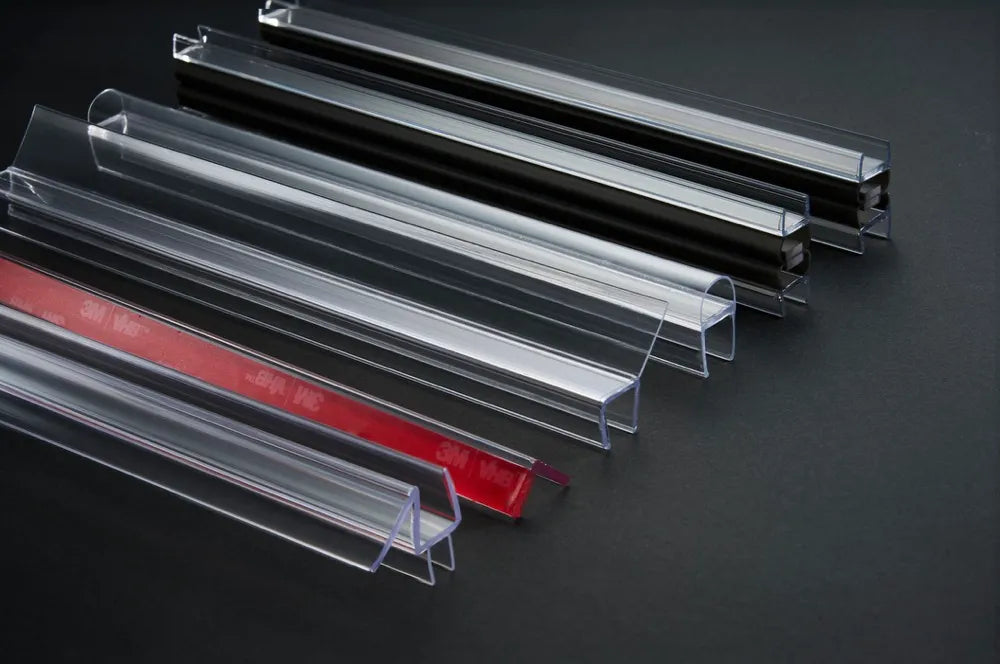

Main Types of Shower Door Seals Explained
Types of Bottom Shower Door Seals
Bottom shower door seals are one of the most common types of shower door seals used in UK bathrooms. They act as the primary barrier that helps prevent water escaping onto the floor.
Because they are exposed to constant water flow and daily movement, choosing the right type is important for both performance and durability.
Common types of bottom shower door seals include:
1. U-Shape Glass Protectors
A simple rigid U-channel design without fins.
Best For: Protecting the edges of framed doors.
Function: Acts as a protective buffer, helping prevent direct contact between glass and surrounding surfaces.
2. Single Fin Bottom Seals
The most widely used option in UK bathrooms.
Best for: Hinged and pivot doors.
Function: A flexible fin deflects water back into the shower tray.
3. Double Fin Bottom Seals
Provides two points of contact for improved water control.
Best for: Higher water pressure setups.
Note: May create slightly more friction when opening or closing the door.
4. Side Fin Bottom Seals
Includes a lateral fin to redirect water.
Best For: Sliding shower doors, doors with raised threshold tracks, or enclosures with uneven bottom gaps.
Function: Helps manage water flow before it reaches the edge.
5. Offset Fin Seals
In this design, the fin is not centred but extends from the side of the U-channel.
Best For: Scenarios where the glass is not centred on the shower tray edge or where obstacles, such as raised hinges, must be bypassed.
Function: Provides a flexible mounting position to ensure a tight seal in complex or bespoke installations.
6. Bubble Bottom Seals
Features a compressible hollow shape.
Best for: Uneven gaps and bath screens.
Note: Not recommended for sliding doors due to friction.
7. Adhesive Bottom Seals
Stick directly onto the glass surface.
Best for: Installations where clip-on seals are not suitable.
8. Curved Bottom Seals
Designed for curved or quadrant enclosures.
Function: Follows the shape of the glass for a consistent seal.
👉 Browse: Our Full Collection of Shower Door Bottom Seals
Types of Vertical Shower Door Seals
Vertical shower door seals are another important type of shower door seal, used along the sides of the door to prevent water escaping between glass panels or walls.
Common types include:
1. Bulb (Bubble) Seals
Compressible seals that adapt to slight misalignment and door movement.
Best for: Doors that may shift slightly during use or where the gap is not perfectly even.
H-Type Shower Door Seals
One of the most widely used vertical shower door seal types in UK bathrooms, designed to bridge gaps between glass panels or between glass and wall.
There are several variations of H-type seals:
Small ‘h’ profile
The most common design, featuring a rigid U-channel and a flexible fin.
Best for: Pivot doors and straight glass-to-glass gaps.
Function: The fin acts like a wiper, maintaining contact with the adjacent surface.
Installation tip: Position the flexible fin on the inside of the shower to help direct water back into the tray.
Heavy-duty ‘h’ profile (offset fin)
A reinforced version designed for improved durability and slightly misaligned panels.
Best for: Folding doors or installations where panels are not perfectly aligned.
Function: The offset fin helps maintain coverage across uneven gaps while reducing friction during movement.
👉 Browse: Professional h-Profile Seals for 4mm - 10mm Glass
Large ‘H’ profile
A symmetrical design with two rigid channels.
Best for: Fixed glass panels or older 180° sliding door systems.
Note: Less common in modern UK bathrooms due to more complex installation and lower flexibility.
Types of Frameless Magnetic Shower Door Seals
Frameless magnetic shower door seals are designed specifically for glass-to-glass shower doors without metal frames.
They use built-in magnetic strips to create a tight seal when the door closes, helping prevent water leakage along the vertical edge.
Common types include:
1. 90° Magnetic Seals
Designed for doors that meet at a right angle.
Best for: Corner shower enclosures or quadrant doors.
Function: The magnets pull the two panels together at a 90° angle, creating a watertight seal.
2. 135° Magnetic Seals
Used for angled glass connections, typically in pentagon-style enclosures.
Best for: Neo-angle or pentagonal shower enclosures.
Function: Ensures consistent contact across angled glass panels.
3. 180° Magnetic Seals
Designed for straight, inline glass-to-glass doors.
Best for: Inline frameless shower doors.
Function: Provides a clean, seamless closure between two straight glass panels.
👉 Browse: Frameless Magnetic Shower Door Seals
Types of Framed Shower Door Seals
Framed shower door seals are a specialised type of shower door seal designed for metal frame systems.
Unlike frameless designs, these seals are installed into pre-formed slots within the aluminium frame, helping prevent water build-up and protecting the structure over time.
Common types of framed shower door seals include:
1. T-Type Shower Door Bottom Seals
One of the most common framed shower door seal types used in UK bathrooms.
Best for: Bi-fold doors and pivot doors with aluminium frames.
Function: The "T" shaped head slides into a dedicated T-slot channel at the base of the frame, creating a secure fit.
Sizing tip: Measure the width of the slot, typically between 3mm and 10mm.
A seal that is too wide may not fit, while one that is too narrow may move during use.
👉 Browse: T-Section Seals for Bi-fold & Framed Enclosures
2. Magnetic T-Section Vertical Seals
A specialised type of framed shower door seal, designed to slide into vertical aluminium channels.
These seals feature an integrated magnetic core, allowing the door to close securely when the panels meet.
Best for: Sliding doors, curved enclosures, and framed shower doors with vertical tracks.
Function: The magnetic strip creates a firm closing contact between door panels, helping reduce water escape along the vertical edge.
Installation tip: Magnetic seals must be installed in matching pairs.
Note: Each strip has a specific polarity — incorrect pairing can cause repulsion, preventing the door from closing properly.
👉 Learn more: Why is my shower door magnetic strip not working?
👉 Shop: Magnetic Seal Series for Sliding & Curved Framed Doors
FAQ
What is the most common shower seal?
The most common type of shower door seal in UK homes is the single fin bottom seal, especially for hinged doors.
How do I know which seal I need?
You need to identify your glass thickness, gap size, and door type before choosing a suitable seal.
Can I replace a shower seal myself?
Most shower door seals are designed for DIY replacement and can be installed without specialist tools.
Why is my shower still leaking?
Leaks are often caused by choosing the wrong type of shower door seal or incorrect installation.
Summary: Choosing the Right Type of Shower Door Seal
The best type of shower door seal depends on your door design:
Bottom seals → Prevent water escaping onto the floor
Vertical seals → Seal gaps between panels or walls
Magnetic seals → Secure glass-to-glass closure
Framed seals → Fit into aluminium channels
Understanding these types of shower door seals helps you choose a more reliable and longer-lasting solution.
