A lot of bottom shower door seals look much the same at first. The real differences often only become obvious once they are fitted.
A channel that is too wide can leave the seal loose on the glass. A fin may look long enough on the product page but turn out to be too stiff to work properly with the actual gap. A low drip rail can also mean water is not guided back into the shower tray as effectively as it should be.
At SIMBA Seals UK, we look less at whether a seal simply looks thick or clear, and more at how it behaves once fitted: how accurately the channel is made, how securely it grips the glass, how the fins move, and whether the seal keeps its shape in use.
A Good Bottom Seal Should Grip the Glass Properly
The first job of a bottom seal is not simply to fit over the glass. It needs to stay there.
A product may be listed for 8–10mm glass, but that is only a stated range. What really matters is whether the U-shaped channel has been made to the right size.
If the channel is too wide, it may feel loose even on 10mm glass. On 8mm glass, the movement can be much more obvious.
We fitted one replacement seal that was sold for 8–10mm glass to an 8mm panel. Once in place, the seal could move from side to side quite noticeably. The issue was not that the glass was outside the stated range. The channel itself was simply quite wide.

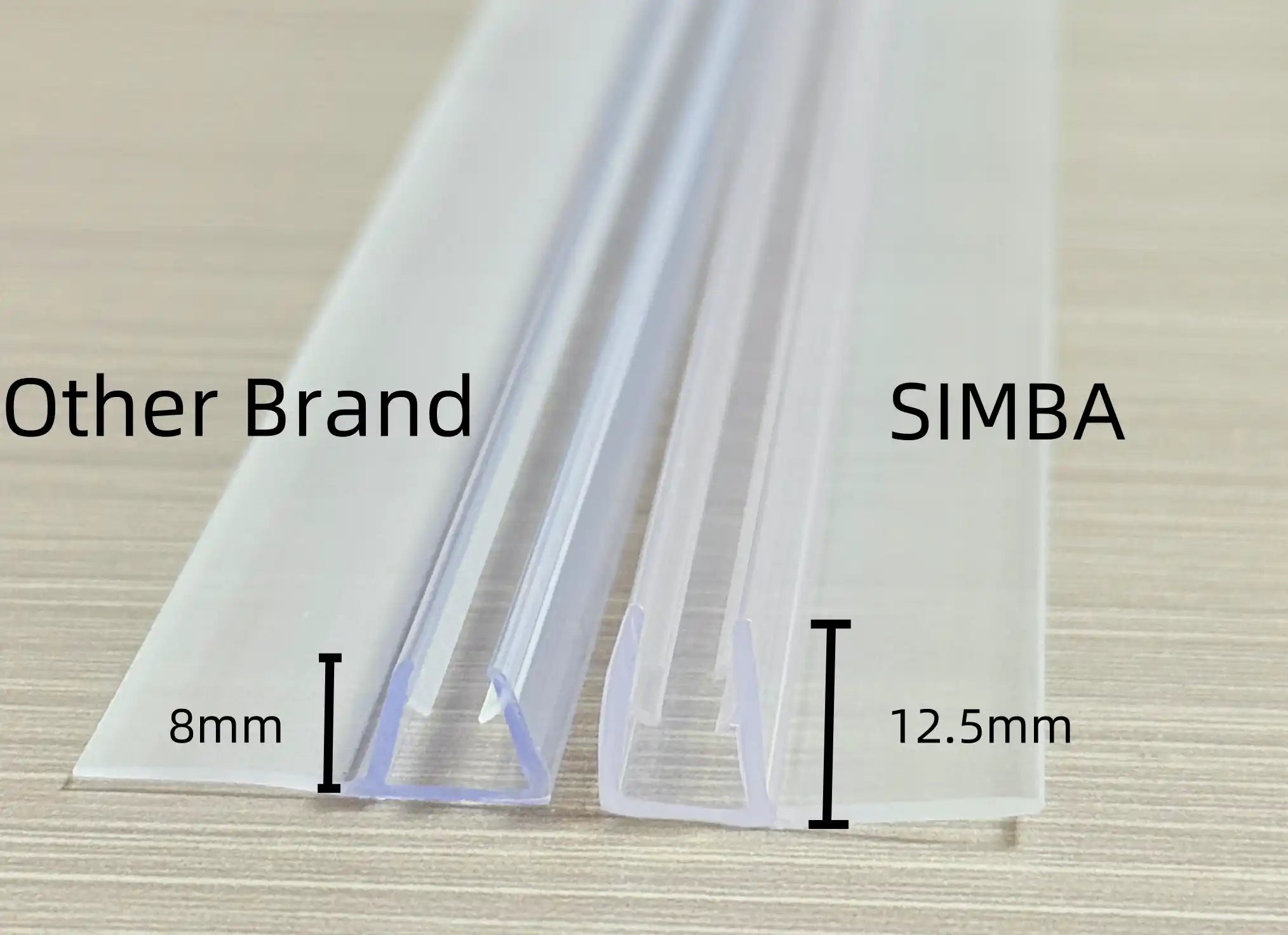

The height of the U-channel matters too. This is the amount of the glass edge that the seal actually covers.
If the channel is already loose and also quite shallow, the seal has less glass to hold onto. Each time the door opens and closes, the bottom fins can pull at the whole strip. Over time, that can make the seal slip down, and in some cases it may need pushing back into position.
Many SIMBA bottom seals use a U-channel height of around 11–12.5mm or more, depending on the model and what it is designed for.
That does not mean taller is always better. The width still needs to suit the glass. The point is to get the right combination: an accurate channel width and enough depth to give the seal a stable hold.
Put simply, the channel width affects how accurately the seal grips, while the channel height affects how securely it stays in place.
A closer fit can also make the inside of the seal easier to keep clean.
Water can still find its way between the glass and the U-channel, but a loose seal leaves more room for water, soap residue and limescale to collect.
That does not mean a deeper channel will prevent mould. Humidity, ventilation and cleaning all play a part. But where the fit is accurate and the shower bottom seal sits closely against the glass, there is less unnecessary space for dirt and moisture to sit.
Clear PVC Does Not Automatically Mean Better PVC

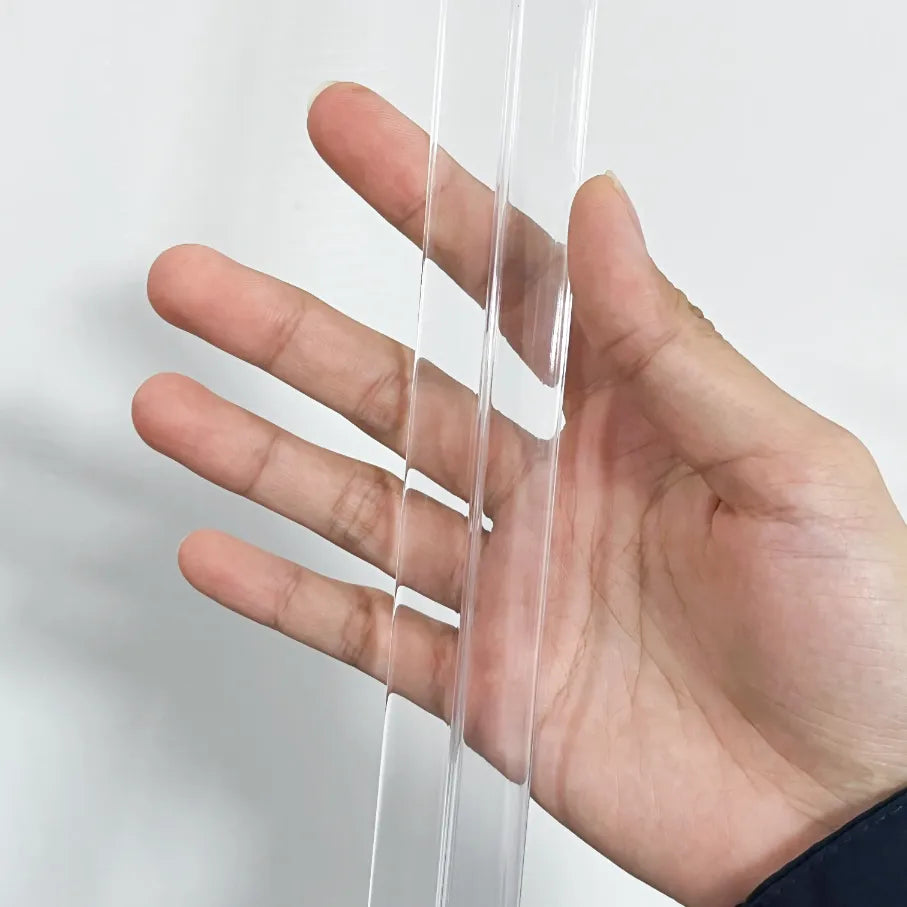

It is easy to assume that the clearest seal is the best one.
In practice, appearance only tells you so much.
The formulation, thickness, surface finish and even the lighting in a product photo can affect how clear a seal looks. A slight blue tint or some cloudiness on its own does not prove that the material is poor.
What matters more is whether the appearance is even, how the material changes with use, whether it becomes brittle, and whether the softer parts keep their flexibility.
SIMBA uses PVC that meets REACH requirements and has been checked for SVHC compliance.
We also carry out controlled in-house comparisons to see how materials behave under the same conditions.
In one test, samples were exposed to around 50°C with continuous light for 87 hours. The comparison sample showed more obvious yellowing and surface change, while the SIMBA sample did not show the same level of visible change.
That sort of test does not tell us how many years a seal will last in a real bathroom.
It does give us a useful way to compare how different materials behave when they are put through the same conditions.
A Longer Fin Is Not Always Better
Many people look at fin length first when choosing a bottom seal.
That makes sense. The fin needs to reach across the gap between the glass and the shower tray.
But longer does not always mean more suitable.
A fin that is too short may not reach the tray properly. A fin that is much too long, especially if it is fairly stiff, can cause a different problem: it may not bend naturally when the door closes.
We tested one replacement seal that was advertised for a gap of around 20mm.
Once fitted, the long bottom fin extended roughly 10mm beyond what the actual gap needed, and the material was quite stiff. When the door closed, the fin did not settle neatly underneath the glass. It was pushed outwards instead, leaving a small triangular section sticking out at the corner.
On a product page, a longer fin can look as though it will cover more.
In real use, if the length and flexibility are wrong for the gap, it may do the opposite.
So it is not enough to read:
Suitable for 20mm gap
You also need to think about how flexible the fin is, and what it actually does when the door moves.
Fin length, fin flexibility and door movement all need to work together.
The Join Between the Soft Fin and the Rigid Channel Matters
Some weaknesses do not show up when a seal is brand new.
They become clearer after the door has been opened and closed many times.

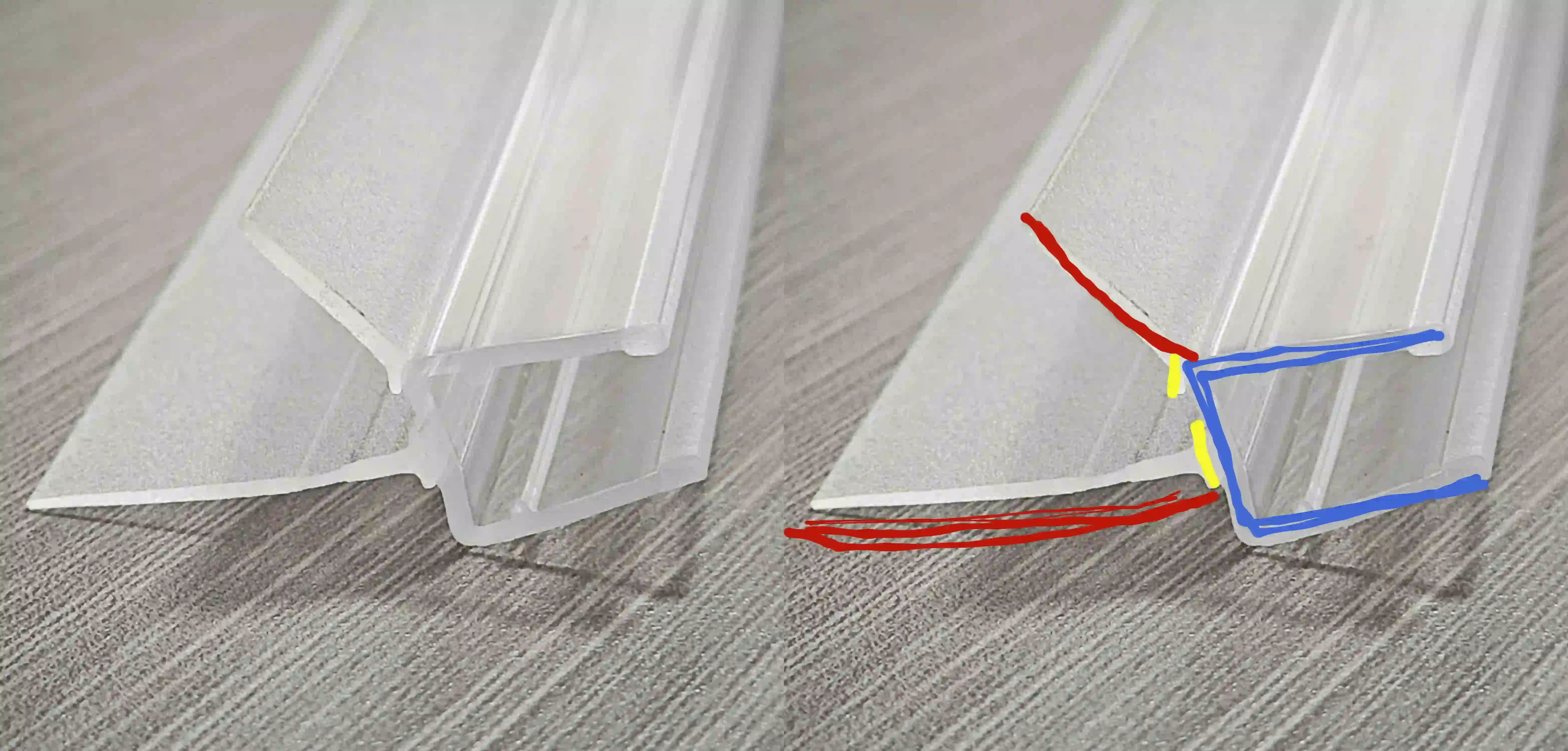

On a bottom seal with a rigid U-channel and a soft fin, the join between those two parts is worth checking.
If the connection is weak, the fin may eventually start to split, whiten around the joint, peel away or separate from the harder section.
Some SIMBA bottom seals use a reinforced connection in this area.
The aim is not to make the whole seal as stiff as possible. The soft section still needs to move. The important part is that the join can cope with that repeated movement without failing too quickly.
The Short Drip Rail Matters Too
The long bottom fin is usually the part people notice first.
The shorter drip rail beside it is easy to overlook.
Its job is to help direct water running down the glass back towards the shower area, rather than letting it carry on towards the outside edge.
If that shorter fin sits too low, or the angle is too shallow, the water may not be guided back as effectively.
The replacement seal mentioned earlier showed this as well.
Its short drip rail sat quite low, so more water reached the outer long fin. That long fin was already too long and too stiff for the gap.
Together, those problems made the corner more likely to lift and leak.
So when looking at a bottom seal, do not only ask:
“How long is the main fin?”
Also look at whether the short drip rail is actually positioned to send water back towards the shower.
At SIMBA, we look at the long fin, the drip rail and the actual gap together rather than judging any one of them on its own.
Where is the drip rail?
A Few Signs That Are Worth a Closer Look
One issue on its own does not automatically mean a seal is poor quality.
Several issues together are more telling.
A seal may be listed for the right glass thickness but still feel loose once fitted. The U-channel may distort very easily. The dimensions may change along the length, or the fin may be so stiff that it hardly follows the gap at all.
Some problems are easier to spot straight away. The seal may already be twisted when it comes out of the packaging. The hard and soft sections may not meet cleanly. The edges may look rough, or the long fin may keep turning outwards once the seal is fitted.
Sometimes all the expected features are there on paper.
There is a long fin. There is a drip rail. The product page gives a generous gap range.
But once fitted, the channel is loose, the fin is too stiff and the drip rail sits too low.
In that situation, the problem is not that one feature is missing.
The dimensions, structure and material simply are not working together particularly well.
How SIMBA Tests Bottom Shower Door Seals
At SIMBA Seals UK, we do not judge a seal only by how it looks when it first comes off the production line.
Depending on the profile, we look at things such as dimensional consistency, how securely it grips the intended glass thickness, whether the softer sections become noticeably harder at low temperatures, and how the hard and soft parts behave after repeated movement.
Selected profiles also go through repeated-use testing.
For example, we carry out 30,000-cycle durability testing on certain seals to see how the profile behaves after a large number of repeated movements.
That does not allow us to say that a seal will definitely last a certain number of years.
Real lifespan depends on fitting, frequency of use, bathroom conditions and maintenance.
What the test does show is whether the profile develops obvious splitting, separation, permanent distortion or other structural changes after repeated movement.
For us, a good bottom shower door seal is not simply the thickest, longest or clearest one.
The dimensions need to be accurate. It needs to stay secure on the glass. The fin should suit the actual gap and still move properly. The drip rail should help send water in the right direction, and the material and joints need to cope with normal use.
In practical terms, good quality means something much simpler:
It fits properly, stays in place, and the different parts of the seal actually do the jobs they were designed to do.
That is also why, when we help customers choose a replacement, we normally start with the glass thickness and bottom gap, rather than looking for the thickest or longest seal available.
If the fit is wrong, extra material does not make it the right seal for the door.
