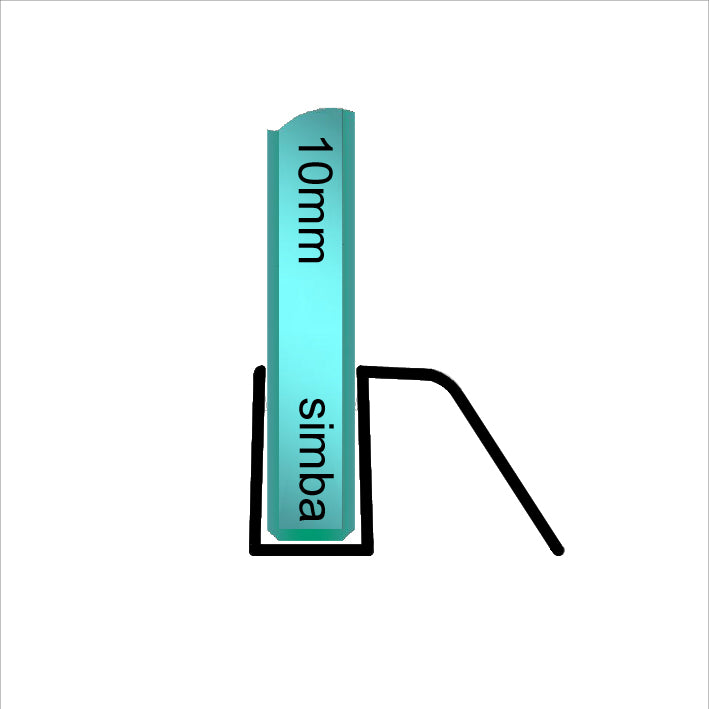

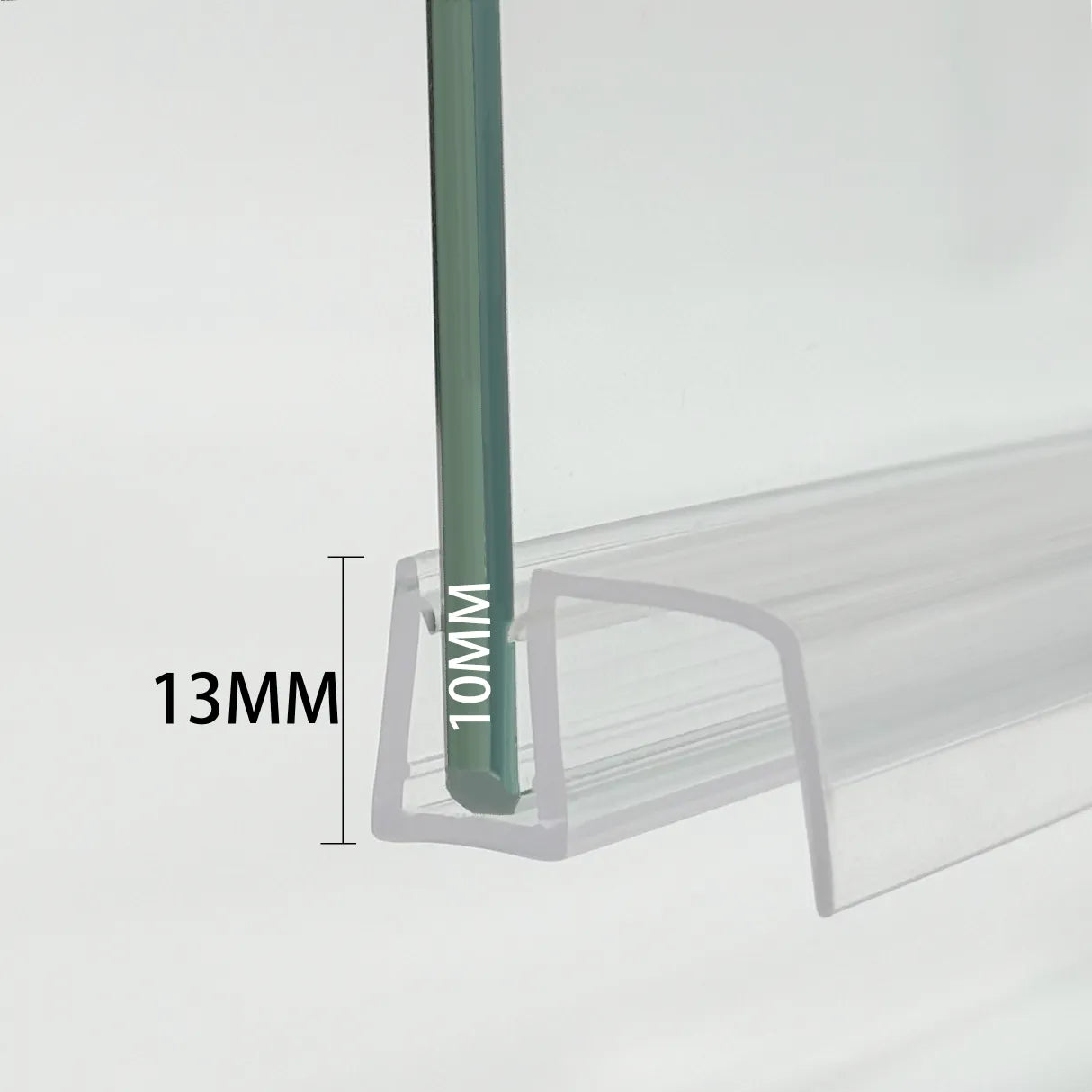

• Installed profile of the S10DTL extra-thick 10mm shower bottom gasket, demonstrating its high-load gripping power on heavyweight glass and the precise alignment of side fins for a universal zero-gap fit.

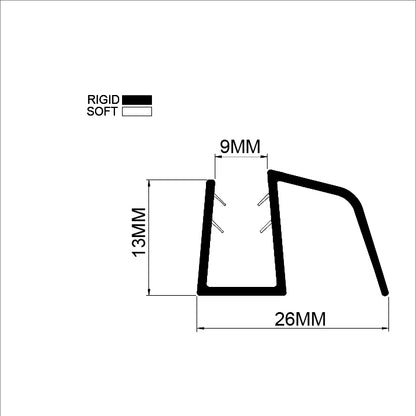

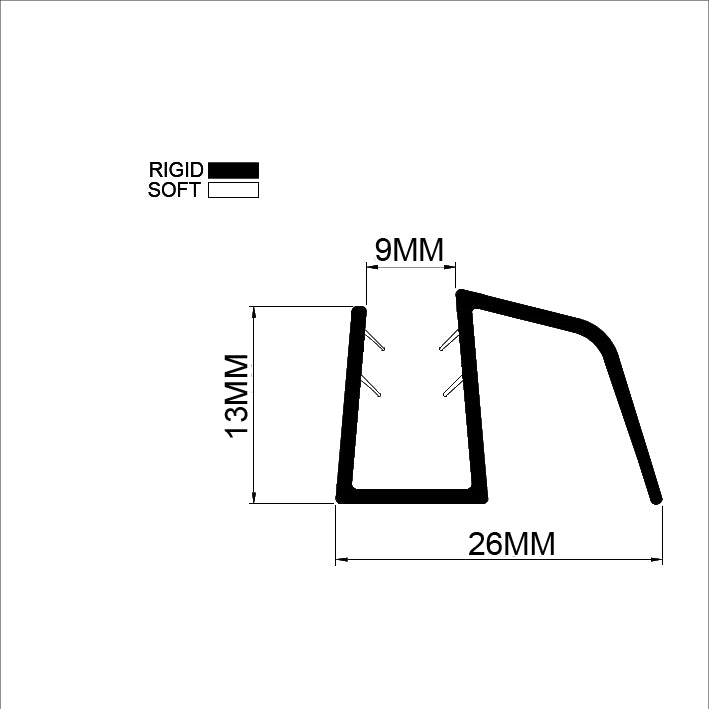

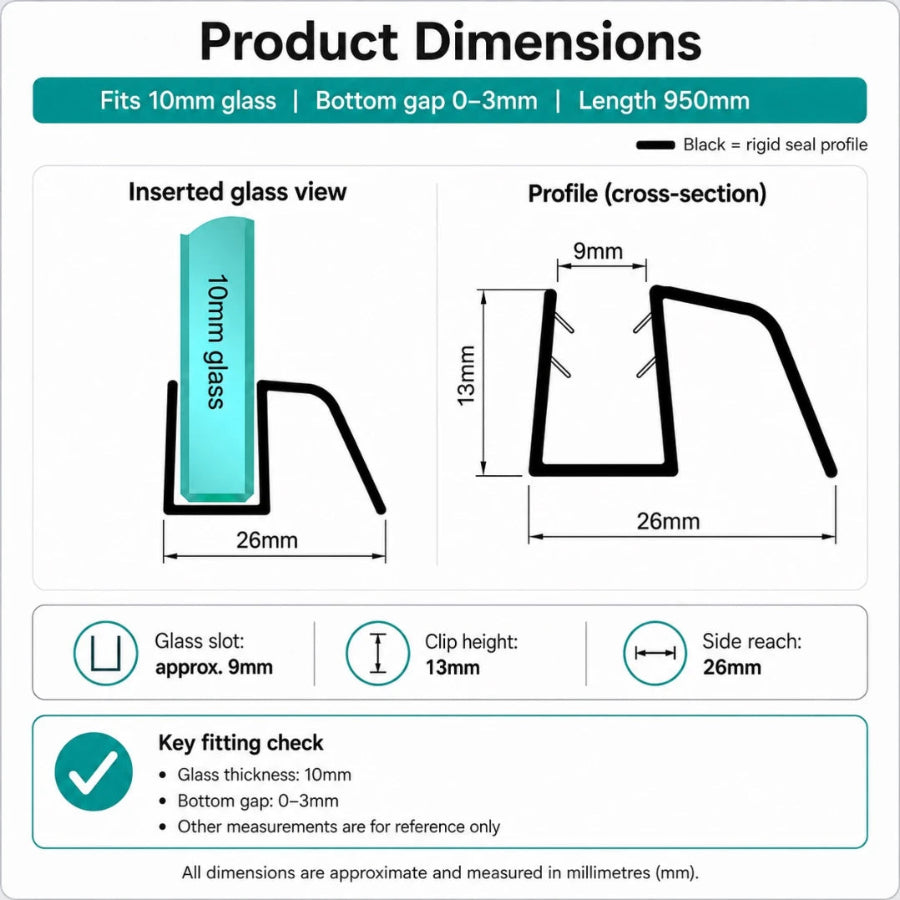

  • Engineering diagram of the S10DTL 10mm zero-gap strip, specifying the reinforced inner channel width and extended fin dimensions designed to accommodate the tolerance of premium thick glass installations.

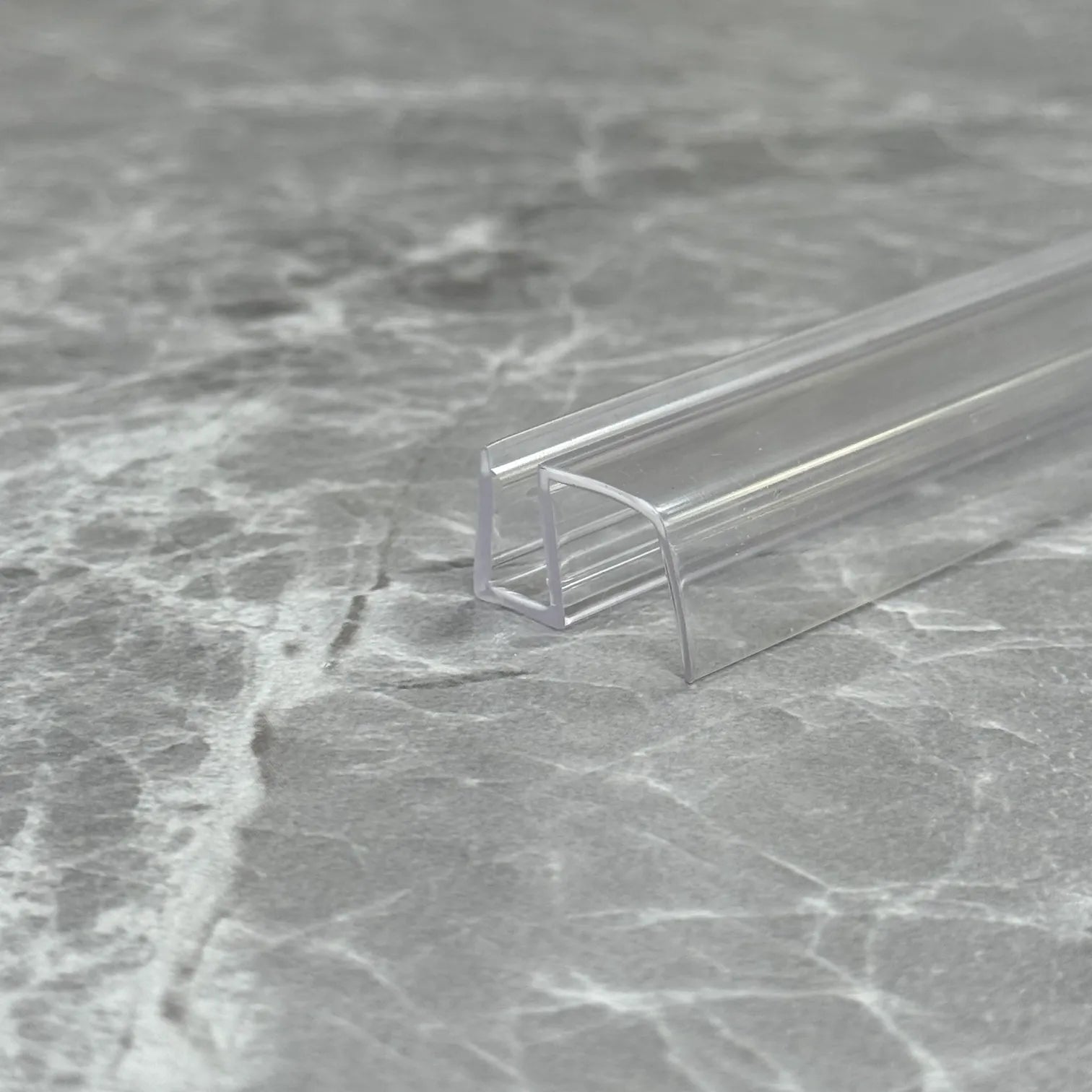

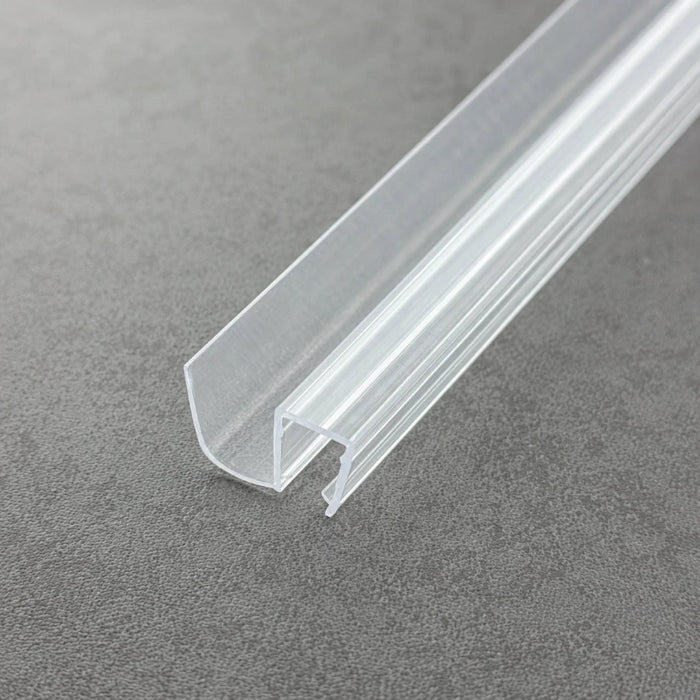

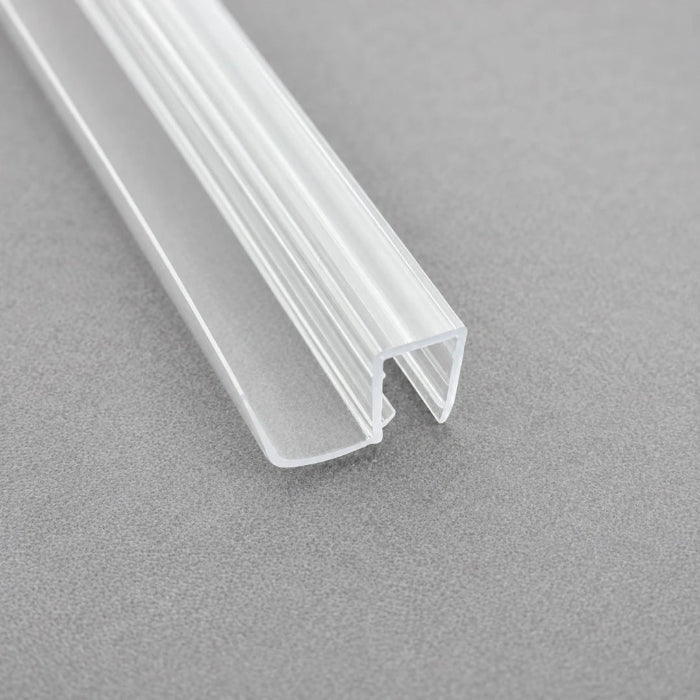

  • Macro detail of the S10DTL transparent U-channel, highlighting its high-density material composition and optical clarity that remains distortion-free even under the pressure of 10mm glass panels.

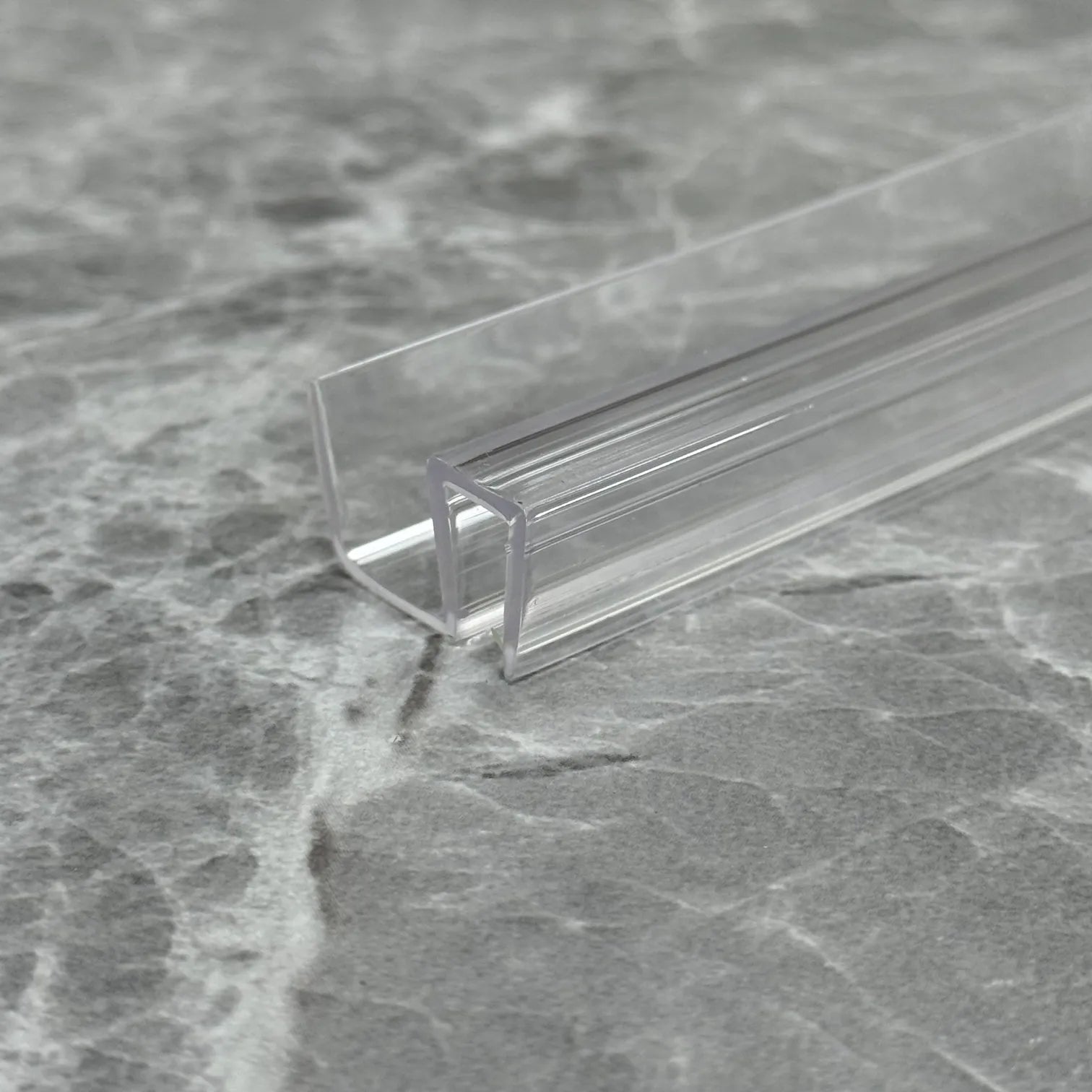

  • Close-up of the S10DTL crystal-clear body and adaptive side fins, showcasing superior flexibility and transparency suitable for any shower door mechanism, from pivot to bi-fold systems.
  • 8mm frameless shower door bottom seal suitable for sliding and hinged shower doors
1 6

10mm Glass Shower Door Bottom Seal with Side Fin Small Gap Seal S10DTL

£14.88
£20.88 £14.88
Sold out
-29%
Taxes included. Shipping calculated at checkout.
Total Length: 1000mm
Gap: Seal 0mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down


Key specifications

Catalog no.
S10DTL
Glass thickness
10mm only
Suitable bottom gap
Approx. 0mm – 3mm
Length
1000mm – easy to trim to size
Pack Quantity
Single / 1 piece
Seal position
Bottom shower door seal
Best for
Thicker 10mm frameless glass panels and heavier shower doors
Main feature
Side extended rigid fin to help guide water back into the shower area
Installation direction
Fit with the rigid fin facing inside the shower area
Suitable door types
Sliding doors, shower screens and hinged shower doors
Not suitable for
4mm / 5mm / 6mm / 8mm glass, curved door bottoms or framed doors
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This listing is for the 10mm glass, 1000mm version only.

This seal is suitable if:

  • Your glass is 10mm thick.
  • You need a bottom seal, not a side seal.
  • Your bottom gap is about 0mm to 3mm.
  • Your shower door bottom is straight.
  • Your required length is 1000mm or less.
  • You can fit the seal with the rigid fin facing inside the shower area.

Choose another seal if:

  • Your glass is 4mm, 5mm, 6mm or 8mm.
  • Your bottom gap is larger than 3mm.
  • Your door bottom is curved.
  • You need a seal longer than 1000mm.
  • You need a magnetic seal, vertical side seal, guide rail seal or track seal.
  • Your door has a metal frame or thick edge trim.

Need another size? Browse our 10mm and frameless shower door bottom seals range before ordering.

FAQ

1. What glass thickness does S10DTL fit?

It fits 10mm frameless glass only.

2. Is S10DTL suitable for heavy glass shower doors?

Yes. It is designed for 10mm frameless glass, which is commonly used on thicker and heavier shower doors.

3. Is this the same as S456DTL or S8DTL?

No. S456DTL fits 4–6mm glass, S8DTL fits 8mm glass, and S10DTL fits 10mm glass.

4. What bottom gap is this seal suitable for?

It is designed for very small bottom gaps, approximately 0–3mm.

5. Which way should the rigid fin face?

The side extended rigid fin should face inside the shower area to help guide water back into the shower.

6. Can I cut it to size?

Yes. The seal is 1000mm long and can be trimmed to the required length.

Suitable Applications

The S10DTL 10mm shower door bottom seal is designed for thicker frameless shower glass and heavier straight shower door panels.

It is suitable for 10mm sliding doors, shower screens and hinged shower doors with very small bottom gaps of approximately 0–3mm.

The rigid side fin should face inside the shower area to help guide water back in and reduce water escaping from the lower edge.

This seal is supplied as one 1000mm strip and can be cut to size.

It is not suitable for 4mm, 5mm, 6mm or 8mm glass, curved door bottoms, framed doors, larger bottom gaps, magnetic seals, guide rails or track seals.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Installed profile of the S10DTL extra-thick 10mm shower bottom gasket, demonstrating its high-load gripping power on heavyweight glass and the precise alignment of side fins for a universal zero-gap fit.
10mm Glass Shower Door Bottom Seal..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

10mm Glass Shower Door Bottom Seal with Side Fin Small Gap Seal S10DTL Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
