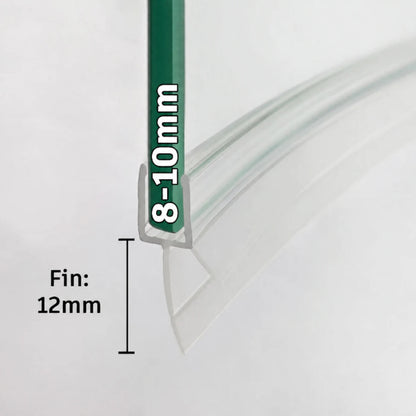

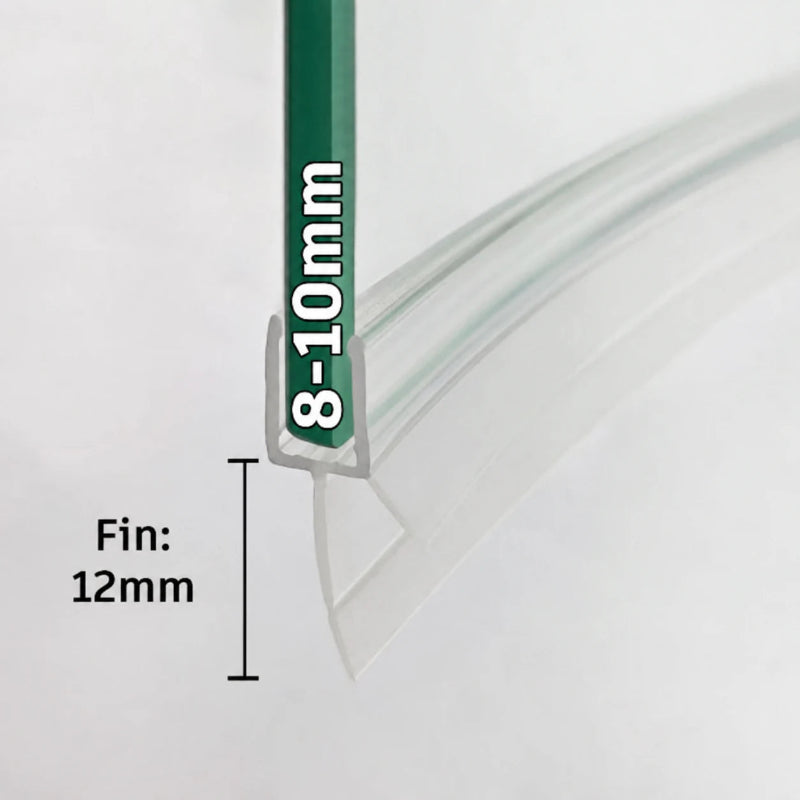

Curved Bottom Shower Screen Seal for 8–10mm Glass 12mm Fin V810S12CU

Key Specifications

Catalog No.
V810S12CU

Glass Thickness
8mm / 9mm / 10mm

Seal Type
Pre-curved bottom seal

Flexible Fin Length
12mm

Recommended Bottom Gap
Approx. 6–11mm

Suitable Curve Height
Approx. 80–160mm

Material

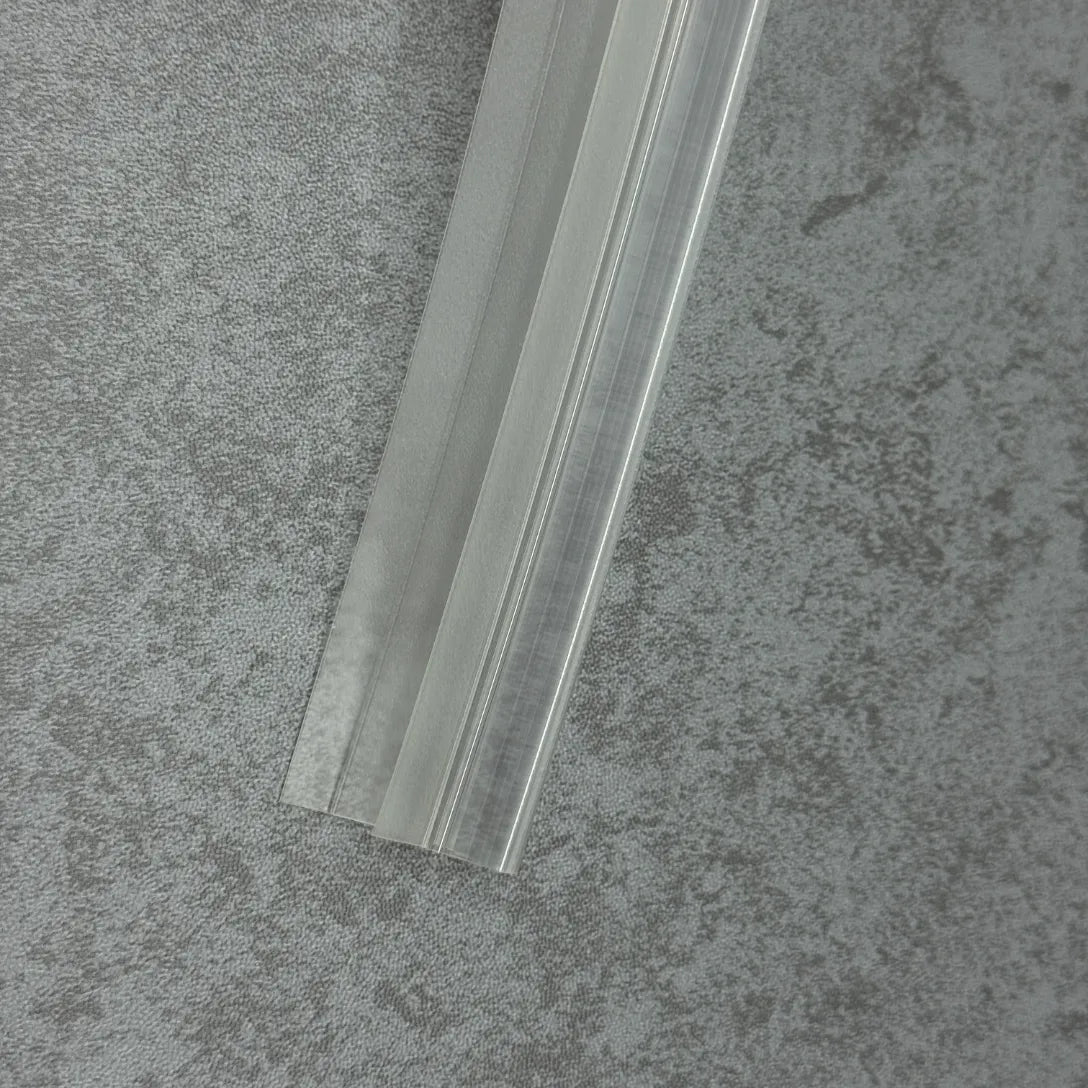

Clear flexible PVC

Length
1000mm – can be trimmed to size

Installation
Push-fit, no adhesive required

✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

• Your curved shower glass is 8mm, 9mm or 10mm thick.
• Your bottom gap is approximately 6–11mm.
• You need a 12mm flexible fin for a relatively small clearance beneath curved glass.

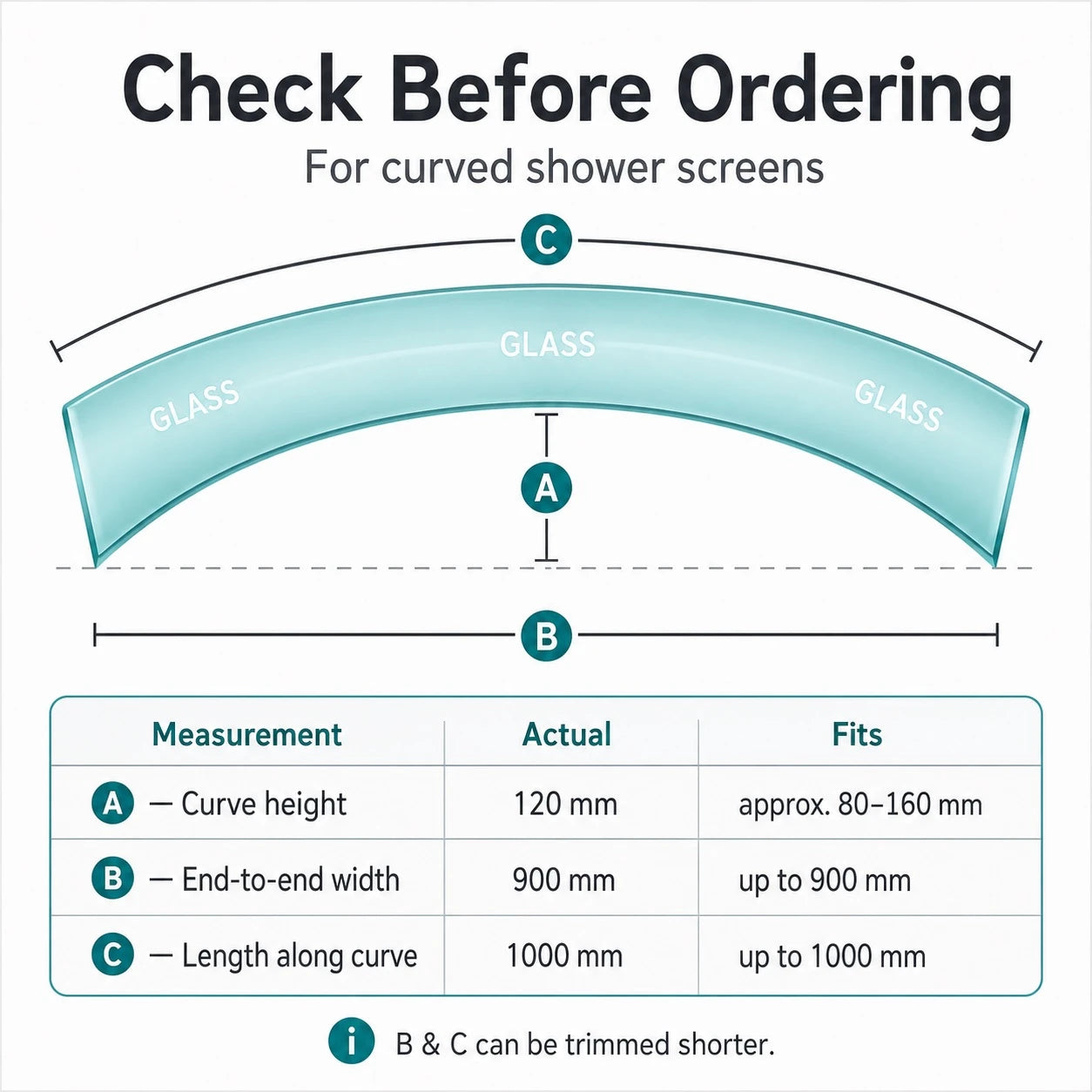

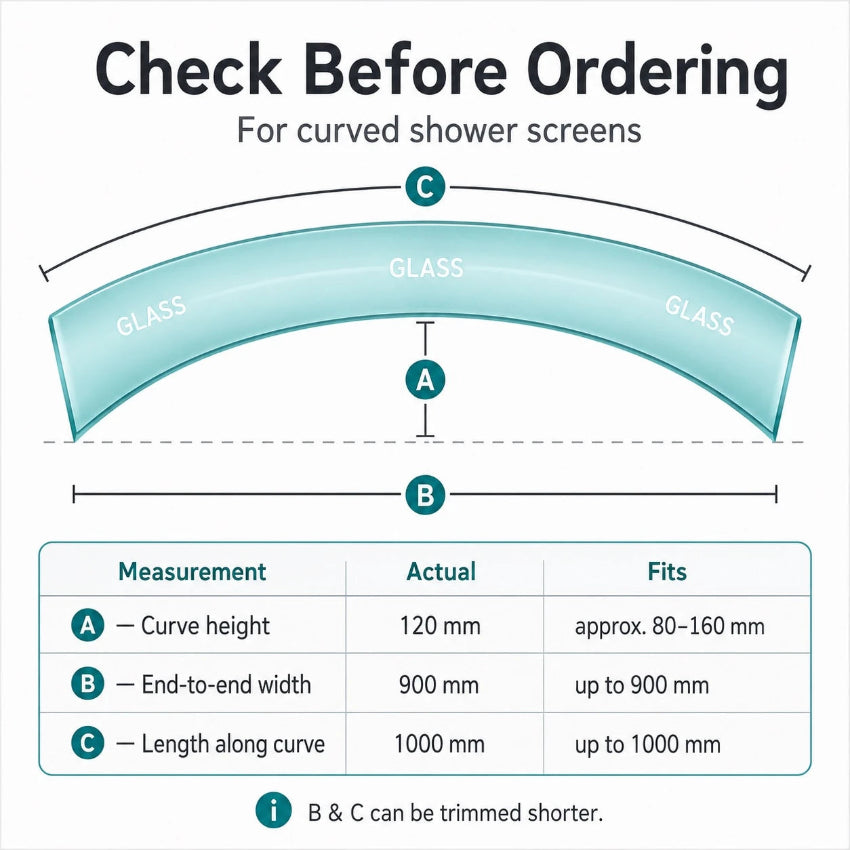

• The curve height shown in our guide is around 80–160mm.
• The lower glass edge is smooth and free from hinges or bulky fittings.
• Your required length is 1000mm or less.

Choose another seal if:

• Your glass is thinner than 8mm or thicker than 10mm.
• Your gap is much larger than 11mm.
• A frame, hinge or metal fitting obstructs the lower glass edge.
• The glass curve is well outside the measurements shown in our guide.

Not the right fit? Browse our curved shower screen seal range for other glass thicknesses and fin lengths.

Product Details

V810S12CU is a pre-curved bottom seal for 8–10mm curved shower glass, designed for smaller bottom clearances where a longer fin is unnecessary.

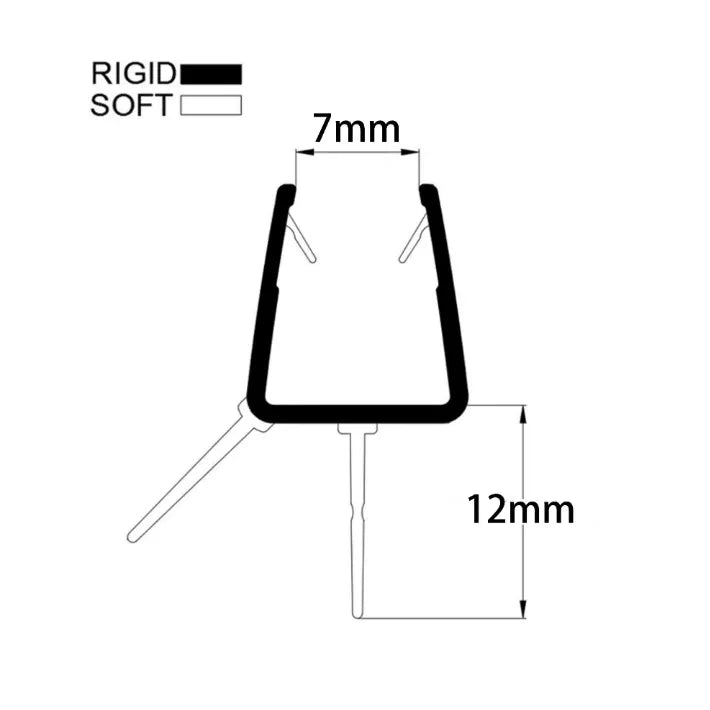

The 12mm soft fin is suited to gaps of around 6–11mm, helping maintain contact with the bath or shower tray without excessive folding.

Its push-fit channel is made specifically for thicker 8–10mm glass, so the main checks are the correct glass thickness, a smooth unobstructed lower edge and a compatible curve.

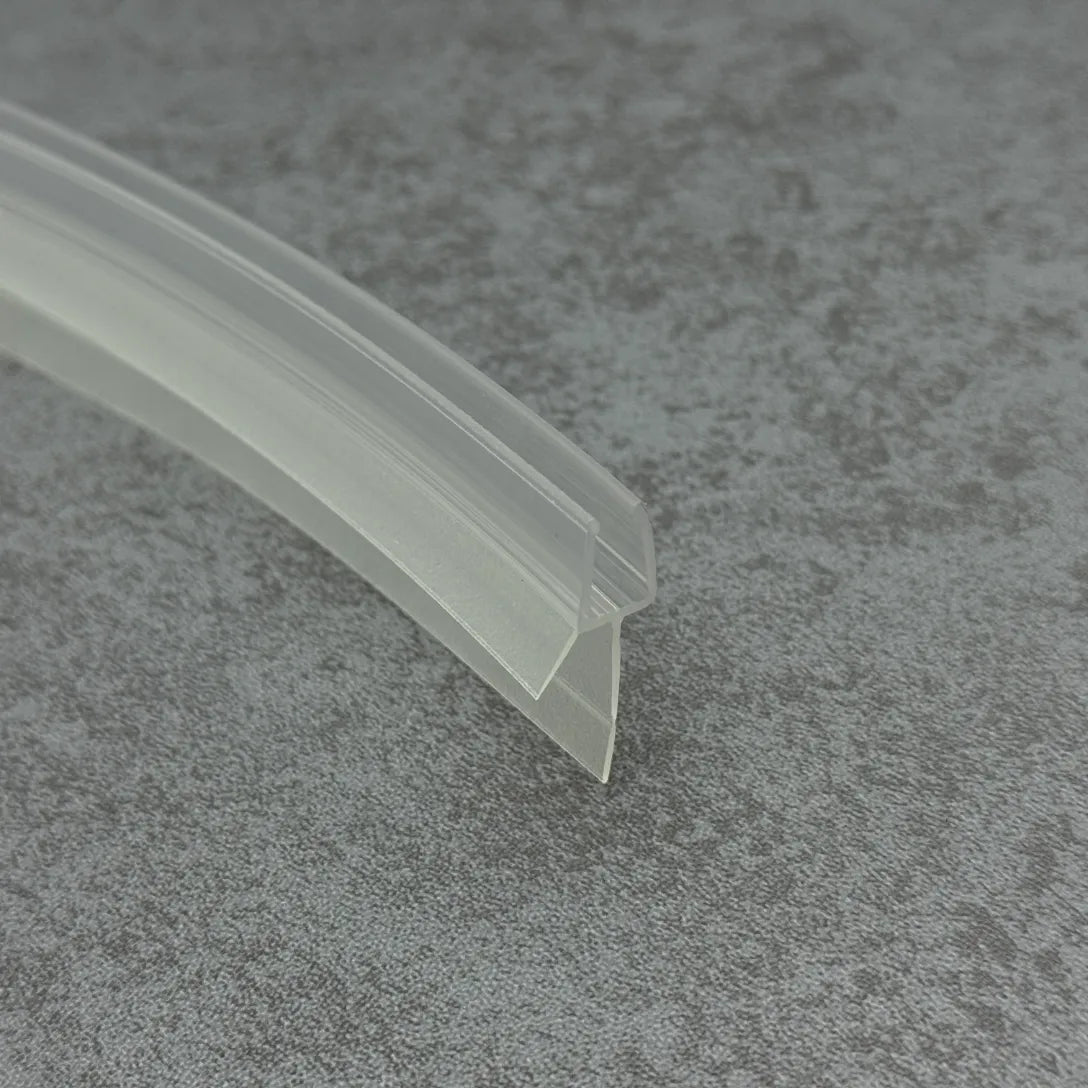

The profile is flexible enough to adapt to a range of curved screens, so the old seal does not need to have exactly the same curve.

Do not heat the seal to reshape it, as this can distort the gripping channel and reduce its hold on the glass.

Supplied in a 1000mm length and can be trimmed before fitting.
