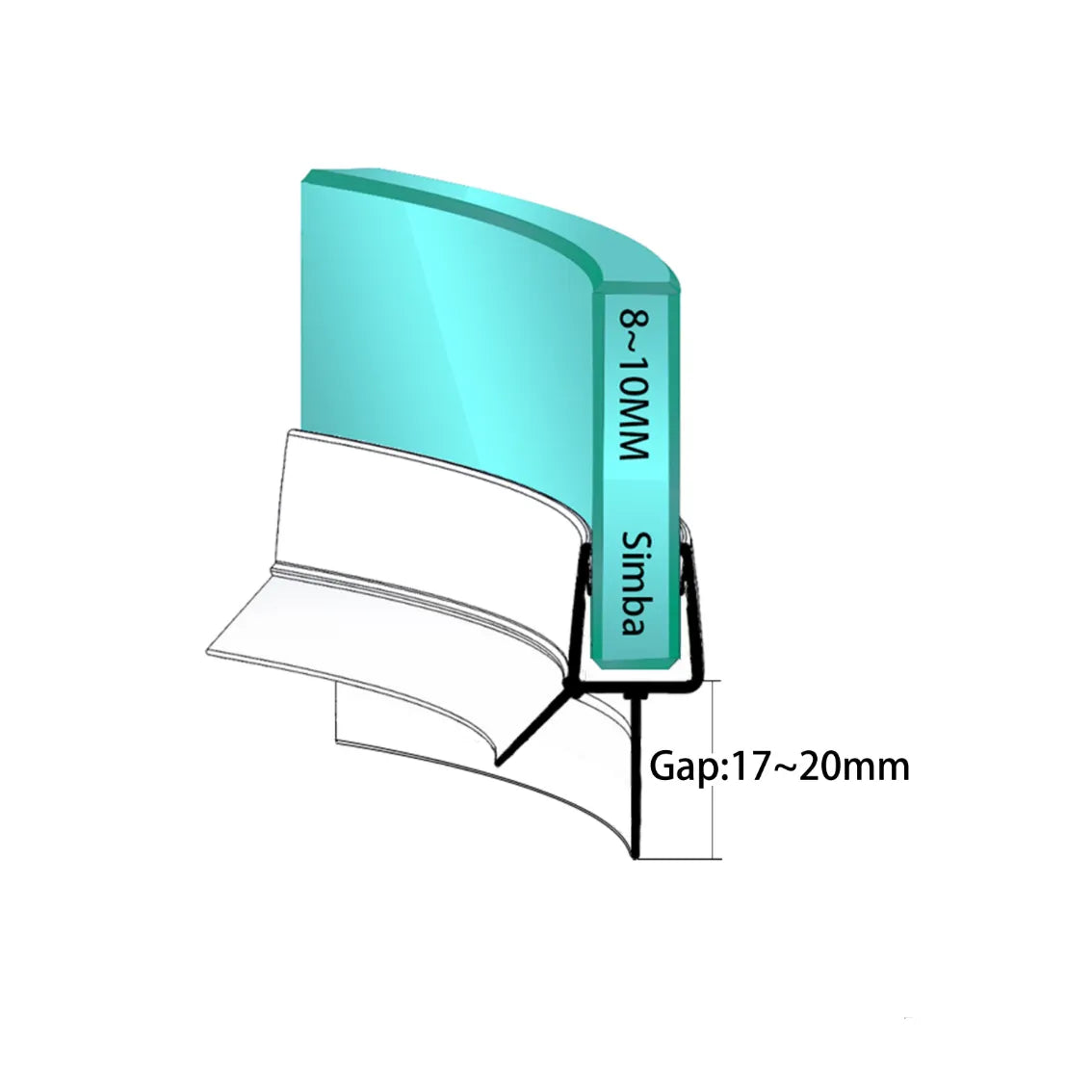

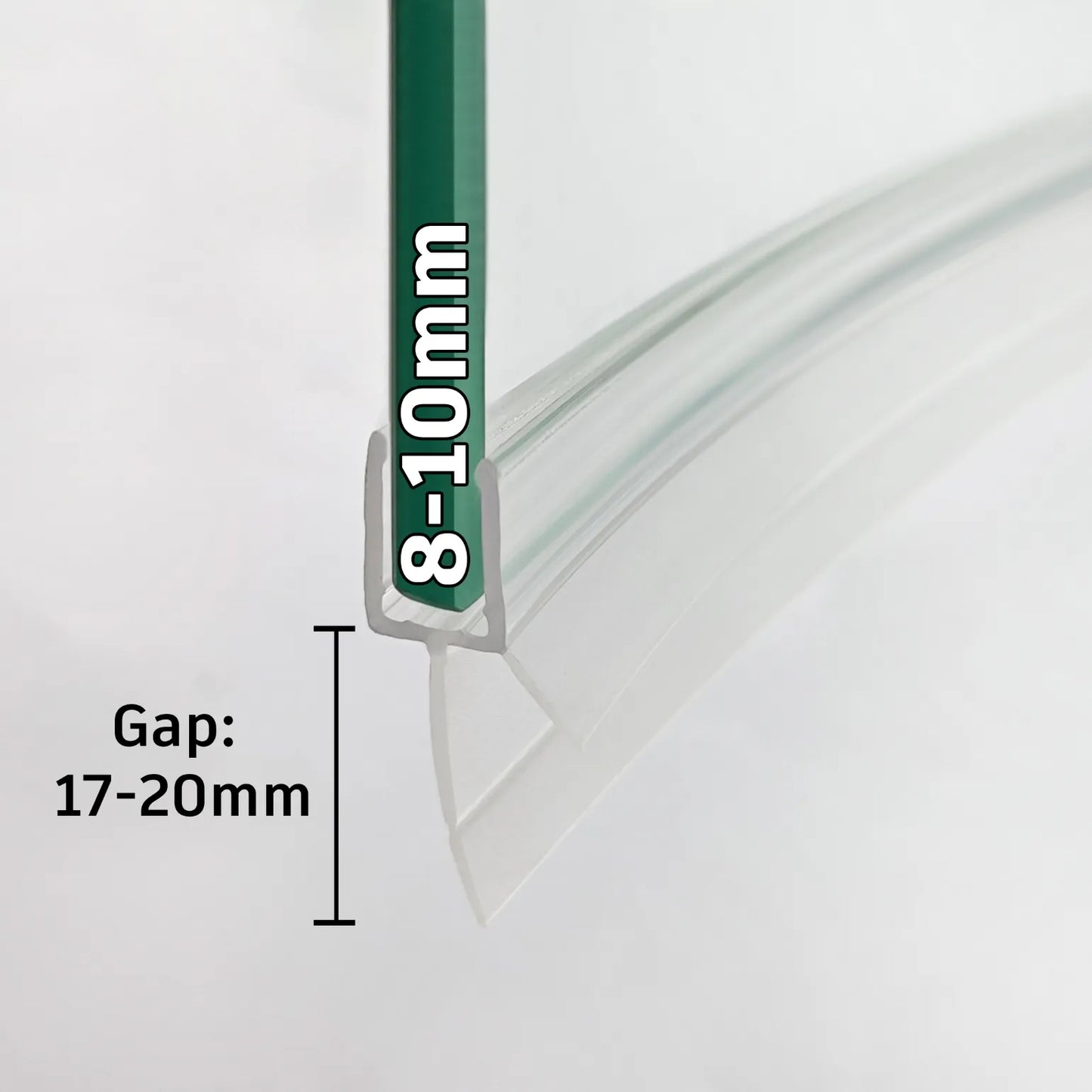

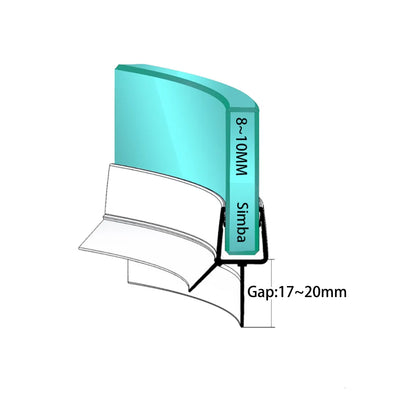

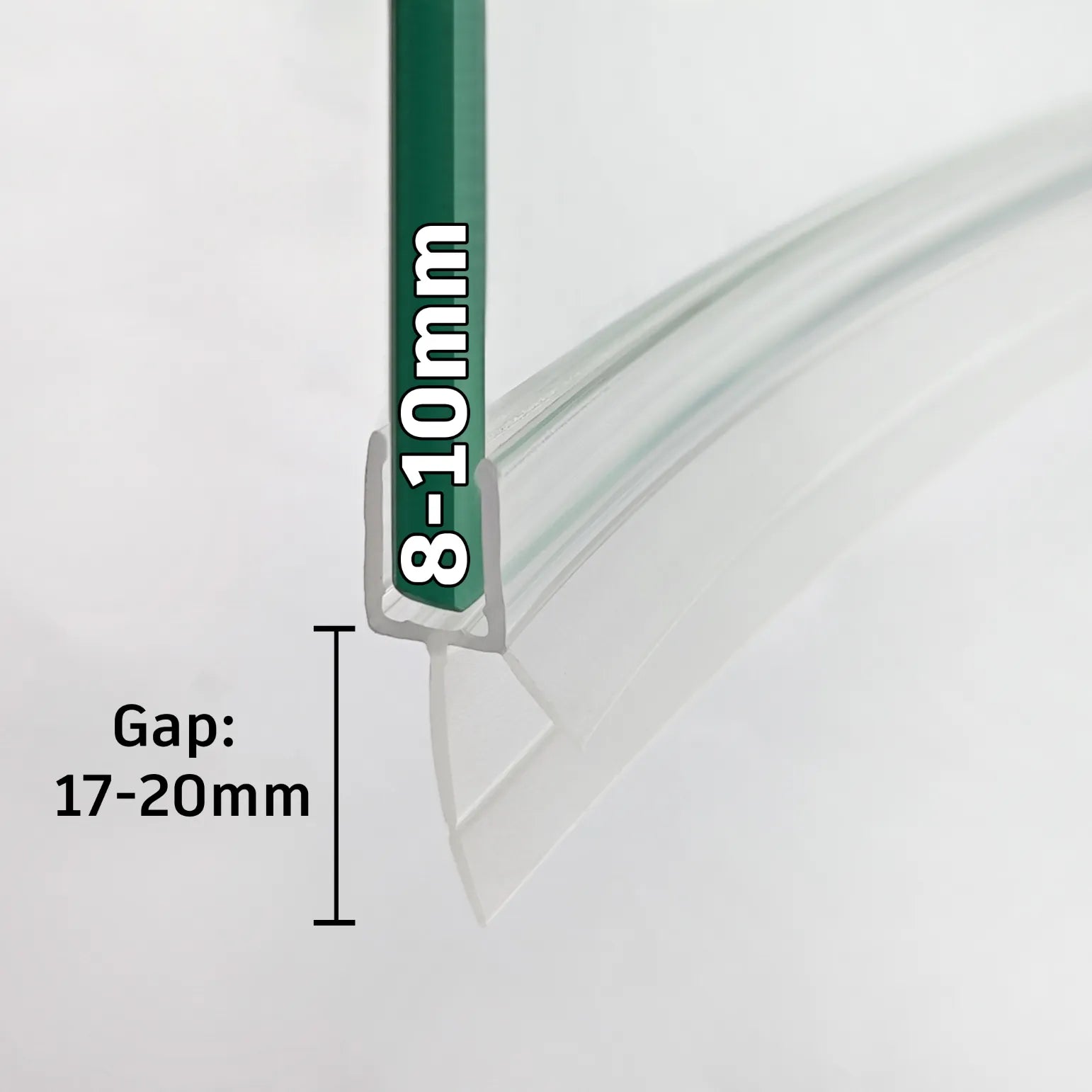

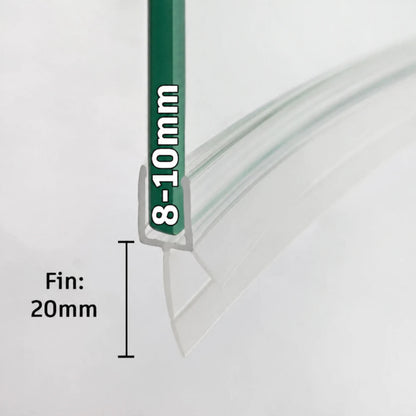

• V810S20CU curved bath screen seal for 8-10mm glass with 20mm fin

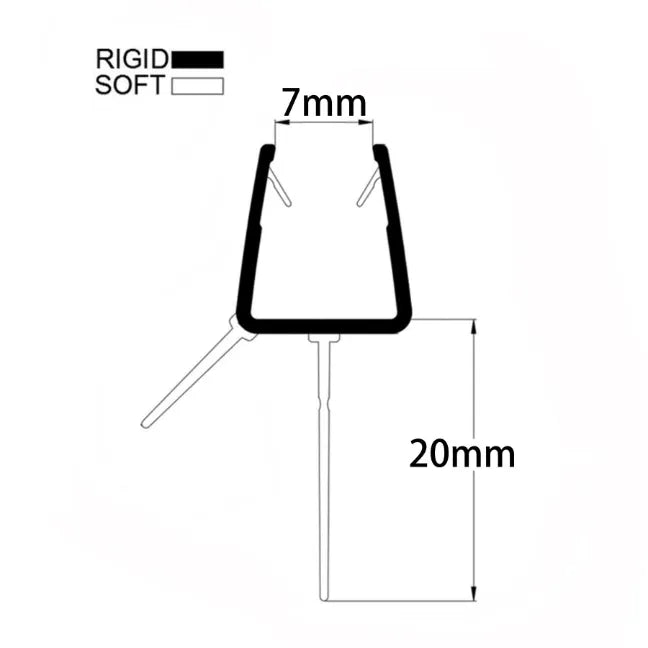

  • V810S20CU curved shower screen seal dimension diagram with 20mm fin

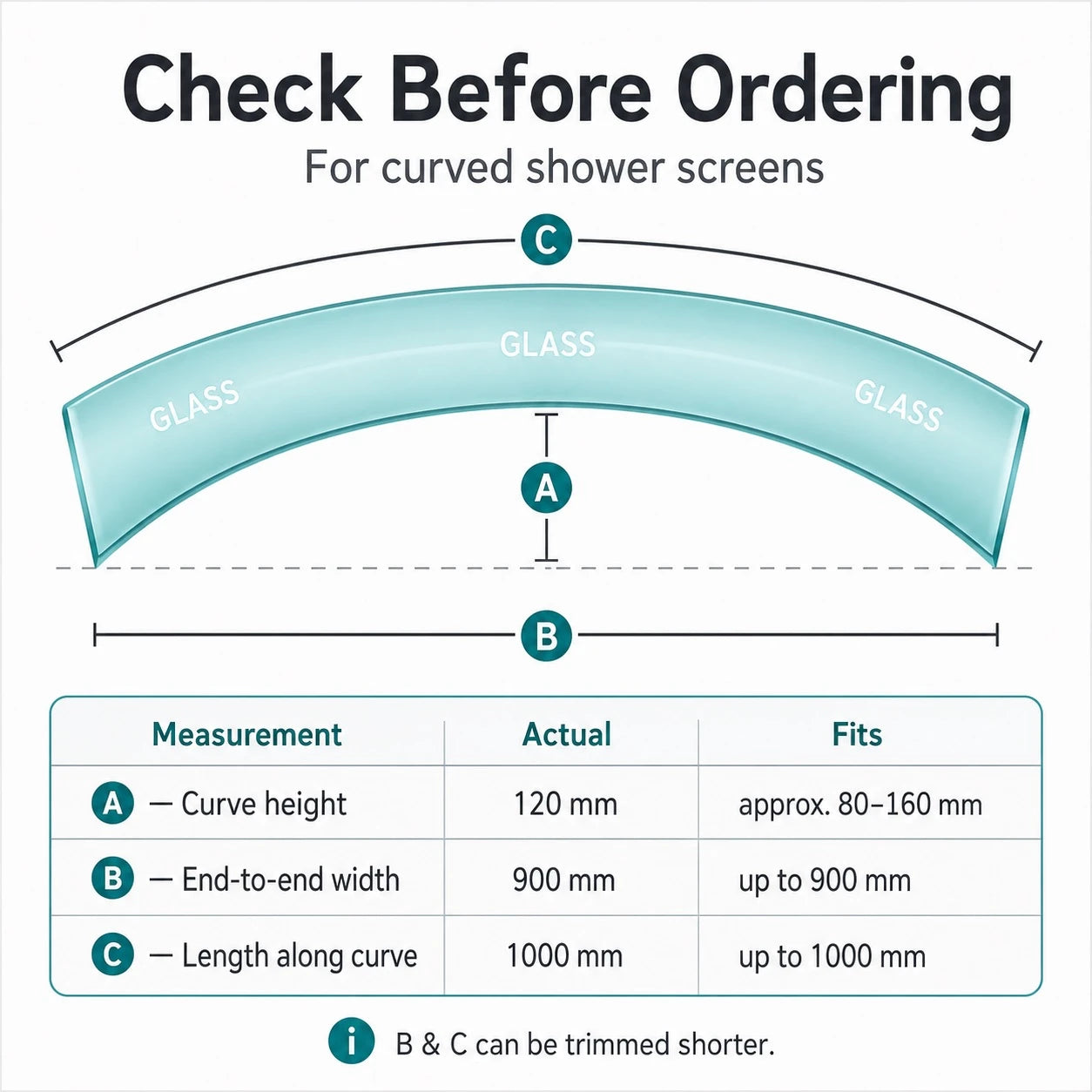

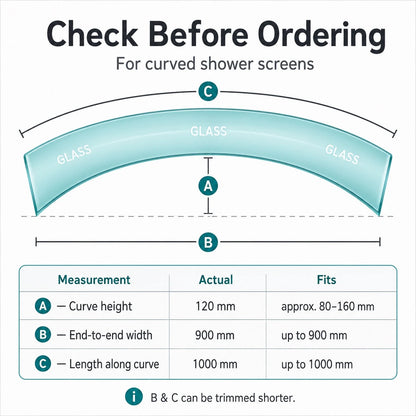

  • Curved shower seal measurement guide for V810S20CU, showing 1000 mm length along curve, 120 mm curve height and 900 mm end-to-end width for 8–10 mm glass
  • shower door bottom seal compatibility check for 4-6mm glass and 20-23mm gap
  • Durable bottom shower door seal with reinforced entry point and 1mm wall thickness
  • curved shower screen seal fitting direction on glass
  • Shower door bottom seal comparison showing SIMBA secure fit and improved water control

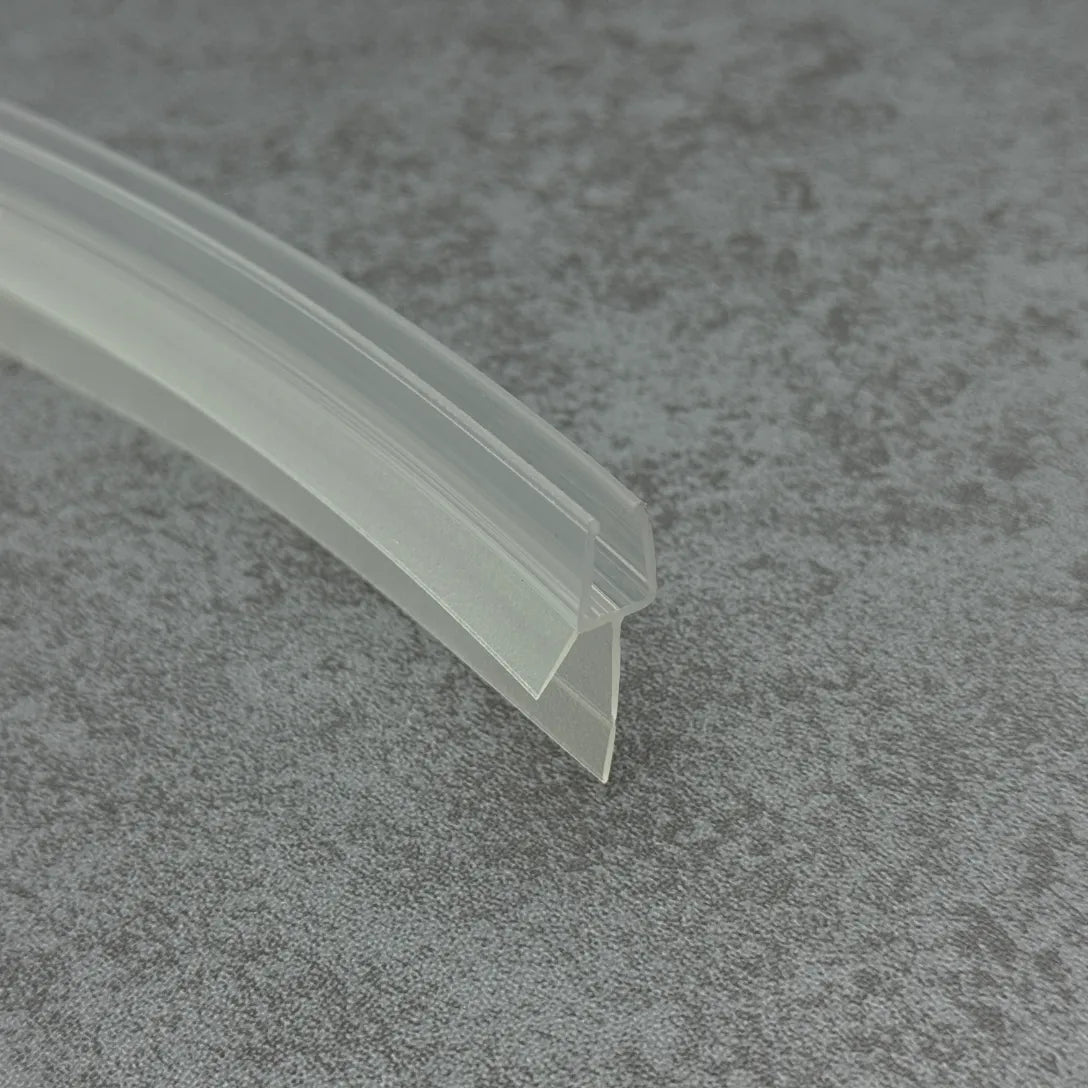

  • V810S20CU clear PVC curved shower seal profile showing U-channel and fin

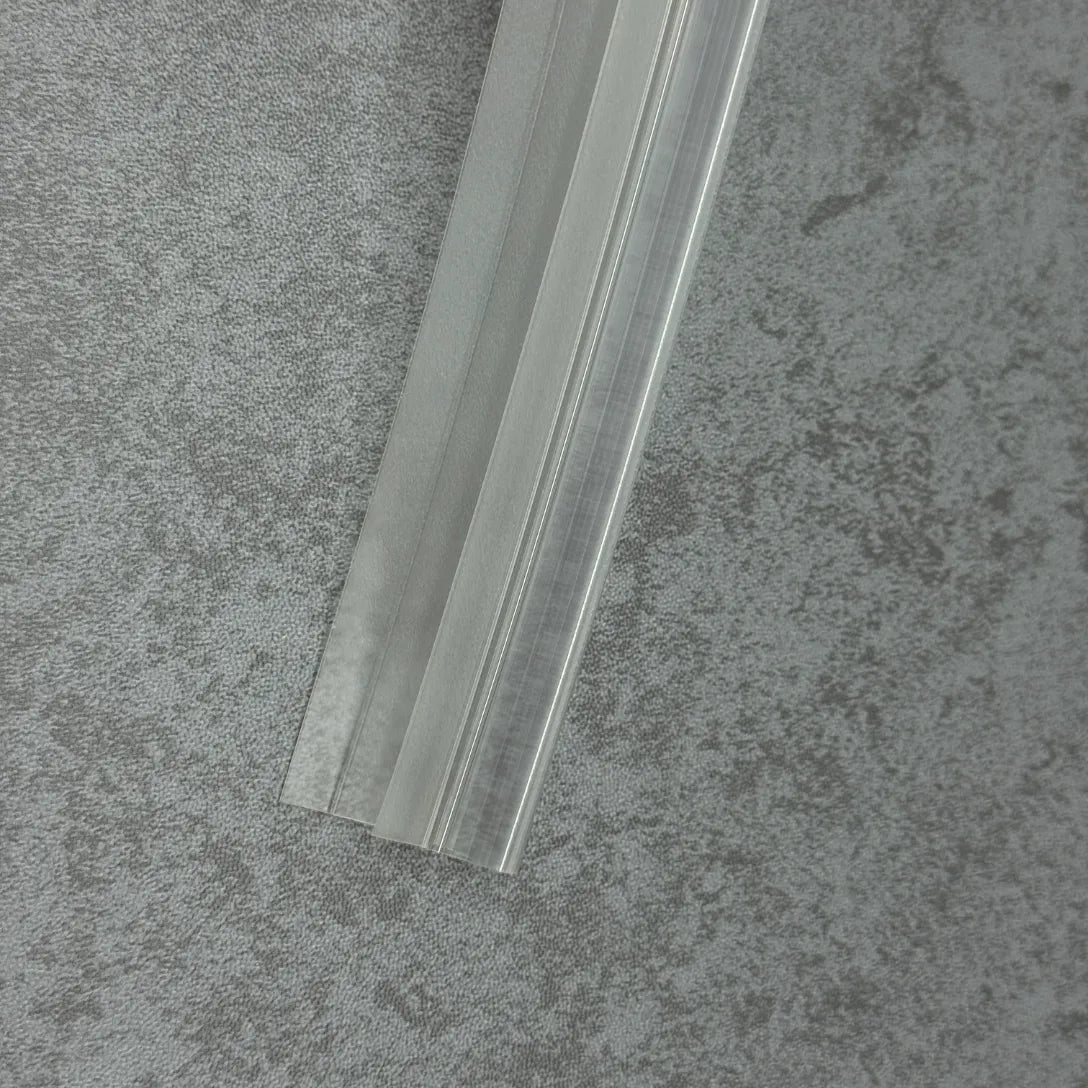

  • V810S20CU transparent curved shower screen seal showing clear finish
  • Why choose SIMBA shower seals: 30,--- uses tested, Quality rubber material, reach certified, and UK fast delivery
  • Application guide for the shower seal
1 11

Curved Bottom Shower Screen Seal for 8–10mm Glass 20mm Fin V810S20CU

£19.80
£31.19 £19.80
Sold out
-37%
Taxes included. Shipping calculated at checkout.
Total Length: 1000mm
Gap: Seal 20mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down


Product Video

Key specifications

Catalog no.
V810S20CU
Product type
Bottom curved bath screen seal
Glass thickness
8mm / 9mm / 10mm
Fin length
20mm soft fin
Suitable gap
Approx. 17mm – 20mm bottom gap
Suitable door type
Curved shower doors / P-shape bath screens
Material
Rigid clear PVC with soft flexible fin
Length
1000mm – easy to trim to size
Pack Quantity
Single strip / 1 piece
Installation
Push-fit, cut-to-size
Recommended pairing
Shower threshold strip for improved bottom water control
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

  • Your glass is 8mm, 9mm or 10mm thick.
  • Your screen is curved or P-shape.
  • Your bottom gap is approximately 17mm to 20mm.
  • You need a bottom seal, not a side or magnetic seal.

Choose another seal if:

  • Your glass is 4–6mm.
  • Your bottom gap is outside 17–20mm.
  • Your screen is straight.
  • Your door has a metal frame or thick edge trim.

Product Description & Suitable Applications

The V810S20CU is a push-fit bottom seal for selected curved shower screens, P-shape bath screens and curved bath screens with 8mm, 9mm or 10mm glass.

It is designed for measured bottom gaps of approx. 17–20mm. The rigid clear PVC channel grips the glass, while the 20mm soft fin helps guide water back towards the tray, bath rim or threshold.

Supplied as a single 1000mm strip and easy to trim to size.

Notes

- Made from rigid clear PVC with a soft flexible fin.
- The soft fin should move freely and should not drag heavily.
- For better bottom water control, use with a compatible shower threshold strip.
- A longer fin is not always better; choose by the measured bottom gap.

Not sure about the size? Compare all curved shower screen seals.

FAQ

1. Is this seal suitable for a curved bath screen?

Yes. The V810S20CU is suitable for selected curved bath screens, P-shape bath screens and curved shower doors with 8–10mm glass.

2. What glass thickness does this seal fit?

This seal is designed for 8–10mm glass. For 4–6mm glass, choose from the thinner glass range.

3. What bottom gap is the 20mm fin suitable for?

The 20mm soft fin is suitable for bottom gaps of approximately 17–20mm. It is a larger-gap option in the 8–10mm glass range.

4. Will this help reduce water leaking from the bottom edge?

It can help reduce water escaping from the bottom edge when correctly fitted. For better water control, especially near the hinge side or bath edge, use it with a compatible shower threshold strip.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
V810S20CU curved bath screen seal for 8-10mm glass with 20mm fin
Curved Bottom Shower Screen Seal for..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

Curved Bottom Shower Screen Seal for 8–10mm Glass 20mm Fin V810S20CU Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp

About SIMBA Seals UK

SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.

Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.

Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
