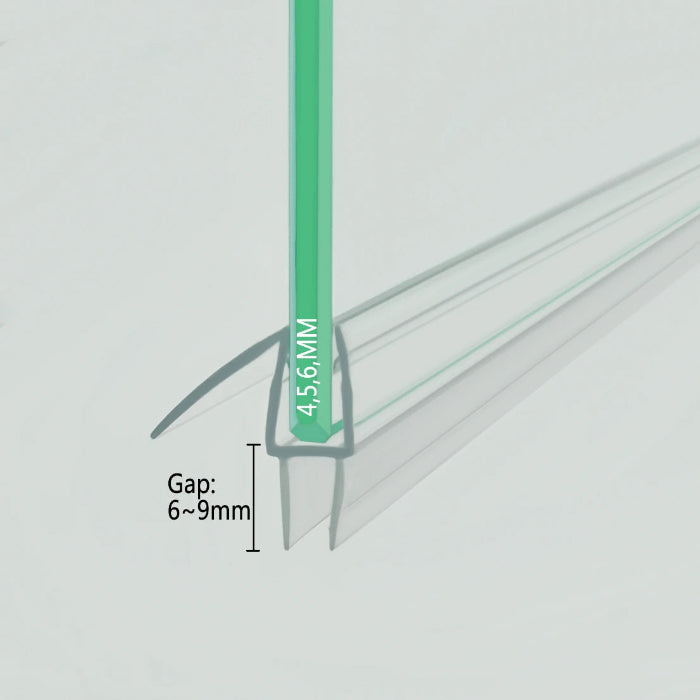

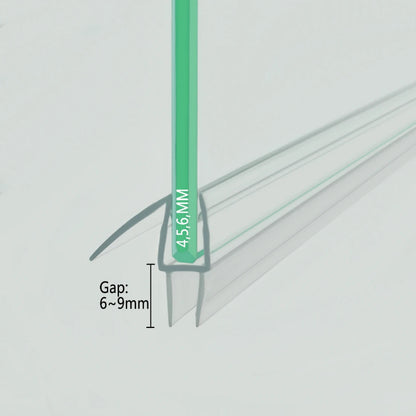

• 4-6mm glass shower door bottom seal with double fins for 6-9mm gap

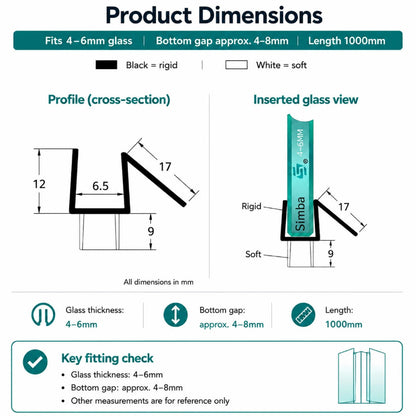

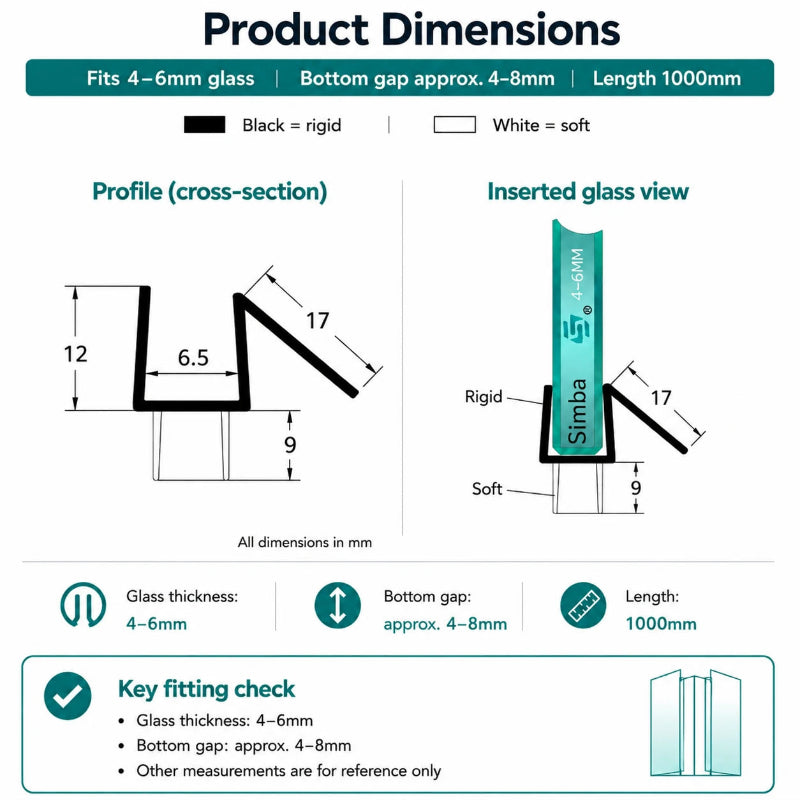

  • VB456 4-6mm glass shower door bottom seal dimensions with 9mm flexible fins and 1000mm length

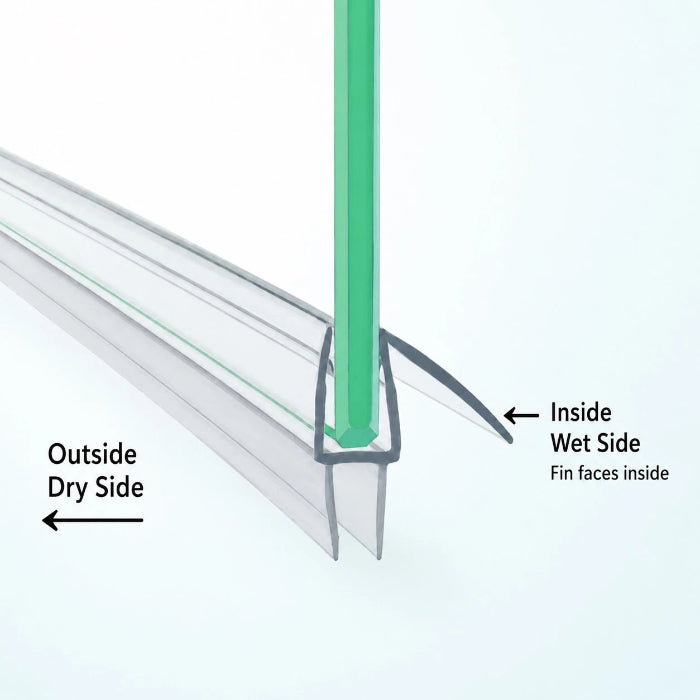

  • VB456 4-6mm glass double-fin shower door bottom seal installation direction showing inside wet side and outside dry side

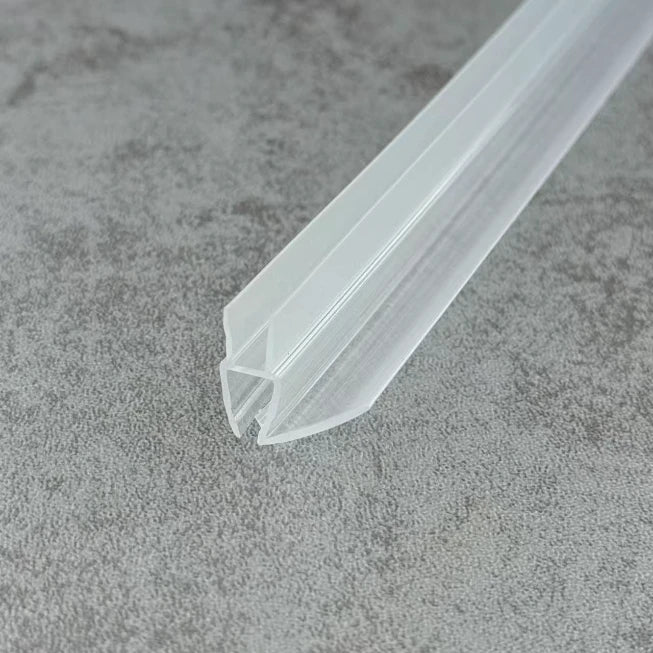

  • clear PVC double fin bottom seal for thin frameless shower glass

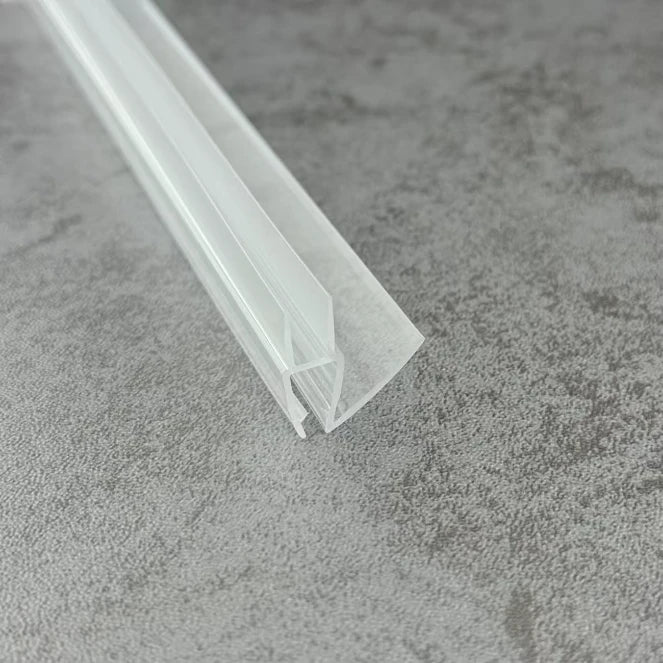

  • 4-6mm shower screen bottom seal with twin soft fins
1 5

4–6mm Glass Double-Fin Shower Door Bottom Seal 9mm Fin VB456

£14.88
£43.19 £14.88
Sold out
-66%
Taxes included. Shipping calculated at checkout.

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down

Key Specifications

Catalog No.
VB456
Glass Thickness
4mm / 5mm / 6mm
Bottom Fin Type
Twin soft flexible fins

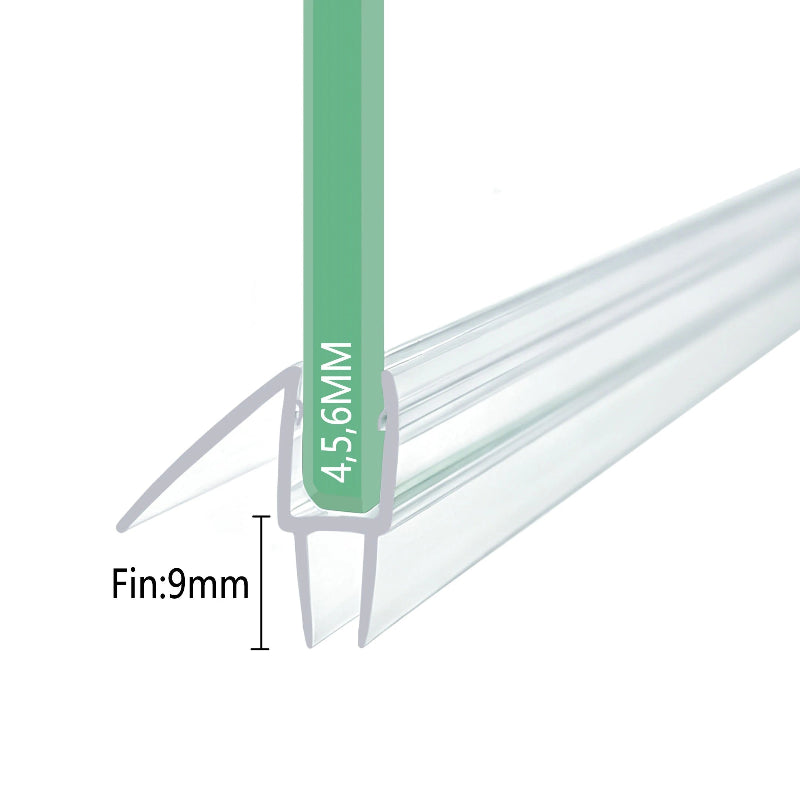

Fin Length
9mm
Recommended Bottom Gap
Approx. 4–8mm
Material
Clear PVC
Length
1000mm – can be trimmed to size
Pack Quantity
Single piece / 1 strip
Installation
Push-fit onto straight glass, no adhesive required
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

  • Your shower glass is 4mm, 5mm or 6mm thick.
  • The lower edge of the glass is straight and exposed.
  • Your bottom gap is approximately 4–8mm.
  • You want a bottom seal with two soft flexible fins rather than a single wiping fin.
  • You need a replacement for a frameless or semi-frameless shower door or screen.
  • Your required finished length is 1000mm or less.

Choose another seal if:

  • Your glass is thicker than 6mm.
  • The lower glass edge is curved.
  • A metal frame or bottom trim prevents the seal from fitting directly onto the glass.
  • Your bottom gap is well outside the recommended range.
  • You need a magnetic or vertical side seal.

Not the right fit? Browse our shower door bottom seal range to compare other glass thicknesses, fin styles and gap options.

Suitable Applications & Installation Notes

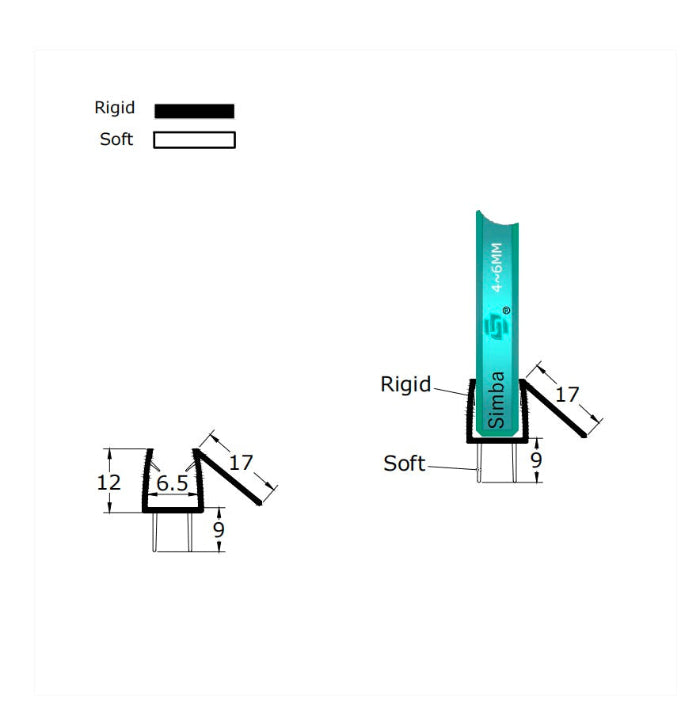

VB456 is a clear push-fit bottom seal for 4–6mm straight shower glass, combining a 17mm rigid water deflector with two soft flexible sealing fins underneath.

The rigid 17mm side section helps guide water back towards the shower area as it runs down the glass, rather than allowing it to spill directly over the door edge.

Below the glass, the two soft fins create two flexible contact points against the tray or threshold. This gives an extra layer of protection compared with a single-fin profile, helping reduce water passing through the bottom gap where contact is not perfectly even.

The twin-fin design does not automatically make the door harder to open. The fins are soft and designed to flex as the door moves. When the bottom clearance is around the recommended 4–8mm range, they should bend against the tray rather than act as rigid stops.

The 4–8mm gap is a recommended working range, not an absolute limit. A slightly different clearance may still be suitable depending on how the fins meet the tray and whether the door can move freely without excessive compression.

The clear U-shaped channel pushes directly onto the bottom edge of the glass without adhesive. The seal is supplied in a 1000mm length and can be trimmed before fitting.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
4-6mm glass shower door bottom seal with double fins for 6-9mm gap
4–6mm Glass Double-Fin Shower Door Bottom..

£14.88

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

4–6mm Glass Double-Fin Shower Door Bottom Seal 9mm Fin VB456 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp

About SIMBA Seals UK

SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.

Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.

Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
