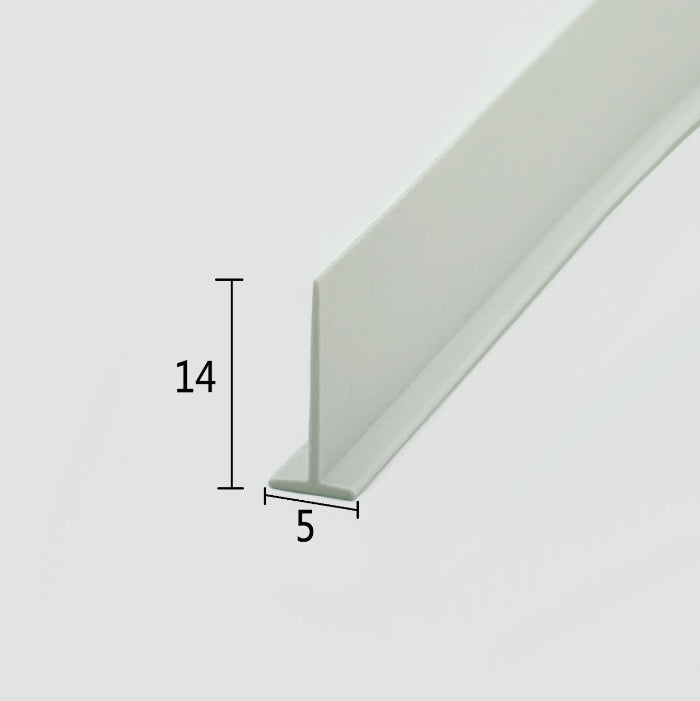

• Cross-section close-up of the VH007 framed shower door snap-in replacement drip rail with vinyl sweep, showcasing the white soft PVC with a unique 5mm extra-wide T-shaped top and a 14mm long sweeping fin, optimized to lock securely into wider base tracks of framed doors for reliable water channelling and leak prevention.

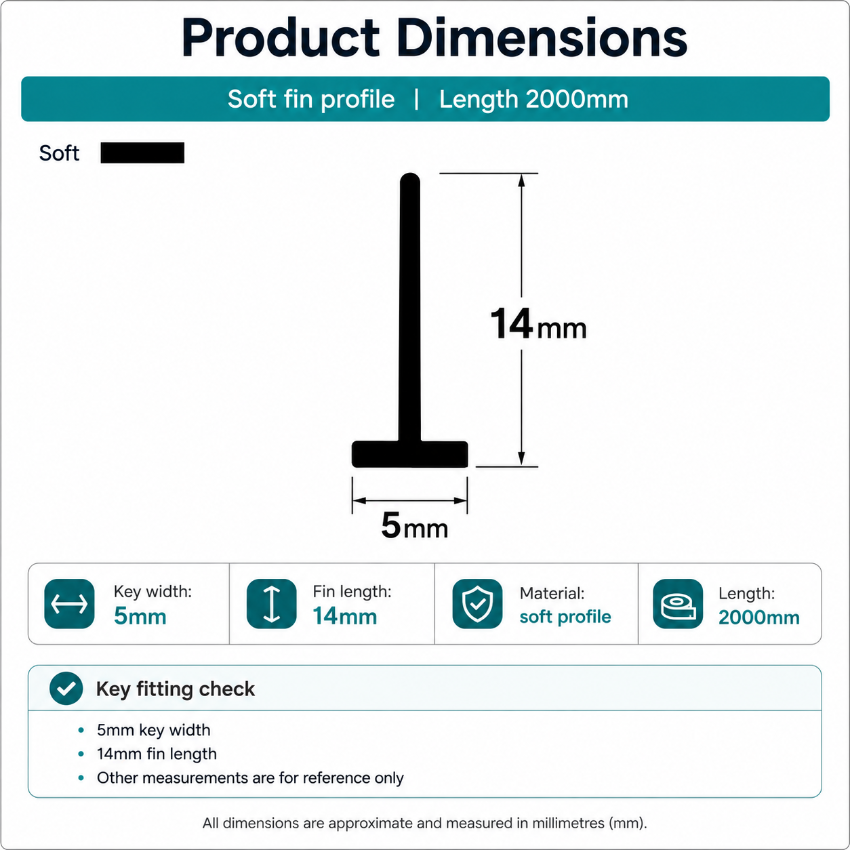

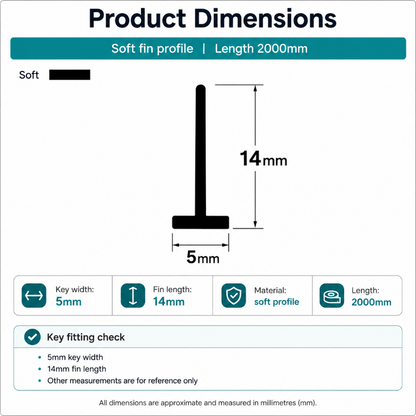

  • Technical dimension diagram for a framed shower door sweep, detailing the rare 5mm T-leg width, 14mm fin height, and overall profile, providing critical specification data for users seeking a replacement that fits tightly into non-standard 5mm wide grooves in white door frames.

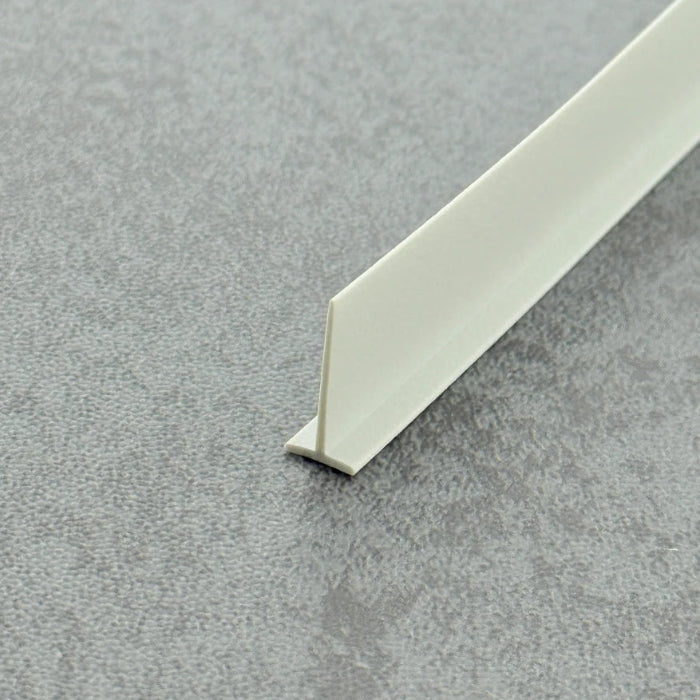

  • High-clarity close-up of a shower enclosures white vinyl framed shower door drip sweep (adapted from clear vinyl search intent), showcasing the uniform white matte finish, smooth surface, and flexibility of the VH007's 14mm fin, highlighting its resistance to ageing as an effective substitute for yellowed or hardened old seals to restore the tidy appearance of shower screen bases.

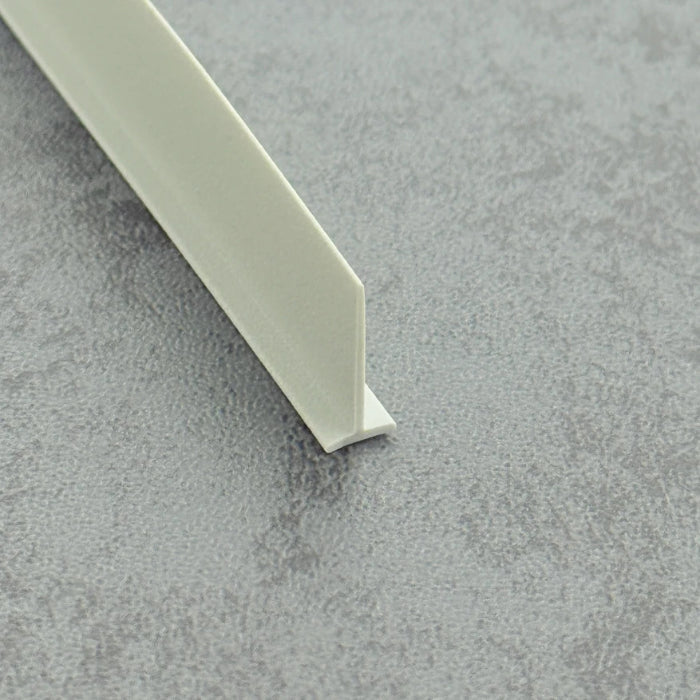

  • Micro-view of a framed shower door seal strip t shape, showing how the 5mm white T-head achieves an interference fit (tight fit) within wide grooves to prevent loosening or falling out, while the 14mm long soft fin makes moderate contact with the floor, providing lasting bottom sealing performance for heavy framed doors.
1 4

5mm White Framed T-Bar Seal 14mm Fin VH007

£29.88
£43.19 £29.88
Sold out
-31%
Taxes included. Shipping calculated at checkout.
Total Length: 2000mm
Gap: Seal 14mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down



Key Specifications

The professional’s answer to sagging doors and uneven shower trays where a standard 8mm or 10mm seal fails to reach.

Catalog No: VH007
Application: Shower Frame Gasket
T-Bar Width: 5mm Design
Fin Length: 14mm
Material: Ultra-Soft, High-Compression PVC
Length: 2000mm (Professional Length)
✓ Free UK Shipping | VAT Inc. ✓ 10-Month Warranty

The High-Reach Guard: 5mm White Framed T-Bar Seal (14mm Fin) - VH007

The VH007 is a specialist profile in our white-framed series, featuring an extended 14mm flexible fin. In many UK bathrooms, over-use or minor structural subsidence causes shower doors to sag, creating a larger gap at the bottom or side. The VH007’s 14mm reach provides the necessary "over-travel" to ensure a 100% watertight seal, even when the glass and frame aren't perfectly square.

  • Extended Deflection: The 14mm fin is ideal for bridging wider gaps, ensuring water is flicked back into the tray rather than seeping over the threshold.

  • Reinforced 5mm T-Bar: Specifically designed for the 5mm tracks found in mid-to-heavyweight white aluminium frames.

  • Colour-Matched Durability: Arctic White finish ensures a seamless restoration for classic Coram or Aqualux enclosures, concealing limescale build-up inside the channel.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Cross-section close-up of the VH007 framed shower door snap-in replacement drip rail with vinyl sweep, showcasing the white soft PVC with a unique 5mm extra-wide T-shaped top and a 14mm long sweeping fin, optimized to lock securely into wider base tracks of framed doors for reliable water channelling and leak prevention.
5mm White Framed T-Bar Seal 14mm..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

5mm White Framed T-Bar Seal 14mm Fin VH007 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Certified Quality: ISO 9001 | ISO 14001 | REACH compliant +

Quality & Environmental Standards

Simba® seals are manufactured to the highest international standards, ensuring safety and sustainability for your home.

ISO 9001:2015 Quality Management

ISO 9001:2015

Premium quality control ensuring consistent product durability and precision fit.

ISO 14001:2015 Eco-Friendly

ISO 14001:2015

Manufactured with a commitment to environmental responsibility and eco-friendly processes.

SVHC REACH Compliant

SVHC / REACH

Certified non-toxic and safe for domestic use, free from harmful substances.

Have feedback on this seal? Tell us — we use customer input to improve future SIMBA designs.
