If your L shaped bath screen looks properly fitted but water still appears on the floor after showering, the leak may not be along the whole bottom edge. It often starts at the bottom corner where the two glass panels meet.
That corner is easy to miss. Water runs down the glass, gathers at the joint, and can escape through a small gap if the area is not sealed or deflected back into the bath.
This guide helps you identify the leak point first, then choose the right type of seal or water barrier for that specific area.
Why Is Your L Shaped Shower Screen Leaking?
A leaking L shaped bath screen is rarely caused by just one thing. It is usually a mix of sealing, water direction, screen design and installation angle. These are the areas worth checking first.
1. There is a small exposed gap at the bottom corner
An L shaped bath screen usually has a fixed glass panel and a return panel, creating a 90-degree joint. If the bottom of this joint is not fully covered by a seal, even a few millimetres of exposed space can be enough for water to escape.
2. There is no threshold strip or water deflector
A standard bottom seal helps the glass sit against the bath edge, but it does not always guide water back into the bath. Without a threshold strip, water deflector or drip rail, water can still travel along the glass edge and collect around the corner.
3. The vertical seal and bottom seal do not meet cleanly
The corner often needs both a vertical seal and a bottom seal to work together. If they are cut too short, not pressed together, or not overlapped correctly, water can find its way through the break between them.
4. The shower is spraying directly at the joint or hinge
If the screen only leaks when the shower is aimed in a certain direction, the water angle is part of the problem. Try adjusting the shower head first. If water is hitting the hinge or connector directly, you may also need a local patch seal.
5. The bath edge or screen angle is sending water outwards
A flat or slightly outward-sloping bath edge can make water run towards the outside instead of back into the bath. The same can happen if the screen angle does not help guide water inwards. In this case, the screen may not be damaged; the water is simply moving in the wrong direction.
6. Old seals can make an existing problem worse
Hardened, bent or cracked seals will make leaking more obvious. But with an L shaped bath screen, ageing is often not the only cause. It usually makes an existing weak point, such as a corner gap or poor seal joint, more noticeable.
For other common leak points, see our shower leak troubleshooting guides.
How to Tell Where the Water Is Coming From
Turn on the shower for one or two minutes using your normal water pressure and shower direction. Then watch where the water appears first.
| Where water appears first | Likely cause | What to check |
|---|---|---|
| Bottom corner where the two glass panels meet | Incomplete corner sealing or no water barrier | Corner seal, threshold strip |
| Along the full bottom edge | Bottom seal is not sitting against the bath properly | Bottom seal condition, fit or size |
| Wall side | Wall profile, silicone or side seal issue | Wall profile, silicone, vertical seal |
| Only when the shower is aimed a certain way | Water is hitting the joint or hinge directly | Shower angle and daily shower direction |
How to Fix an L Shaped Bath Screen Leak

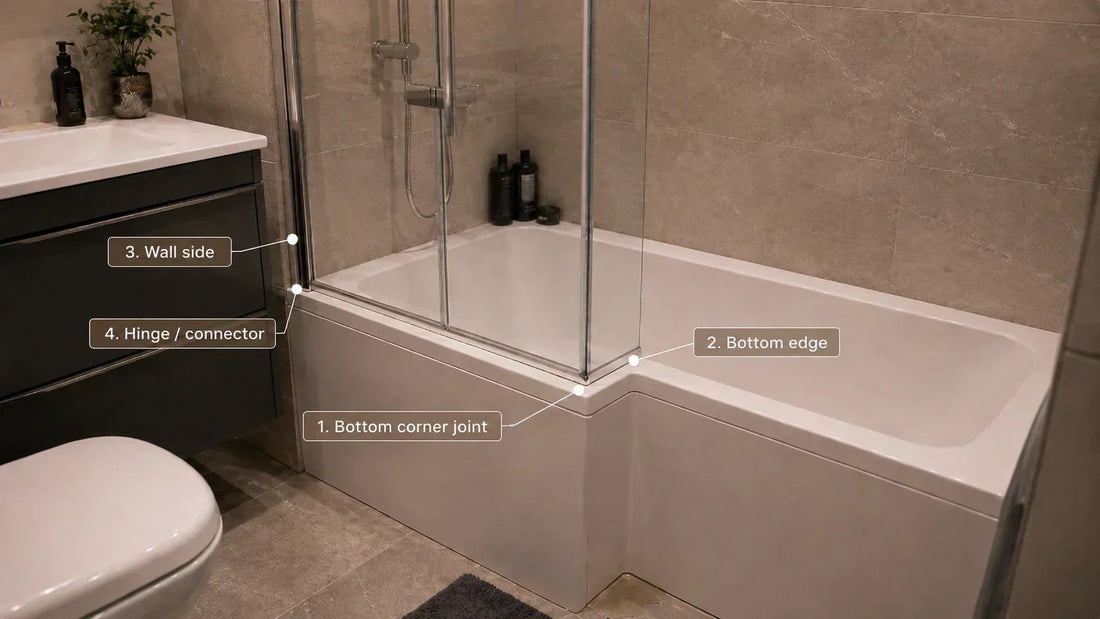

Start by finding where the water appears first. An L shaped bath screen can leak from the bottom corner, the full lower edge, the wall side, or around the hinge. Each area usually needs a slightly different fix, so it is better to identify the leak point before choosing a replacement shower door seal.
Once you know where the water is escaping, match the seal to the leak area, your glass thickness, and the size of the gap. This helps you avoid buying a straight bottom seal when the real problem is a corner gap or missing water barrier.
1. If water leaks from the bottom corner
If the leak only appears at the bottom corner of the L shaped screen, the issue is often the small joint where the glass, bath edge and return panel meet. A standard straight bottom seal may help along the lower edge, but it may not fully cover this corner point on its own.
In this situation, look for a way to guide the water back into the bath rather than simply blocking the gap. A shower threshold seal can help create a small water barrier along the bath edge. For a narrow corner leak, a slim threshold strip such as PV29 is often a better fit than replacing the whole bottom seal with another straight strip.
If the leak starts where the side seal and bottom seal meet, the problem may simply be a small gap between the two strips. Make sure they are cut cleanly and sit tight together at the corner.
2. If water runs along the full bottom edge
If the water is mainly escaping along the lower edge, it is worth checking whether this is actually a shower door leaking at the bottom problem rather than a fault with the whole L-shaped screen.
This is when the shower door bottom seal matters most.
Check that the seal matches the glass thickness, covers the bottom gap, and sits neatly against the bath edge. A longer fin is not always better; if it folds or flares out, it can reduce contact rather than improve it.
If the leak is coming from the bottom edge of the L-shaped screen, the usual fix is not more silicone but a correctly sized replacement bottom shower screen seal.
3. If water leaks from the wall side
If water appears near the wall or fixed glass side, the issue may be the wall profile, silicone or vertical seal.
Cracked old silicone can be removed and replaced, but avoid sealing every gap without checking the screen design first. Around moving glass or hinged panels, applying silicone in the wrong place can affect how the screen opens and closes.
For a frameless L shaped shower screen with a side gap, a corner seal or double U-channel seal may be a better option.
4. If it only leaks when the shower hits a certain angle
If the leak only happens when water is sprayed directly at the hinge or connector, adjust the shower direction first. Some hinge designs leave a small movement gap, and a standard seal may not cover that area neatly.
If the water starts near the wall side or hinge side rather than the bottom strip, check whether the shower screen is leaking at the hinge.
Where there is a visible small gap around the hinge, you can use a short piece of cut-to-size transparent patch seal near the leaking point. For example, V312S1235H is designed for local gaps like this, rather than replacing a full bottom seal.
When a Seal or Water Barrier May Not Fully Solve the Leak
A replacement seal cannot correct every installation issue. If the bath edge slopes outwards, the screen sits at the wrong angle, the hinge gap is too large, or water pools behind the barrier with nowhere to drain, the problem may be structural rather than seal-related.
Make sure the part matches the actual leak point first. If the same issue keeps returning, ask an installer to check the screen angle, bath slope and hardware.
Buying a New L Shaped Bath Screen? Check the Sealing Path First
If you are choosing a new L shaped bath screen, look beyond size, glass thickness and style. Check whether the bottom and corner areas leave a clear path for sealing.
Fewer fittings, smaller hinge gaps, rust-resistant hardware and enough space for a future seal or water barrier all make maintenance easier. If the hardware interrupts the bottom or corner sealing area, water is more likely to escape later.
FAQs
What seal do I need for an L shaped bath screen leaking from the corner?
For a bottom corner leak, start with a corner seal, threshold strip or water deflector. A straight bottom seal usually works better for full bottom-edge leaks.
Why is my bath screen still leaking after replacing the bottom seal?
The leak may be coming from the corner, hinge gap, or the break between the vertical and bottom seals. Check where the water first appears before choosing another part.
Do I need a threshold strip or a bottom seal?
A bottom seal closes the gap under the glass. A threshold strip or water deflector helps block and redirect water, especially around corners or flat bath edges.
Can I use silicone instead of a shower screen seal?
Silicone can work on fixed wall-side areas, but it is not ideal for moving glass, hinges or opening sections. Those areas usually need a seal or patch strip.
Summary
With L shaped bath screen leaking, start by finding where the water first appears. Corner leaks usually need a corner seal, threshold strip or water deflector; full bottom-edge leaks point to the bottom seal; wall-side leaks involve the vertical seal, wall profile or silicone; hinge leaks may need shower direction adjustment and a small patch seal. In most cases, choosing the right sealing part works better than simply applying more silicone.
