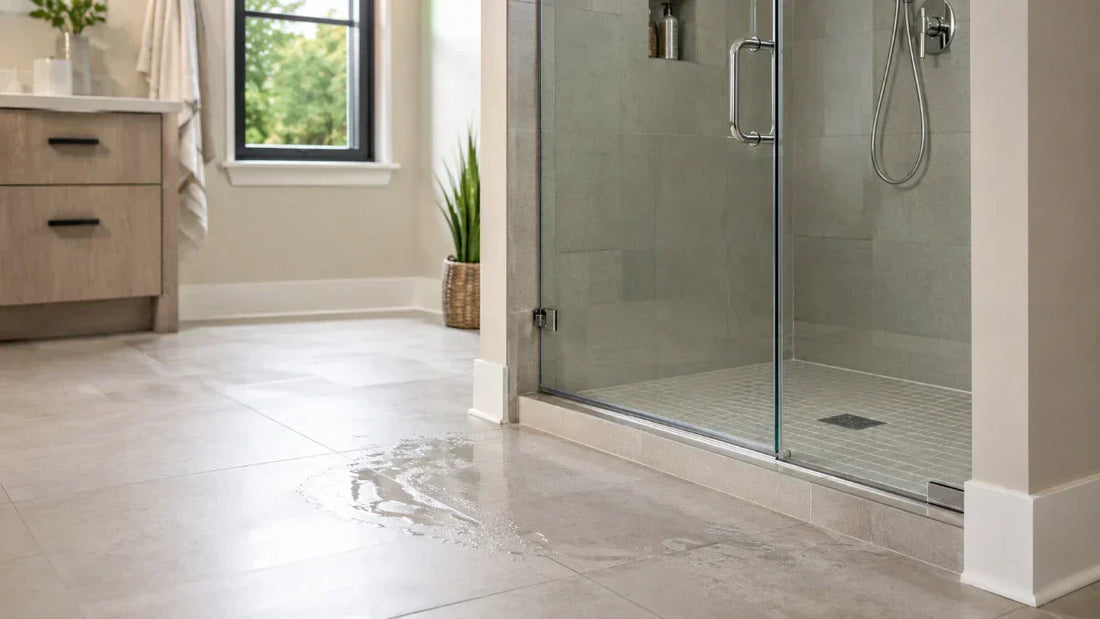

Water outside the shower does not always mean you need a plumber.
If the leak is coming from the bottom of the shower door, the key is to check three things: the bottom seal, the threshold, and whether the water is actually starting somewhere else before running down.
In our previous guide, we looked at why shower door gaps exist and how to work out where water is escaping. This page is more specific: how to seal a shower door at the bottom.
Quick answer: for water escaping directly under the glass, start with a bottom drip seal. If water is travelling across the tray, add a threshold seal or water bar. For uneven gaps or stubborn leaks, using both together is usually the most reliable fix.
How to Seal the Bottom of a Shower Door Properly
The aim is simple: control where the water goes.
You do not always need a plumber, and you do not always need to replace every seal on the enclosure. In many cases, the right fix is just a better seal at the bottom, a small threshold strip on the tray, or both.
The important part is matching the fix to the way the water is escaping.
Step 1: Find the Exact Leak Path
Start with a quick water test.
Run the shower gently with the door closed. Do not blast water directly at the seal yet; that can create a leak that would not happen during normal use.
Look for the first place water appears:
- under the glass
- at one bottom corner
- across the tray edge
- from the side of the door
If the water is coming from the side, stop here and check the side seal or closing edge instead. If it is coming from underneath the glass or across the tray, the bottom fixes below are the right place to start.
Step 2: Match the Fix to What You See
Not every bottom leak needs the same solution.
| What you see | Best fix |
|---|---|
| Water runs directly under the glass | Fit a bottom drip seal |
| Water escapes across the tray edge | Add a threshold seal or water bar |
| Water leaks from one bottom corner | Check the seal direction and corner gap |
| The gap is uneven across the door | Use a longer fin seal plus a threshold seal |
| Still leaking after trying the above | Take a photo and contact SIMBA for profile matching |
Before choosing a seal, measure three things:
- glass thickness
- door width
- the gap between the glass and the tray
Measure the gap on the left, in the centre, and on the right. Shower trays are not always perfectly level, and a seal that works in one spot may drag or miss the tray in another.
Once you know the gap and leak pattern, compare our bottom gap sealing options to find a profile that suits your glass and tray setup.
Step 3: Use Two Barriers for Stubborn Leaks
A bottom seal alone is a fix using it with a threshold is a system. This duo stops the leaks that a single seal simply can’t handle.
Fit a Dedicated Shower Bottom Seal
Why the Drip Rail is a "Make or Break" Factor
If your rail is too short, it's useless. It won't handle the pressure and dumps water directly onto the soft fins, causing them to wear out twice as fast.
Add a Shower Tray Threshold Seal
If water is not just dripping from the glass but travelling across the shower tray, a threshold seal can help. It sits on the tray like a small water bar, giving the bottom seal something to work against and stopping water from crossing onto the bathroom floor.
The right threshold depends on the shape of the tray edge. A straight, open tray edge usually needs a firmer strip. A curved enclosure or awkward hinge area usually needs something more flexible. A narrow straight gap may need a taller T-shaped profile, but only if it works with the bottom seal length.
For a full comparison of D510, PV29 and RY3463, see our guide to choosing the right shower threshold strip for a leaking shower door.
Watch: Why use a threshold seal?
Sometimes one seal is enough. Sometimes it is not.
For persistent leaks, use a two-part setup:
- a bottom seal on the glass to send water back into the shower
- a threshold seal on the tray to stop water crossing onto the floor
Think of it like this: the bottom seal controls the water running down the glass, while the threshold strip acts like a small dam on the tray.
A threshold seal, also called a water bar, is a raised strip fitted to the shower tray. It is especially useful when the tray edge is flat, slightly uneven, or not giving the fin enough surface to meet.
If your current seal is too short, loose, or fitted the wrong way round, compare our shower door bottom seal options before adding a threshold strip.
Step 4: Check Which Way the Drip Fin Faces
This is a small detail, but it makes a big difference.
The drip fin should point inside the shower tray. That way, water is guided back toward the drain.
If the fin faces outward, it can do the opposite and push water onto the bathroom floor. This is one of the most common reasons a new seal still leaks, even when the size is correct.
Step 5: Test It Like a Normal Shower
Once everything is in place, test it under normal conditions.
Close the door, run the shower as you usually would, and check:
- the centre of the bottom edge
- both bottom corners
- the outside edge of the tray
Avoid blasting water directly at the seal from close range. That is not a fair test and can make almost any seal look like it has failed.
If water still escapes, the usual causes are a fin that is too short, a missing threshold strip, an uneven tray, or a leak that is actually starting from the side.
More Help for Bottom Shower Door Leaks
Still not sure what to do next? The table below will point you in the right direction.
| Situation | Recommended guide |
|---|---|
| You want to understand why water is leaking from the bottom | Why Your Shower Door Is Leaking at the Bottom |
| You need to replace an old or damaged bottom seal | How to Replace a Shower Door Bottom Seal |
| You are not sure which bottom seal shape or size you need | shower door bottom seal options |
| You have a large or uneven gap under the glass | Shower Door Uneven Gap Solution |
Visit our bottom shower door leak guide for related articles on measuring gaps, replacing old seals, choosing fin height, fitting threshold strips, and fixing leaks that continue after installation.
UK Case Study
Pivot Door Leaks at Bottom Corner
If your pivot door leaks specifically from the corners, standard seals are often useless. You need a side-extending fin to redirect water back into the tray.
The "Zero Obstruction" Fix
If your door and threshold sit in a direct line, standard drip rails will hit the barrier and fail to seal.
To fix this, you need a side-extended fin profile.
The "Gap Trap" in Aluminium Thresholds
Even with a premium metal threshold, water can pour out if the junction isn't addressed. The fix? Precision trimming for a "plug-in" fit.
The SIMBA Solution: Never just butt two seals together. Trim the bottom seal to a specific profile so it literally "plugs" into the side seal for a watertight junction.
What If the Leak Is Not Coming from the Bottom?
A bottom seal only solves leaks at the lower edge of the door.
If water is escaping from the side, between two panels, or through a sliding overlap, use the correct profile for that area instead.
| Leak location | Better guide |
|---|---|
| Side or wall gap | Vertical shower door seals |
| Gap between two shower doors | Magnetic shower door seals |
| Sliding overlap gap | Sliding shower door seals |
| General shower door gap diagnosis | Shower door gap guide |
Frequently Asked Questions
Can I seal the bottom of a shower door myself?
Yes. In most cases, you can seal the bottom of a shower door yourself by checking where the water escapes, fitting a bottom drip seal, and adding a threshold seal if water runs across the tray.
What is the best way to seal the bottom of a shower door?
For a simple leak under the glass, a bottom drip seal is usually enough. If water is also running across the tray, add a threshold seal or water bar. For uneven trays or stubborn leaks, use both together.
Which way should the drip fin face?
The drip fin should face inside the shower tray. This sends water back toward the drain instead of out onto the floor.
Do I need a threshold seal as well?
Not always. If the bottom seal already meets the tray properly and water stays inside, you may not need one. A threshold strip is useful when the tray is flat, the gap is uneven, or water still crosses the edge after fitting a bottom seal.
Can I use silicone along the bottom of the shower door?
It is usually not the best fix for a moving door. Silicone can restrict movement, look messy, and make future replacement harder. A clip-on bottom seal or threshold strip is normally cleaner and easier to maintain.
Why is it still leaking after I fitted a new seal?
Check the basics first: the fin direction, the gap size, and whether the seal is pushed fully onto the glass. If those are fine, look at the tray level and the side of the door. The leak may not be starting from the bottom after all.
How do I know what size bottom seal I need?
Measure the glass thickness, the door width, and the gap below the glass. Check the gap in more than one place, as many trays are slightly uneven.
