Some shower doors have hinges, rollers, brackets or other fittings along the bottom edge, which can make a standard bottom seal difficult to fit in one continuous length.
We see this quite often. Some people go for years without a bottom seal because they cannot find one that works around the fittings. Others trim a standard seal bit by bit until it more or less fits, only to end up with uneven cuts and a small amount of water still escaping underneath.
That does not always mean the door needs a specialist seal.
On some doors, a standard bottom seal can simply be cut around the fitting. On others, the hardware takes up the space needed by a conventional centre-fin seal. What matters is not simply whether there is a hinge or bracket, but exactly where that fitting sits.
Why Won’t a Standard Bottom Seal Fit?

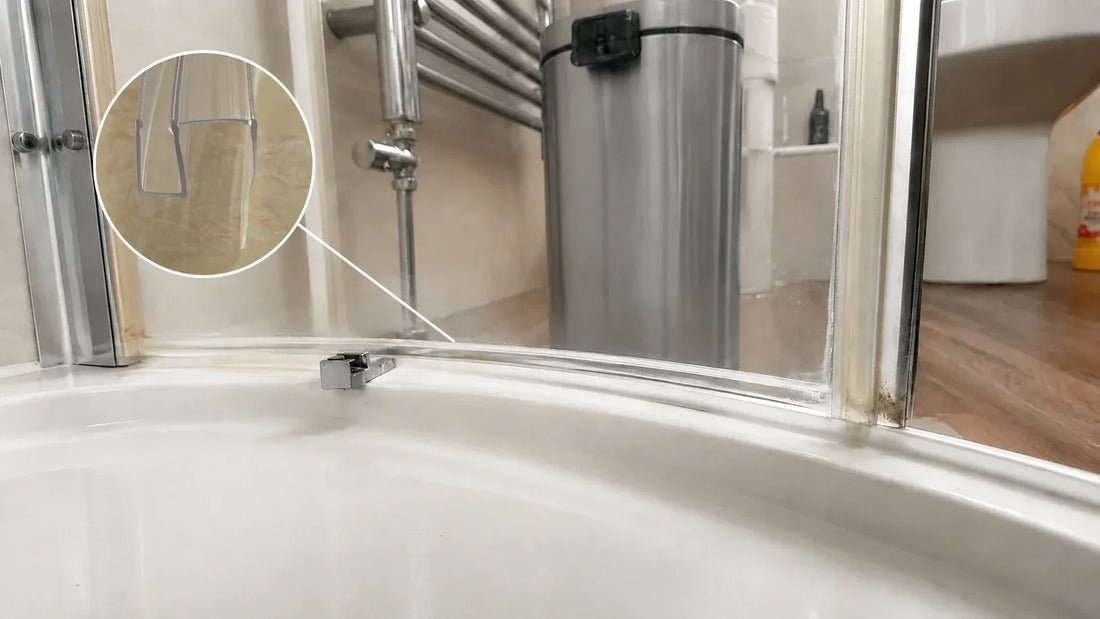

A standard push-on shower door bottom seal is usually held on the lower edge of the glass by a U-shaped channel, with a flexible fin running down from the centre.
When the bottom edge of the glass is clear, this type of seal can normally be pushed straight into place.
Hinges, rollers and brackets can interfere in two different ways.
Sometimes the fitting sits directly on the bottom edge of the glass, so the U-shaped channel cannot continue past it.
In other cases, the channel fits onto the glass but the centre fin runs into a fitting, the shower tray or the floor. Everything may look fine while the door is closed, then the fin catches as soon as you try to open it.
So first look at what is actually being blocked: the U-shaped channel on the glass, or the fin underneath it.
That tells you whether a standard bottom seal can still work with the door.
When Can You Cut a Bottom Seal and Keep Using It?
If the fitting only takes up a short section of the glass edge, standard shower door bottom seals can often be cut around it and fitted in separate sections.
A bottom hinge in the middle of the door is a common example. Instead of trying to run one length of seal through the hinge, the seal can be divided into a left and right section.
This can work well as long as both remaining sections still have enough channel to grip the glass securely and the fins cover the areas where water is likely to escape.
If there is no obvious leak at the hinge itself, the seal does not necessarily need to run continuously across that point.
Where water is actually escaping around the hinge, the way you stop a shower screen leaking at the hinge depends on whether it is coming from the lower corner, the vertical gap or another part of the fitting.
Before cutting, hold the seal against the glass and mark the position of the hardware. Leave a little room for adjustment rather than cutting too much first time.
Once fitted, open and close the door slowly a few times. If both sections stay in place, the fin does not catch and the door moves normally, the split installation is working as intended.
When Should You Stop Trimming the Seal?
If avoiding the hardware means cutting away a large part of the U-shaped channel, there may not be enough left to hold the seal securely on the glass.
Another clear warning sign is a seal that fits while the door is closed but stops the door moving properly.
Some bottom hinges, rollers and brackets sit directly in the space needed by a centre downward fin. As the door moves, the fin catches on the fitting, the shower tray or the floor. In more severe cases, the door may barely open at all.
Cutting the fin shorter is not always the answer.
At that point, the problem is no longer one small obstruction. The position of the centre fin itself is clashing with the layout of the bottom hardware.
If the seal cannot stay securely fitted after trimming, or the door no longer opens and closes normally, it is time to stop modifying that type of bottom seal.
What Type of Bottom Seal Works When a Standard One Does Not?
Start by looking at whether the fitting takes up the space below the glass, or whether it also occupies the bottom edge of the glass itself.
If a bottom hinge blocks the space underneath the glass but there is still a clear edge where a U-shaped channel can grip, a U-channel side-fin bottom seal may work better with that layout.
It still clips onto the glass, but the flexible fin sits to the side rather than directly underneath, allowing it to avoid the space already taken up by the hinge.
Some bottom hinges are different because the hinge itself clamps onto the lower edge of the glass.
In that situation, the hinge occupies the same area that a U-shaped seal would normally use. Moving the fin to the side does not solve the problem because the channel itself still cannot pass through the hinge.
If there is no obvious leakage at the hinge, a standard centre-fin bottom seal can still be cut into two sections and fitted on either side.
If that area also needs covering, or water still escapes nearby after a split installation, an adhesive side-fin bottom seal may be easier to fit around that type of hardware.
A profile such as S312DTL7 does not need a continuous U-shaped channel across the hinge area, so it avoids the part of the glass edge already occupied by the fitting.
When fitting this type of profile, the cutting and joining method for S312DTL7 also needs to take account of corners and neighbouring seals.
Once you know which fitting style can work around the hardware, choosing the right shower door bottom seal still depends on the glass thickness, the bottom gap and the area that actually needs to be covered.
If you are not sure which arrangement will work on your door, send us a clear photo of the bottom hardware along with the glass thickness and an approximate gap measurement. We can look at where the fittings sit and help you work out which type is most likely to fit around them properly.
FAQ
Can I still use a standard bottom seal if my shower door has a bottom hinge?
Yes, in many cases. If the hinge only takes up a short section and the remaining pieces of seal can still grip the glass securely, a standard bottom seal can be cut and fitted on either side. The door should still open and close normally.
Can I cut a bottom seal into two pieces around a hinge?
Yes, particularly if the hinge area itself is not leaking. Both sections need to stay firmly attached to the glass and must not interfere with the movement of the door.
Why does my shower door no longer open after fitting the bottom seal?
The centre downward fin may be catching on a hinge, roller, bracket, shower tray or the floor. A seal can look fine with the door closed but still have too little clearance once the door starts to move.
Should I use a U-channel side-fin seal or an adhesive side-fin seal around a bottom hinge?
Look at where the hinge sits. If the bottom edge of the glass is still clear enough for a U-shaped channel and only the space underneath is blocked, a U-channel side-fin seal may work.
If the hinge itself occupies the bottom edge of the glass, the U-shaped channel cannot pass through it. In that case, a standard seal can sometimes be fitted in separate sections, or an adhesive side-fin profile can be considered where the hinge area also needs continued coverage.
