11 Shower Door Seal Mistakes That Cause Leaks, Dragging and Early Wear

1. Buying Only by the Shape of the Old Seal

Many people remove the old seal and look for a replacement that appears almost identical. It feels like the safest option.

The problem is that the old seal may no longer show its original shape. It may be flattened, stretched, yellowed or distorted. On an older bottom seal, the fin may be bent or the channel may have opened up. If the seal was already leaking, slipping off, or making the door hard to move, copying the same shape may simply repeat the same problem.

Use the old seal as a reference, but not as the only guide. You still need to check the glass thickness, fitting position, bottom gap, door movement and where the water is actually escaping.

2. Assuming Every Leak Comes from the Bottom Seal

When the bathroom floor is wet, it is easy to blame the bottom seal.

But water often travels before you notice it. It may start from a hinge, side gap or corner, then run down the glass and collect near the bottom of the door. From outside the shower, it can look like a bottom leak even when the real leak starts somewhere else.

Before buying a new seal, watch where the water begins. Is it coming directly from under the glass, or running down from the side, hinge or corner? That answer will help you decide whether you need a bottom seal, vertical seal, magnetic seal or another profile.

This is covered in more detail in our shower leak troubleshooting guide, but the main idea is simple: find where the leak starts before replacing the seal.

3. Thinking Longer Fins Always Mean Better Waterproofing

When water leaks from the bottom of the door, a longer or deeper fin can feel like the obvious answer. It looks more protective, so it feels more reassuring.

But a bottom seal does not sit still. It moves every time the door opens and closes. If the fin is too long for the space, it may drag on the tray, scrape, make noise, or make the door harder to close. Over time, that extra resistance can pull on the seal body, causing it to loosen, slide down or wear out sooner.

In most cases, the fin only needs to be slightly longer than the bottom gap, usually by around 1–3 mm. If it is used with a threshold, the overlap should still stay controlled, often no more than 5 mm.

If your new seal starts dragging, scraping or making the door feel tight, the fin may be too long for the setup. We explain this in more detail here:
Why Longer Fins Are Not Always Better for Shower Door Bottom Seals

4. Ignoring Glass Thickness

A seal needs to grip the glass securely before it can do anything else.

If the channel is too loose, the seal may slip or fall away. If it is too tight, it may be difficult to fit or may distort as you push it on. For example, a seal made for 8 mm glass will not grip 6 mm glass properly, while a narrow channel forced onto thicker glass may lose its shape.

Before buying, do not just check the length or the fin depth. Check which glass thickness the seal is made for. This small detail decides whether the seal will sit securely from the start.

5. Treating the Seal as Something That Should Slide On

A common fitting mistake is trying to slide the whole PVC seal onto the glass from one end. It may move at first, then become tighter, twist, or stop completely.

That does not always mean you need more force. It often means the fitting method is wrong.

Many push-on shower door seals are designed to be pressed on gradually along the edge of the glass, not slid on like a rail. They stay in place because of the natural friction between the channel and the glass. Forcing the seal to slide can stretch it, twist it, or damage the channel.

6. Heating the Seal with Hot Water or a Hairdryer

If the shower seal feels stiff, you may be tempted to soften it with hot water or a hairdryer before fitting it.

We do not recommend this.

Heating the seal can change its shape and reduce its grip on the glass. A shower seal needs to hold firmly onto the shower screen to stop leaks. If it becomes too soft or slightly distorted, it may fit more easily at first, but it may not stay securely in place afterwards.

A hairdryer can also be risky, as it may overheat one small area of the seal. This can cause uneven softening or warping.

For DIY installation at home, it is safer to avoid heat. Instead, check that the seal matches your glass thickness, clean the glass edge, line up the seal carefully, and press it on gradually from one end to the other.

For more fitting tips, please see our guide: how to fit shower screen seal strip

7. Using Lubricants, Especially Vaseline

If the seal feels tight, some people reach for a lubricant. Vaseline is a common choice because it is easy to find and makes surfaces feel slippery.

That is exactly the problem.

A shower door seal is meant to stay in place through friction. If you use Vaseline or an oil-based lubricant, the seal may be easier to fit at first, but it may later slide, shift, or get pulled along by the door.

If fitting is difficult, check the sizing and method before adding anything slippery. The seal should grip the glass naturally, not behave like a loose plastic sleeve.

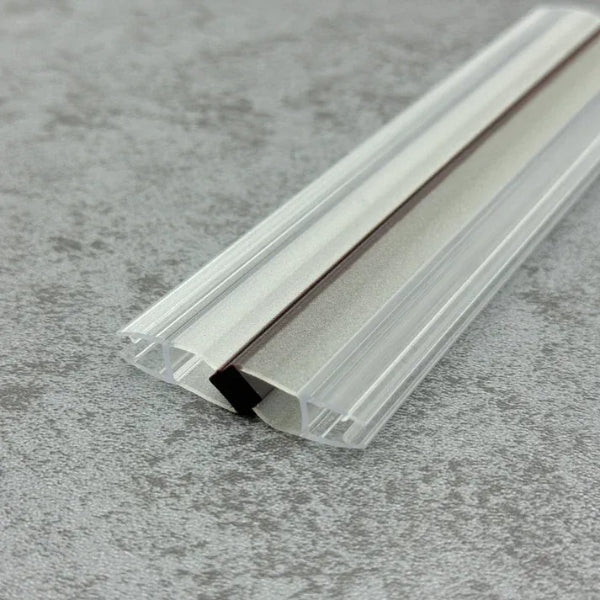

8. Replacing Only One Magnetic Seal

When a magnetic shower seal does not close properly, many people assume the magnet is weak.

Sometimes the real issue is polarity.

Magnetic seals need matching poles to attract correctly. If you replace only one side, or combine a new magnetic strip with an old one that does not match, the two strips may not meet properly. In some cases, they may even repel each other.

For this reason, magnetic shower seals are usually best replaced as a pair. That gives both sides the correct magnetic alignment and a more reliable close.

9. Fitting the Drip Rail the Wrong Way Round

A bottom seal with a drip rail or angled fin is not just there to close a gap. Its job is to guide water back towards the shower tray.

If it is fitted the wrong way round, the deflecting edge may send water outwards instead of inwards. The seal may look correctly installed, but the bathroom floor still ends up wet.

When fitting a drip rail, do not only look at which side is easier to push on. Check where the water will be directed. In most cases, the drip rail should face into the shower area so water returns to the tray.

10. Using the Same Seal for Every Door Type

Sliding doors, hinged doors, pivot doors and curved bath screens do not all need the same type of seal.

A sliding door may have tracks, rollers or guide blocks that can interfere with a standard U-channel bottom seal. A curved bath screen may need a more flexible P-shape seal that follows the curve of the glass. A standard hinged or pivot door may work better with a single fin, double fin or drip rail profile.

Just because a seal fits onto the glass, it does not mean it suits the door. The right seal should work with the way the door moves, without catching on tracks, dragging on the tray or stopping the door from closing properly.

11. Cutting the Seal Poorly or Fitting It onto Dirty Glass

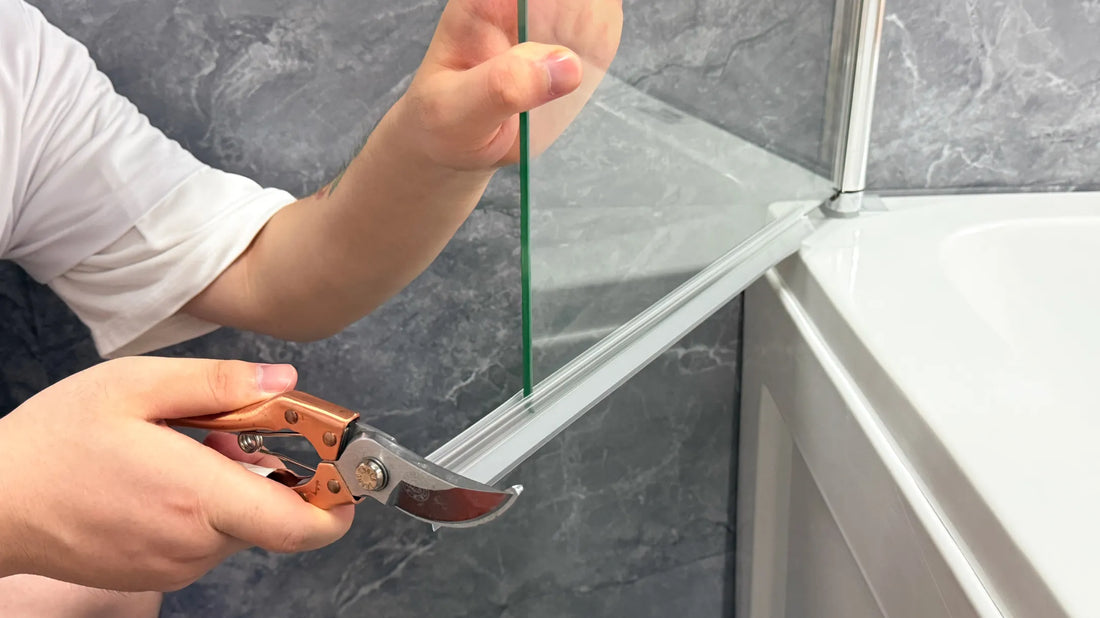

Most shower seals can be trimmed, but the way they are cut matters. Blunt scissors or a rough cut can crush the U-channel, distort the end, and reduce the grip on the glass.

Another common mistake is fitting a new seal straight after removing the old one. The lower edge of the glass often has limescale, soap residue or grime left behind, especially in hard-water areas. If the glass is not cleaned first, the new seal may not sit properly and may loosen or mark more quickly.

A cleaner, more reliable approach is to remove residue from the glass, measure carefully, and cut the seal cleanly without crushing the channel. Small fitting details can make a big difference to how well the seal lasts.
