You order a replacement shower door seal that says it fits your glass thickness. It looks right on the product page, so you push it onto the edge of the curved shower screen.
At first, it seems close.
Then one end will not sit flat. The middle starts to twist. The bottom lip no longer follows the glass evenly.
You take it off, try another seal from another supplier, and the same thing happens again.
After four or five attempts, it is natural to blame the glass thickness. But if the glass is within the correct range, the problem is often not the size.
It is the shape.
This is why choosing the right shower seal is not only about glass thickness, but also about the shape of the screen and the way the seal has to sit on the glass.
A straight shower door seal is made for a straight glass edge. Once it is forced onto curved glass, the seal starts working against itself.
That is why it may kink, lose its sealing line, or come loose again after fitting.
A curved glass door does not simply need a softer strip. It needs a seal that is already shaped to follow the curve.
Why glass thickness is not enough
Measuring the glass is the right place to start. For most replacement shower door seals, the U-shaped channel needs to match the glass thickness.
But on a curved shower screen, that is only half the answer.
A 4–6mm seal may be the right size for the glass and still be wrong for the shape of the door. On a straight door, the seal slides along a straight edge. On a curved door, the same seal has to bend, stretch and compress while still holding onto the glass.
So when a product says it fits 4–6mm glass, that does not automatically mean it will work on curved glass. The seal also needs to suit the curve.
Why straight seals kink on curved glass
A standard shower door seal is designed to work in a straight line. The U-channel grips the glass, and the soft bottom fin hangs down to create a continuous water barrier.
Curved glass changes the load completely.
When a straight seal is pushed around a curve, the outside edge is stretched, the inside edge is compressed, and the channel is forced away from its natural angle. The bottom fin is pulled into the same curve and can start to wrinkle.
Two failures are common.
The seal body kinks or becomes damaged.
The inner side cannot release the compression, so it may crease, bulge or collapse. The outer side is under constant tension, and in more severe cases it can crack or split. Once the body kinks, it is no longer a stable sealing strip.
The bottom fin loses contact.
The fin should sit smoothly against the bath edge or shower tray. But when it is bent, rubbed and compressed every time the door opens and closes, it can fold, lift or form wave-like wrinkles. That breaks the sealing line and leaves small gaps for water to escape.
The issue is not simply that the seal is too hard. The channel, body and bottom fin are all being pulled in directions they were not designed for.
Why a softer rubber seal is not always better
When a PVC seal will not bend neatly around curved glass, a softer rubber seal can seem like the obvious answer.
It may bend more easily. But bending is not the only job.
A shower door seal also has to grip the glass and stay in place during daily use. If the material is too soft, the U-channel can lose holding strength. The seal may look fine at first, then slide, loosen or drop from the bottom of the glass after repeated opening and closing.
Loose fitting is not always caused by the material alone. Channel depth, glass thickness and repeated door movement can also make a seal work loose, as explained in our guide to why a shower door seal keeps falling off.
For a curved shower door, the better solution is not simply a softer strip. It is a seal that balances flexibility, grip and a curve that suits the glass.
A curved shower door seal needs a pre-formed curve
A curved shower door seal should not be a straight strip forced into shape. It should already sit close to the curve of the glass before installation.
That shaped curve matters. It reduces the stress on the U-channel, lowers the risk of kinking along the inner side, and helps the bottom fin hang more naturally instead of being pushed into wrinkles.

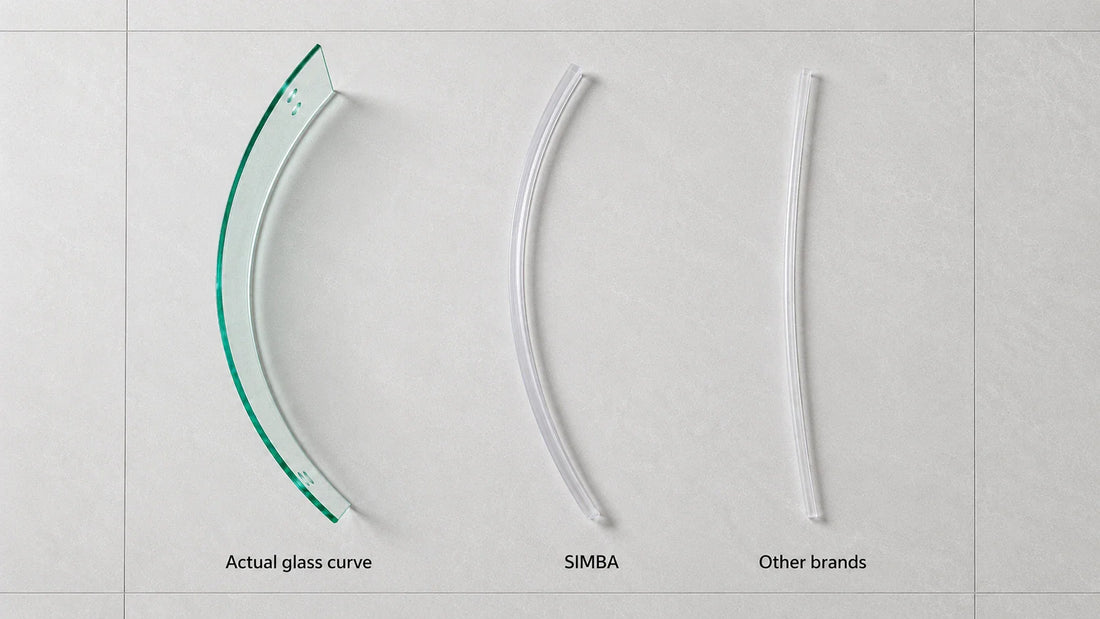

The curve also has to be accurate. If it is too shallow, the seal still pulls against the glass. If it is too strong, the channel may not sit securely. If it is uneven, the bottom fin cannot form a clean sealing line.
A good curved seal has to follow the glass, grip securely and keep the bottom fin in continuous contact with the bath edge or shower tray.
Our curved shower screen seals were developed around these requirements. During development, we also applied for patent protection for our curve-forming process. The aim is not to bend a straight strip temporarily, but to create a more stable curve during manufacturing, reducing kinks, rebound, loose fitting and broken sealing lines.
Packaging also affects the seal
A curved seal can be affected before it ever reaches the bathroom.
When testing different curved shower door seals, we noticed a detail many customers would never see: how the seal is packed. Is it allowed to keep its original curve, or is it squeezed into a narrow straight-style box?
For a shaped curved seal, the box is not just packaging. It affects the stress the product carries during storage and transport.
If a curved seal is held too flat or compressed for too long, it may not arrive in its natural shape. During fitting, that can mean more rebound, harder installation, local lifting, weaker grip in the U-channel, and a bottom fin that is already more likely to wrinkle.
That is why we use wider curved packaging instead of forcing the seal into a narrow box. The purpose is not to make the packaging look bigger. It is to help the seal retain its curve and elasticity before installation.
What to check before buying
Before buying a curved bath screen seal, do not rely on glass thickness alone. Start by checking whether the bottom edge of the glass is straight or curved, and whether the glass thickness matches the channel size.
Then check that the product is actually made for a curved shower door, not a standard straight seal. The seal should already have a shaped curve, and the bottom fin needs to be tall enough to reach the bath edge or shower tray.
Packaging is worth checking too, because a curved seal needs to retain its natural shape before it is fitted.
For curved glass, the final fit depends on more than channel size. Curve, grip, fin height and packaging condition all affect how well the seal performs.
P-shaped bath screens need the same careful check because the glass curve, bath rim and bottom gap all affect the final fit. For that specific situation, see our P-shaped shower screen seal guide.
Stop trying to make a straight seal fit curved glass
If several different shower door seals have already failed in the same way — hard to push on, kinked halfway round, wrinkled at the bottom, or loose after a short time — another straight seal is unlikely to solve the problem.
At that point, it is better to stop treating it as a straight-seal problem.
A curved glass door is not a small variation of a straight door. It changes how the seal is loaded and makes every small distortion more noticeable.
The better approach is to start with a seal made for curved glass. It should have a stable shaped curve, enough grip to stay on the glass, and a bottom fin that can form a continuous sealing line.
If your shower door is curved, start with the curved shower screen seals collection rather than trying another standard straight strip. Before choosing, compare your glass thickness, the curve of the door and the shape of your old seal.
Once you have confirmed that the glass is curved, fitting the seal correctly matters just as much as choosing the right profile. Our guide on how to fit a curved shower screen seal explains the fitting process before you install it.
FAQ
Can I soak a straight shower door seal in hot water to make it fit curved glass?
It is not a reliable long-term fix. Hot water may soften PVC briefly, but it can also affect grip and sealing performance. If the water is too hot, especially above 70°C, the seal may curl or deform.
Will any 4-6mm shower door seal fit a curved glass door?
No. Glass thickness only tells you whether the channel may fit over the glass. A curved door also needs a seal with the right shaped curve.
Is rubber better than PVC for a curved shower door seal?
Not always. Softer rubber may bend more easily, but if it does not grip the glass firmly, it can slide or come loose. The key is the balance between flexibility, grip and curve match.
How do I know if I need a curved shower door seal?
If the bottom of your glass door is curved, or if a straight seal kinks, wrinkles, rebounds or fails to sit against the bath edge or shower tray, a curved shower door seal is usually the better choice.
