Curved Bottom Shower Screen Seal for 4–6mm Glass 20mm Fin V456S20CU
Curved Bottom Shower Screen Seal for 4–6mm Glass 20mm Fin V456S20CU
Regular price
£19.80
Regular price
£31.19
Sale price
£19.80
Unit price
per
-37%
Taxes included.
Shipping calculated at checkout.
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Product Video
Key Specifications
Catalog No.
V456S20CU
Glass Thickness
4mm / 5mm / 6mm
Seal Type

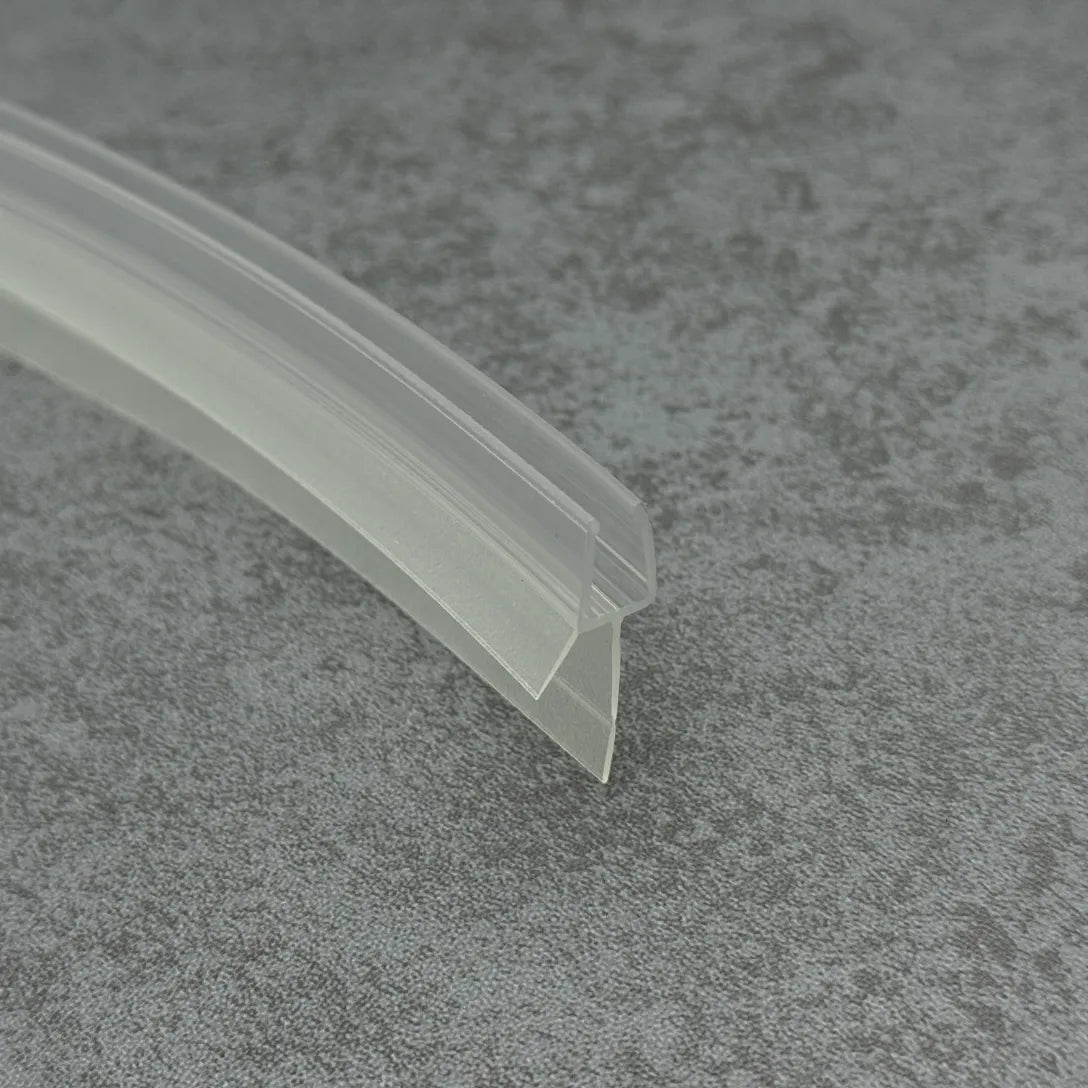

Pre-curved bottom seal

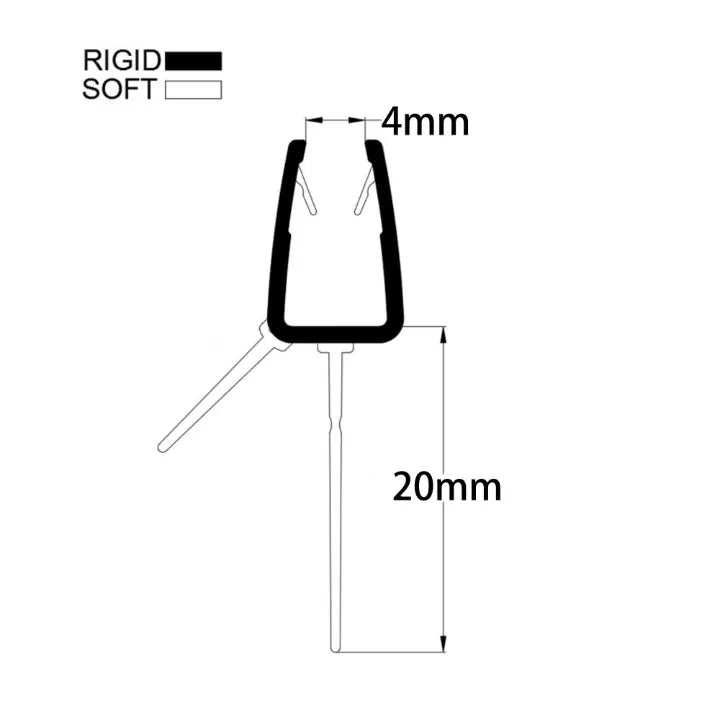

Flexible Fin Length
20mm
Recommended Bottom Gap
Approx. 14–19mm
Suitable Curve Height
Approx. 80–160mm

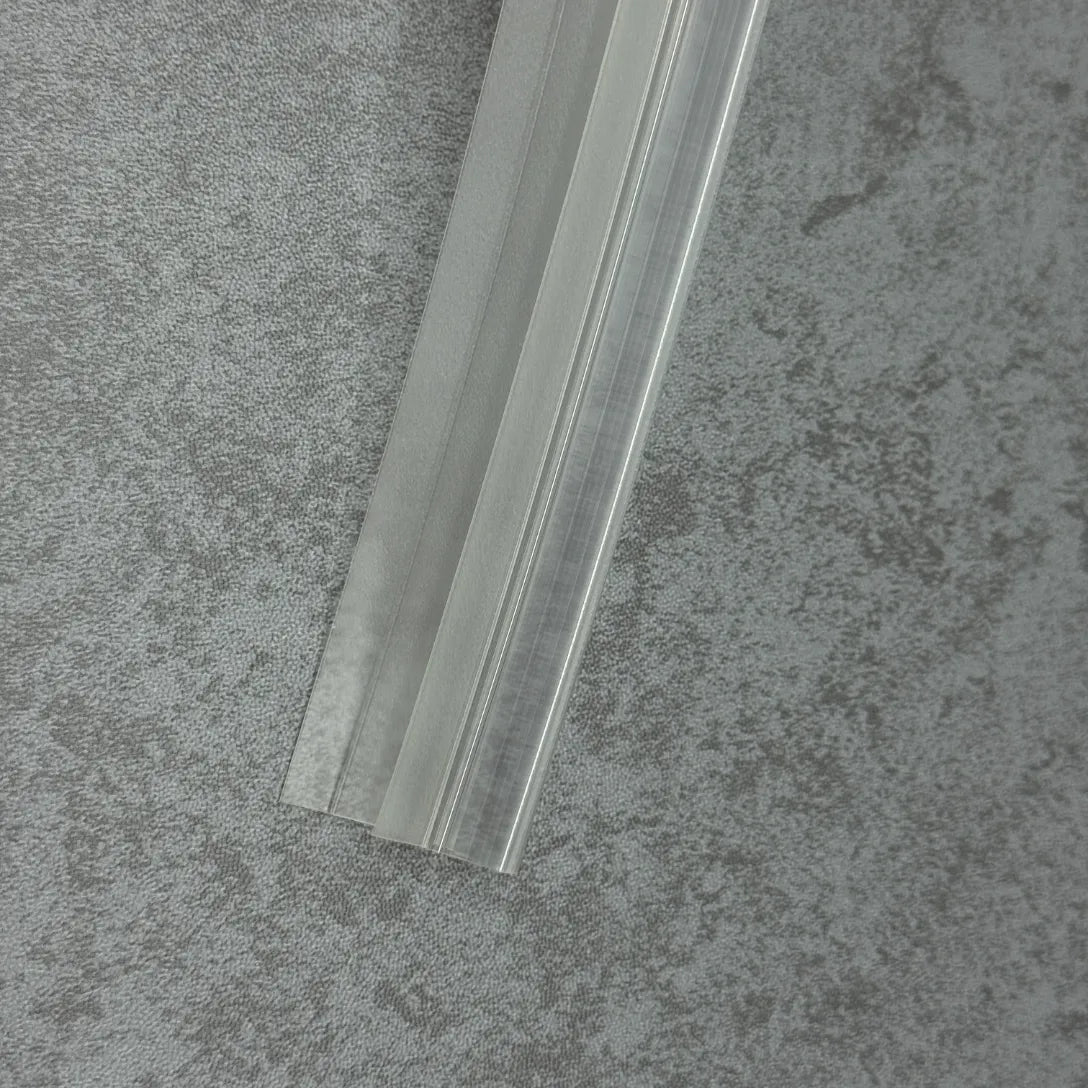

Material
Clear flexible PVC
Length
1000mm – can be trimmed to size
Installation
Push-fit, no adhesive required
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty
Check Before You Buy
This seal is suitable if:
- Your curved shower glass is 4mm, 5mm or 6mm thick.
- You have a larger bottom clearance of around 14–19mm.
- You need a longer 20mm flexible fin to reach the tray or bath edge.

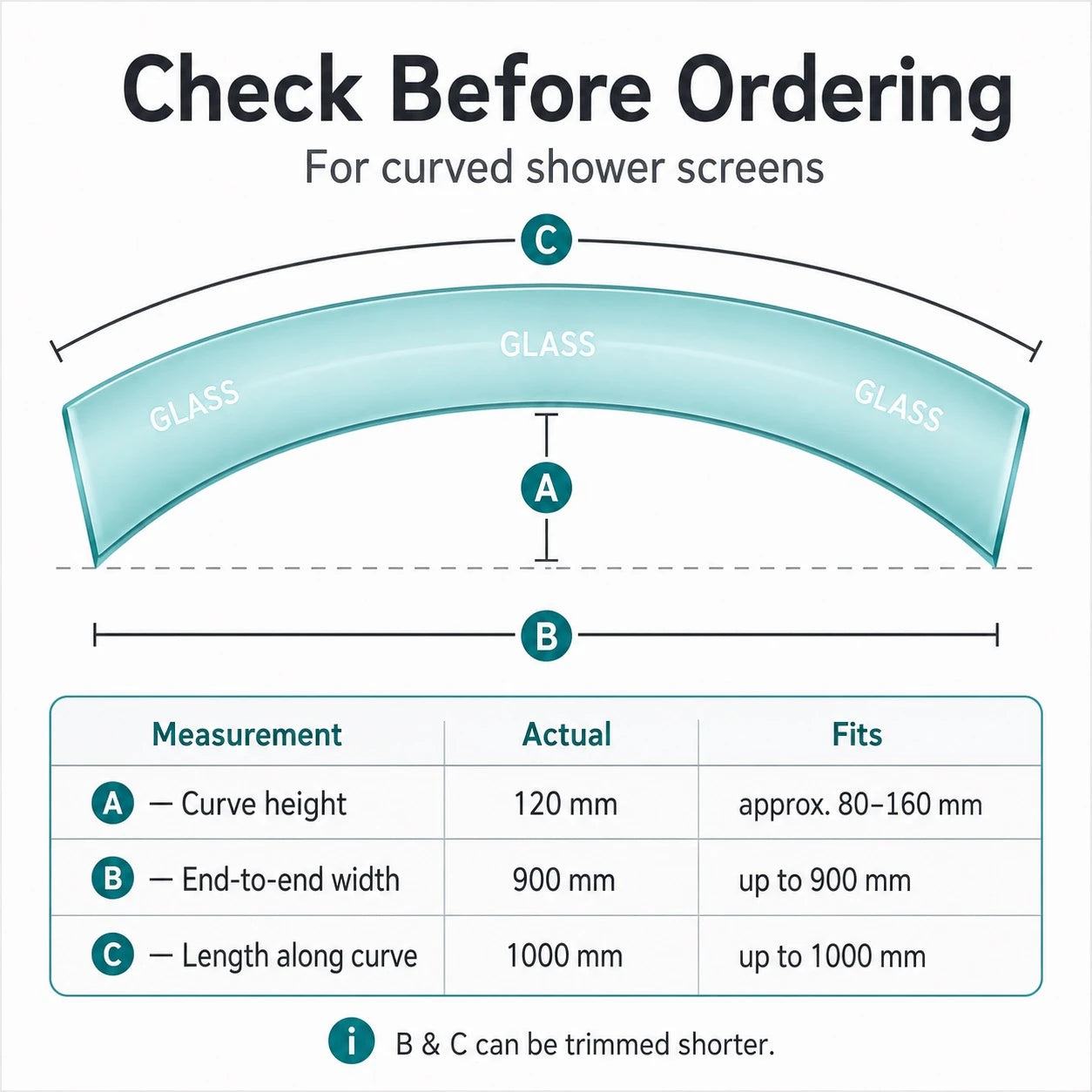

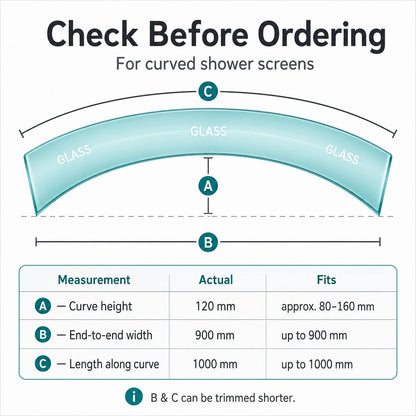

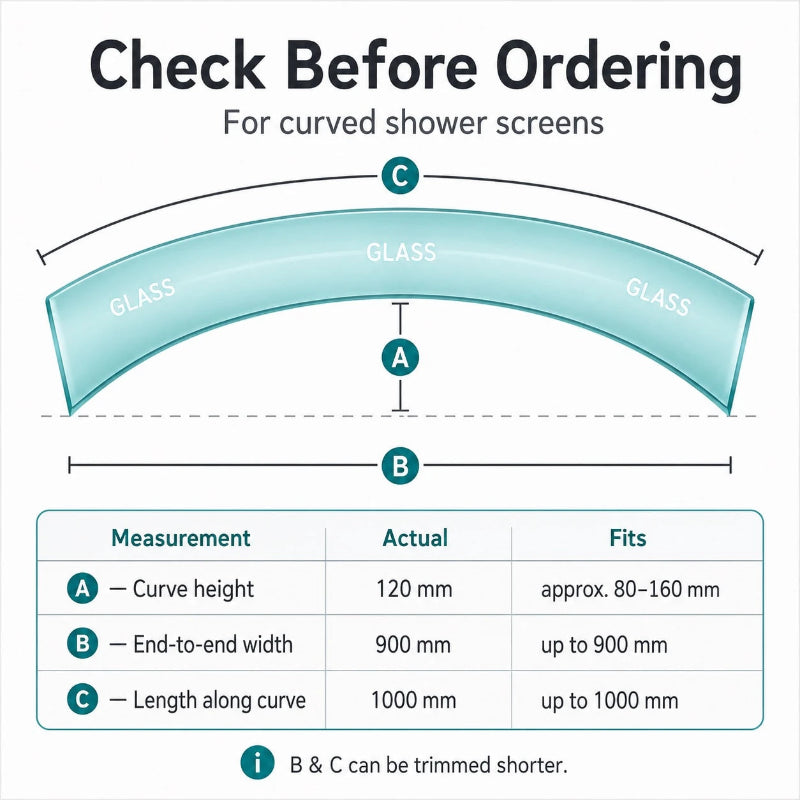

- The curve height shown in our guide is approximately 80–160mm.
- The lower edge of the glass is smooth and free from hinges or bulky fittings.
- Your required length is 1000mm or less.
Choose another seal if:
- Your gap is much smaller than 14mm, where a shorter fin may sit more neatly.
- Your glass thickness is outside 4–6mm.
- The glass bottom has a frame, hinge or obstruction preventing direct push-fit installation.
- The curve is well outside the dimensions shown in our measuring guide.
Product Details
V456S20CU is intended for curved shower screens and doors where the glass sits noticeably higher above the tray or bath edge.

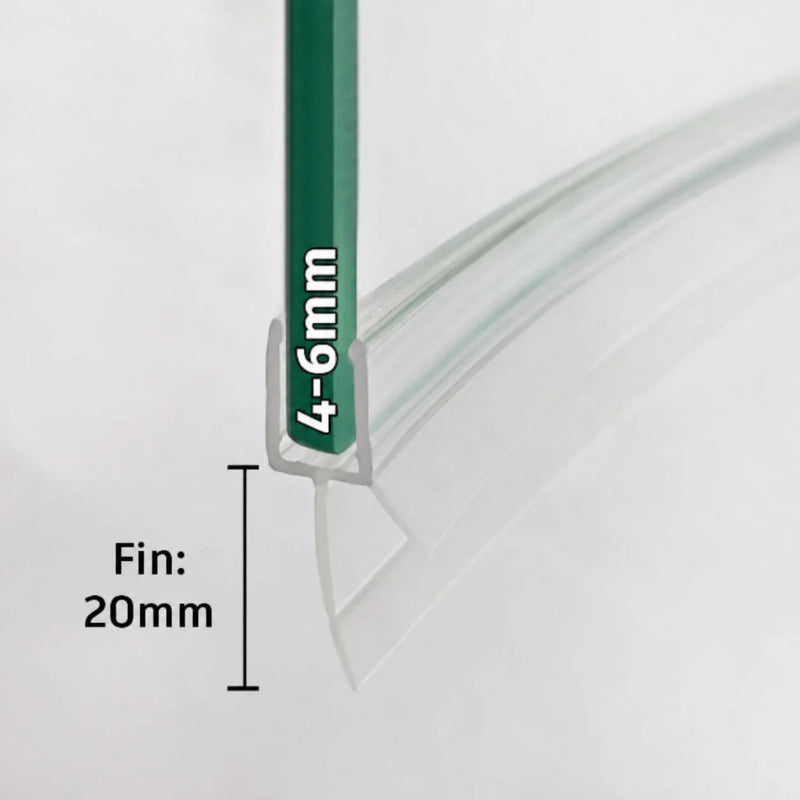

Its 20mm flexible fin gives extra reach beneath 4–6mm curved glass, making it the better choice when shorter 12mm or 16mm fins would leave too much clearance. For this profile, a bottom gap of approximately 14–19mm is the recommended working range.
The long fin is soft enough to flex as the screen or door moves, but it should not be heavily folded against the tray. If your gap is much smaller, choosing a shorter-fin version will usually give a cleaner fit.
The pre-curved channel can adapt to a range of compatible glass curves, provided the glass thickness, curve height and fitting edge are suitable. Your old seal does not need to match the exact shape.
Do not heat the profile to force a tighter curve. Excessive heat may distort the gripping channel and reduce its hold on the glass.
Supplied in a 1000mm length and can be trimmed before fitting.
