Curved Bottom Shower Screen Seal for 4–6mm Glass 23mm Fin V456S23CU
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Product Video
Key Specifications
Check Before You Buy
This seal is suitable if:
- Your curved glass is 4mm, 5mm or 6mm thick.
- Your bottom clearance is approximately 17–22mm.
- You need a 23mm flexible fin to reach a deeper gap beneath the curved glass.

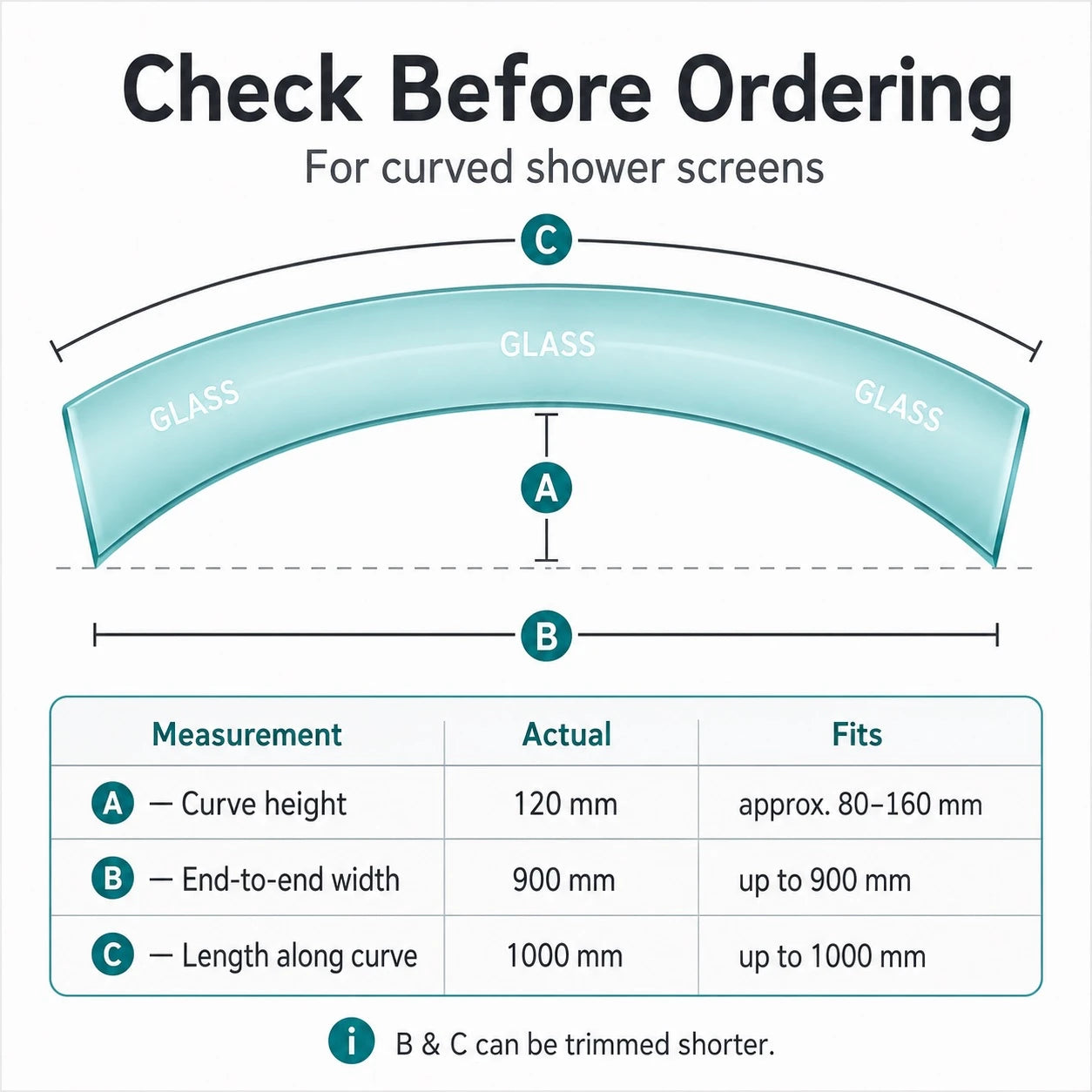

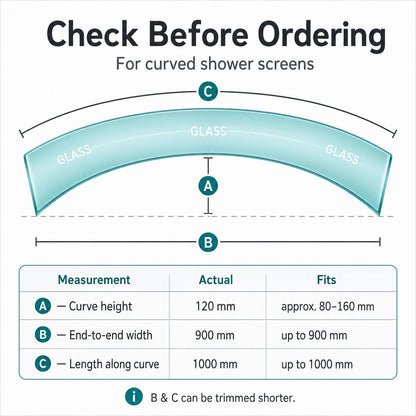

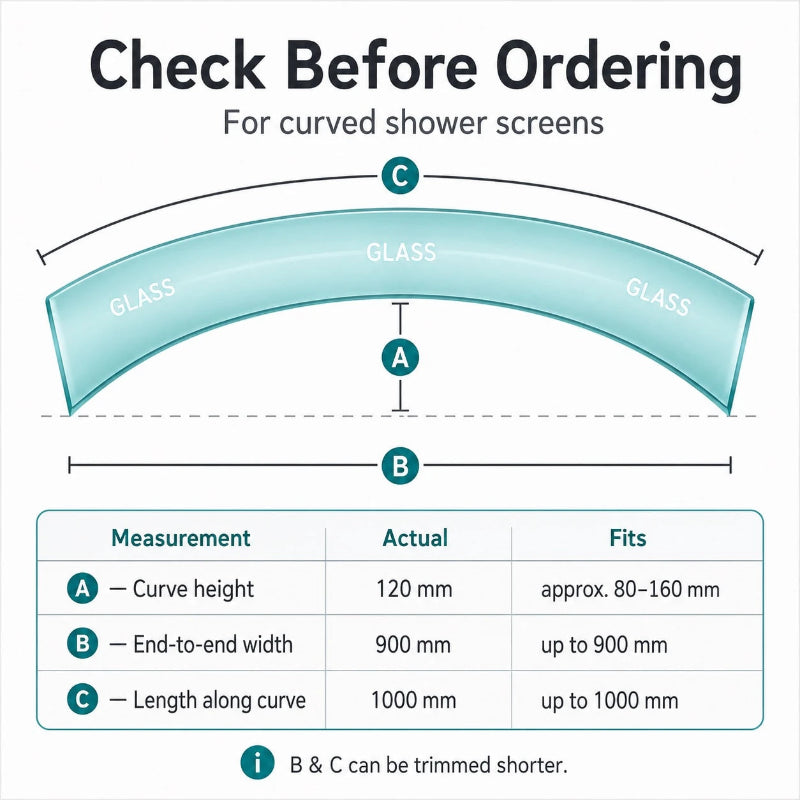

- The curve height shown in our measuring guide is around 80–160mm.
- The bottom glass edge is smooth, exposed and free from hinges or bulky fittings.
- Your required length is 1000mm or less.
Choose another seal if:
- Your gap is much smaller than 17mm, where a shorter fin will usually sit more naturally.
- Your glass thickness is outside 4–6mm.
- A frame, hinge or metal profile obstructs the lower edge.
- The glass curve is well outside the dimensions shown in our guide.
Product Details

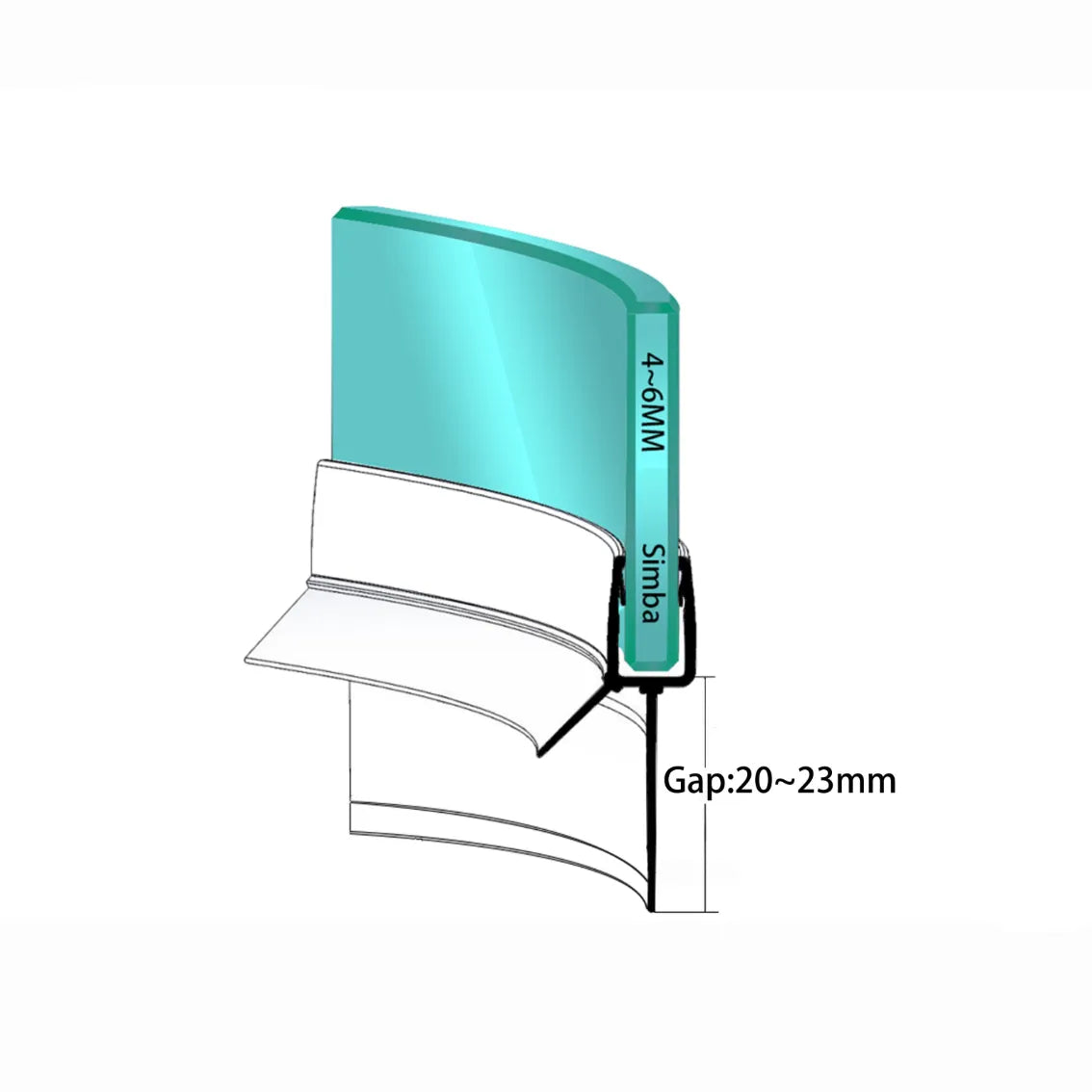

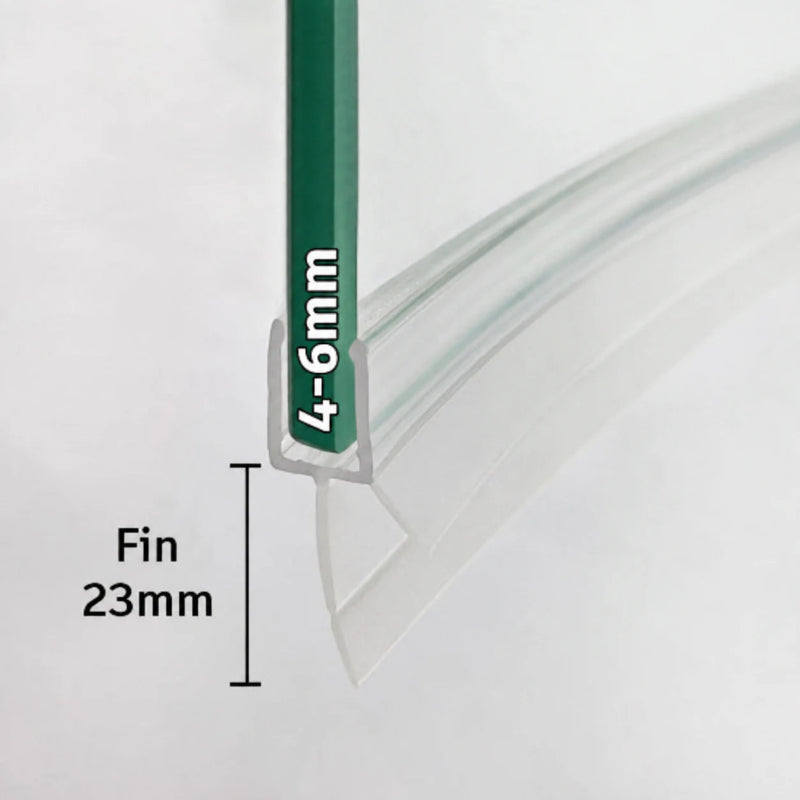

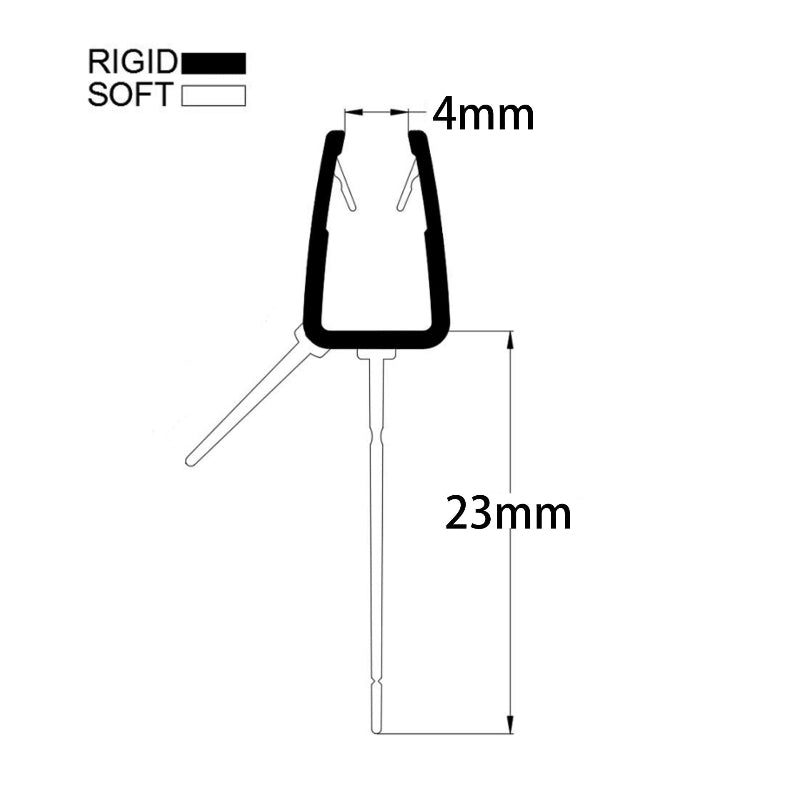

V456S2023CU is the longest-fin version in this curved seal series, designed for 4–6mm curved shower glass with a larger bottom clearance.

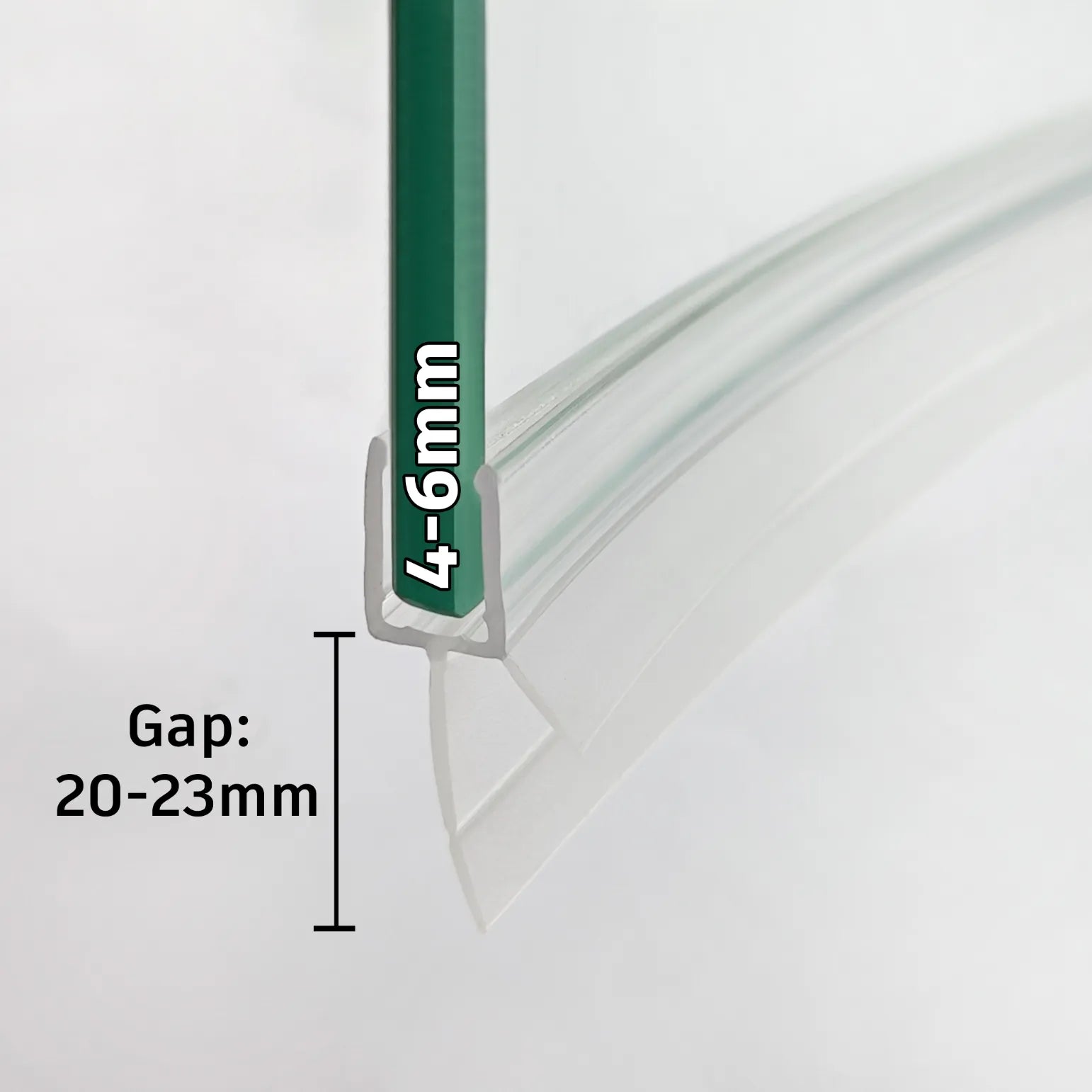

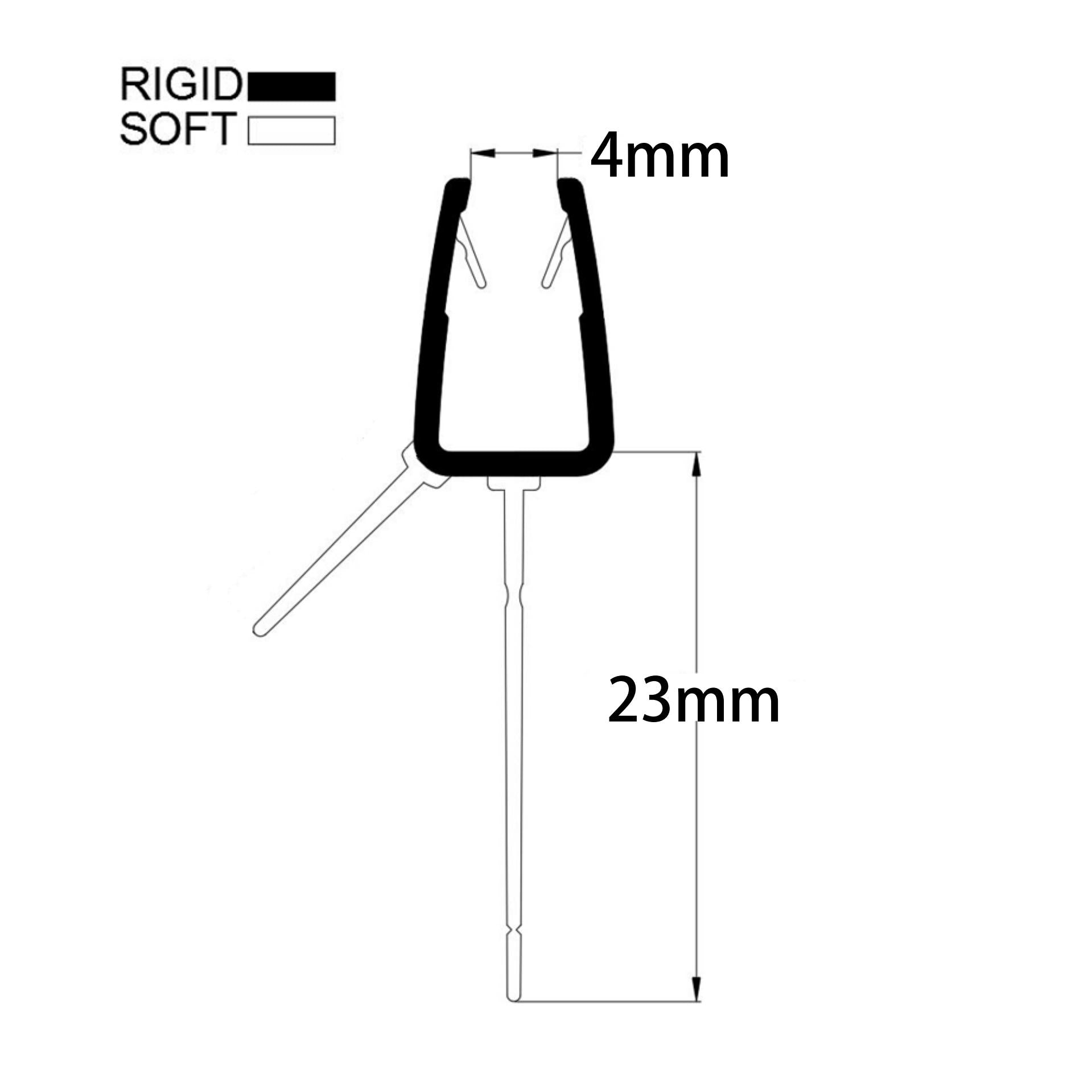

Its 23mm soft fin provides the extra reach needed for gaps of around 17–22mm, where shorter 12mm, 16mm or 20mm profiles may not make enough contact with the tray or bath edge.
The fin is flexible, so it can move against the surface as the door or screen moves. It should make useful contact without being tightly folded underneath the glass.
The 17–22mm figure is a recommended working range rather than an absolute limit. The practical check is whether the fin reaches the sealing surface while the door still opens and closes freely.

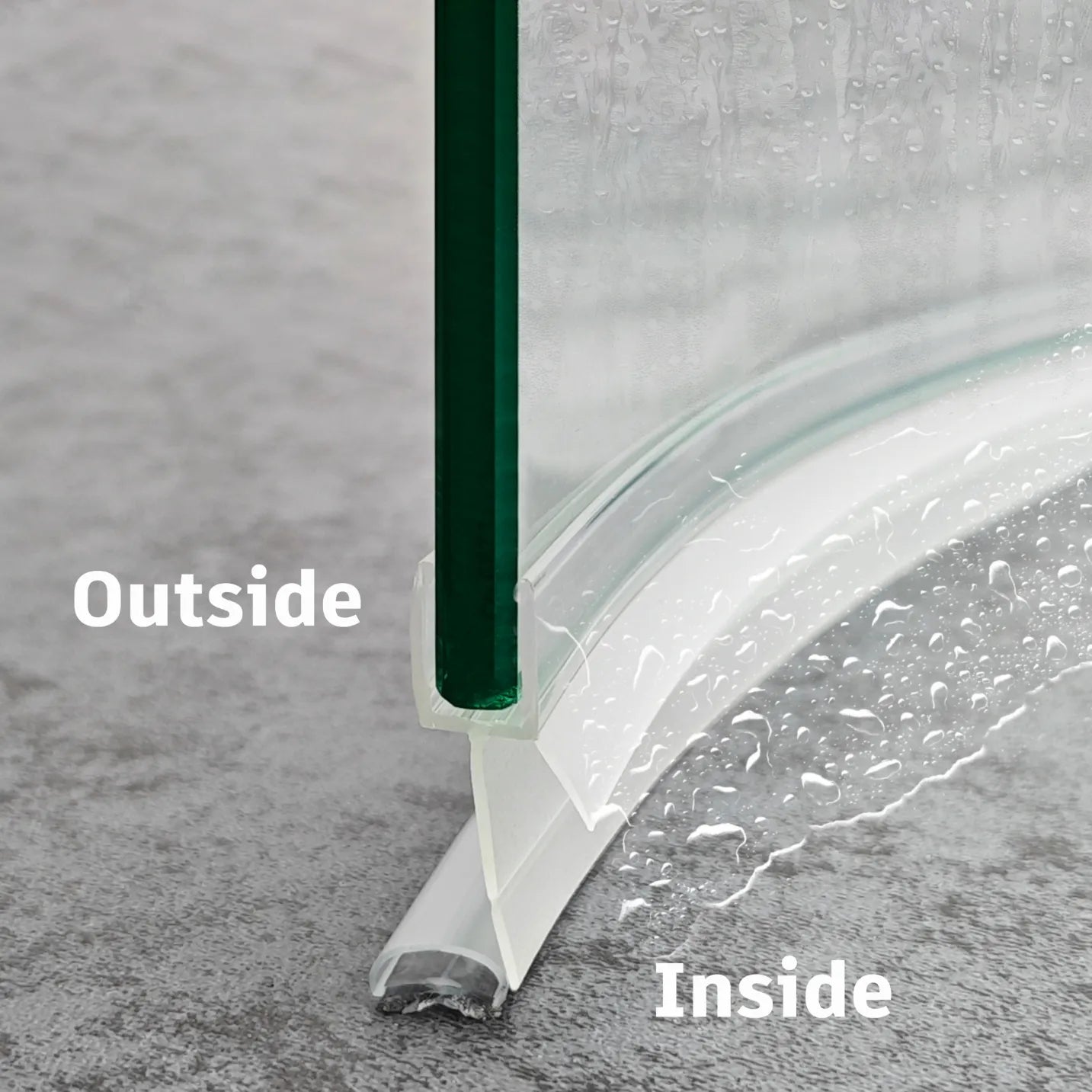

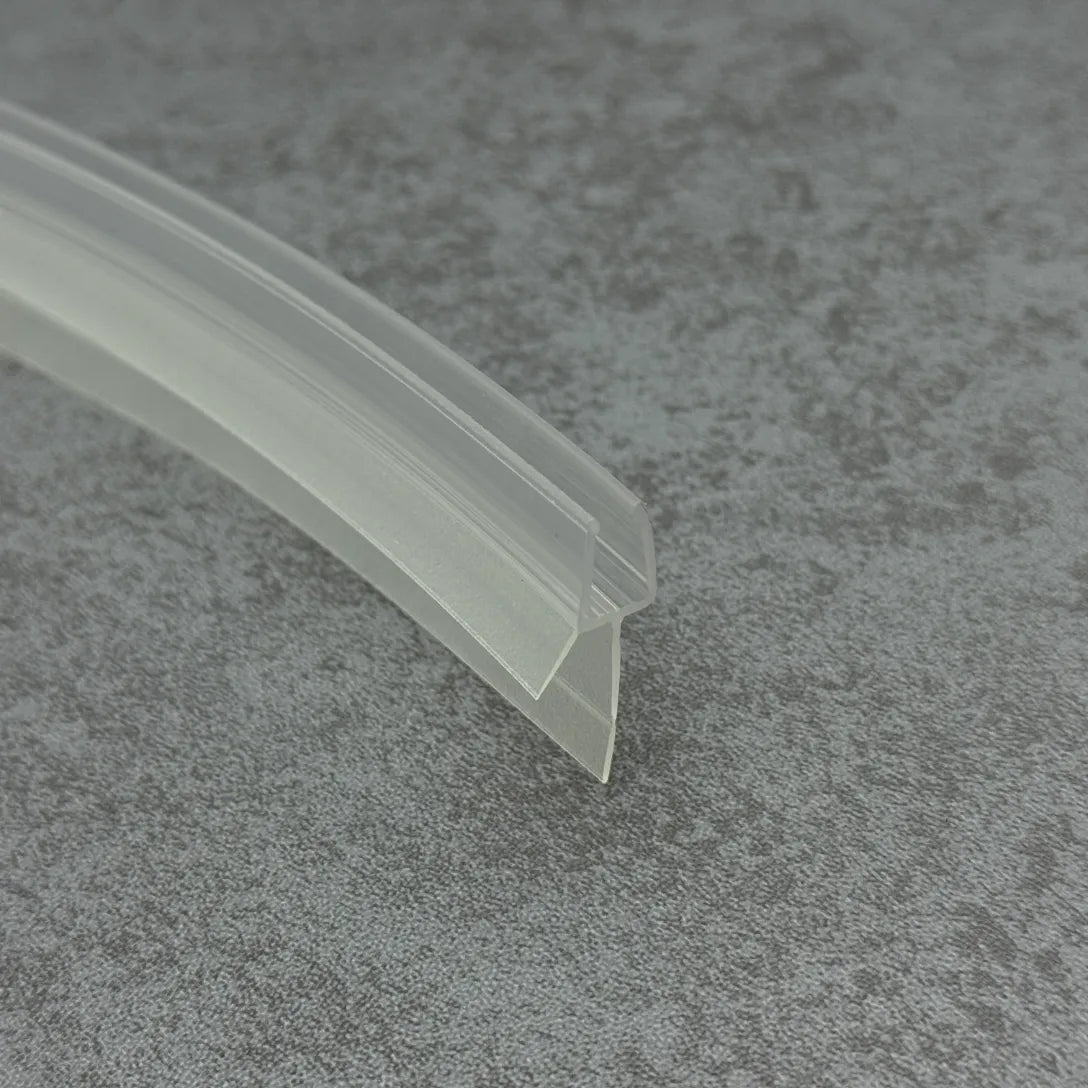

The pre-curved channel can adapt to compatible curved screens when the glass thickness, curve height and fitting edge are correct. There is no need to force the seal into the exact shape of the old profile.
Do not heat the seal to reshape it, as excessive heat can distort the gripping channel and reduce its hold on the glass.

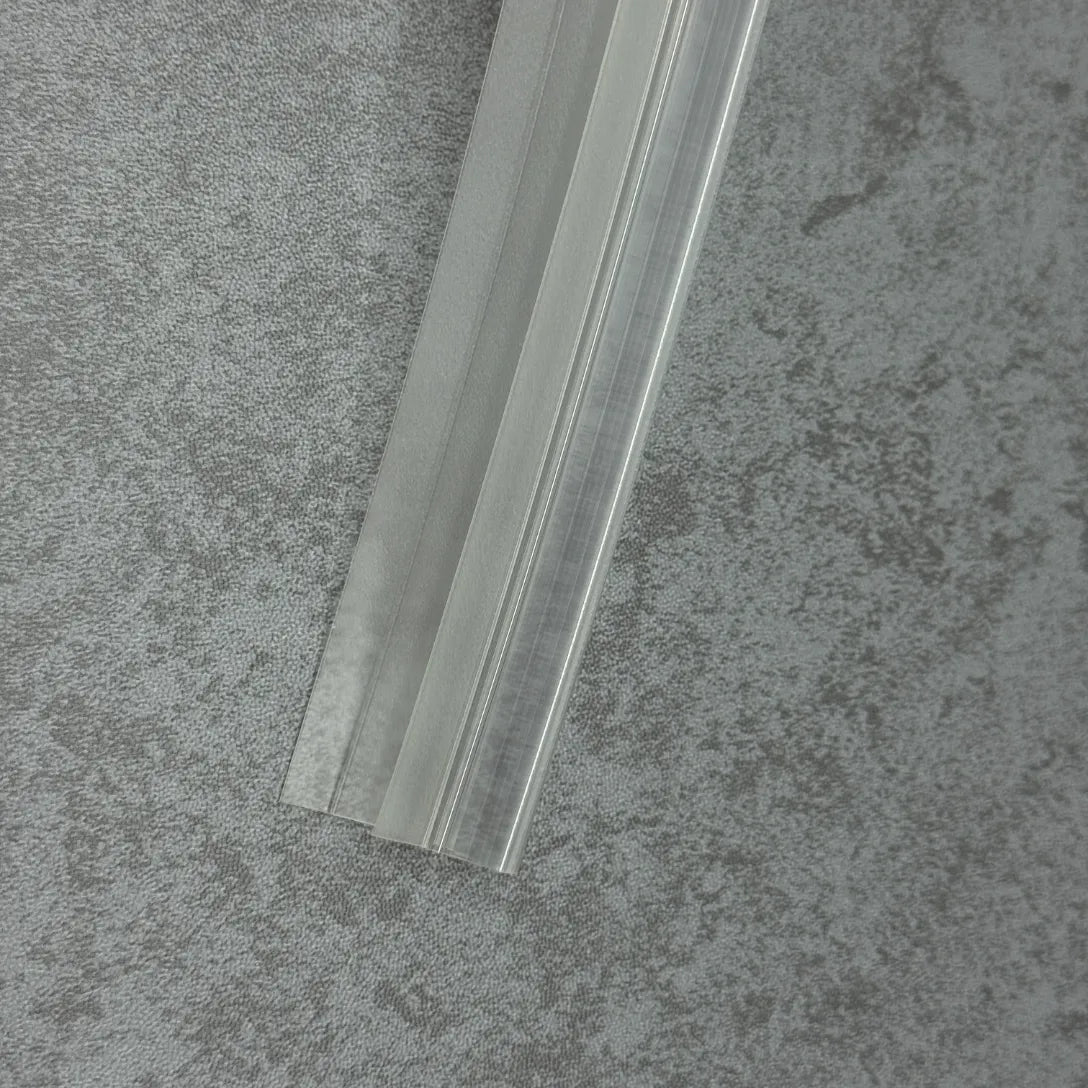

Supplied in a 1000mm length and can be trimmed before fitting.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
£19.80
A Better Chance of Getting the Right Fit
For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small measurement differences can be difficult to confirm at home, so we include nearby options where this helps reduce the risk of ordering the wrong fit. Each seal is complete and ready to fit. Simply use the one that suits your shower door best.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.
We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.
