Magnetic Shower Door Seal for Uneven 18–30mm Gaps 4–6mm & 8–10mm Glass M410AC

Key Specifications

Pre-order item — please contact us to confirm the current dispatch time before ordering.

Catalog no.

M410AC

Glass thickness options

4–6mm / 8–10mm

Seal type

Adaptive magnetic shower door seal pair

Suitable closing arrangement

90° or 180°

Suitable closing gap

Approx. 18–30mm

Best for

Uneven vertical gaps or glass panels that do not meet perfectly in line

Length

2000mm each strip – can be trimmed to size

Profile design

Rigid glass channel + wide flexible connector + magnetic closing strip

Material

Clear PVC with magnetic inserts

Pack quantity

1 matching magnetic pair

✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

• Your glass is 4–6mm or 8–10mm thick.
• Your shower door closes at approximately 90° or 180°.
• The vertical closing gap is around 18–30mm.
• The two glass edges are slightly offset or the gap changes from top to bottom.
• A standard magnetic seal meets at one point but does not make consistent contact along the full height.
• Both glass edges are straight and exposed.

Choose another seal if:

• Your glass thickness falls outside the available ranges.
• Your closing gap is well outside 18–30mm.
• Your glass meets cleanly with a fixed, even gap and a standard magnetic profile is more suitable.
• A metal frame prevents direct fitting onto the glass.
• The door is severely misaligned and needs hinge or frame adjustment.

Designed for Uneven or Offset Glass Alignment

M410AC was developed by SIMBA engineer and founder James Liu for shower doors where the two glass edges do not meet evenly.

It can be used with 90° or 180° closing arrangements, including cases where the glass panels are slightly offset or the gap is narrower at one point and wider at another.

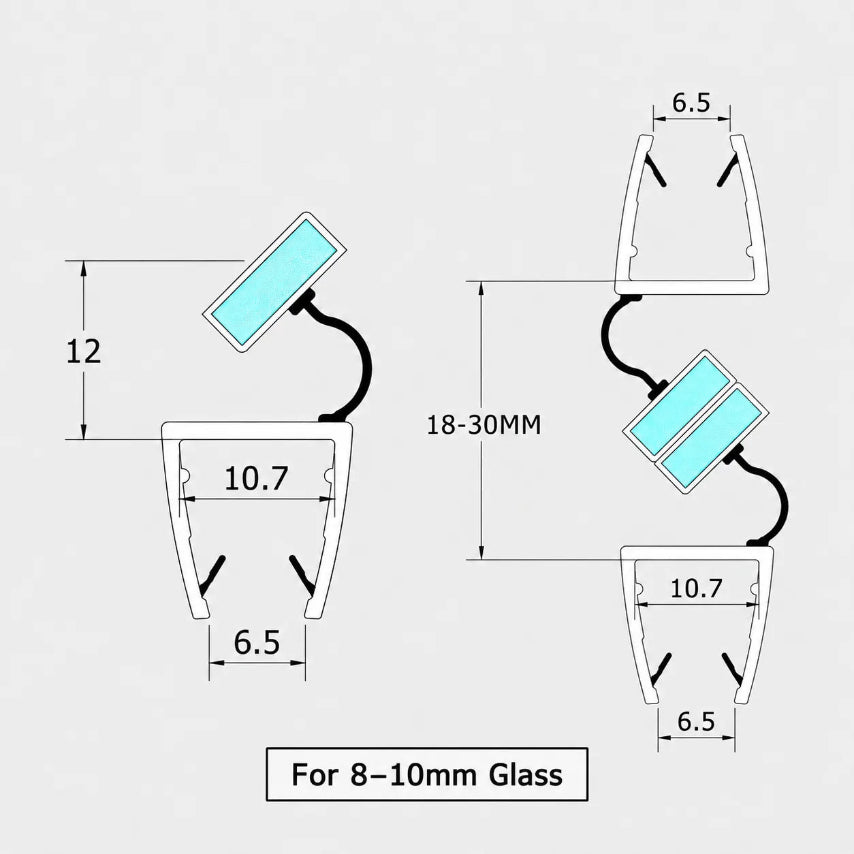

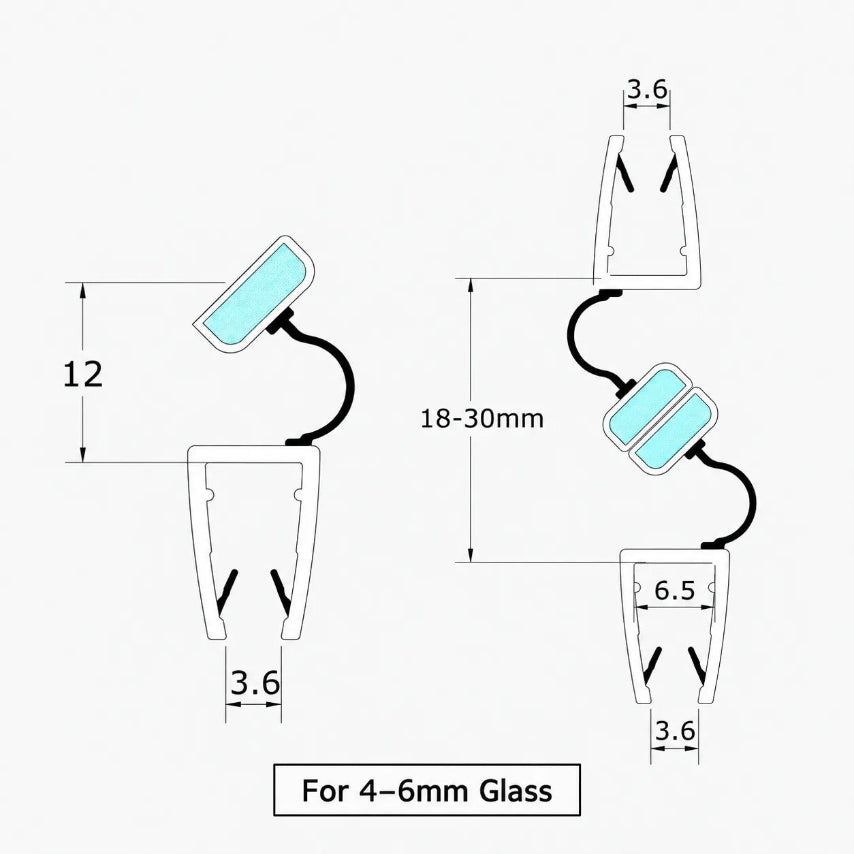

The rigid U-channel grips the glass, while the wide flexible connector allows the magnetic section to move closer to or further from the glass as the closing distance changes.

This helps the matching magnetic strips maintain contact across an uneven 18–30mm gap range.

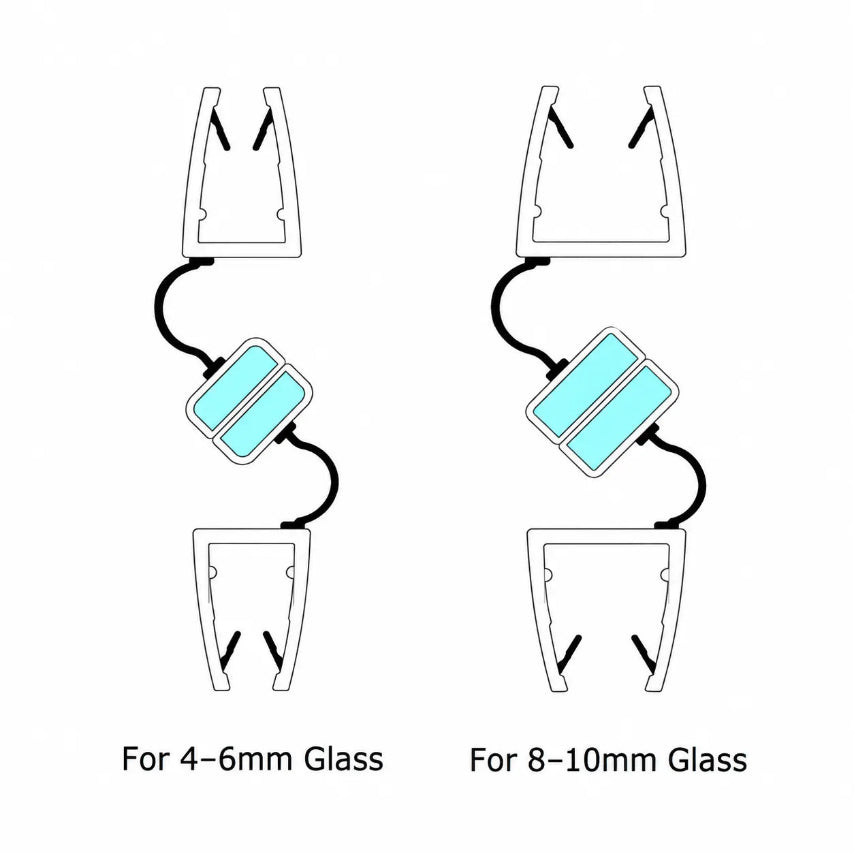

Two versions are available for 4–6mm and 8–10mm glass. Each strip is supplied in a 2000mm length and can be trimmed before fitting.
