8–10mm Glass Shower Door Bottom Seal – Side Fin 12mm Gap SL810DTL-N
8–10mm Glass Shower Door Bottom Seal Side Fin 12mm Gap SL810DTL-N
Regular price
£3.60
Regular price
£20.88
Sale price
£3.60
Unit price
per
-83%
Taxes included.
Shipping calculated at checkout.
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Product Video
Key specifications
Catalog no.
SL810DTL-N
Glass thickness
8mm / 9mm / 10mm

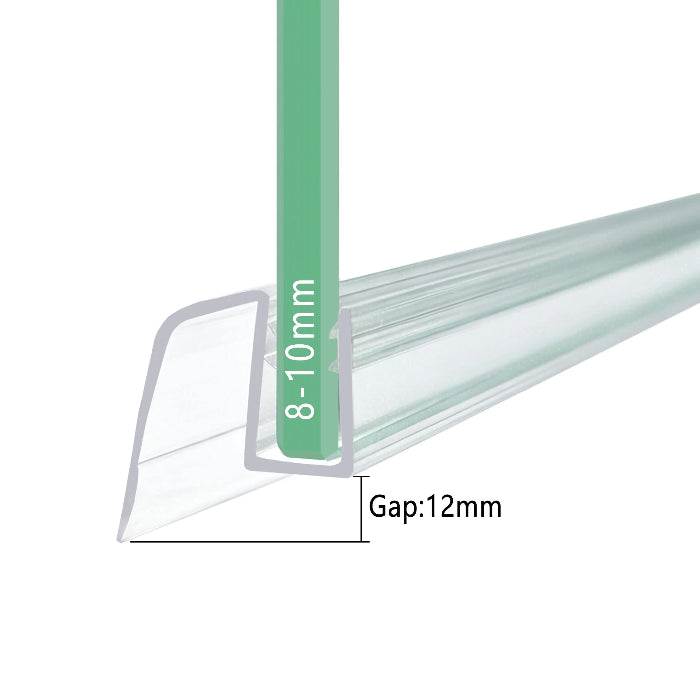

Suitable bottom gap
Approx. 12mm
Length
1000mm, easy to trim to size
Material
Clear PVC with rigid U-channel and flexible lower sealing edge
Best for
Sliding doors, hinged doors and straight shower screens

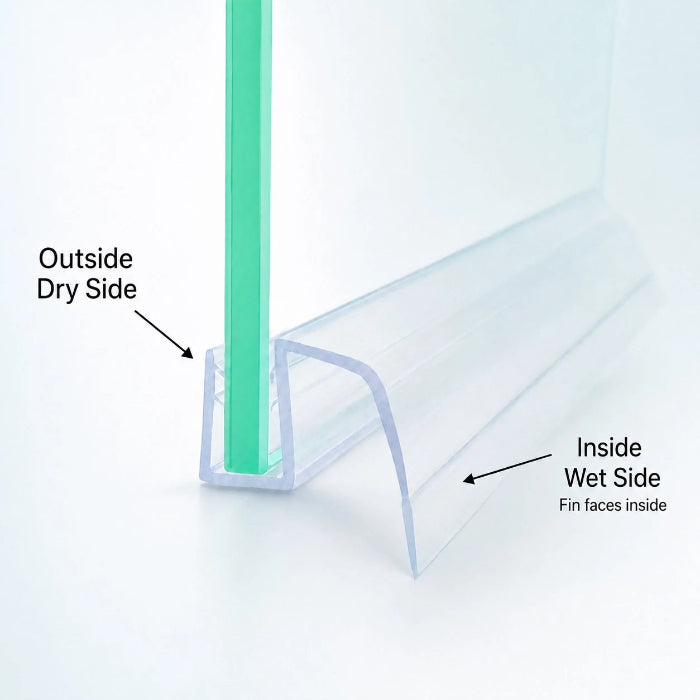

Installation direction
Fit with the angled deflector facing inside the shower area
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty
Check Before You Buy

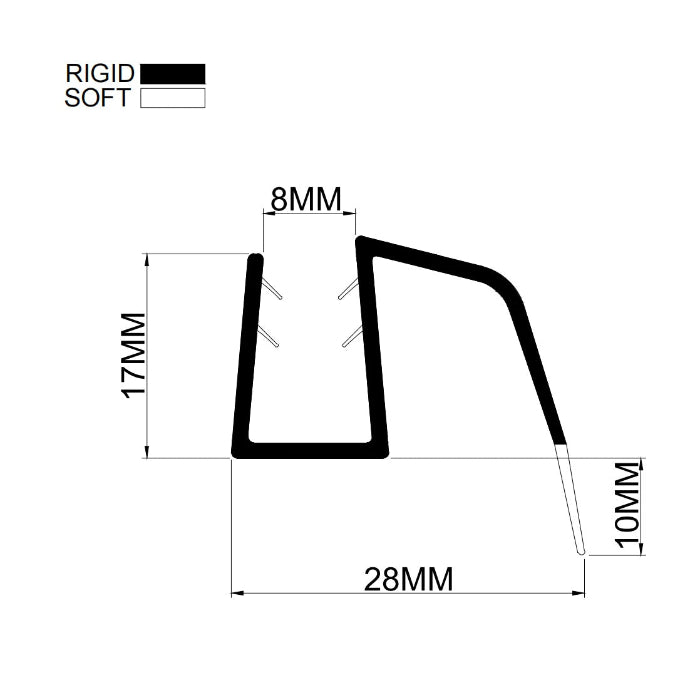

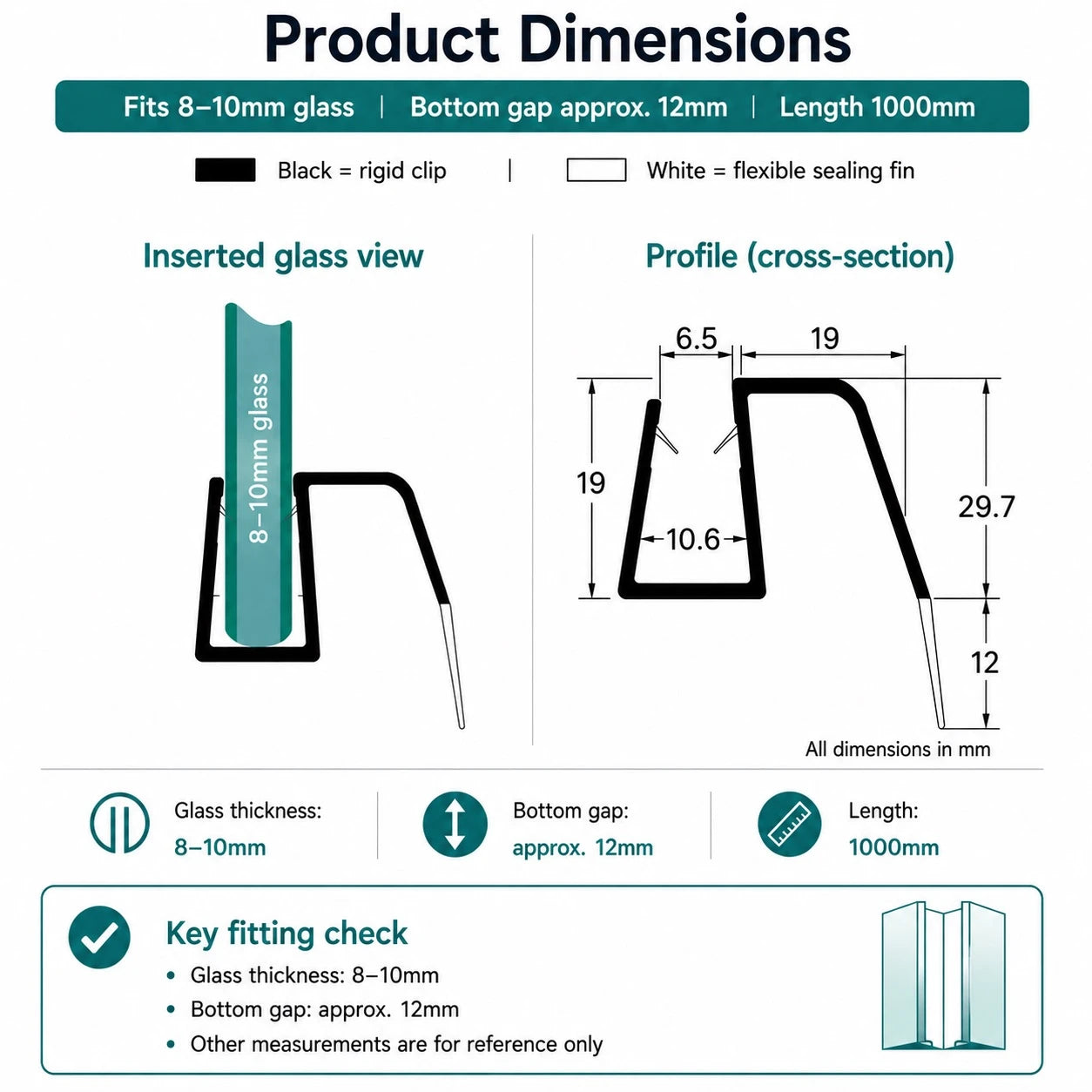

Note: The slot may look slightly smaller in the drawing, but this helps the seal grip the glass securely once fitted. Please use the glass thickness listed above as your main guide.
This seal is suitable if:
- Your glass is 8mm, 9mm or 10mm thick.
- You need a bottom seal for a sliding door, hinged door or shower screen.
- Your bottom gap is around 12mm.
- Your door bottom is straight, or the gap may be slightly uneven.
- You need a strip up to 1000mm long.
Choose another seal if:
- Your shower door has a metal frame or thick edge trim.
- Your door bottom is curved.
- Your glass is thinner than 8mm.
- Your gap is very small or much larger than 12mm.
- You need a magnetic seal, vertical side seal, guide rail seal or track seal.
- You need a strip longer than 1000mm.
Need a different style? Compare this item with our full shower door bottom seals range before ordering.
Suitable Applications

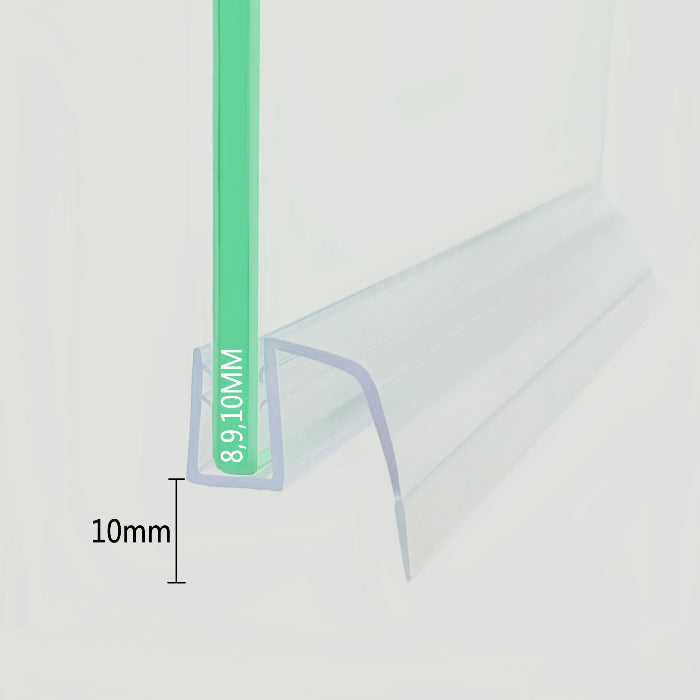

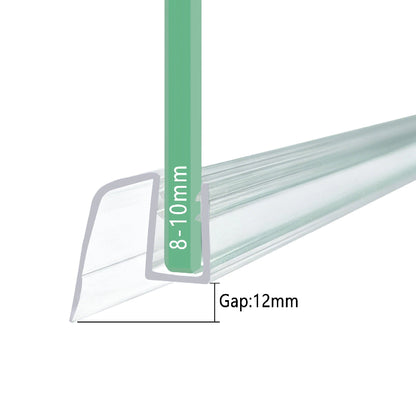

SL810DTL-N is a clear clip-on bottom seal for 8mm, 9mm and 10mm frameless shower glass. It is designed for shower doors and screens with a bottom gap of around 12mm.

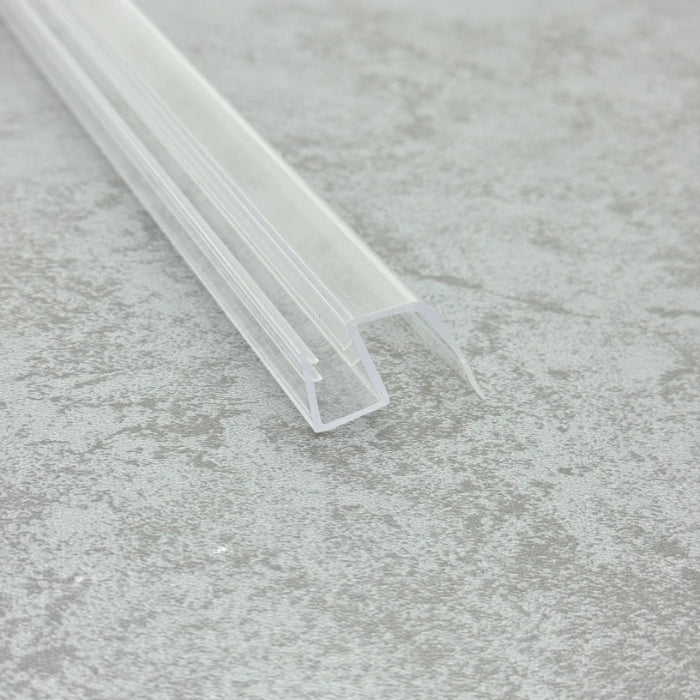

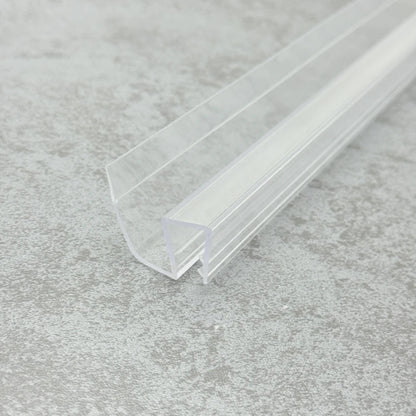

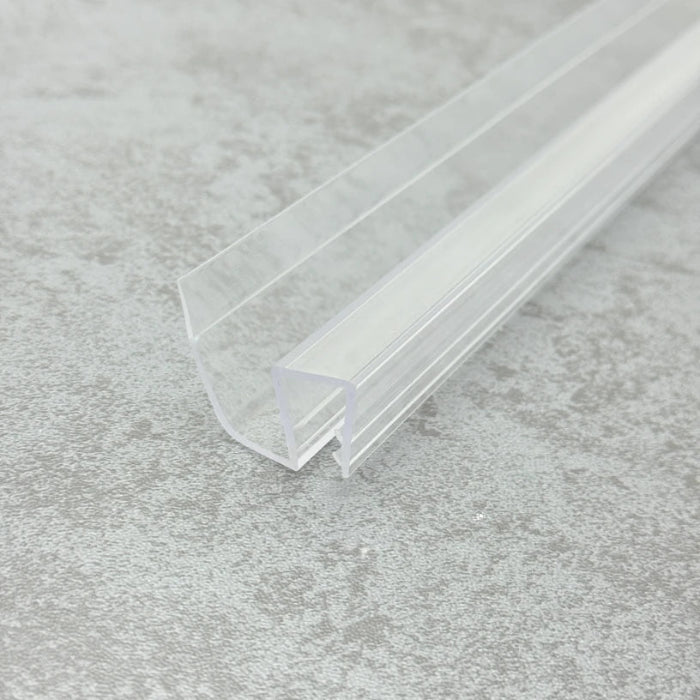

The top section uses a rigid U-shaped channel to grip the glass. The wider angled deflector helps guide water back into the shower area. Its upper section has enough support to hold its shape, while the lower PVC edge remains flexible enough to move smoothly as the door opens and closes.
This makes SL810DTL-N a practical option for sliding shower doors, hinged shower doors and straight shower screens, especially where the bottom gap is not perfectly even but still sits close to the 12mm range.
The seal is supplied as one 1000mm clear strip and can be trimmed shorter if required. It is not suitable for framed doors, curved door bottoms, very small bottom gaps, much larger gaps, magnetic seals, guide rails or track seals.
