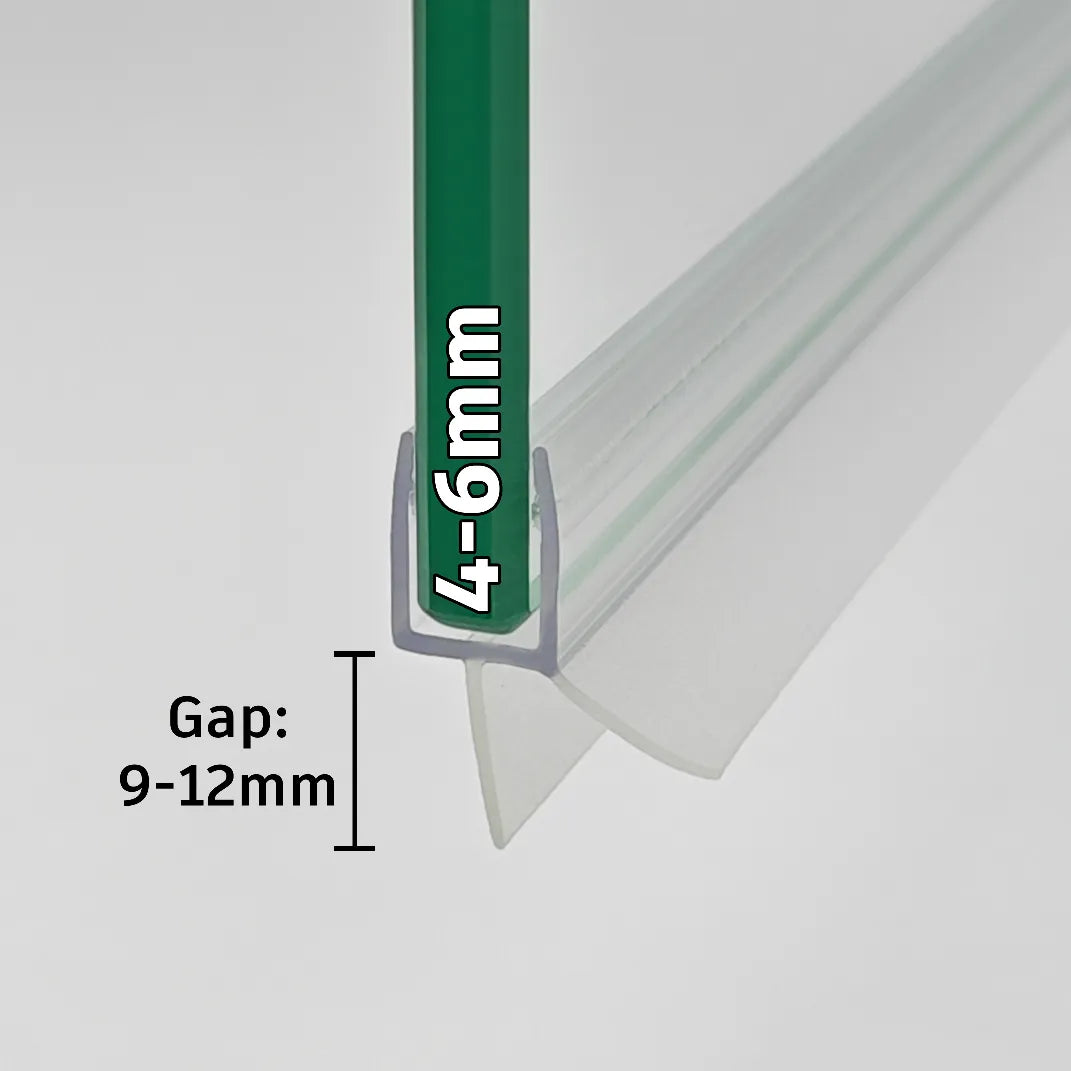

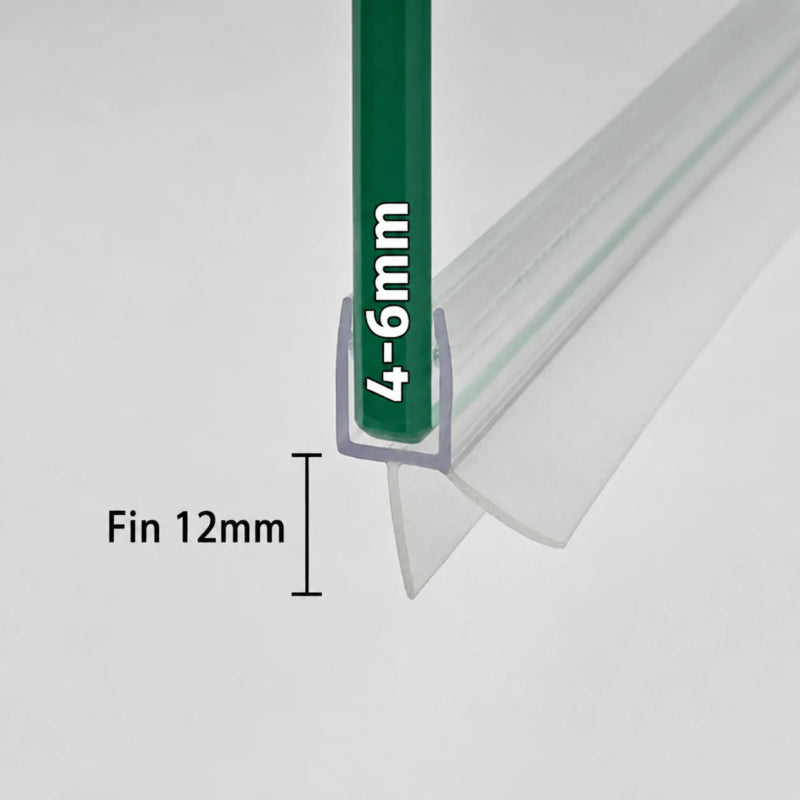

• V456S12 shower door bottom seal for 4–6mm glass with 12mm flexible fin

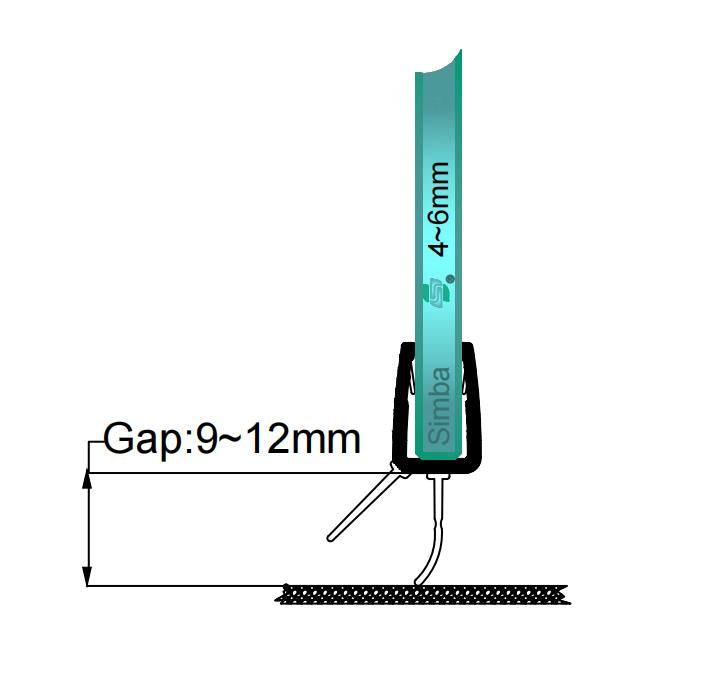

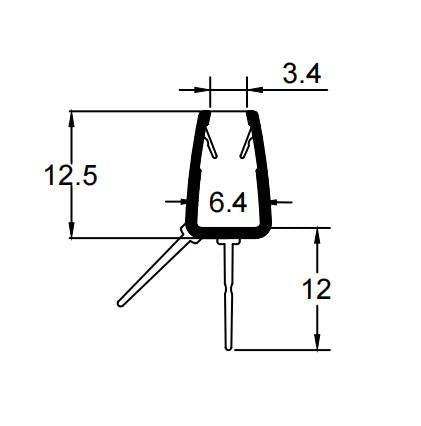

  • V456S12 shower door bottom seal dimensions showing 4–6mm glass fit and 12mm fin

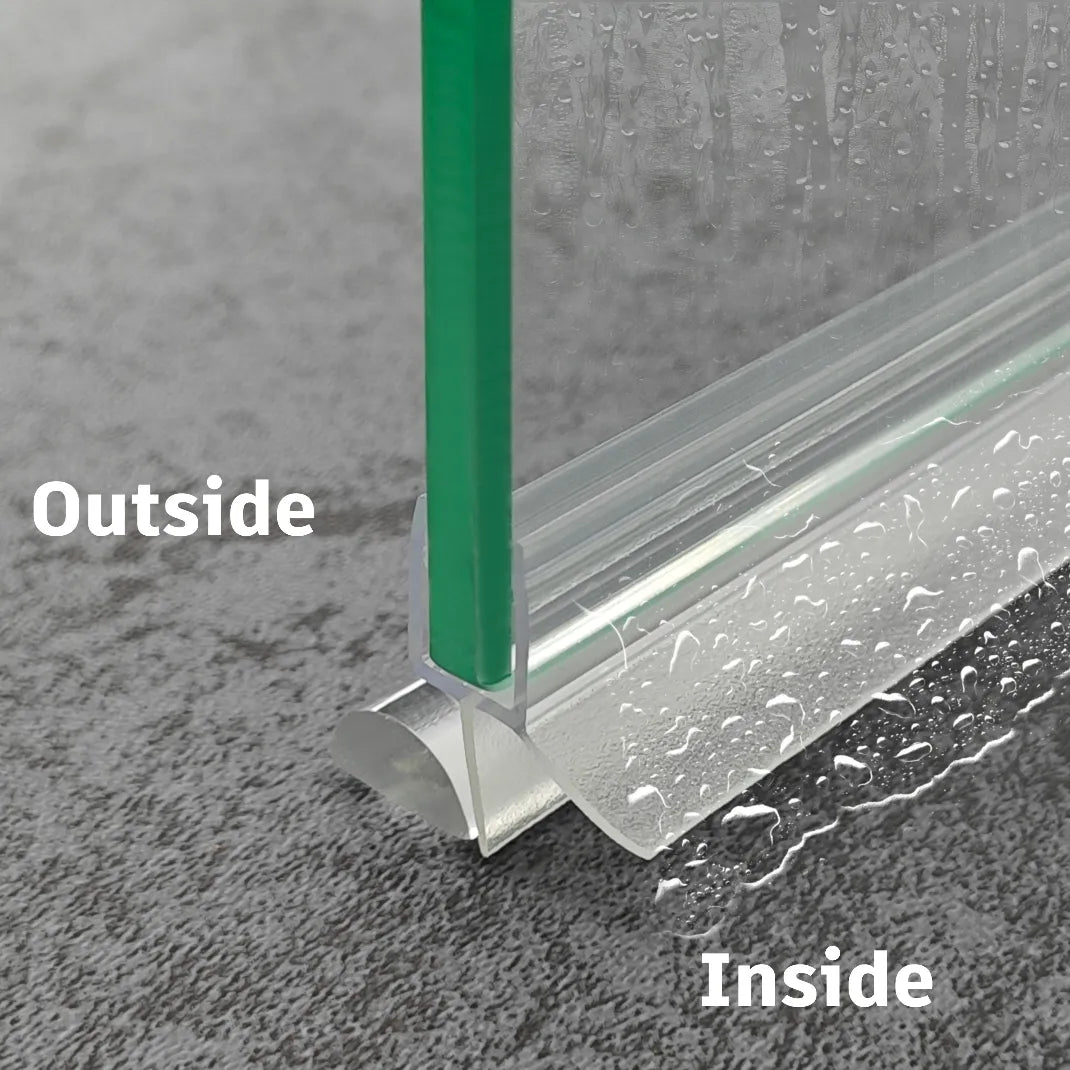

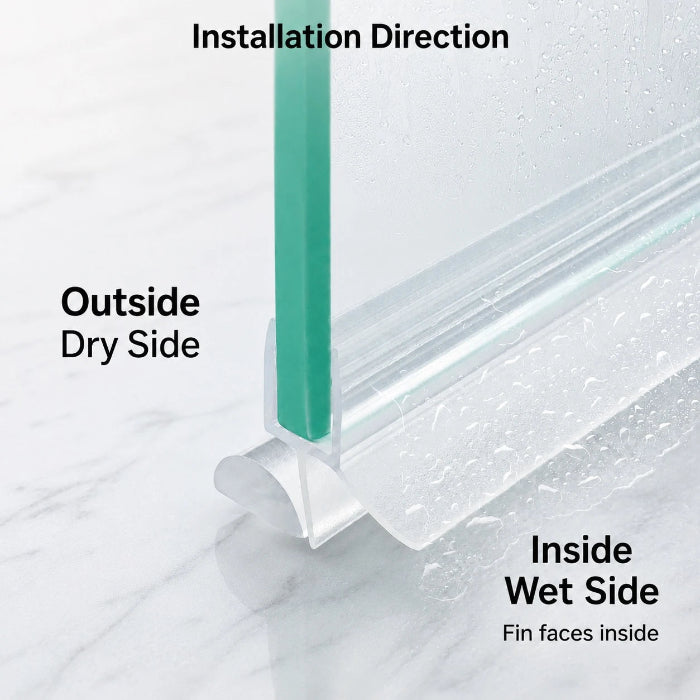

  • V456S12 bottom shower door seal showing correct wet-side and dry-side installation direction

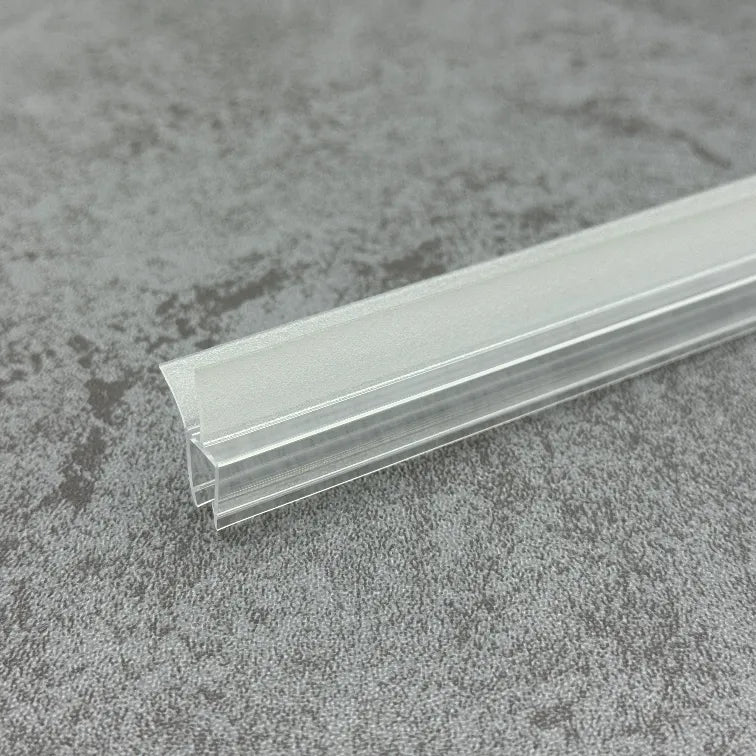

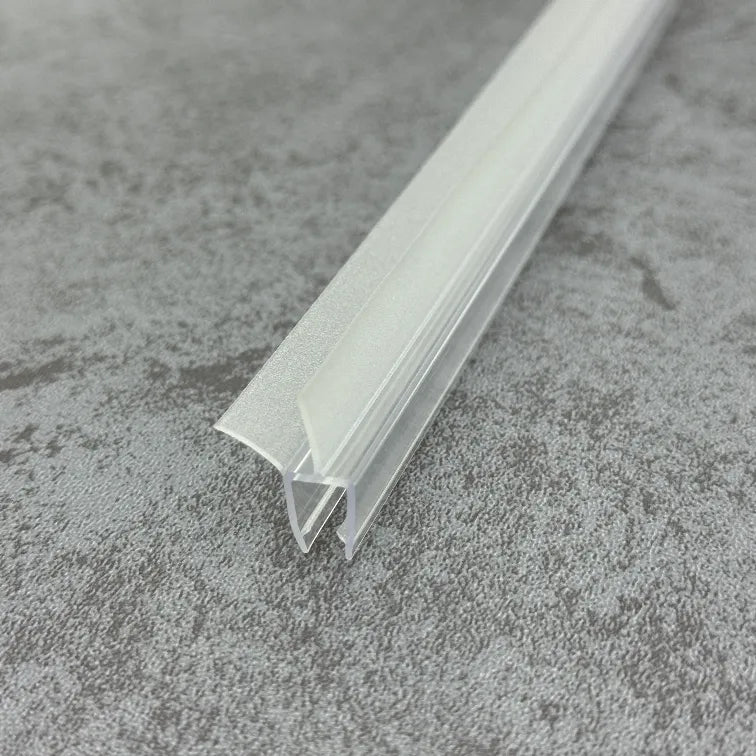

  • Close-up of the clear PVC V456S12 glass shower door bottom seal with soft flexible fin
  • shower door bottom seal compatibility check for 4-6mm glass and 20-23mm gap
  • Durable bottom shower door seal with reinforced entry point and 1mm wall thickness
  • Shower door bottom seal comparison showing SIMBA secure fit and improved water control
  • Why choose SIMBA shower seals: 30,--- uses tested, Quality rubber material, reach certified, and UK fast delivery
  • Fitting and care guide for shower door seals with simple do and don't instructions
1 9

Shower Door Bottom Seal Strip for 4–6mm Glass – 12mm Fin V456S12

£14.88
£20.88 £14.88
Sold out
-29%
Taxes included. Shipping calculated at checkout.

100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down

Key Specifications

Catalog No.
V456S12
Glass Thickness
4mm / 5mm / 6mm
Flexible Fin Length
12mm
Recommended Bottom Gap
Approx. 5–11mm
Material
Clear PVC with soft flexible bottom fin
Length
950mm – can be trimmed to size
Pack Quantity
Single piece / 1 strip
Installation
Push-fit onto straight glass, no adhesive required
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

  • Your shower glass is 4mm, 5mm or 6mm thick.
  • The lower glass edge is straight and exposed.
  • Your bottom gap is approximately 5–11mm.
  • You need a shorter 12mm flexible fin for a relatively small clearance.
  • Your required finished length is 950mm or less.

Choose another seal if:

  • Your glass is thicker than 6mm.
  • Your gap is much larger than 11mm, where a longer fin may give better contact.
  • The glass bottom is curved.
  • A frame, hinge or bottom rail prevents the U-channel from fitting directly onto the glass.
  • You need a magnetic, side or track-mounted seal.

Need a different size? Browse our shower door bottom seal range for other glass thicknesses and fin lengths.

Suitable Applications & Installation Notes

V456S12 is a clear bottom seal designed for thin 4–6mm frameless shower glass where the space beneath the door is relatively small.

Its 12mm soft fin is shorter than the larger-gap versions in this range, making it better suited to clearances of around 5–11mm. In these smaller gaps, a shorter fin usually sits more naturally and avoids unnecessary folding beneath the glass.

The recommended gap is not an absolute limit. The practical check is whether the fin reaches the tray or threshold while still allowing the door to open and close freely.

The clear U-channel pushes directly onto a smooth, straight glass edge without adhesive. Supplied in a 950mm length and can be trimmed before fitting.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details

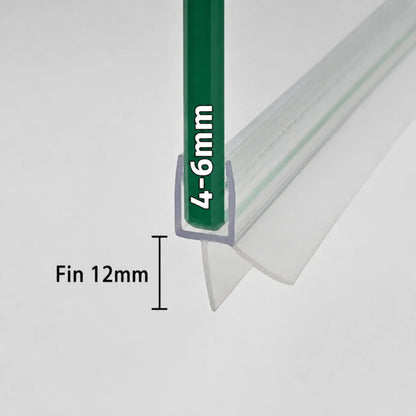

V456S12 shower door bottom seal for 4–6mm glass with 12mm flexible fin
Shower Door Bottom Seal Strip for..

£14.88
Replacement seals for bi-fold, framed and semi-framed shower doors.

A Better Chance of Getting the Right Fit

For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small measurement differences can be difficult to confirm at home, so we include nearby options where this helps reduce the risk of ordering the wrong fit. Each seal is complete and ready to fit. Simply use the one that suits your shower door best.

Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp
Fitting and care guide for shower door seals with simple do and don't instructions

About SIMBA Seals UK

SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.

We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.

Compare Similar Seal Options

Hand-picked by our team based on similar glass thickness, gap and seal profile. Always check the product specifications before ordering.

Customer Reviews

Overall rating: 5.0 / 5 from 4 reviews.

The shower door seal is very good, better than the original in my opinion, especially the inside deflector strip that directs water away from the shower door and back into the shower tray. Fitting was very easy and gives a good watertight seal so far. The only downside, as ever, was the abysmal performance of the EVRI delivery "service" , how it takes them 5 days to deliver the item from reception is a complete mystery to me.
