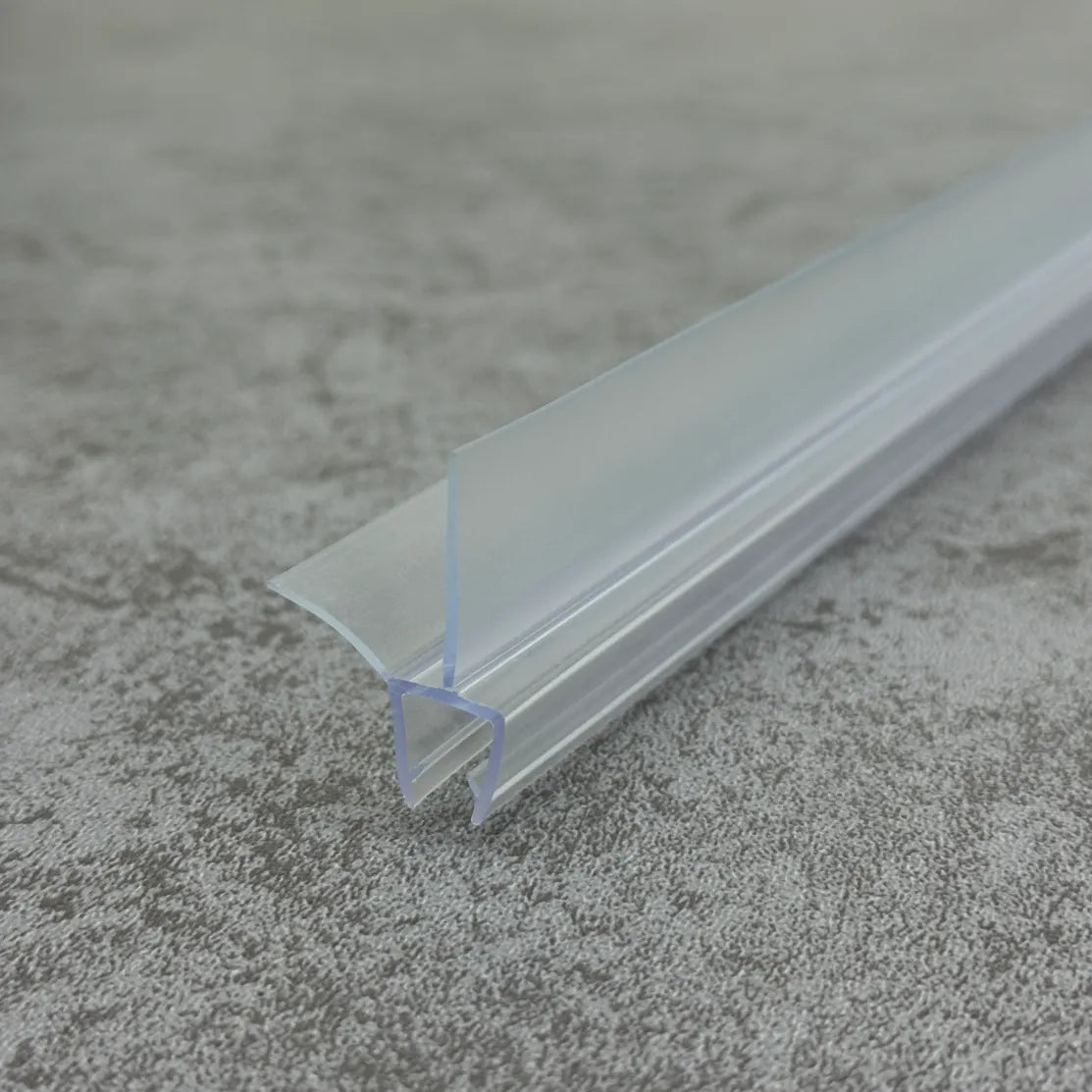

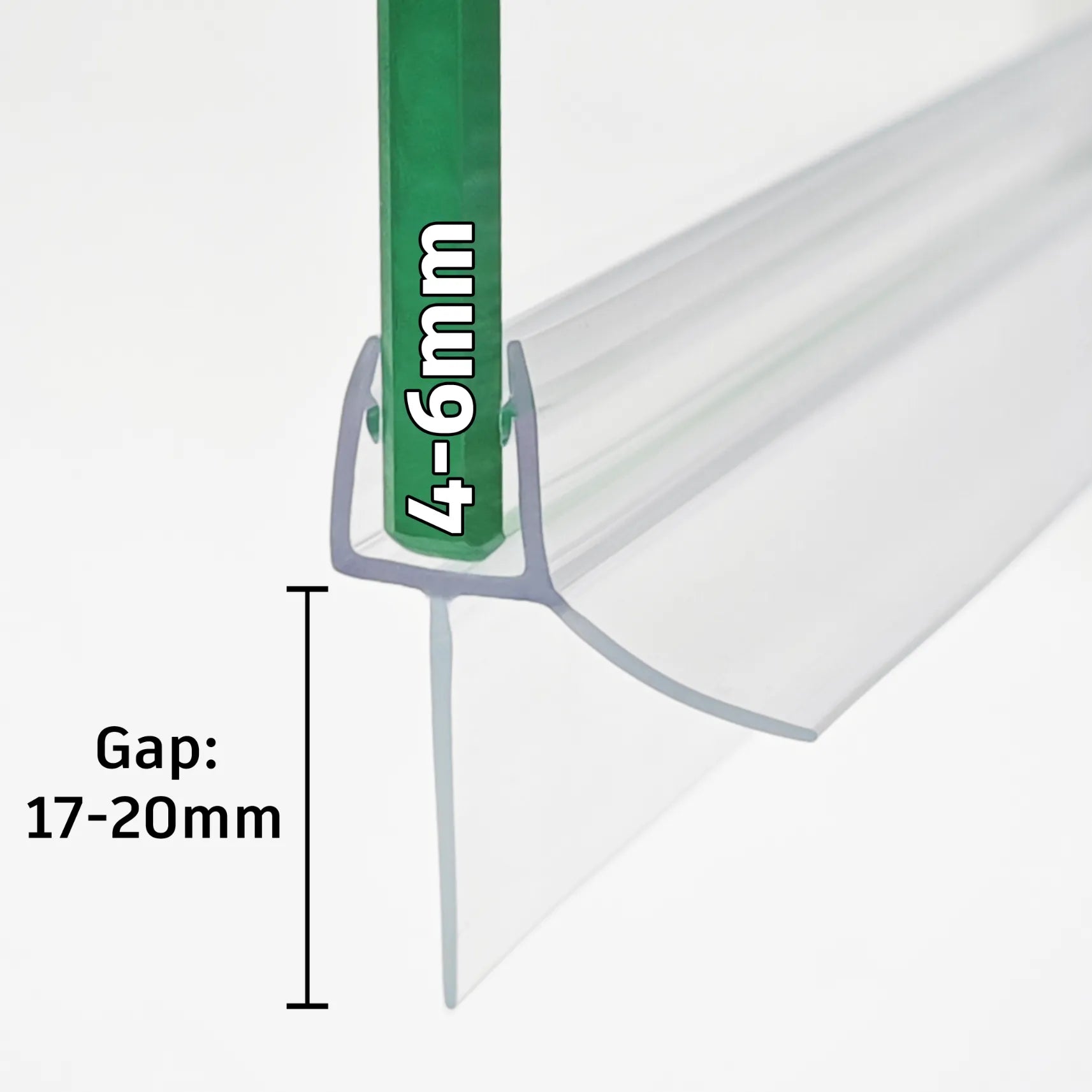

• Close-up cross-section of the V456S20 shower door bottom gasket fitted on 4-6mm glass, showing the transparent U-channel, side guide rails, and extended 20mm single fin gripping standard thickness glass to cover wider gaps.

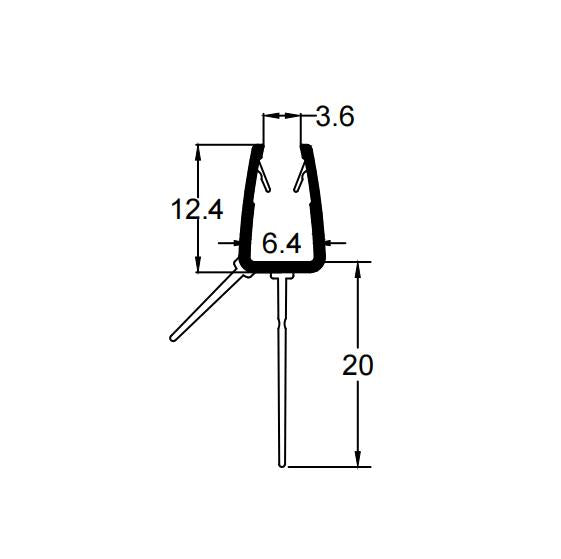

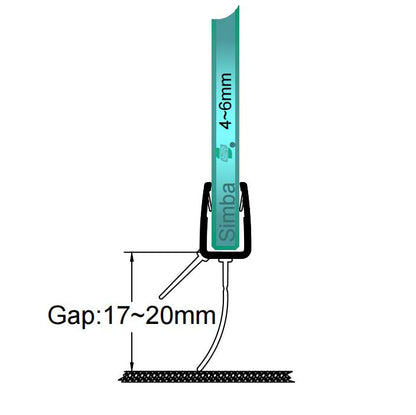

  • Technical dimension diagram for a 4-6mm glass bottom seal, detailing the inner channel width, 20mm central fin length, and overall profile height with lateral stabilising rails for precise replacement to solve floor gap issues.

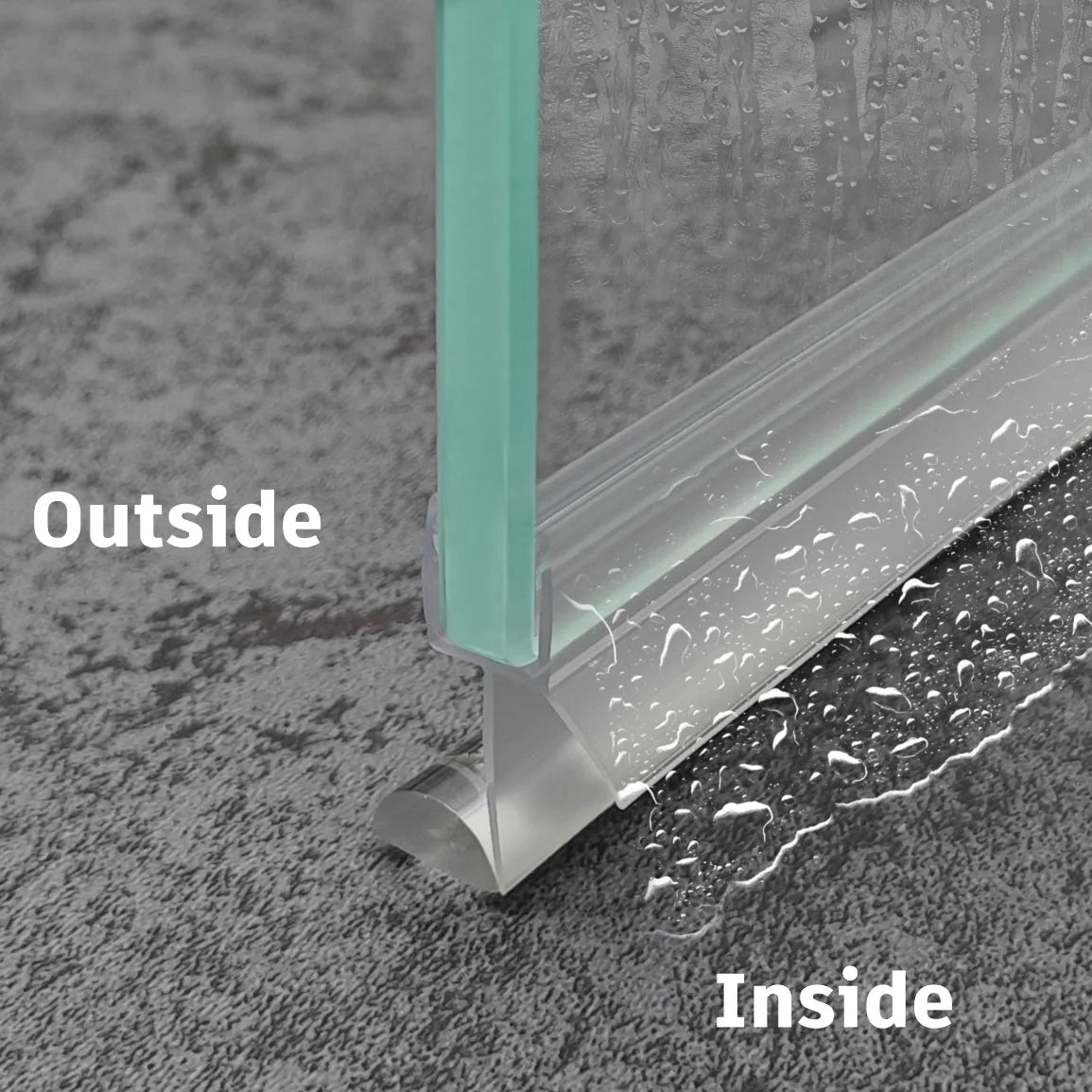

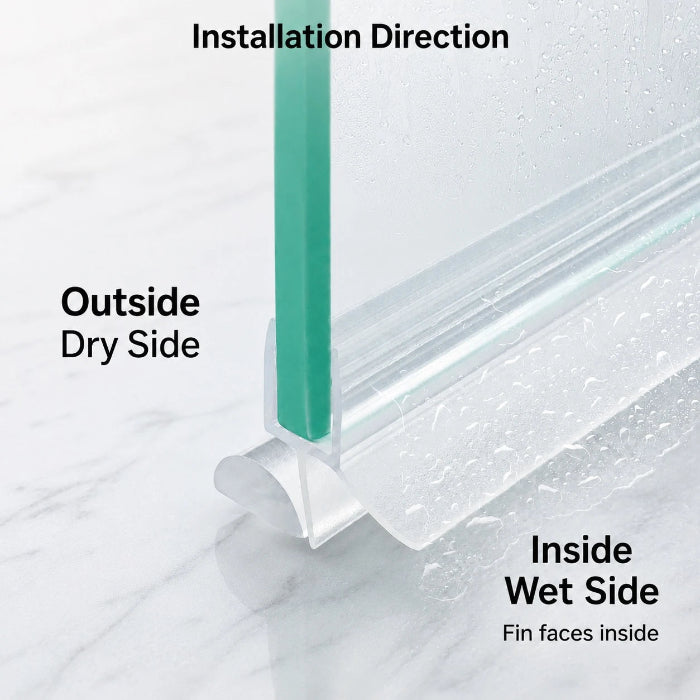

  • V456S20 4-6mm glass shower door bottom seal installation direction showing inside wet side and outside dry side

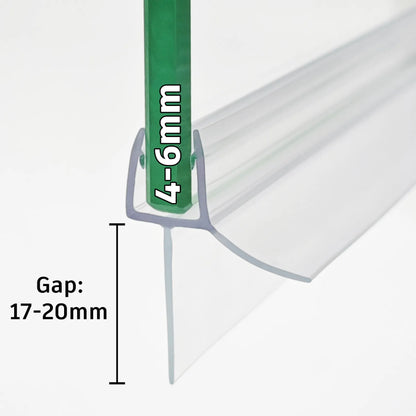

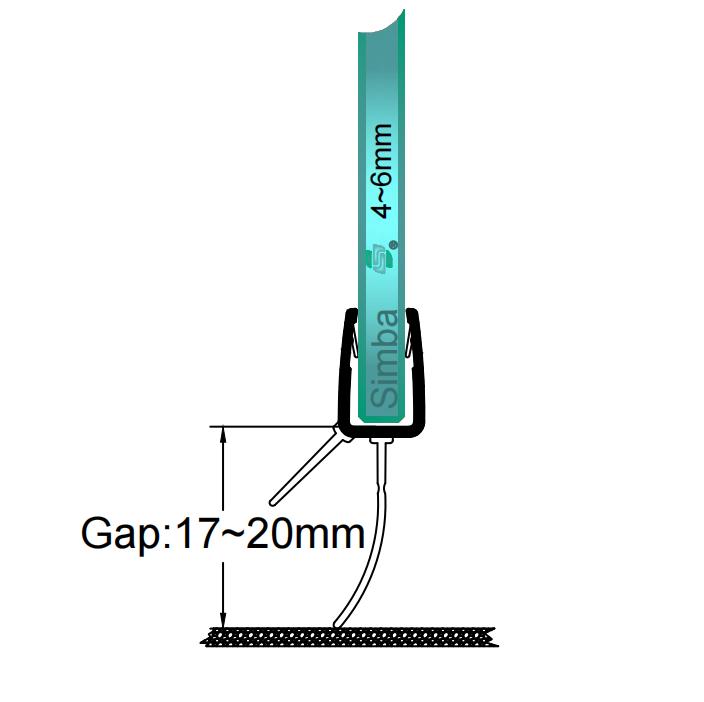

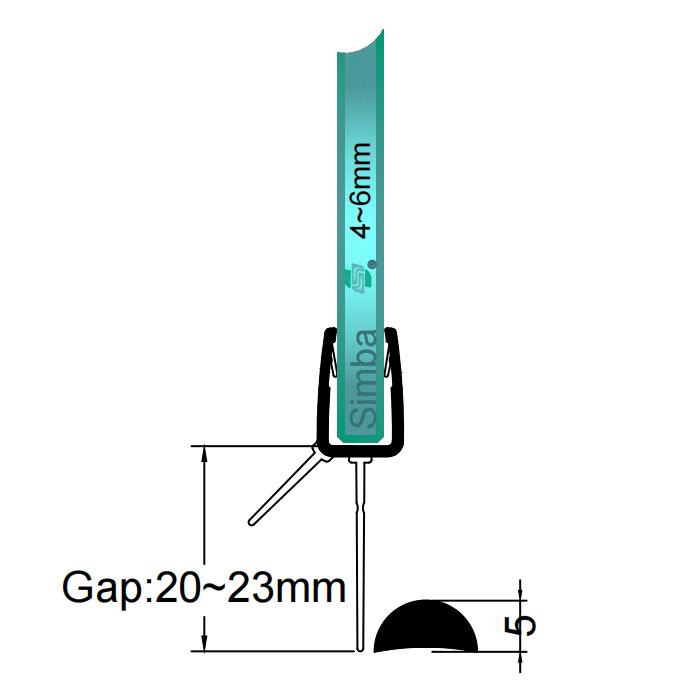

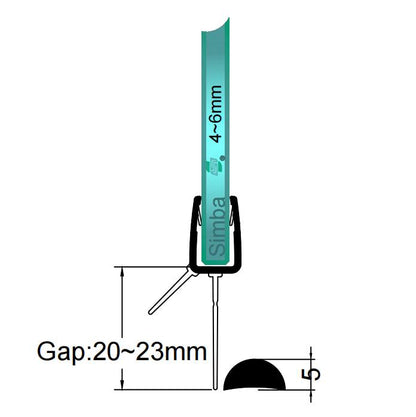

  • shower door bottom seal compatibility check for 4-6mm glass and 20-23mm gap
  • Durable bottom shower door seal with reinforced entry point and 1mm wall thickness
  • Shower door bottom seal comparison showing SIMBA secure fit and improved water control
  • Why choose SIMBA shower seals: 30,--- uses tested, Quality rubber material, reach certified, and UK fast delivery

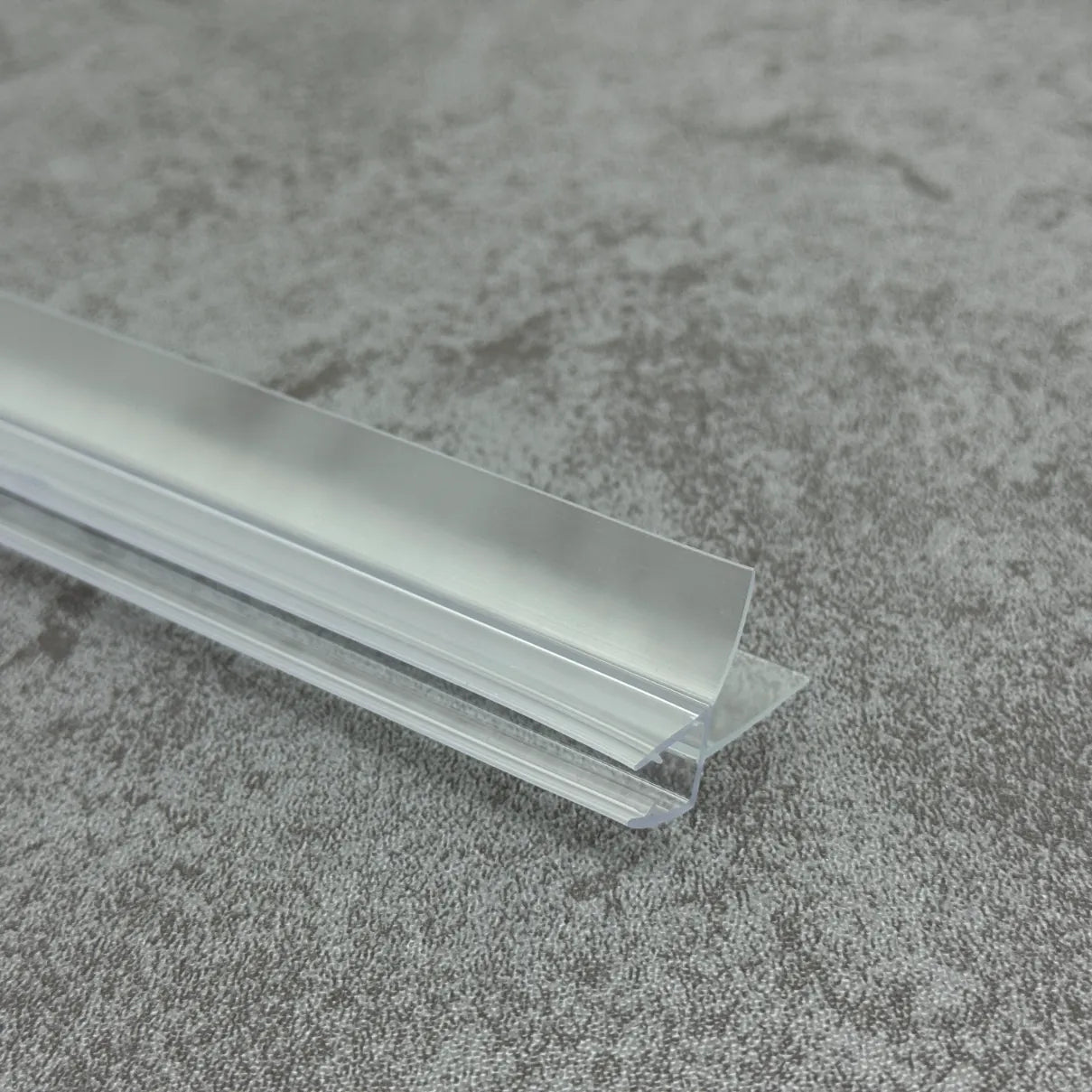

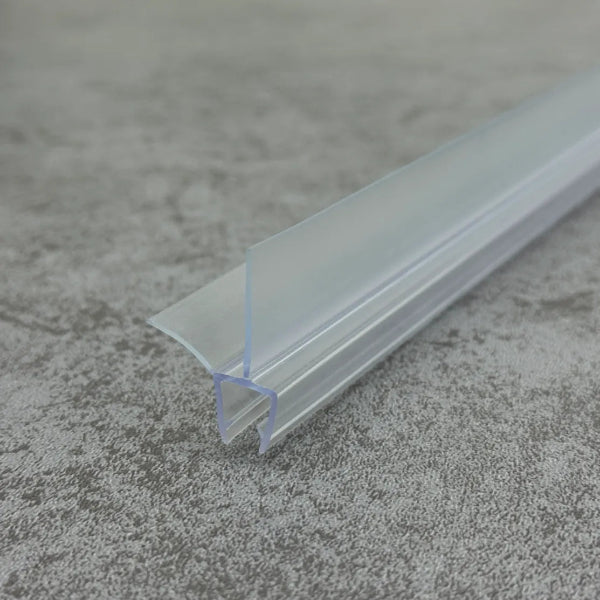

  • High-clarity close-up of a transparent shower bottom seal, showcasing the smooth finish and anti-UV material of the V456S20 to ensure its 20mm fin remains clear and invisible in frameless shower enclosures without yellowing.
  • Micro-view of a durable bathroom bottom gasket, showing reinforced U-channel walls and internal side rails engineered to grip 4-6mm glass firmly, providing a strong water barrier without silicone.
  • Application guide for the shower seal
1 10

4–6mm Glass Shower Door Bottom Seal – 20mm Fin V456S20

£14.88
£20.88 £14.88
Sold out
-29%
Taxes included. Shipping calculated at checkout.
Total Length: 950mm
Gap: Seal 20mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down

Technical Specifications

Catalog No.
V456S20
Glass Compatibility
For 4mm, 5mm and 6mm frameless glass
Seal Position
Bottom edge of shower door
Suitable Bottom Gap
Approx. 17–20mm
Soft Fin Length
20mm
Length
950mm, easy to trim to size
Installation
Push-fit, no glue required
Material
Clear rigid PVC U-channel with soft flexible fin
What’s Included
1 x V456S20 bottom seal
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

  • Your glass thickness is 4mm, 5mm or 6mm.
  • Your shower door has an exposed frameless bottom edge.
  • Your bottom gap is approximately 17–20mm.
  • Your door width is 950mm or less.
  • Your door is a shower screen, pivot door, hinged door or selected sliding door with a straight, accessible bottom edge.
  • The seal will be used in a normal bathroom environment, away from direct high heat.

Choose another seal if:

  • Your glass is thicker than 6mm.
  • Your bottom gap is smaller than 17mm or larger than 20mm.
  • Your shower door has a metal frame, bottom channel or special track.
  • You need a curved shower screen seal.
  • The seal will be exposed to temperatures above 70°C, as high heat may soften, warp or deform the PVC.

Need another size? Browse our shower door bottom seal collection for 4–6mm alternatives.

Product Details

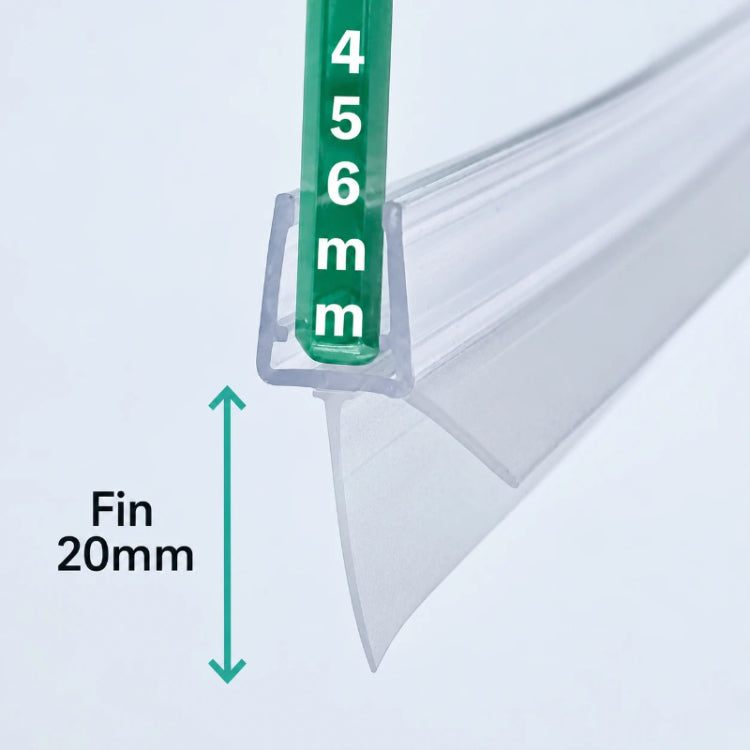

The V456S20 is a clear bottom seal for 4mm, 5mm and 6mm frameless glass shower doors with a larger bottom gap of around 17–20mm. It has a rigid PVC U-channel that grips the exposed lower edge of the glass, with a soft 20mm fin underneath to help reduce water escaping beneath the door.

It is suitable for straight shower screens, pivot doors, hinged doors and some sliding doors where the lower glass edge is straight and easy to reach. The seal is fitted by pressing it onto the glass and can be trimmed to suit door widths up to 950mm.

The longer fin is useful where the gap is too large for a shorter bottom seal, but it should not be forced into a much smaller gap, as this may cause dragging. Do not use this seal in areas exposed to heat above 70°C, as the PVC may soften, warp or lose its shape.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Close-up cross-section of the V456S20 shower door bottom gasket fitted on 4-6mm glass, showing the transparent U-channel, side guide rails, and extended 20mm single fin gripping standard thickness glass to cover wider gaps.
4–6mm Glass Shower Door Bottom Seal..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

4–6mm Glass Shower Door Bottom Seal – 20mm Fin V456S20 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
