4–6mm Glass Shower Door Bottom Seal – 23mm Fin | V456S2023
100% Guaranteed Safe Checkout
Couldn't load pickup availability
Description
Description
Technical Specifications
Check Before You Buy
This seal is suitable if:
- Your glass thickness is 4mm, 5mm or 6mm.
- Your shower door has an exposed frameless bottom edge.

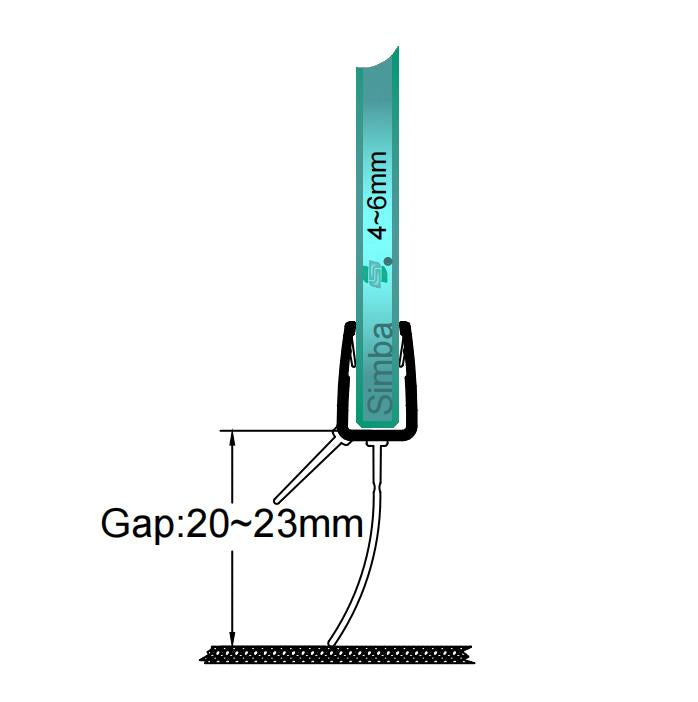

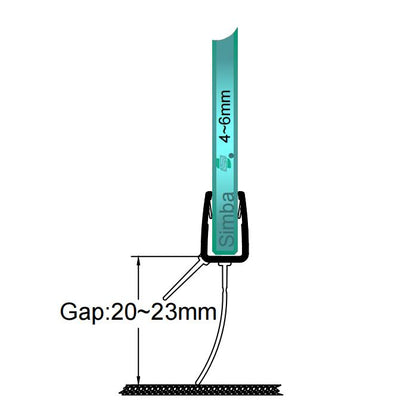

- Your bottom gap is approximately 20–23mm.
- Your door width is 950mm or less.
- Your door is a shower screen, pivot door, hinged door or selected sliding door with a straight bottom edge.
Choose another seal if:
- Your glass is thicker than 6mm.
- Your bottom gap is smaller than 20mm or larger than 23mm.
- Your shower door has a metal frame, bottom channel or special track.
- You need a curved shower screen seal.
- Your single door is wider than 950mm.
Need another size? Browse our bottom shower seals collection for 4–6mm alternatives.
Product Details

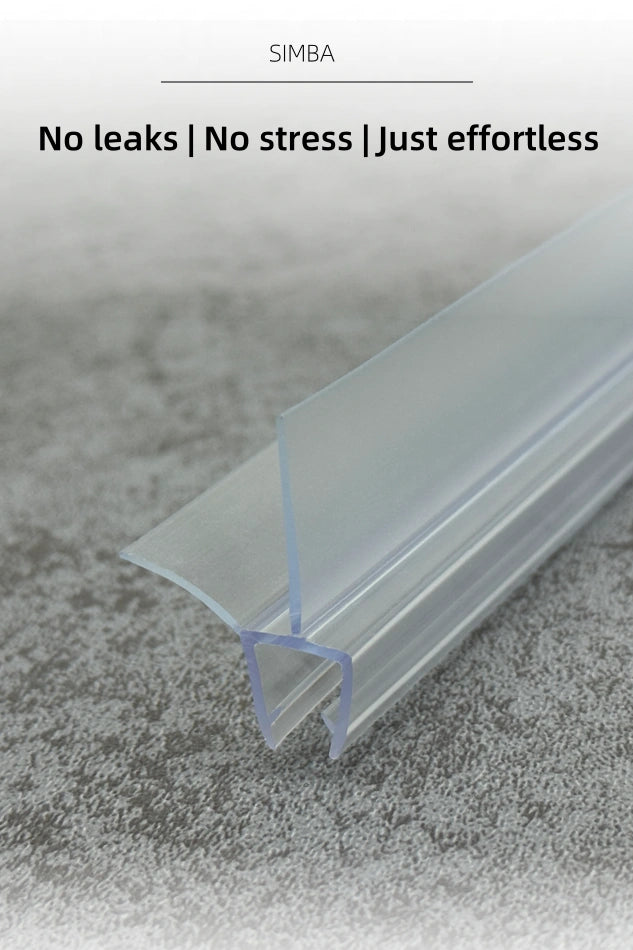

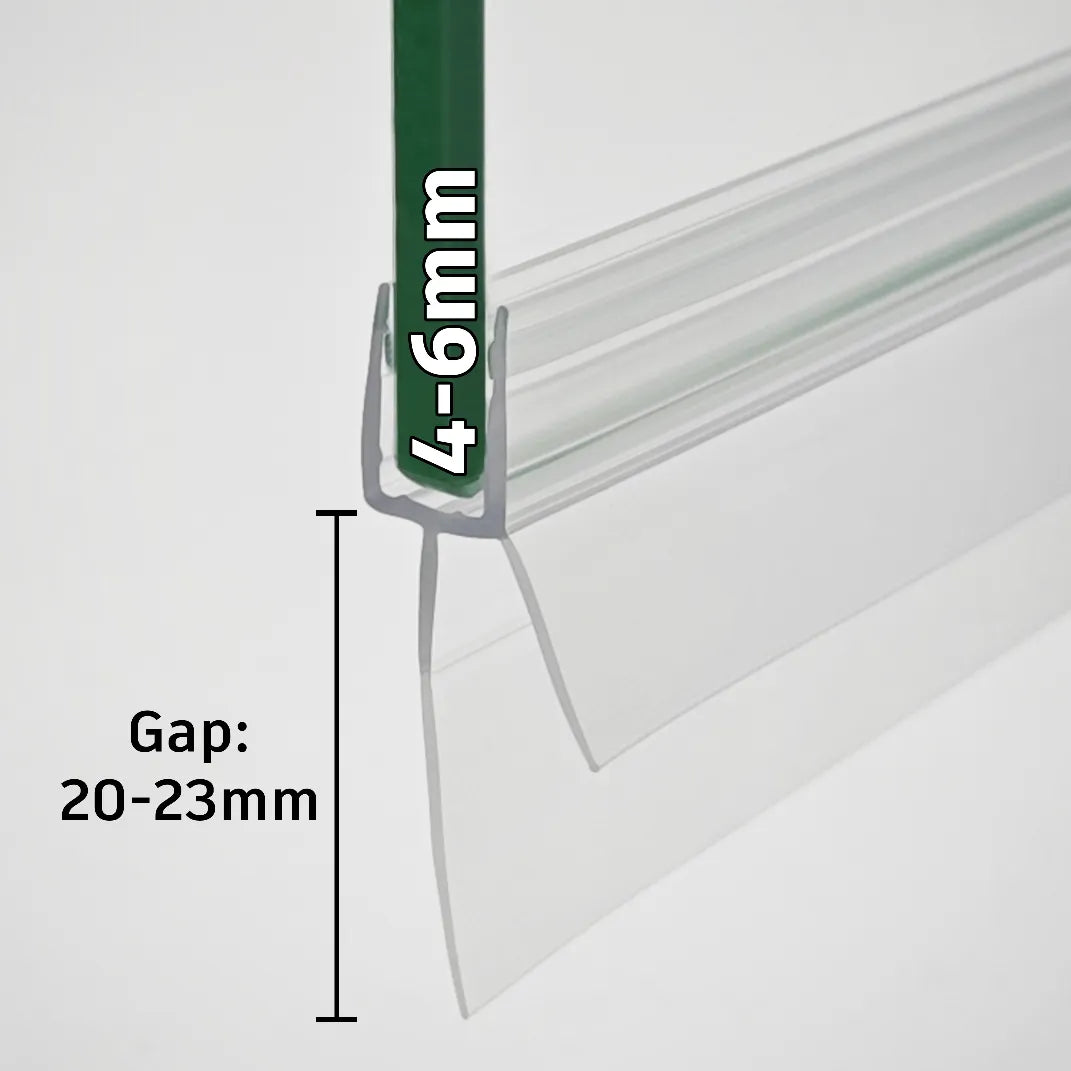

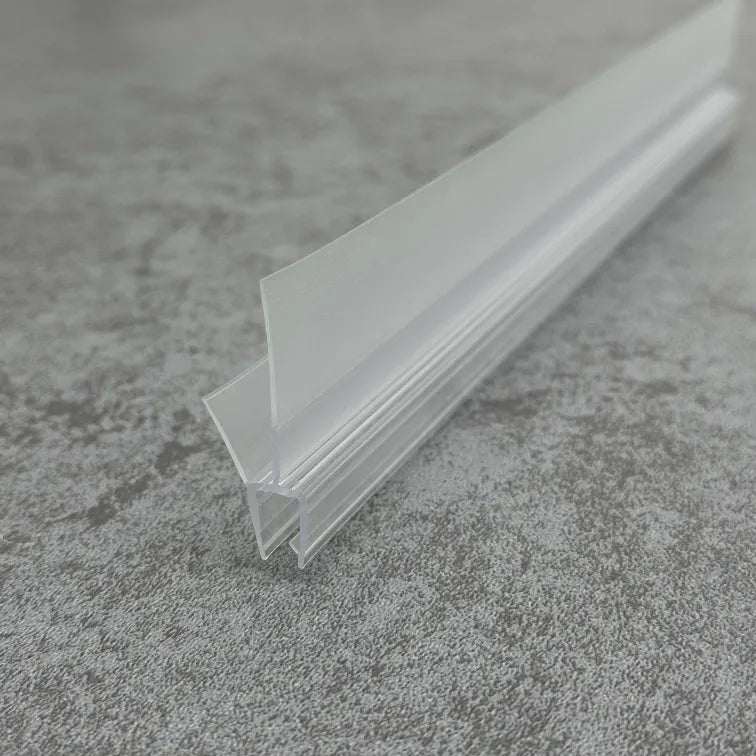

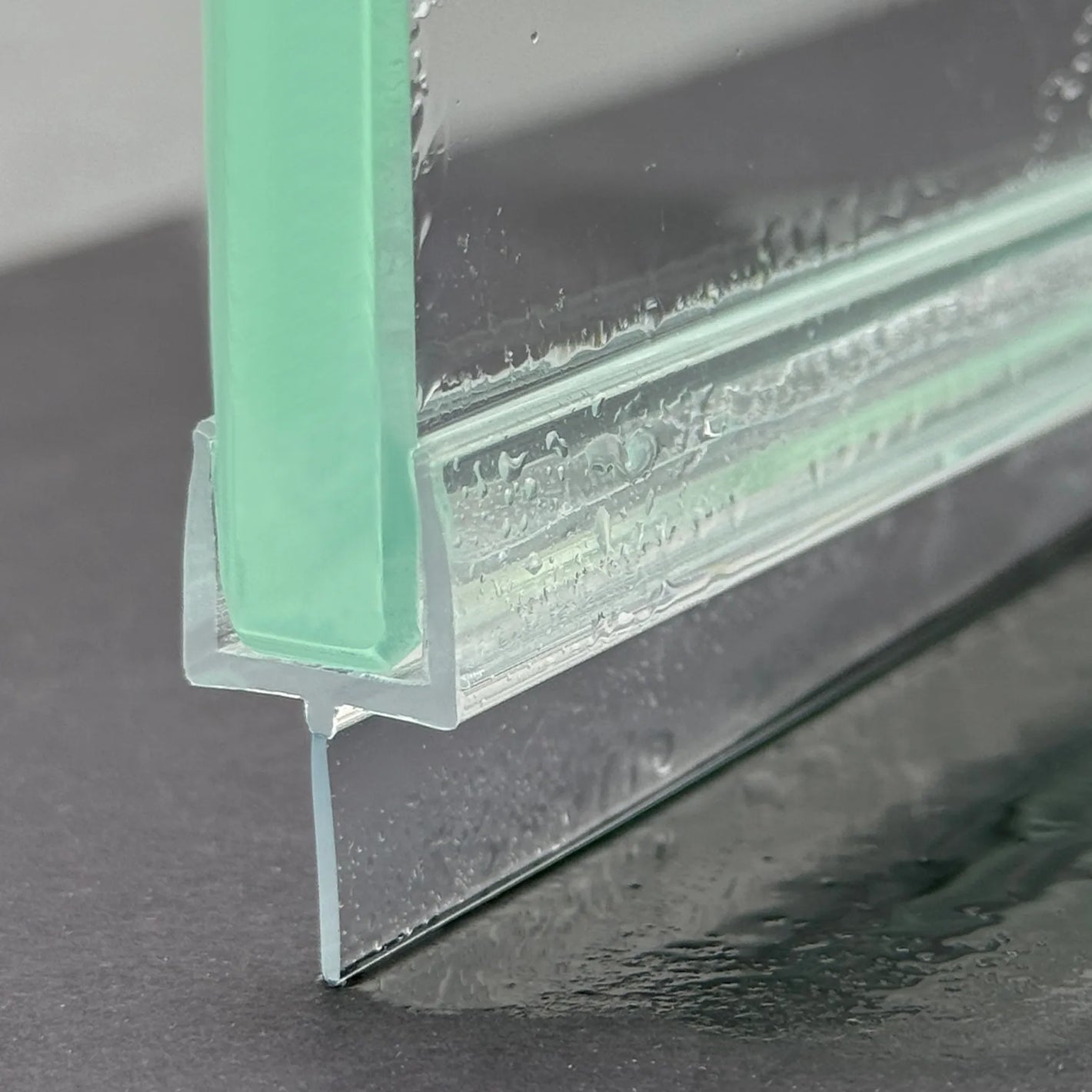

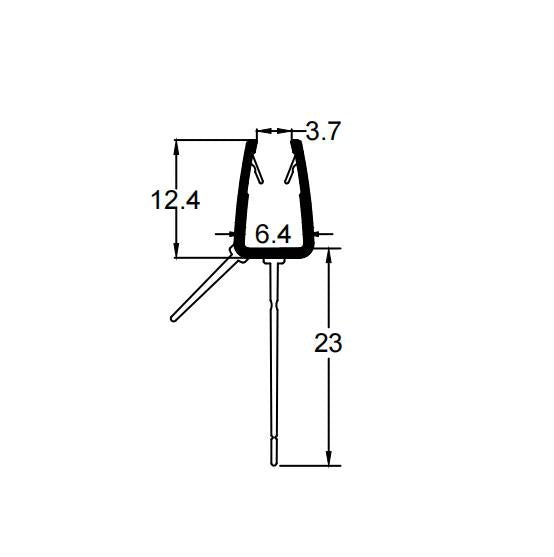

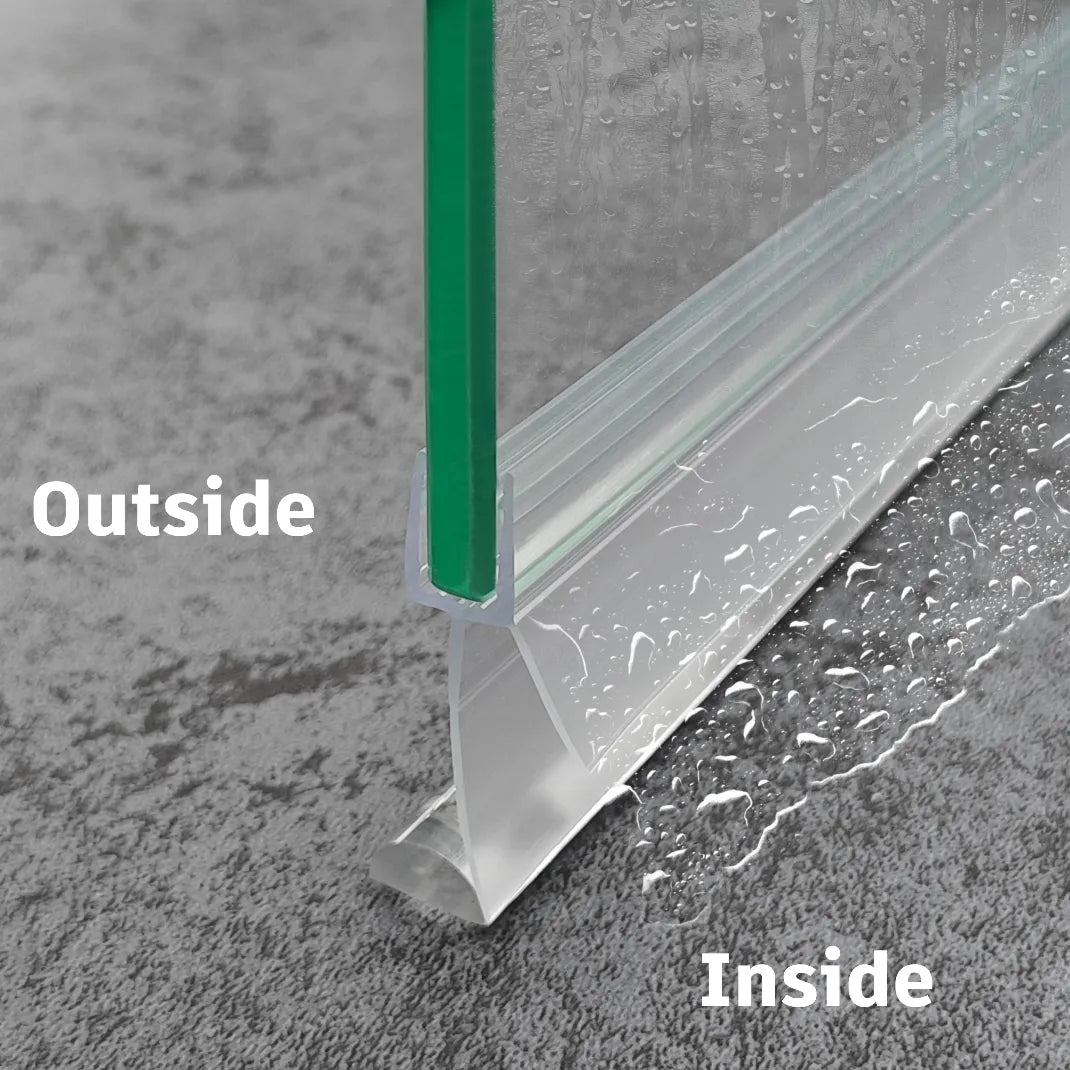

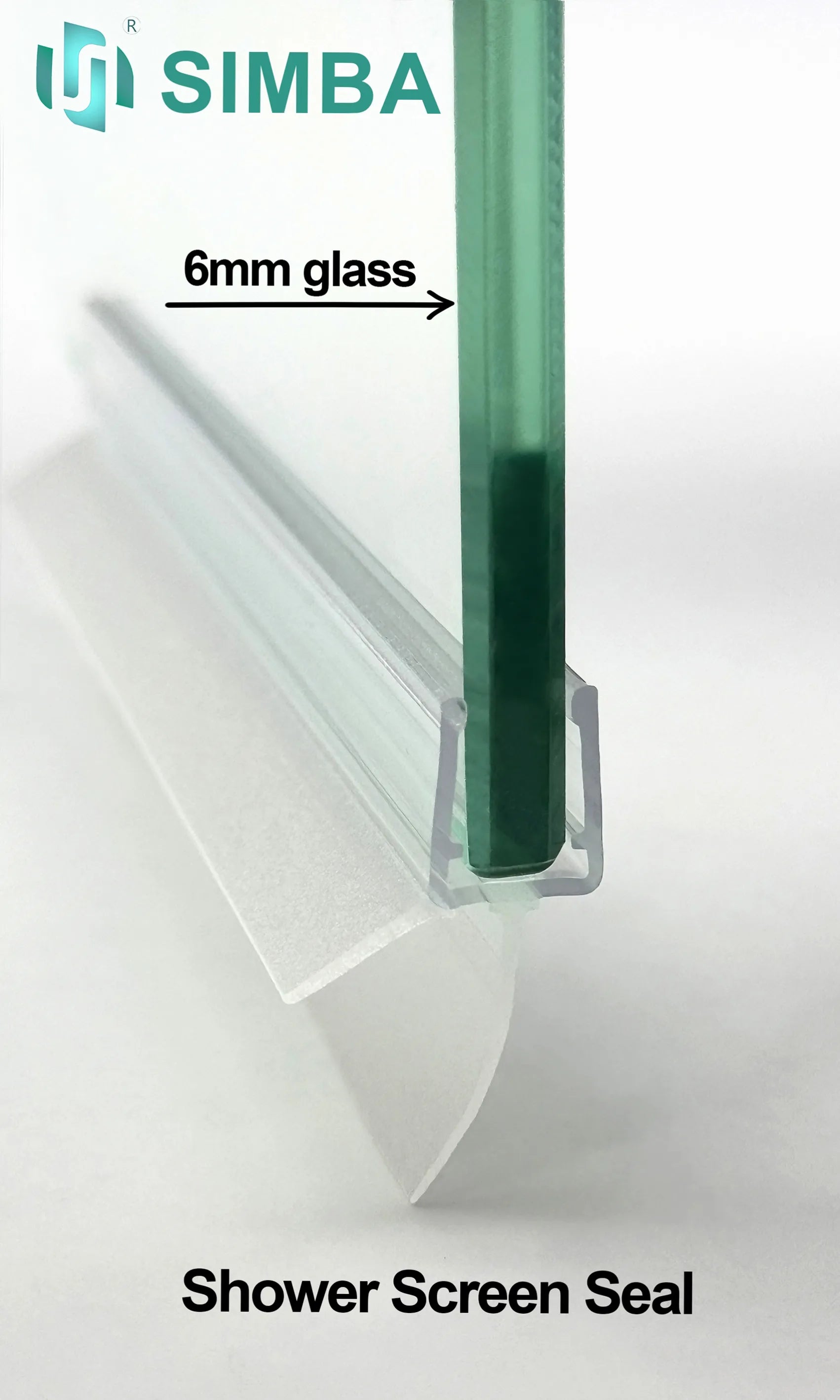

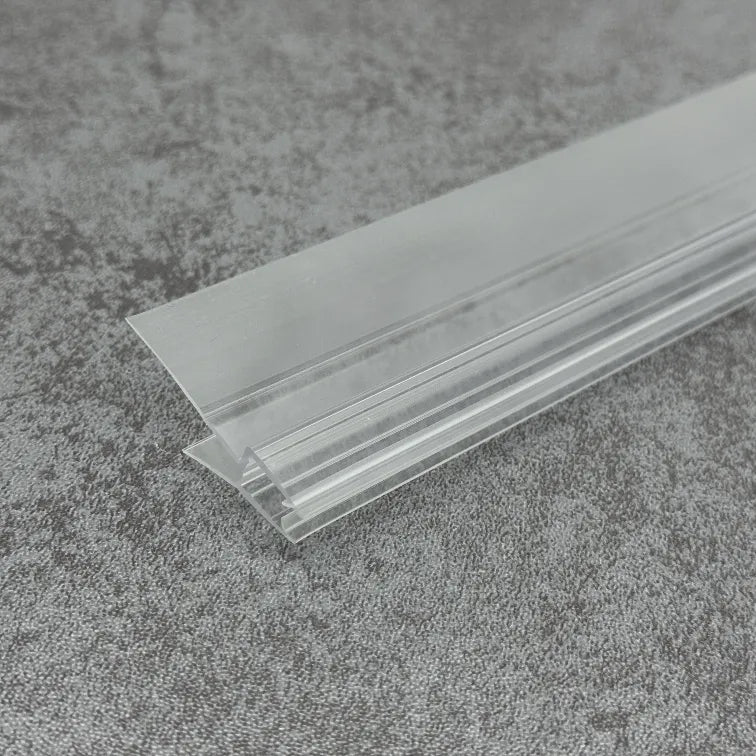

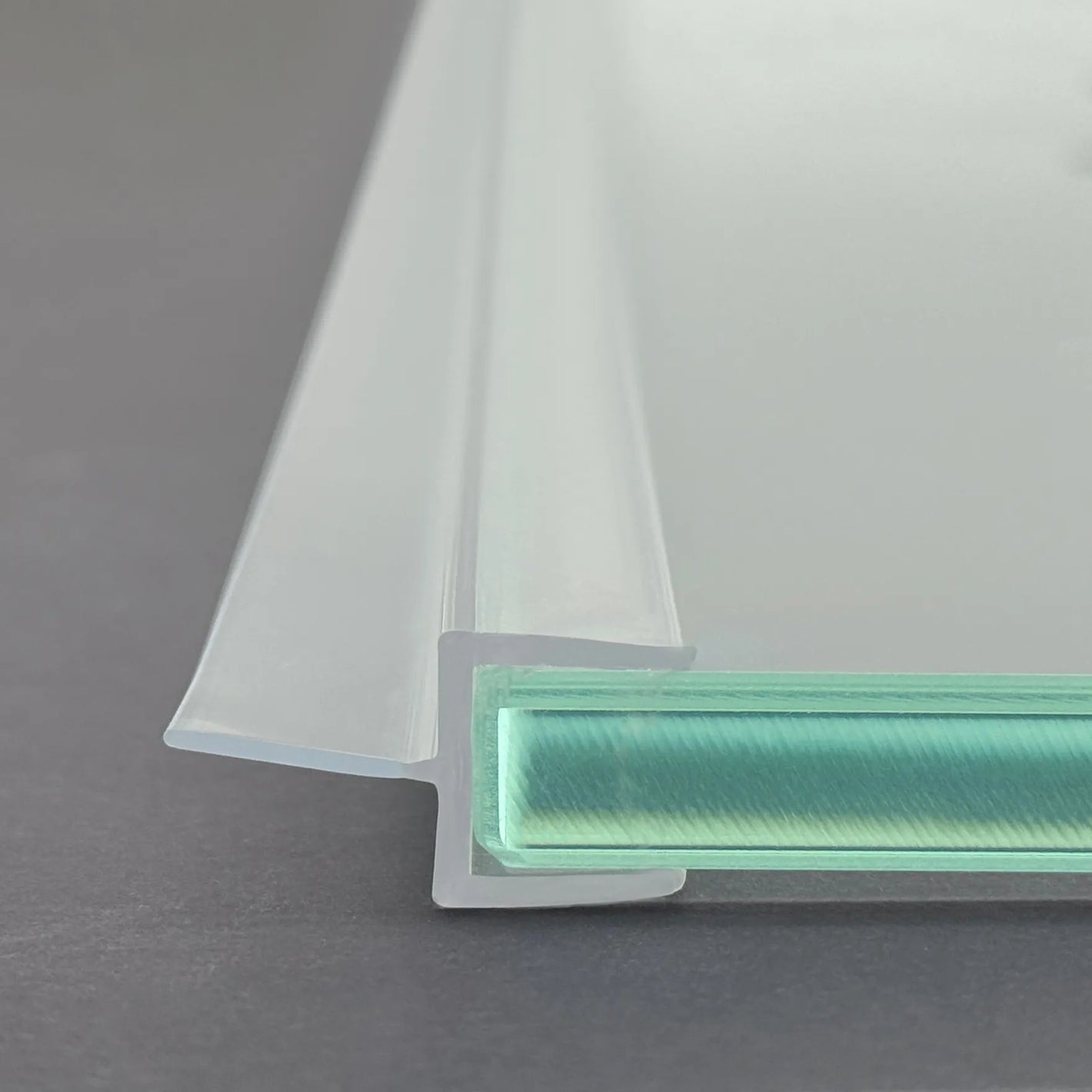

The V456S2023 is a clear PVC bottom seal for 4mm, 5mm and 6mm frameless glass shower doors with a larger bottom gap of around 20–23mm. It uses a push-fit channel for the exposed lower edge of the glass, with a long 23mm soft fin underneath to help reduce water escaping beneath the door.
This is the largest fin size in this 4–6mm glass bottom seal range, so it should be chosen only when the measured gap is suitable. A longer fin is not always the better option. If the fin is too long for the gap, it may drag against the tray or floor, come loose during use, or become damaged more easily.
The seal is suitable for straight shower screens, pivot doors, hinged doors and some sliding doors with a straight, accessible bottom edge. It can be trimmed to fit door widths up to 950mm, but it is not suitable for curved doors, framed doors or bottom gaps outside the 20–23mm range.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
Care & Installation Tips
Ensure a better fit and longer-lasting clarity.
✓ DO’S
- Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
- Deep Clean: Remove all UK hard-water limescale before installation.
- Sharp Tools: Use garden pruners for a clean, professional finish.
- Daily Rinse: Simply wash away soap suds after your shower.
✕ DON’TS
- No Sliding: Never slide the seal along the glass; this risks scratching.
- No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
- No Soapy Water: Do not use lubricants—they accelerate mould growth.
- No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
