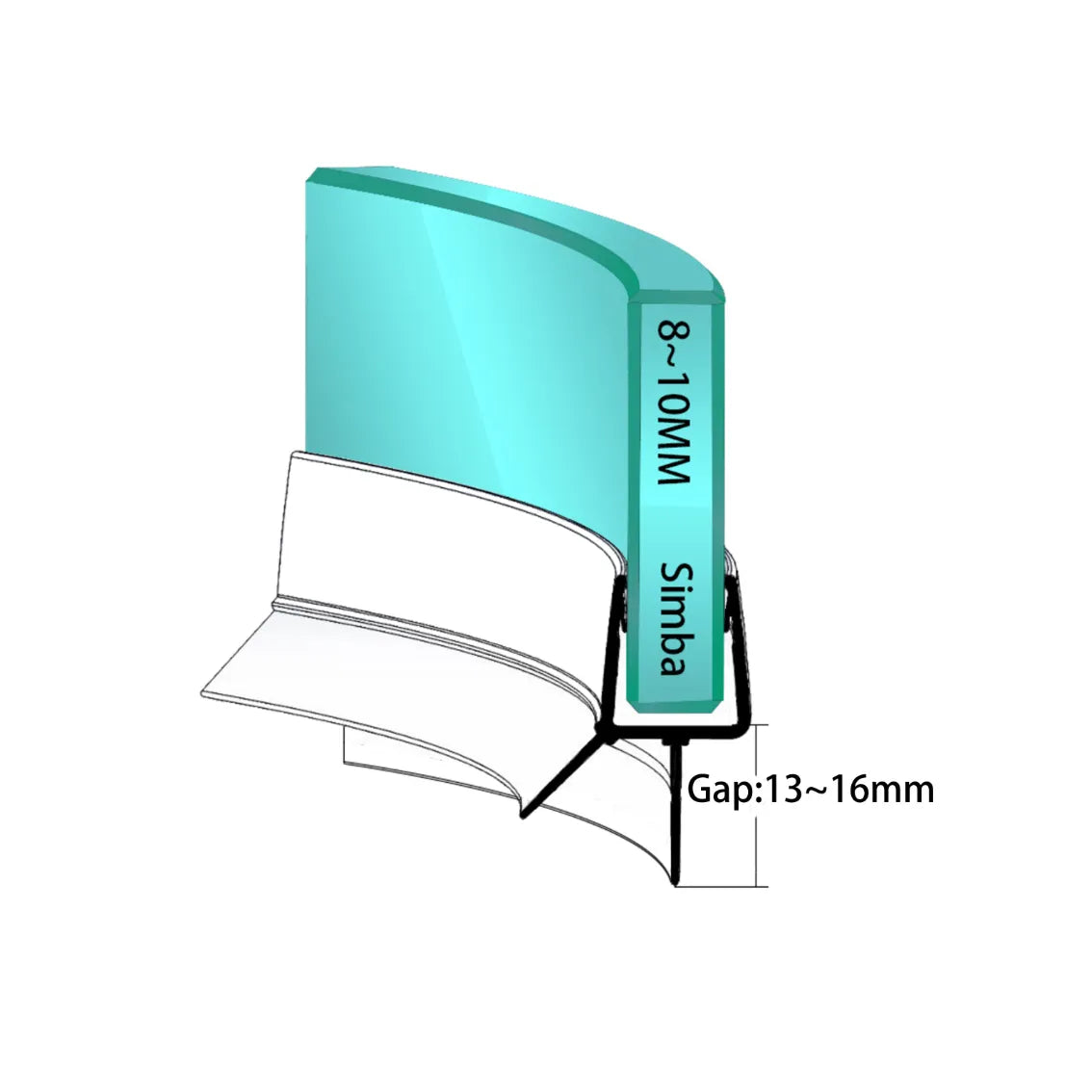

• V810S16CU curved shower screen seal cross-section for 8-10mm glass

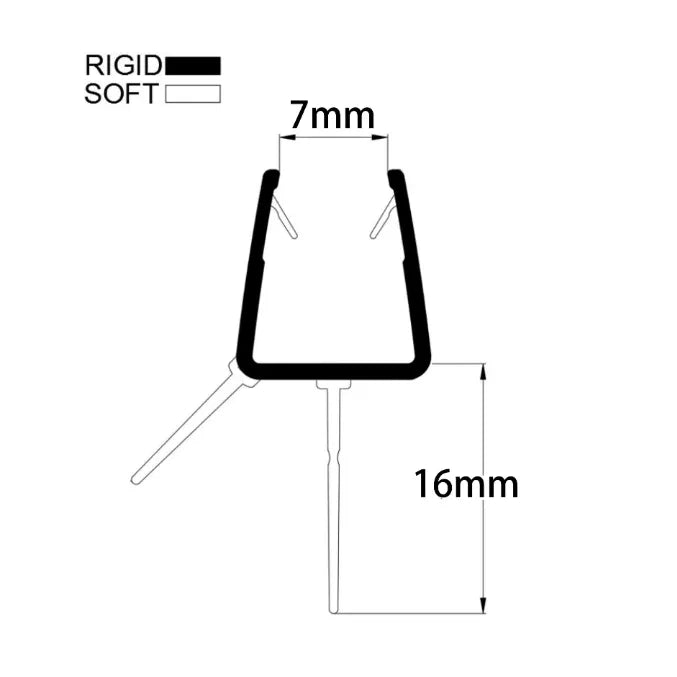

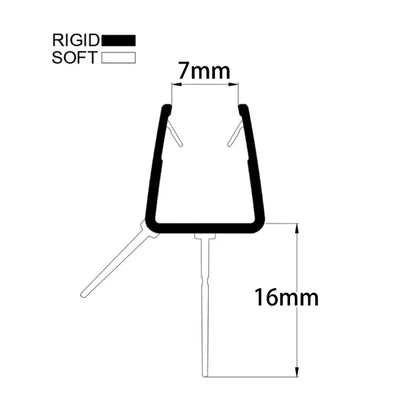

  • V810S16CU curved shower screen seal dimension diagram with 16mm fin
  • Shower door bottom seal compatibility check for glass thickness, gap size and drip rail fit
  • Durable bottom shower door seal with reinforced entry point and 1mm wall thickness
  • Shower door bottom seal comparison showing SIMBA secure fit and improved water control
  • Why choose SIMBA shower seals: 30,--- uses tested, Quality rubber material, reach certified, and UK fast delivery

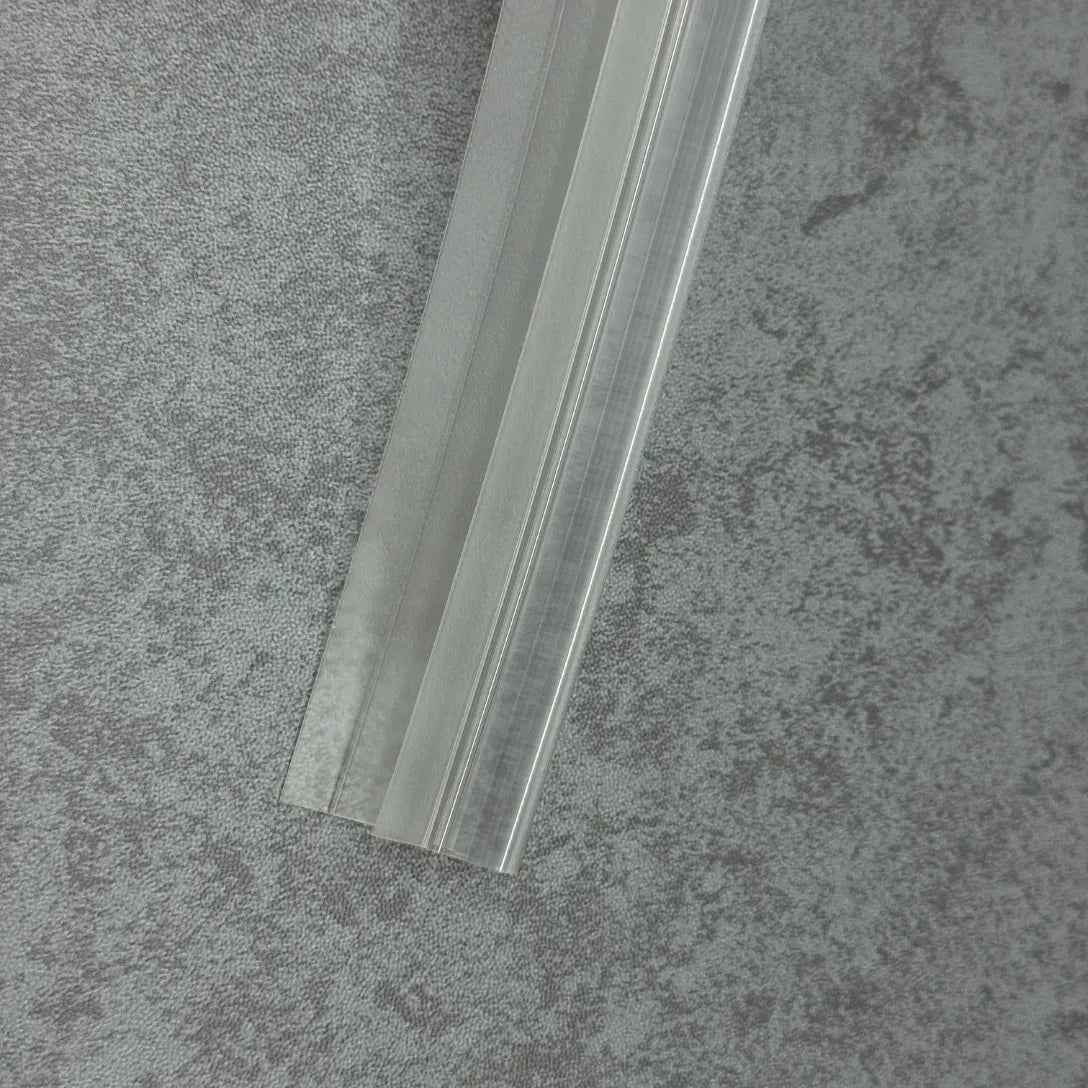

  • V810S16CU clear PVC curved shower seal profile showing U-channel and fin

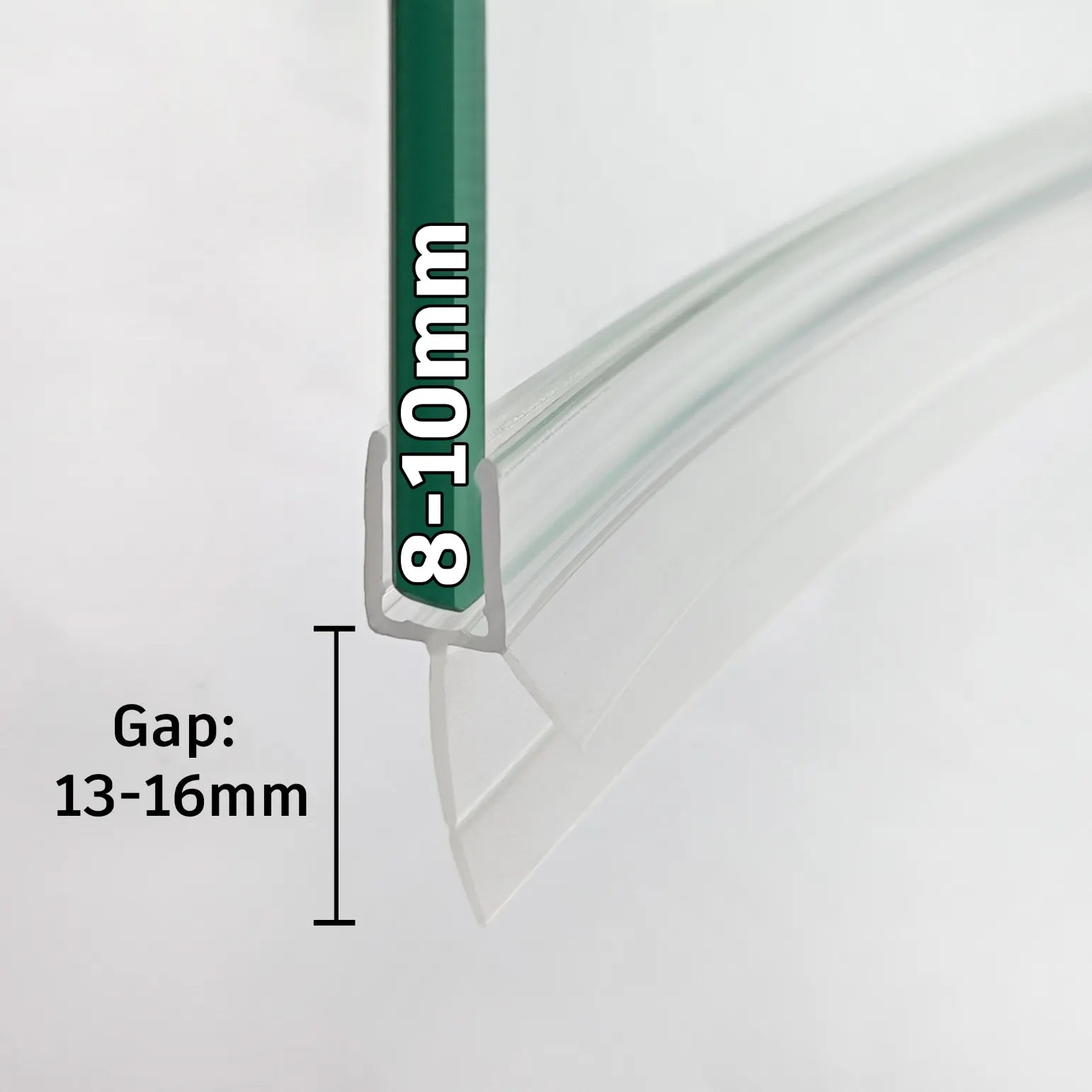

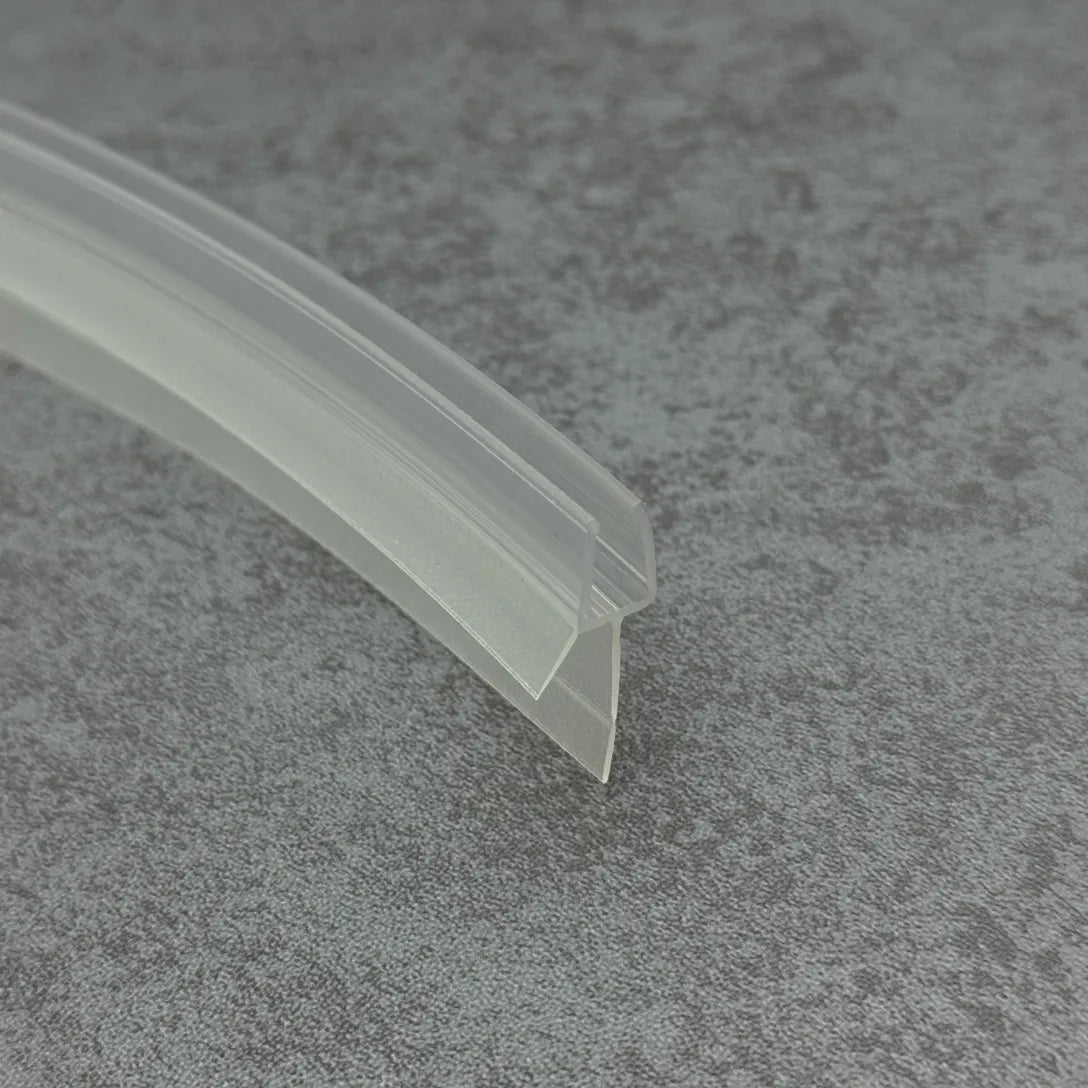

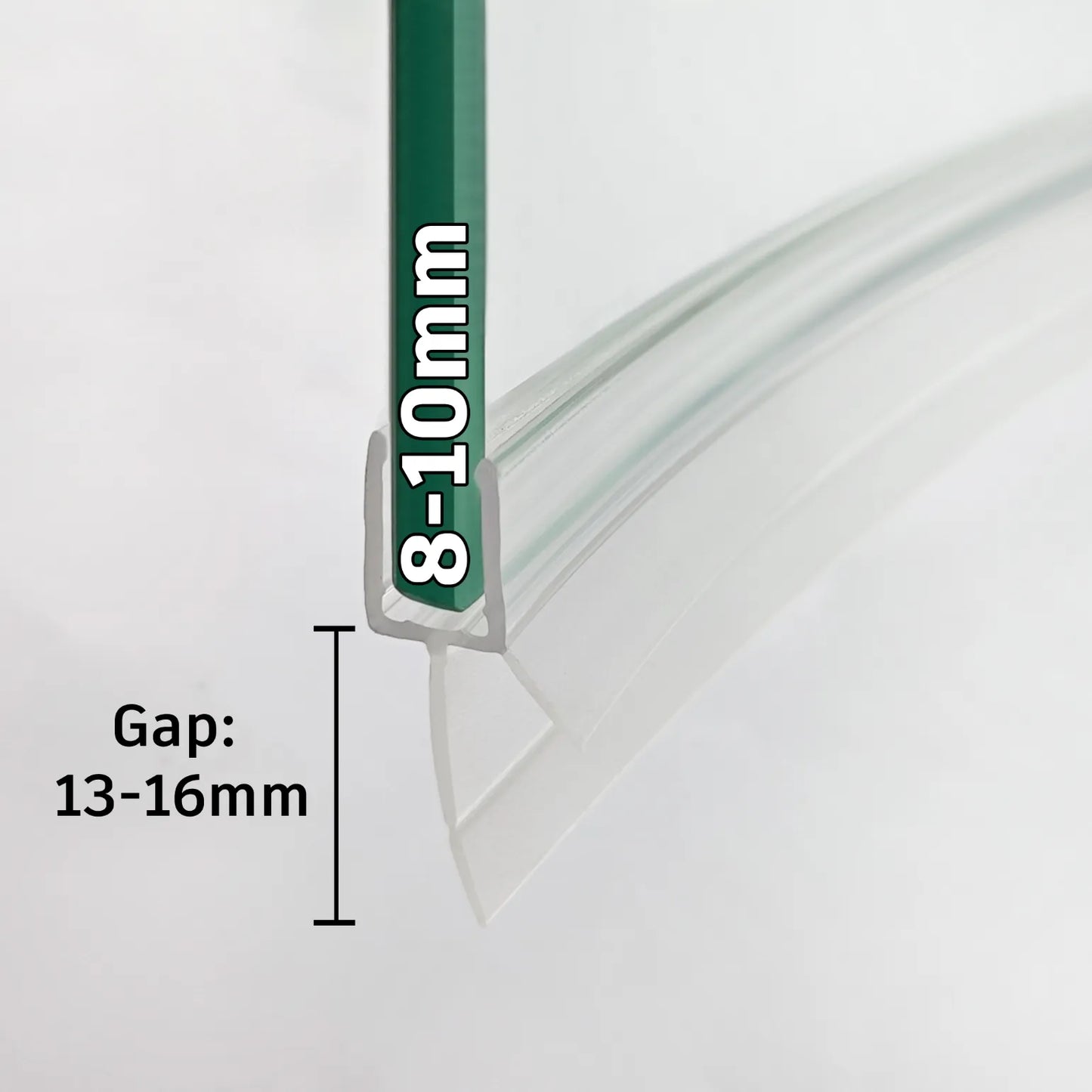

  • V810S16CU transparent curved shower screen seal showing clear finish
  • curved shower screen seal fitting direction on glass
  • Application guide for the shower seal
1 10

Curved Bottom Shower Screen Seal for 8–10mm Glass 16mm Fin V810S16CU

£19.80
£31.19 £19.80
Sold out
-37%
Taxes included. Shipping calculated at checkout.
Total Length: 950mm
Gap: Seal 16mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down


Product Video

Key specifications

Catalog no.
V810S16CU
Product type
Bottom curved bath screen seal
Glass thickness
8mm / 9mm / 10mm
Fin length
16mm soft fin
Suitable gap
Approx. 13mm – 16mm bottom gap
Suitable door type
Curved shower doors / P-shape bath screens / curved bath screens
Material
Rigid clear PVC with soft flexible fin
Length
950mm – easy to trim to size
Pack Quantity
Single strip / 1 piece
Installation
Push-fit, cut-to-size
Recommended pairing
Shower threshold strip for improved bottom water control
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

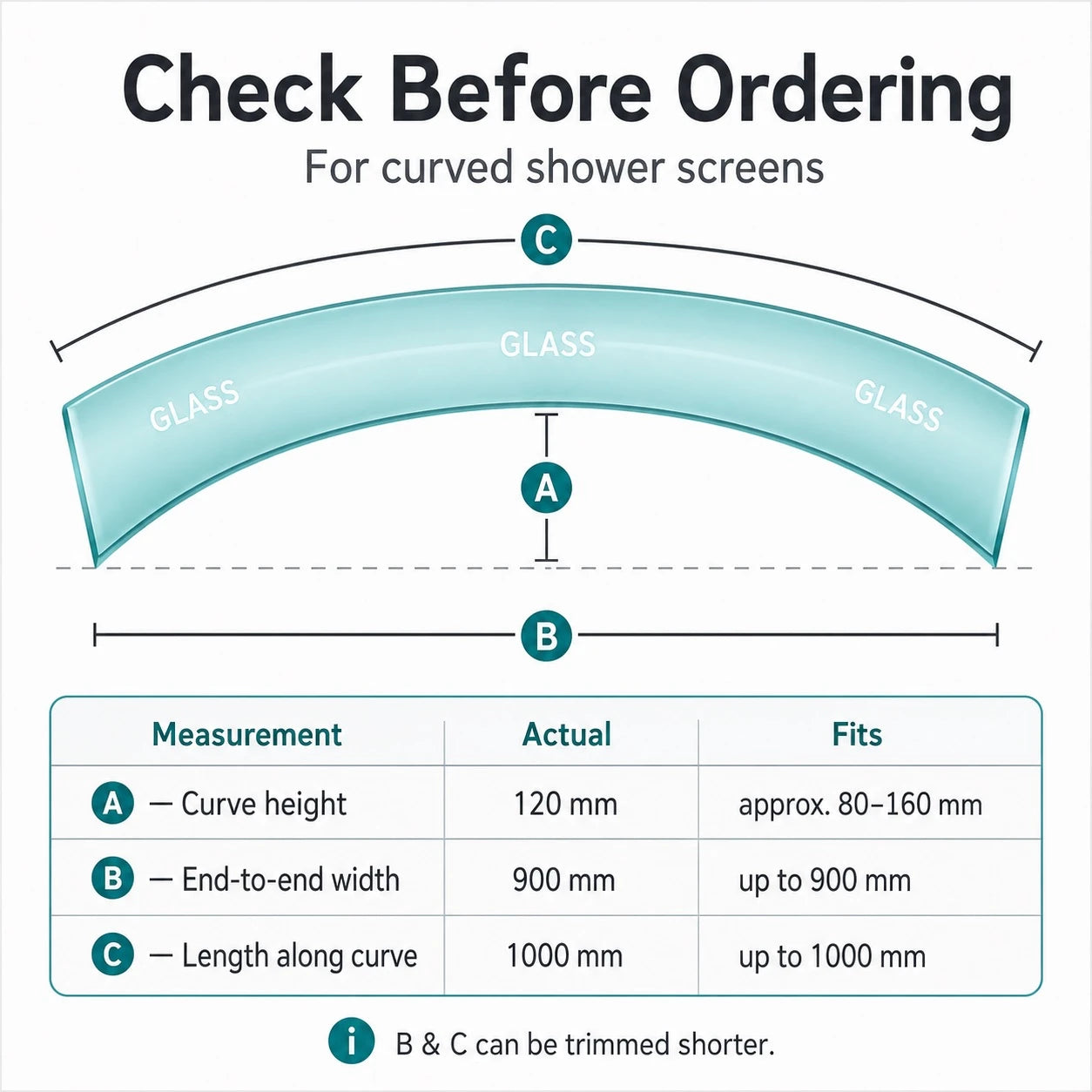

Check Before You Buy

This seal is suitable if:

  • Your shower or bath screen glass is 8mm, 9mm or 10mm thick.
  • You need a bottom seal for a curved shower door, P-shape bath screen or curved bath screen.
  • Your bottom gap is approximately 13mm to 16mm.
  • Your required length is 950mm or less.

Choose another seal if:

  • Your glass is thinner than 8mm.
  • Your bottom gap is under 13mm or over 16mm.
  • You need a straight screen seal, side seal, vertical seal, magnetic seal, guide rail seal or track seal.
  • Your screen has a metal frame, thick edge trim or a different seal profile.

Product Description & Suitable Applications

The V810S16CU is the 16mm fin option for selected curved bottom seals made for 8–10mm glass. It is suitable for compatible curved shower doors, P-shape bath screens and curved bath screens with a medium bottom gap.

The rigid clear PVC channel fits onto the bottom edge of thicker glass, while the 16mm soft flexible fin helps guide water back towards the bath, tray or threshold.

The seal is supplied as a single 950mm strip and can be trimmed to size. For improved bottom water control, use it with a compatible shower threshold strip.

This seal is not suitable for 4–6mm glass, straight screens, vertical side edges, magnetic closing seals, guide rail seals, track seals or framed metal edges.

Not sure about the size? Compare all curved shower screen seals.

Installation Notes

  1. Remove the old bottom seal.
  2. Clean and dry the bottom edge of the glass.
  3. Start fitting from the inside of the screen.
  4. Push the PVC channel firmly onto the glass.
  5. Trim to length if required.
  6. Check that the soft fin moves freely and does not catch on the bath rim, tray or threshold.

For best results, please refer to the installation guide section in our curved bath screen seal range.

FAQ

1. Is this seal suitable for a curved bath screen?

Yes. The V810S16CU is suitable for selected curved bath screens, P-shape bath screens and curved shower doors with 8–10mm glass.

2. What glass thickness does this seal fit?

This seal is designed for 8–10mm glass. For 4–6mm glass, choose from the thinner glass range.

3. What bottom gap is the 16mm fin suitable for?

The 16mm soft fin is suitable for bottom gaps of approximately 13–16mm. It is a better option than the 12mm fin if your gap is slightly larger.

4. Will this help reduce water leaking from the bottom edge?

It can help reduce water escaping from the bottom edge when correctly fitted. For better water control, especially near the hinge side or bath edge, use it with a compatible shower threshold strip.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
V810S16CU curved shower screen seal cross-section for 8-10mm glass
Curved Bottom Shower Screen Seal for..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

Curved Bottom Shower Screen Seal for 8–10mm Glass 16mm Fin V810S16CU Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
