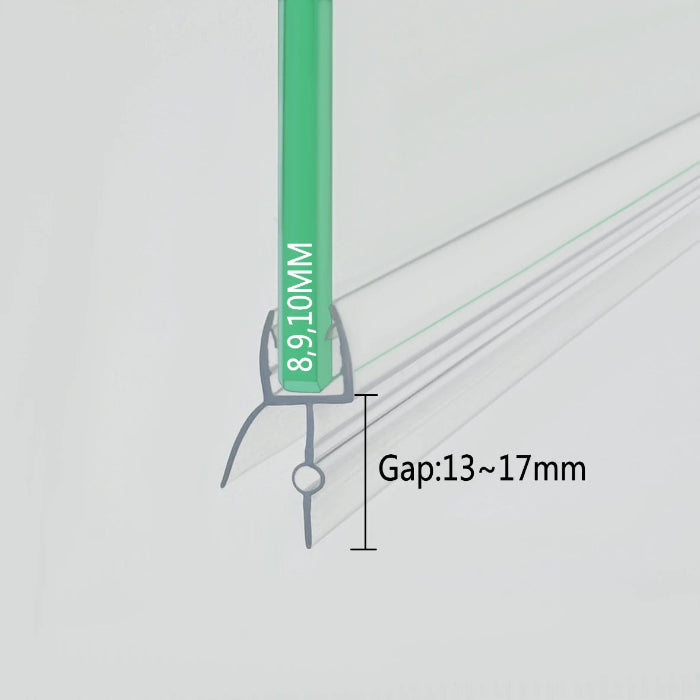

• Close-up cross-section of the VD810 shower door bottom seal strip fitted on 8-10mm glass, showing the transparent U-channel, side guide rails, and unique 17mm single fin with a central bulb to effectively fill uneven gaps beneath thicker glass.

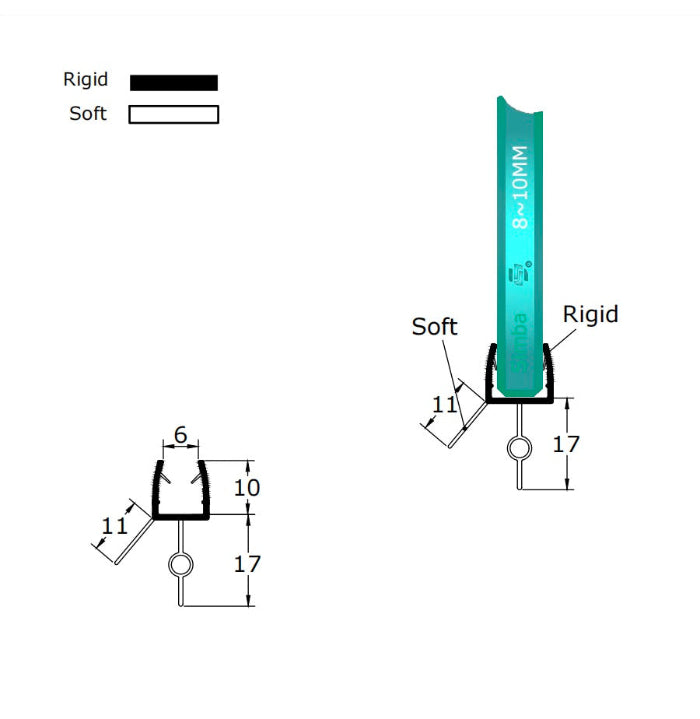

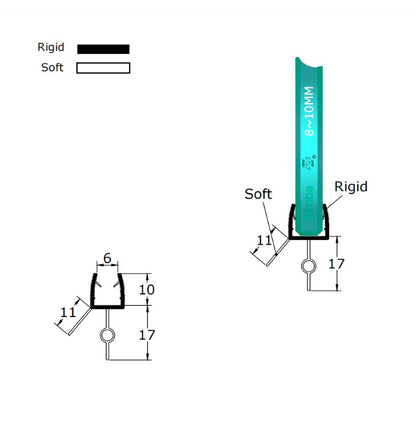

  • Technical dimension diagram for a shower door bottom seal, detailing the inner channel width, 17mm central fin length (including bulb height), and overall profile height with lateral stabilising rails, engineered for precise replacement on 8-10mm thick glass.

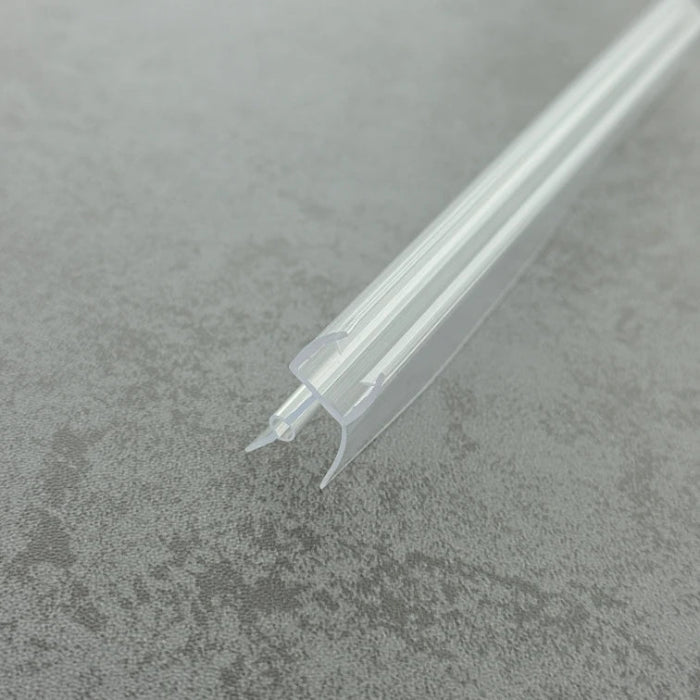

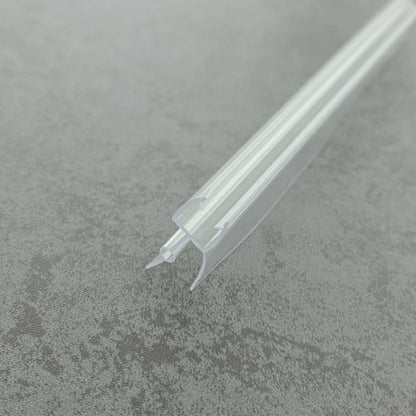

  • High-clarity close-up of a bath shower door bottom seal, showcasing the smooth finish and anti-UV material of the VD810, highlighting the elastic structure of the central bulb to ensure clear invisibility and a tight water fit in shower enclosures over baths.

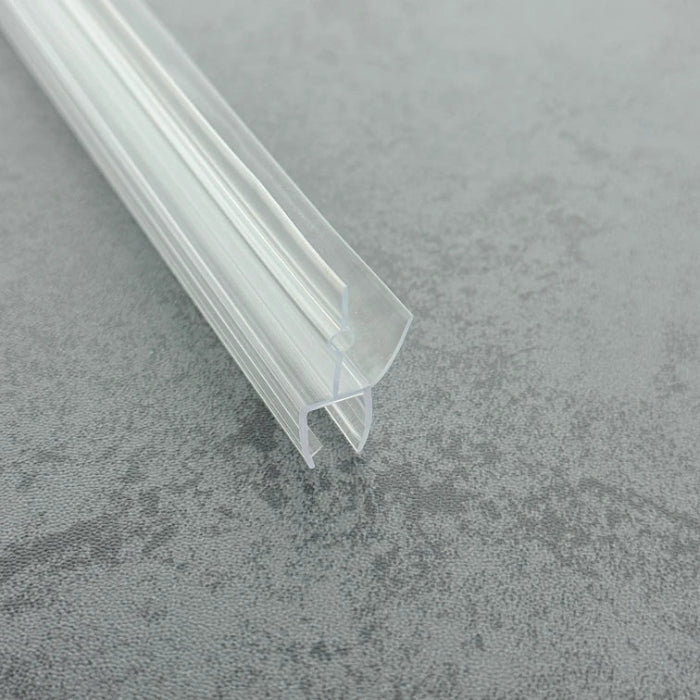

  • Micro-view of a bath shower screen bottom seal, showing reinforced U-channel walls, internal side rails, and how the unique central bulb on the 17mm fin increases contact pressure, providing a firmer grip for 8-10mm glass.
1 4

For 8-10mm Glass Shower Door Bottom Seal 17mm Fin VD810

£14.88
£20.88 £14.88
Sold out
-29%
Taxes included. Shipping calculated at checkout.
Total Length: 1000mm
Gap: Seal 17mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down


Key specifications

Catalog no.
VD810
Glass thickness
8mm / 9mm / 10mm
Suitable bottom gap
Approx. 13–17mm
Fin length
17mm
Length
1000mm, easy to trim to size
Pack quantity
Single strip / 1 piece
Material
Clear PVC with rigid U-channel and flexible sealing fins
Installation direction
Fit with the angled fin facing inside the shower
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

Note: The slot may look slightly smaller in the drawing, but this helps the seal grip the glass securely once fitted. Please use the glass thickness listed above as your main guide.

This seal is suitable if:

  • Your glass is 8mm, 9mm or 10mm thick.
  • You need a bottom seal for a straight shower door or screen.
  • Your bottom gap is around 13–17mm.
  • You need a strip up to 1000mm long.
  • Your old seal has a similar U-shaped clip, angled fin and lower drip strip.

Choose another seal if:

  • Your glass is thinner than 8mm.
  • Your bottom gap is smaller than 13mm or larger than 17mm.
  • Your door bottom is curved.
  • Your shower door has a metal frame or thick edge trim.
  • You need a short-gap rigid seal, magnetic seal, side seal, guide rail seal or track seal.
  • You need a strip longer than 1000mm.

Need a different style? Compare this item with our full shower door bottom seals range before ordering.

Suitable Applications

VD810 is a clear clip-on bottom seal for 8mm, 9mm and 10mm frameless shower glass. The top section has a rigid PVC U-channel that clips onto the bottom edge of the glass without glue.

Its profile includes an angled water-deflecting fin and a longer fin. The longer fin includes a round centre bead.

Compared with a simple straight bottom seal, VD810 is better suited to shower doors that need both side water deflection and lower gap sealing. The flexible fin is approximately 17mm long and is designed for bottom gaps around 13–17mm. Fit the angled fin facing inside the shower area to help guide water back towards the tray.

The seal is made from clear PVC, so it remains fairly discreet once fitted. It is supplied as one 1000mm strip and can be trimmed shorter if required. It is suitable for replacing old seals that have become yellow, stiff, worn or less effective at keeping water inside the shower.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Close-up cross-section of the VD810 shower door bottom seal strip fitted on 8-10mm glass, showing the transparent U-channel, side guide rails, and unique 17mm single fin with a central bulb to effectively fill uneven gaps beneath thicker glass.
For 8-10mm Glass Shower Door Bottom..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

For 8-10mm Glass Shower Door Bottom Seal 17mm Fin VD810 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp

About SIMBA Seals UK

SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.

Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.

Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
