5mm Round Bead Dark Grey Framed Shower Door Bottom Seals Fin 16mm VF004
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Key Specifications
Check Before You Buy
This seal is suitable if:
- Your shower door has a round bead channel.
- The channel opening is suitable for a 5mm round bead.
- Your bottom gap is approximately 8–14mm.
- You need a flexible replacement seal for a framed or folding shower door.
- You need either a 950mm or 2000mm length that can be trimmed to fit.
Choose another seal if:
- Your channel uses a T-slot or another fixing style.
- Your round bead is not approximately 5mm.
- Your bottom gap is much smaller than 8mm or larger than about 14mm.
- You need a magnetic, side or vertical seal instead of a bottom seal.
Suitable Applications & Installation Notes

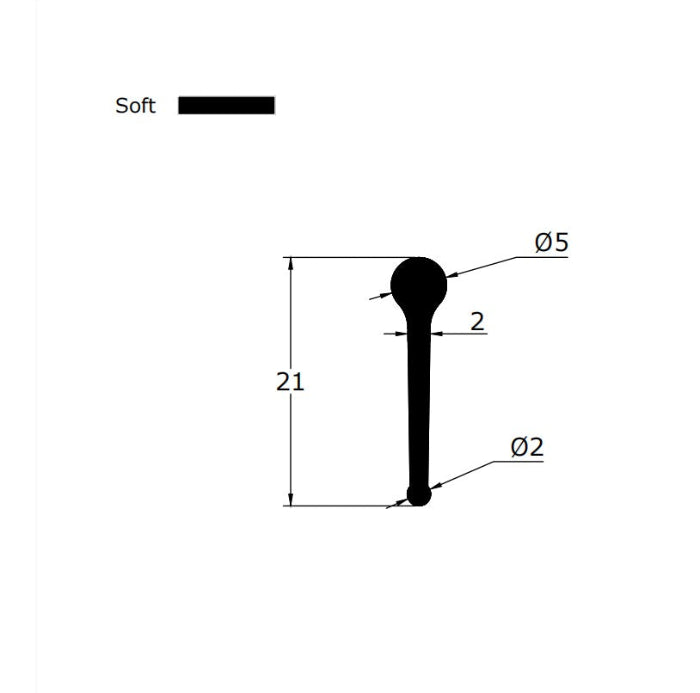

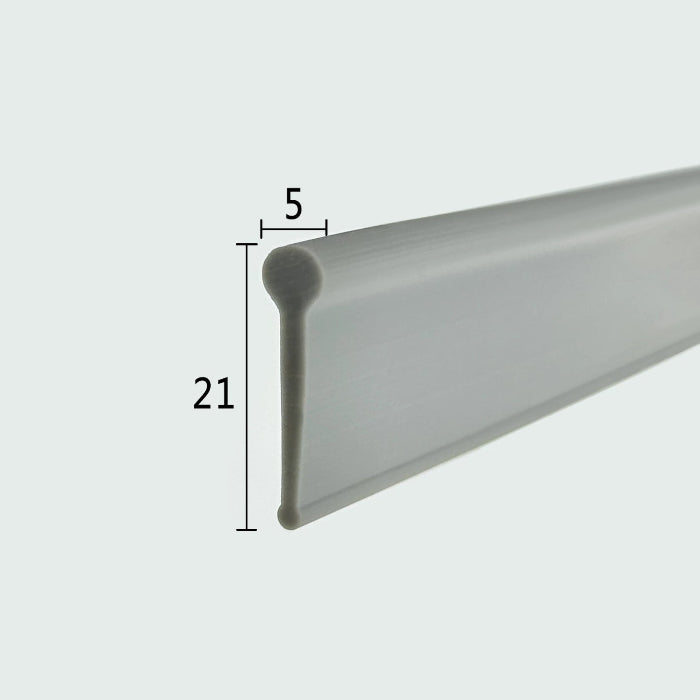

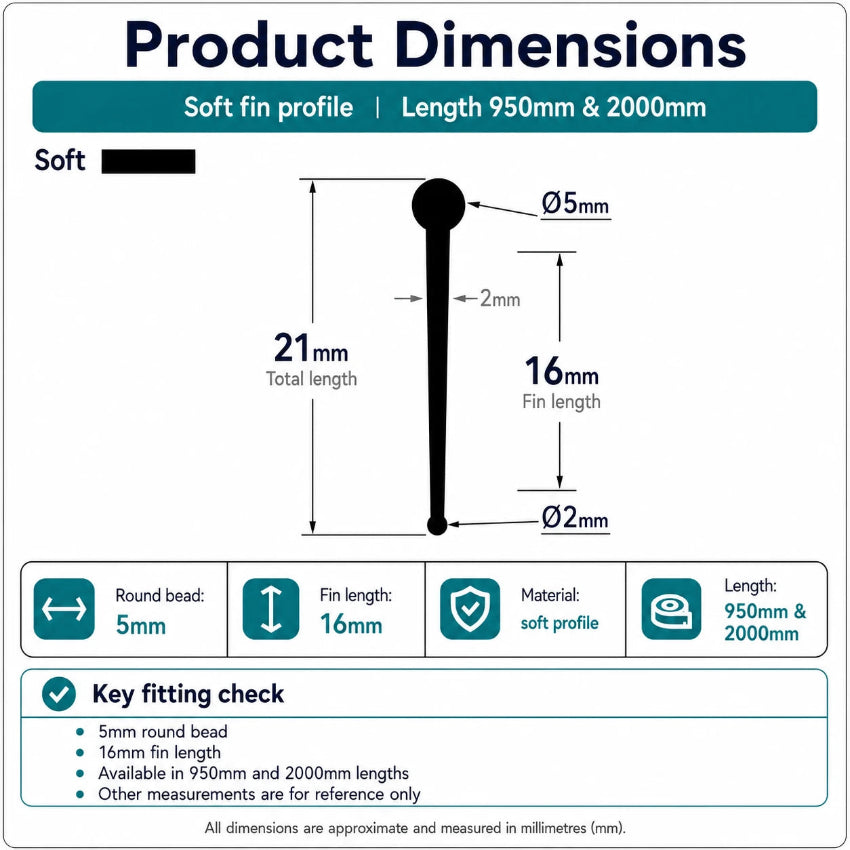

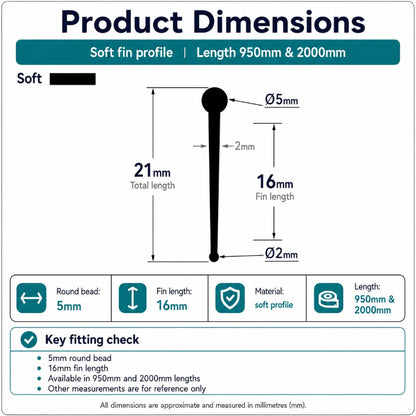

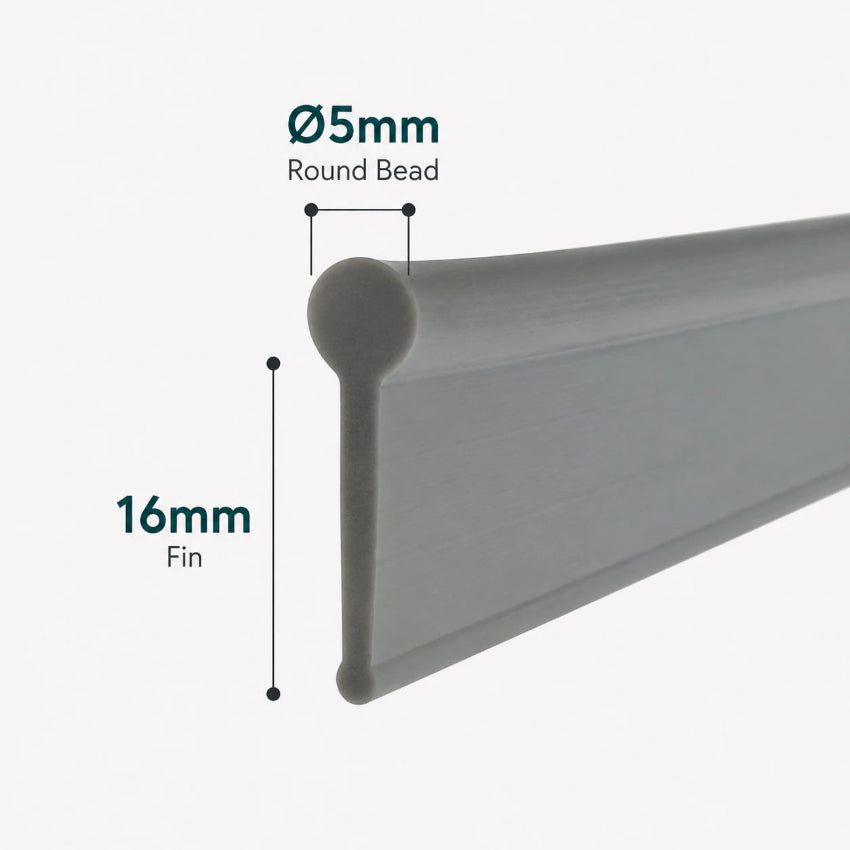

VF004 is a flexible dark grey PVC bottom seal designed for shower doors fitted with a 5mm round bead channel. The 16mm fin is intended for bottom gaps of approximately 8–14mm, helping reduce water escaping beneath the door while still allowing the seal to flex as the door moves.
Unlike rigid push-in strips, the flexible PVC profile bends easily during installation and can be trimmed with a sharp knife or scissors if required.
This seal is suitable for many framed shower doors, folding shower doors and similar enclosures that use a push-in round bead fixing.
The seal is available in both 950mm and 2000mm lengths.
The 2000mm version currently starts from just £15.40, only around £3 more than the 950mm option (£12.40). For many shower doors, it can be cut into two shorter pieces, allowing one section to be fitted now while keeping the remainder as a spare for future replacement.
Before ordering, the round bead diameter is the most important measurement. The overall profile does not need to match your old seal exactly. If the fixing bead fits the channel and the fin length suits your door gap, this profile is often a suitable replacement even when the rest of the shape looks slightly different.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
A Better Chance of Getting the Right Fit
For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small measurement differences can be difficult to confirm at home, so we include nearby options where this helps reduce the risk of ordering the wrong fit. Each seal is complete and ready to fit. Simply use the one that suits your shower door best.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.
We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.
