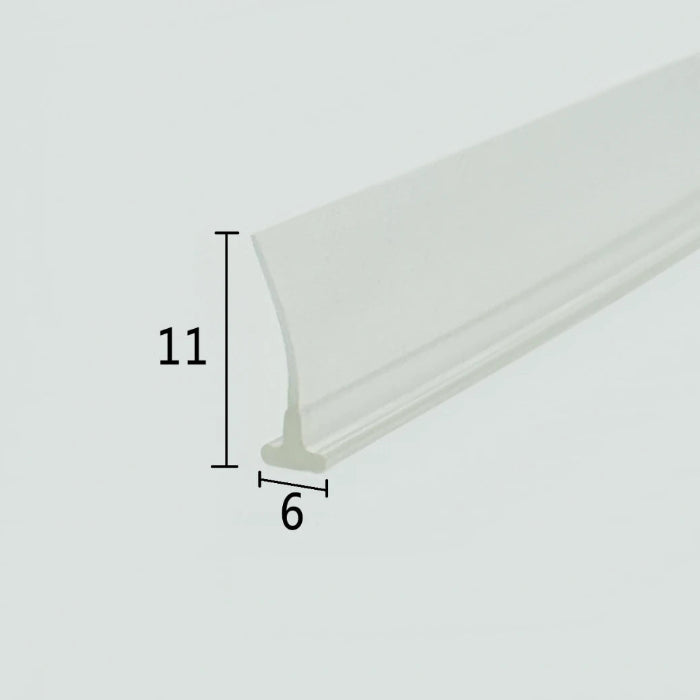

• Cross-section close-up of the VH003 shower door sweep framed, showcasing the transparent soft PVC with a unique 6mm extra-wide T-shaped top and an 11mm long sweeping fin, optimized to lock securely into non-standard wider base tracks of framed doors for reliable water channelling and leak prevention.

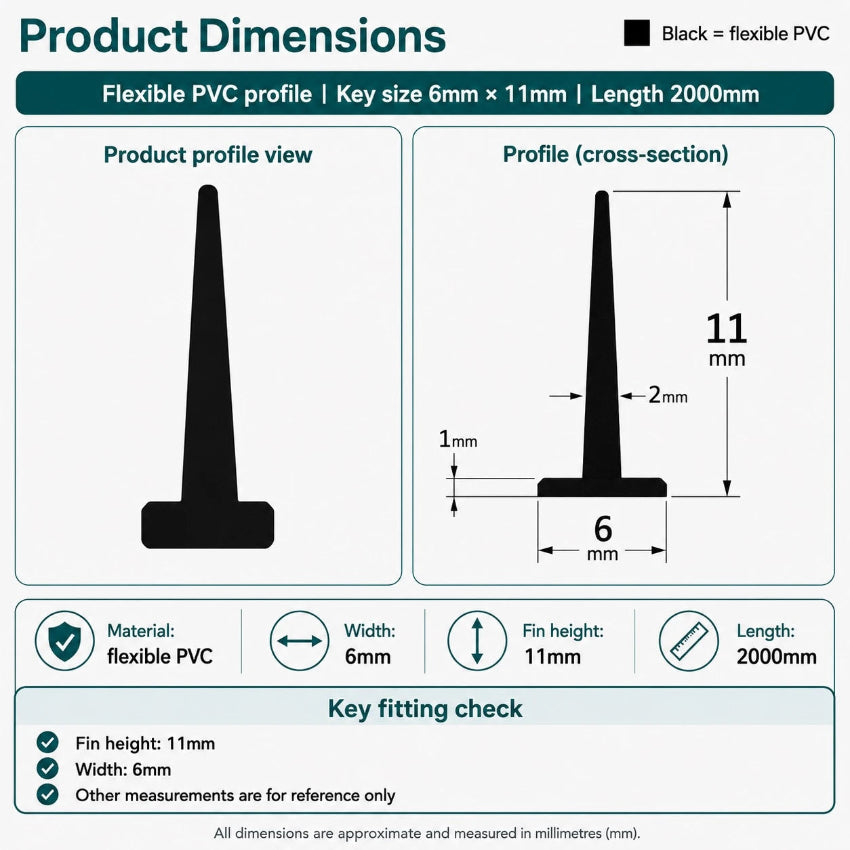

  • Technical dimension diagram for a framed shower door seal replacement, detailing the rare 6mm T-leg width, 11mm fin height, and overall profile, providing critical specification data for users needing an exact match for extra-wide 6mm grooves who are seeking a durable replacement solution.

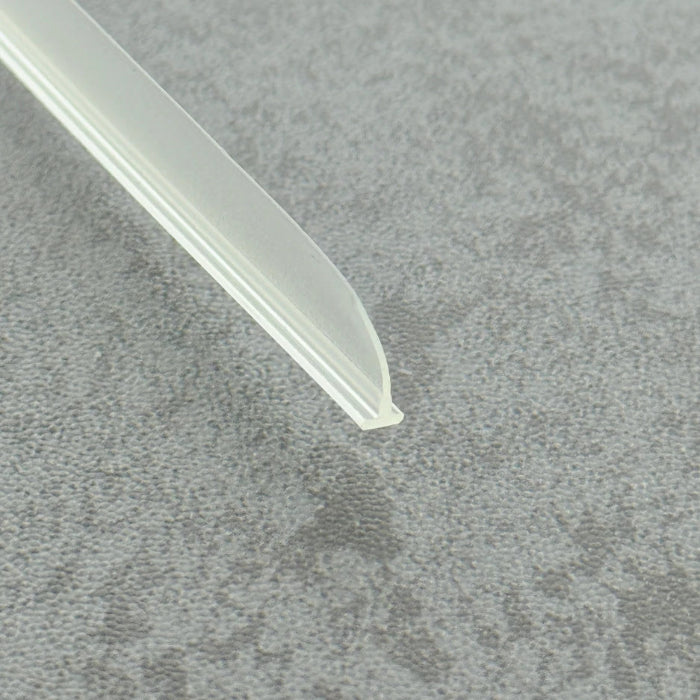

  • High-clarity close-up of a framed shower door sweep replacement (clear version), showcasing the high light transmission, smooth vinyl texture, and flexibility of the VH003's 11mm fin, highlighting its resistance to ageing as an effective substitute for yellowed or hardened old sweeps to restore the tidy appearance of shower screen bases while remaining virtually invisible.

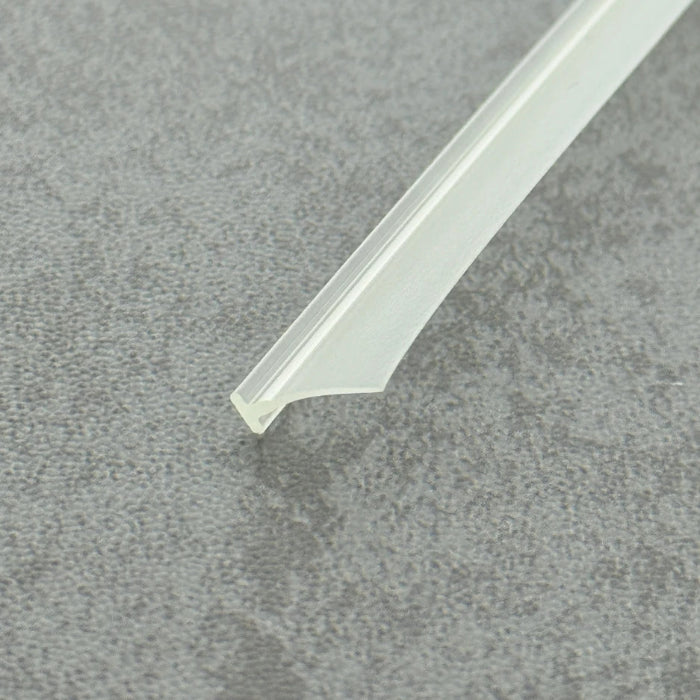

  • Micro-view of a framed shower door bottom seal, showing how the 6mm T-head achieves a tight interference fit within extra-wide grooves to prevent loosening from door vibration, while the 11mm long soft fin makes moderate contact with the floor, providing a lasting waterproof barrier at the base of heavy framed doors.
1 4

6mm Framed T-Bar Seal 11mm Fin VH003

£29.88
£43.19 £29.88
Sold out
-31%
Taxes included. Shipping calculated at checkout.
Total Length: 2000mm
Gap: Seal 11mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down



Key Specifications

Catalog No: VH003
Application: Shower Frame Gasket
T-Bar Width: 6mm Wide-Fit Design
Fin Length: 11mm Extended Depth
Material: Ultra-Soft, High-Compression PVC
Length: 2000mm (Professional Length)
✓ Free UK Shipping | VAT Inc. ✓ 10-Month Warranty

The Mid-Range Master: 6mm Framed T-Bar Seal (VH003)

The VH003 is our most balanced frame gasket, engineered specifically for aluminium tracks that require a secure 6mm seat. While the VH002 offers a long 15mm reach, the VH003 features a precision 11mm fin—the "sweet spot" for standard pivot doors where a shorter, snappier deflection is required to prevent track-drag.

  • Optimised Geometry: The 11mm fin provides maximum water deflection without the "folding" issues common in over-sized seals.

  • The Perfect Fit: Designed as a high-grade replacement for 6mm T-Bar channels found in many premium UK framed enclosures.

  • Durability: UV-stabilised Formula 7 PVC ensures the 6mm T-Bar remains rigid while the 11mm fin stays flexible.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Cross-section close-up of the VH003 shower door sweep framed, showcasing the transparent soft PVC with a unique 6mm extra-wide T-shaped top and an 11mm long sweeping fin, optimized to lock securely into non-standard wider base tracks of framed doors for reliable water channelling and leak prevention.
6mm Framed T-Bar Seal 11mm Fin..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

6mm Framed T-Bar Seal 11mm Fin VH003 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Certified Quality: ISO 9001 | ISO 14001 | REACH compliant +

Quality & Environmental Standards

Simba® seals are manufactured to the highest international standards, ensuring safety and sustainability for your home.

ISO 9001:2015 Quality Management

ISO 9001:2015

Premium quality control ensuring consistent product durability and precision fit.

ISO 14001:2015 Eco-Friendly

ISO 14001:2015

Manufactured with a commitment to environmental responsibility and eco-friendly processes.

SVHC REACH Compliant

SVHC / REACH

Certified non-toxic and safe for domestic use, free from harmful substances.

Have feedback on this seal? Tell us — we use customer input to improve future SIMBA designs.
