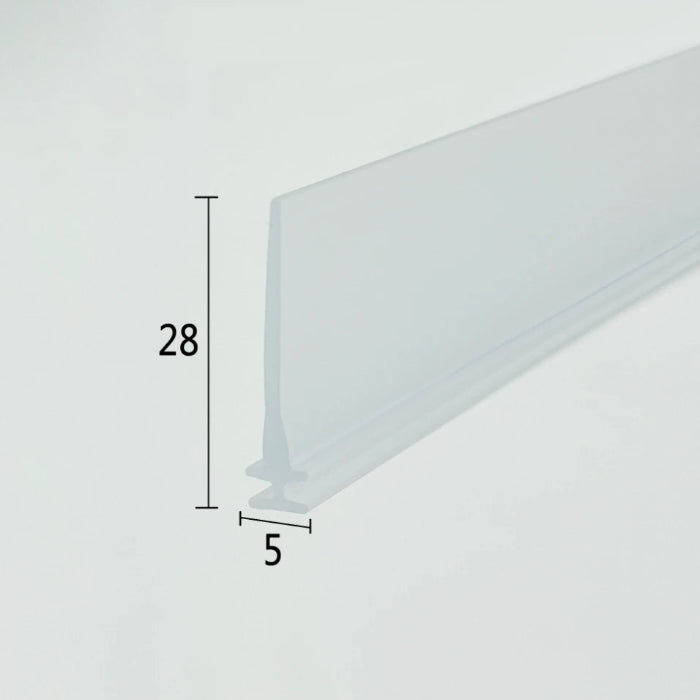

5mm Stepped T-Slot Bi-Fold Framed Shower Door Seal – 28mm Profile VI001
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description

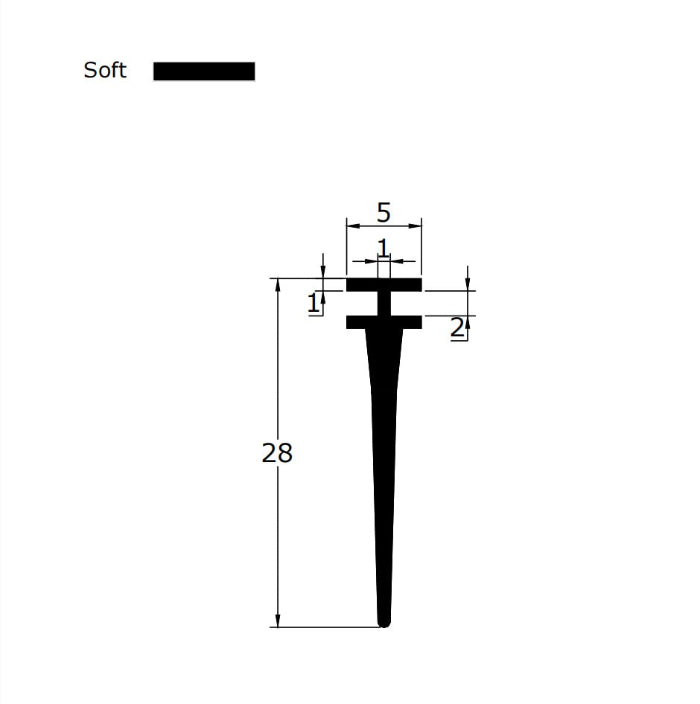

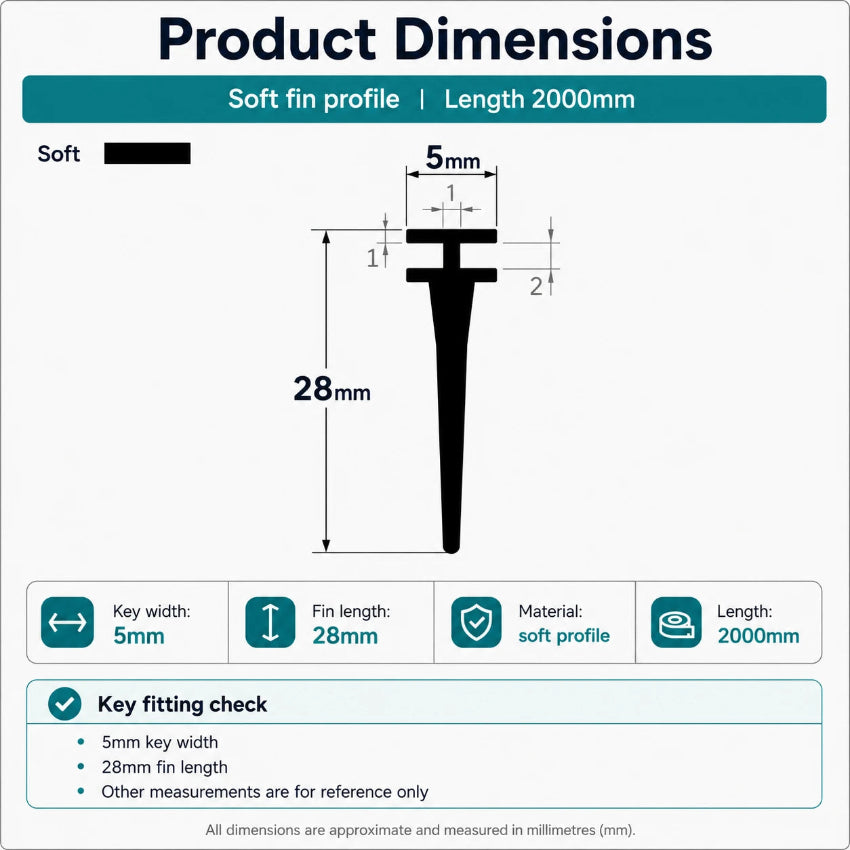

Key Specifications
Check Before You Buy
This seal is suitable if:
- Your framed or bi-fold shower door has an aluminium retaining channel.
- The channel can accept the approximately 5mm upper fitting.
- One or both retaining levels can sit securely inside the channel.
- You need a strip up to 2000mm long.
Choose another seal if:
- The profile clips directly onto the glass.
- The channel is too narrow for the fitting section.
- The seal remains loose after insertion.
- The blade would be folded tightly against the frame.
Suitable Applications
VI001 combines a relatively narrow stepped fitting with a longer flexible blade. It is useful where the aluminium channel is compact but the seal still needs to reach across a more noticeable gap.
The two-level base allows the profile to work with different retaining-channel shapes. Depending on the frame, either one or both levels may help hold it in position.
Your replacement does not need to copy every dimension of the old seal. The important checks are that the channel can retain the fitting securely and that the flexible blade reaches the required surface without being heavily compressed.
The entire profile is flexible and can be cut to the required length. Minor trimming may help with small differences, but the fitting must still remain secure inside the track.
Compare other fixing widths and blade lengths in our framed shower door seals range.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
A Better Chance of Getting the Right Fit
For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small measurement differences can be difficult to confirm at home, so we include nearby options where this helps reduce the risk of ordering the wrong fit. Each seal is complete and ready to fit. Simply use the one that suits your shower door best.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.
We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.
