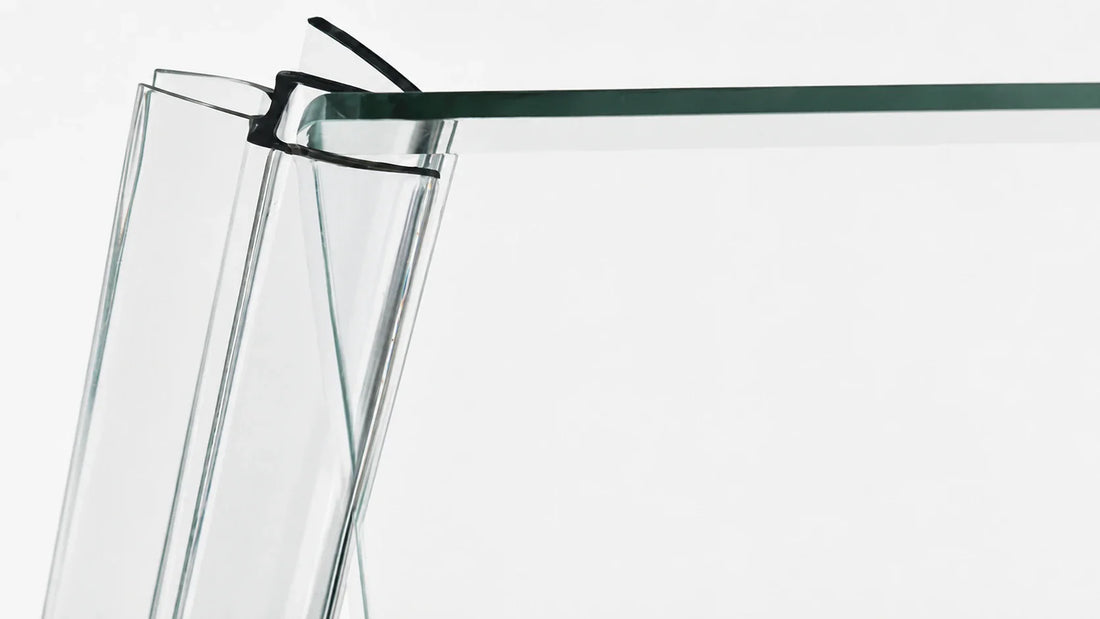

After removing an old shower door seal, many people check the channel of the replacement, expecting to find double-sided tape, silicone or some other fixing material. Usually, there is nothing there. The U-shaped channel is simply pressed onto the edge of the glass, section by section, yet the seal stays in place as the door is opened and closed.
A clip-on shower door seal is not bonded to the glass. It is held in place by the mechanical fit between the channel and the glass edge. Glass thickness, channel opening, profile design and fitting depth all affect the grip. Whether the channel stays securely on the glass and whether the flexible fin controls water are two separate questions.
In simple terms: the U-shaped channel opens slightly as it is pressed onto the glass, then continues to grip both sides. When the channel is correctly matched to the glass thickness, no glue, silicone or double-sided tape should be needed.
Where does the grip come from?
Before installation, the U-shaped channel holds its original profile. As the glass edge enters, the two sides are pushed slightly apart. Once the seal is fully fitted, the material still tries to return towards its original shape, so it continues pressing against both faces of the glass.
The glass also sits a certain distance inside the channel, with contact on both sides. Together with the shape of the U-channel, this makes it harder for the seal to slide down or pull away from the glass edge.
Clip-on magnetic shower door seals use the same basic fixing method. The magnets pull the two door edges together when the door closes, but it is still the outer U-shaped channel that holds each profile onto the glass.
Grip is one part of how shower door seals are tested, and it can be measured rather than judged only by how tight a seal feels during fitting. In SIMBA’s internal testing, we use 50N as a minimum reference point when assessing the pull-off resistance of a clip-on seal.
For the test, the sample was fitted to glass of the correct thickness. The pulling force was then increased in the direction that would remove the seal from the glass. In the test shown here, the sample did not come away until the force exceeded 90N.
This does not mean every clip-on seal will achieve the same result. Profile shape, material, glass thickness and fitting depth can all affect the reading. The test shows that a correctly matched channel can provide measurable holding force rather than relying on light surface friction alone.
Clip-On Shower Door Seal Grip Test
The video below shows the sample fitted to the correct glass thickness and then pulled away from the glass under gradually increasing force.
Watch the shower seal grip test on YouTube
The test measures the force needed to pull the sample directly away from the glass. That is not exactly the same direction of force the seal experiences during everyday use in a shower.
To create this grip, the channel opening is often slightly narrower than the glass it is designed to fit. This is also one of the most easily misunderstood measurements on a product drawing.
Why can the channel opening be narrower than the glass?
A seal may be listed for 8–10mm glass even though the channel opening shown on the drawing is clearly narrower than 8mm. Looking at that figure alone, it is easy to assume the product has been labelled incorrectly or that the glass will not fit.
The drawing usually shows the profile before it has been fitted. During installation, the glass opens the channel slightly within its designed range. This allows the profile to continue pressing inwards after fitting instead of sitting loosely around the glass edge.
If the opening were exactly the same width as the glass, the channel might not create enough holding force. That does not mean a smaller opening is always better. Channel width, depth, wall thickness and internal shape need to work together. An opening that is too narrow, or a channel that is not designed for the glass thickness, can be difficult to fit.
The opening width is only one part of the profile. Two seals intended for the same glass thickness may still have different channel depths, wall thicknesses and contact points, so suitability cannot be judged from one static measurement alone.
When choosing a replacement, first measure the shower glass thickness rather than relying on the internal width of the old seal. An older profile may have opened up or changed shape over time. It can still help identify the cross-section and fitting direction, but it may no longer show the original channel size accurately.
Will a narrow channel scratch the glass?
Some SIMBA clip-on seals have small, rounded contact points inside the channel. As the glass enters, it meets these curved areas first rather than a sharp or completely flat rigid edge.
The contact points control where the profile meets the glass while allowing the main body of the channel to open gradually. Rather than forcing the whole channel wall outwards at once, this shape helps the fitting resistance feel more even and reduces excessive bending elsewhere in the profile.
When the glass edge is clean, the profile is the correct size and the seal is pressed on by hand, the rounded PVC contact points are designed to move over the glass without a sharp edge bearing against it. The greater risk comes from grit, debris or hardened silicone trapped inside the channel, which can mark the glass as the seal is pressed into place.
This rounded contact design is used on some SIMBA clip-on seals, but not every seal has the same internal profile. Two products that look similar from the outside may still feel different during fitting because their contact points sit in different positions.
The channel answers one question: how does the seal stay on the glass? Whether it controls water properly depends on whether the flexible section suits the gap.
What do the rigid channel and flexible fin each do?
Many shower door seals contain both rigid and flexible sections. They are joined within the same profile, but they do different jobs.
The U-shaped channel around the glass is usually rigid, allowing it to hold its shape around the glass edge. The projecting fin is normally softer and is designed to meet the shower tray, threshold, another glass panel or a nearby frame.
The channel holds the seal in place. The flexible fin deals with water and the gap.
The fin can interrupt water running down the glass and may rest lightly against another surface when the door closes. It does not increase the grip of the channel itself, and a longer fin is not always better.
If a bottom fin is much longer than the available gap, the tray or threshold may force it to bend too far when the door closes, making the door harder to move. If the fin is too short, it may not reach the surface it needs to meet.
For a bottom seal, glass thickness and the gap beneath the shower door need to be checked separately. The glass thickness determines whether the U-channel will fit, while the gap determines whether the flexible fin can reach the tray or threshold without being over-compressed.
Even when both measurements fall within the stated product range, it is still worth checking the fitting resistance and whether the channel sits fully onto the glass.
How tight should a clip-on seal feel during fitting?
A correctly matched clip-on seal can usually be pressed on by hand, starting at one end and working along the glass. Some resistance is normal, but it should feel reasonably even, and the channel should eventually sit fully onto the glass edge.
If the seal slips on with almost no resistance and still moves after fitting, the channel may be too wide. It may also not have been pressed fully into place.
At the other extreme, stop if the profile will only go on a short distance, the clear PVC turns white under pressure, the channel twists badly, or fitting would require a hammer or pliers. Check the glass thickness, the stated fitting range and the internal channel shape before going any further.
When you fit a shower door bottom seal, it should normally be pressed on gradually from one end rather than slid along the full length of the glass. Forcing the seal to slide can stretch parts of the channel and twist the flexible fin.
Residue along the glass edge can cause similar problems. Soap, limescale, old silicone or other debris may stop the channel sitting fully down, making a suitable seal appear to be the wrong size.
Normal fitting resistance is not simply a case of the tighter the better. The seal should press on steadily, sit fully in place and remain secure without wobbling or shifting on its own.
Why can a seal become loose later?
Even when a seal was fitted correctly at first, the way it sits on the glass can change over time.
The channel remains slightly open for as long as it is fitted. As the material ages, the PVC may become less able to return towards its original shape, reducing the pressure it applies to the glass.
Repeated removal and refitting can speed this up. Each time the seal is pulled off, the channel opens again. Sliding or twisting it during removal can stretch some areas more than others.
Limescale, soap and other residue may also enter the channel and stop it sitting fully back onto the glass. The seal may then grip firmly in some places but sit loosely in others.
The flexible fin can affect long-term stability as well. If it is constantly bent too far against the tray, or dragged heavily whenever the door moves, that force is transferred back to the channel and may gradually shift the profile out of position.
There is not always a single reason why a shower door seal becomes loose. Material ageing, repeated removal, dirt inside the channel and ongoing pressure on the fin can all change a fit that was originally secure.
Can glue or silicone fix a loose seal?
Adding clear silicone inside the channel may temporarily reduce movement, but it cannot restore a mechanical fit that has weakened or was incorrect in the first place.
If the channel is too wide, silicone only fills part of the space, and it is difficult to keep the layer even along the full length. Some areas may become tight while others remain loose. The seal may also stop sitting squarely along the glass edge.
If the channel is already too narrow, adding silicone takes up even more space and makes fitting harder.
Glue also makes the next replacement more difficult. Old silicone needs to be removed completely from the glass edge before a new channel can sit evenly. A seal that has been bonded in place is more likely to tear during removal and leave difficult residue behind.
This does not mean glue is unsuitable for every shower seal. Some self-adhesive seals, frame profiles and specialist fittings are designed to rely on an adhesive layer. The important point is how the product was intended to be installed.
For a U-shaped seal designed to clip directly onto bare glass, the channel itself should provide the main fixing. If the seal will only stay in place after silicone has been added, check whether the channel has changed shape, whether the profile is fully seated and whether it still matches the glass thickness.
If you are still unsure whether the channel is suitable, send us a clear photo of the old seal’s cross-section, the glass thickness and the fitting position. We can check the details and suggest the closest suitable options where available.
