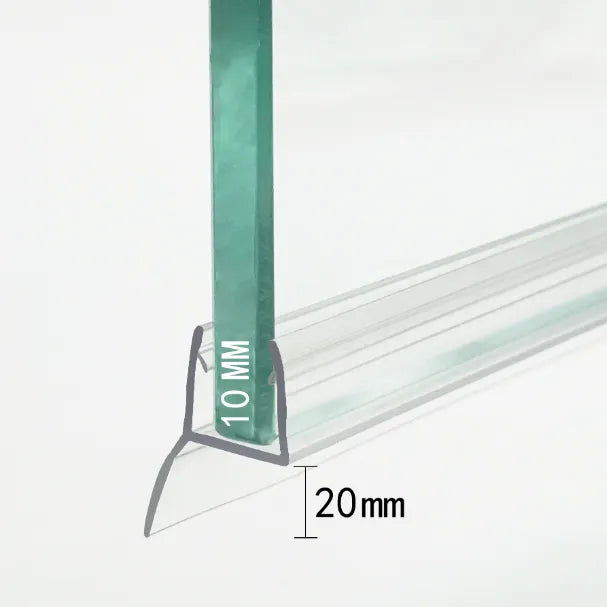

• 135A10S20 Y shaped shower door seal for 10mm glass with 15mm fin

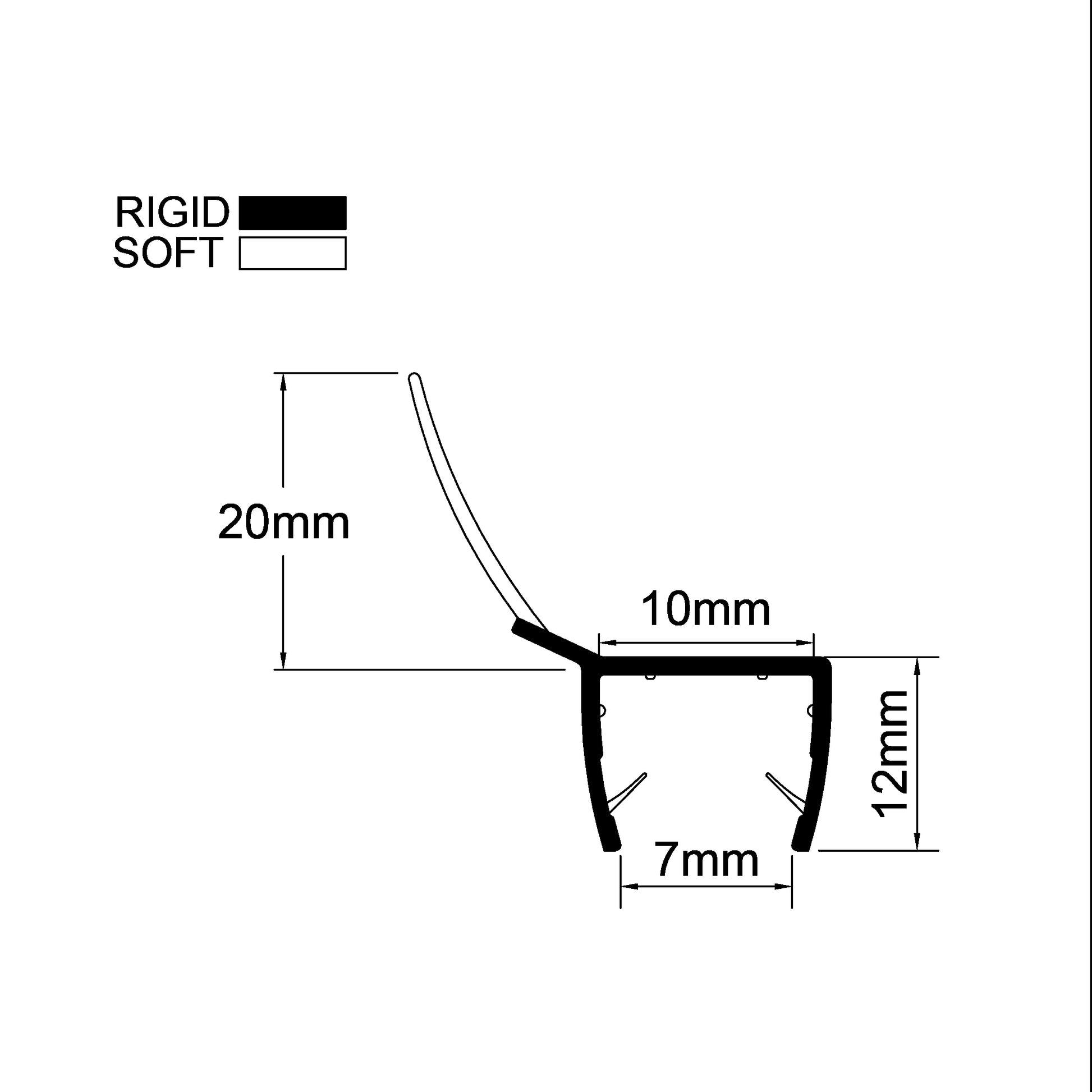

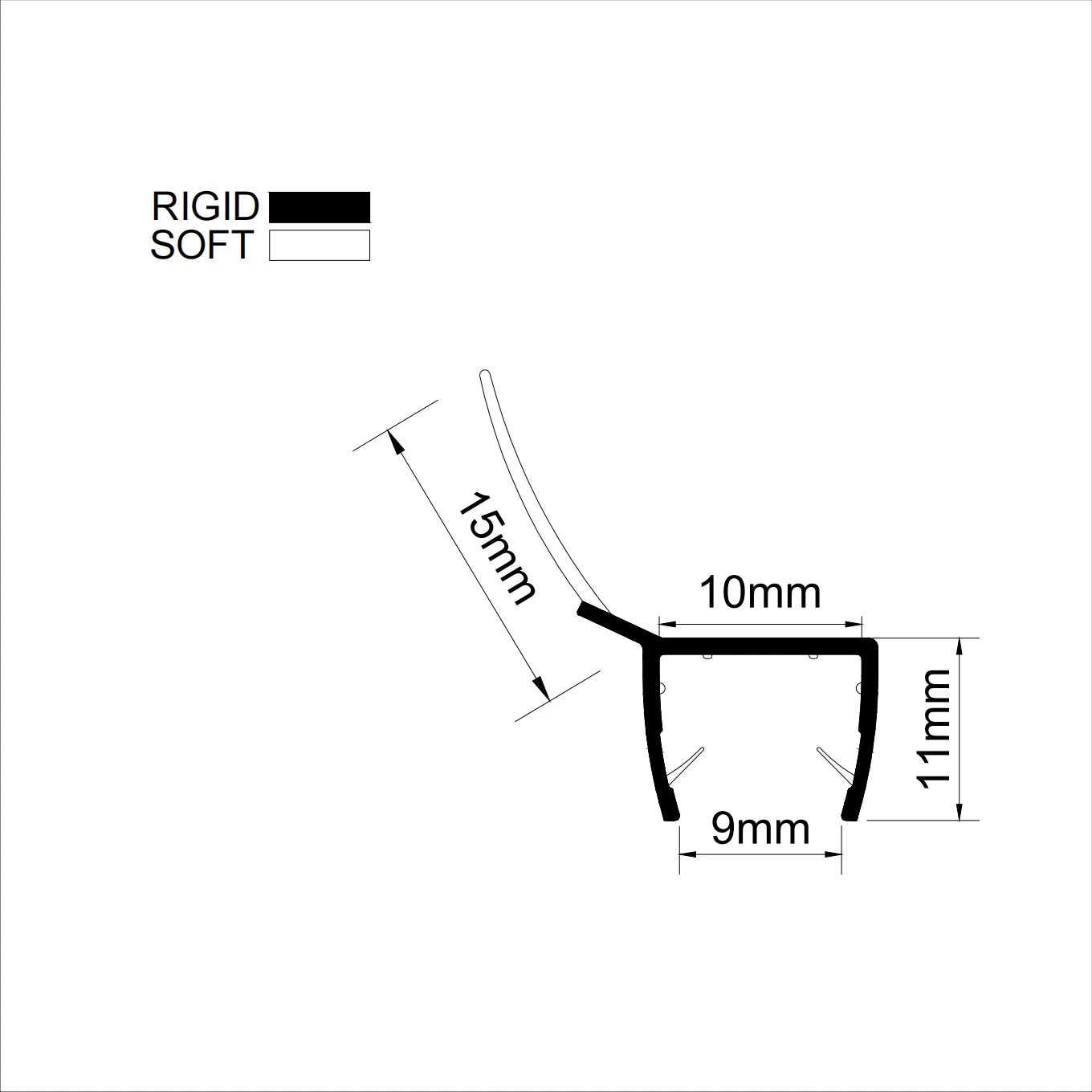

  • 135A10S20 shower door seal size diagram for 10mm glass and 15mm fin

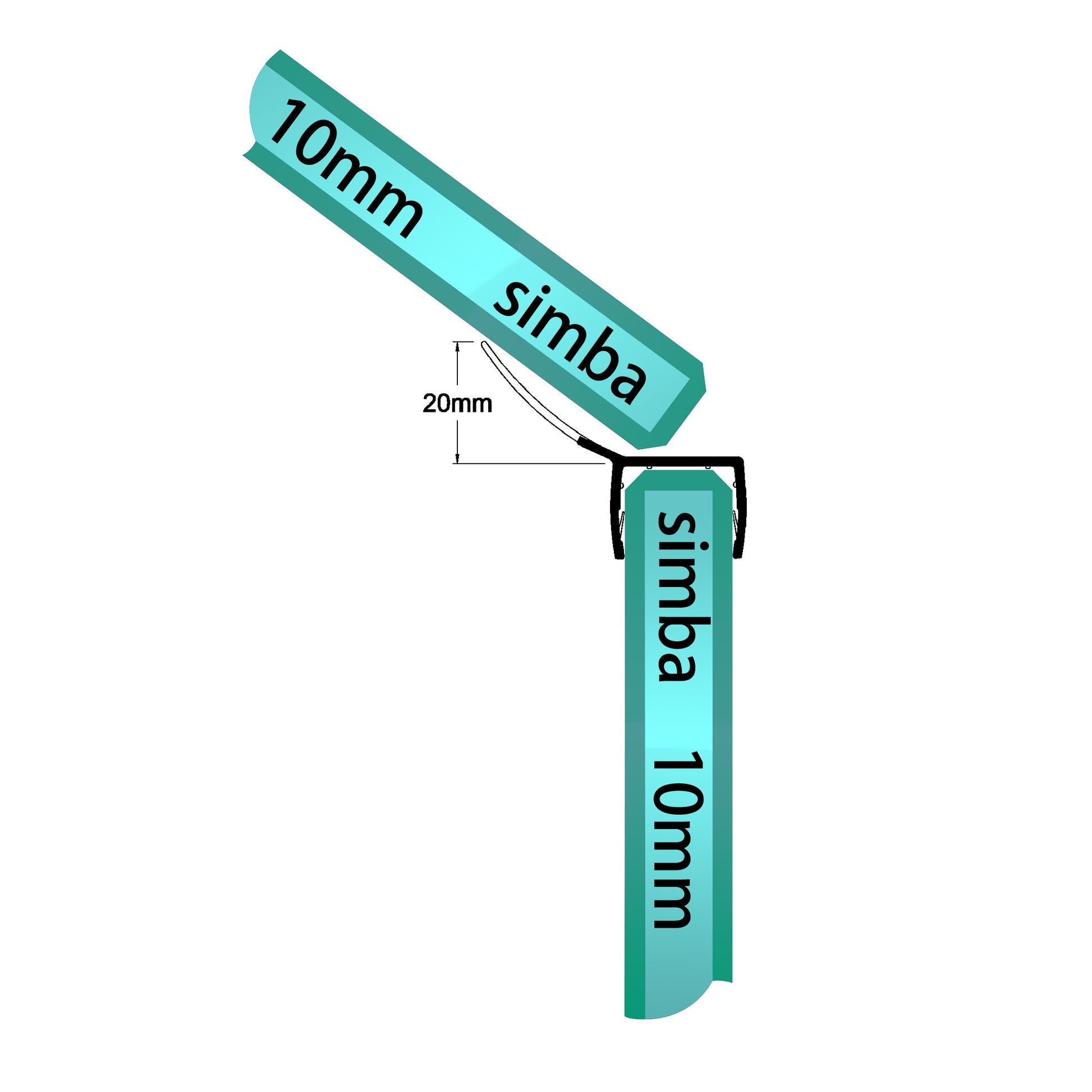

  • 135A10S20 shower door seal for 135 degree glass to glass side sealing

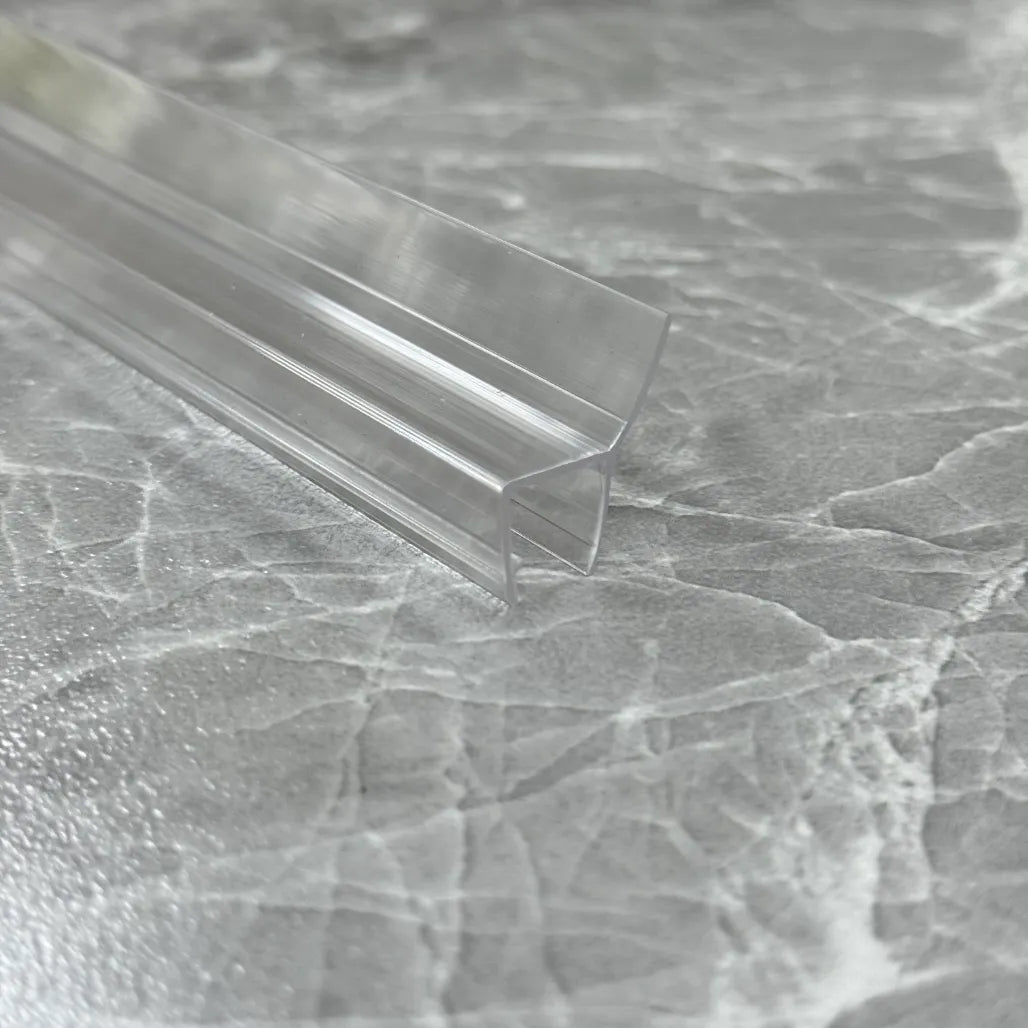

  • Clear PVC Y shaped shower door seal 135A10S20 side profile

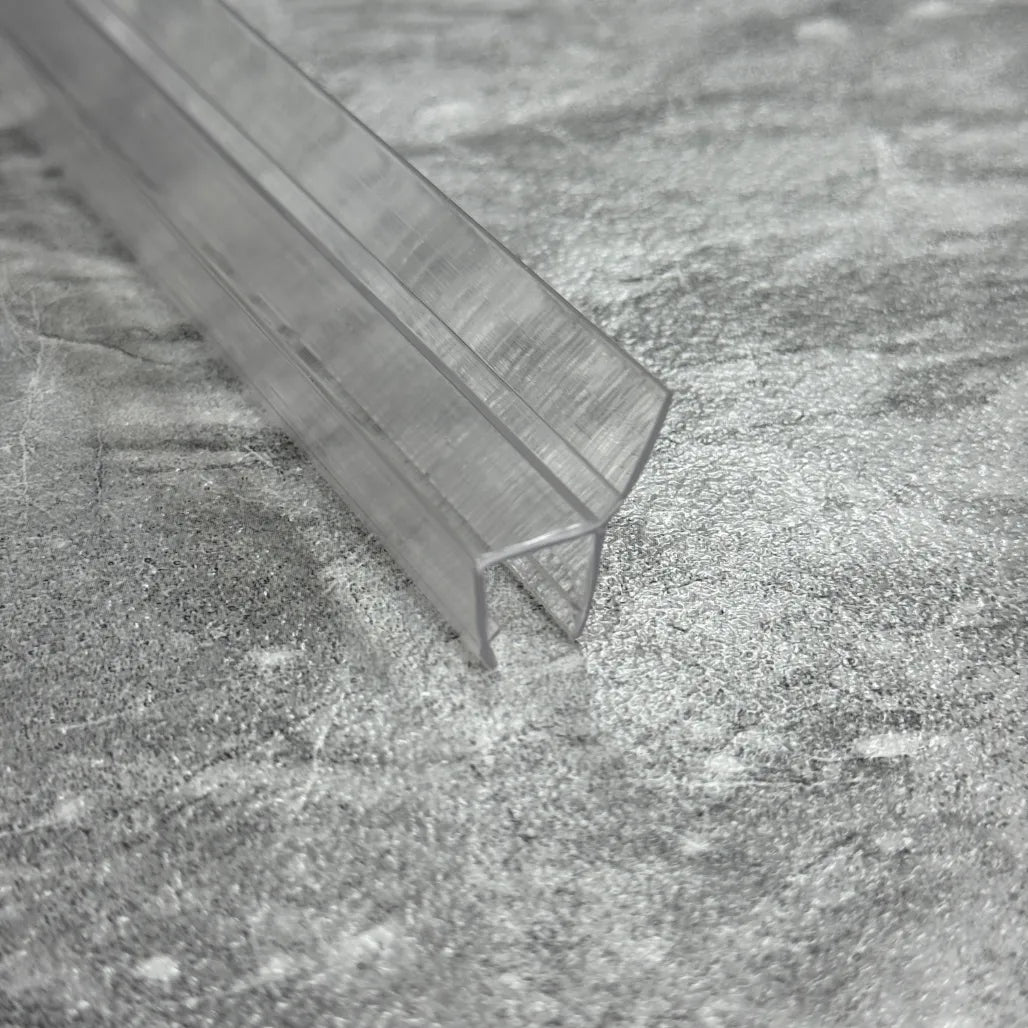

  • 135A10S20 flexible fin shower screen seal for vertical side edge
1 6

10mm Glass 135° Y-Shape Vertical Shower Door Seal – 3–18mm Gap 135A10S20

£29.99
£38.70 £29.99
Sold out
-23%
Taxes included. Shipping calculated at checkout.
Total Length: 2000mm
Gap: Seal 17mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down



Technical Specifications

Model
135A10S20
Glass Compatibility
10mm glass
Fin Length
15mm
Gap Sealing Range
Glass-to-glass closing gap: 3–13mm
Glass-to-wall or glass-to-frame gap: up to 12mm
Angle Suitability
For 135° glass-to-glass edges, or glass-to-wall / glass-to-frame side sealing
Seal Type
Y-shaped shower door seal for vertical side edges
Material
Clear PVC
Length
2000mm, easily trimmed to size
Installation
Push-fit installation, no adhesive required
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Please Check Before Buying

This seal is suitable if:

  • Your glass is 10mm thick.
  • You need a vertical side seal, not a bottom shower door seal.
  • Your glass panels meet at a 135° angle, or you need to seal between glass and a wall/frame.
  • Your glass-to-glass closing gap is between 3mm and 13mm.
  • Your glass-to-wall or glass-to-frame side gap is no more than 12mm.
  • You need a 2000mm seal that can be cut to size.

Tip: for glass-to-glass use, measure the gap between the two glass edges when the door is closed.

Please choose a different seal if:

  • Your glass is not 10mm thick.
  • Your gap is outside the stated range.
  • You need a bottom seal, drip seal, deflector seal, track seal, or magnetic closing seal.
  • Your shower door has a thick metal trim or framed edge that prevents the seal from pushing directly onto the glass.

Looking for a different fit? Browse our full range of vertical shower door seals for 135°, pivot and side-gap applications.

Suitable Use + Installation

The 135A10S20 Y-shaped shower door seal is designed for 10mm glass and is fitted vertically onto the side edge of a shower door or shower screen.

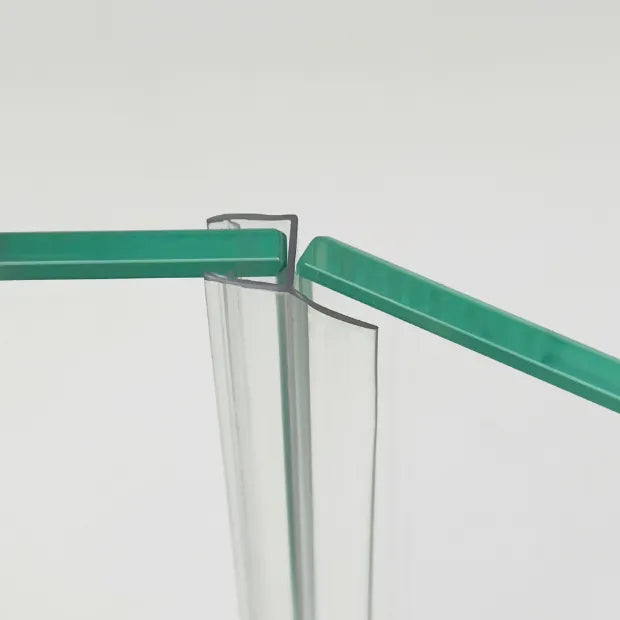

It can be used between two glass panels meeting at a 135° angle, helping to seal a 3–13mm closing gap and reduce water escaping from the side. It can also be used where glass meets a wall or frame, with the 15mm flexible fin helping to cover side gaps up to 12mm and provide cushioning against contact.

This seal is suitable for many frameless or semi-frameless shower enclosures, including corner enclosures, diamond-shaped shower enclosures, hinged shower doors, fixed panels, and side edges where the glass thickness and gap size match the specifications.

To fit, clean and dry the glass edge, then push the seal onto the glass from top to bottom. The 2000mm length can be trimmed to suit your shower screen.

Need the version for 6mm, 7mm or 8mm glass?
Choose 135A68S20. It has the same design, 15mm fin, gap sealing range, clear PVC material, and 2000mm length. The only difference is that it is made for 6mm, 7mm or 8mm glass.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
135A10S20 Y shaped shower door seal for 10mm glass with 15mm fin
10mm Glass 135° Y-Shape Vertical Shower..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

10mm Glass 135° Y-Shape Vertical Shower Door Seal – 3–18mm Gap 135A10S20 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp

About SIMBA Seals UK

SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.

Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.

Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
