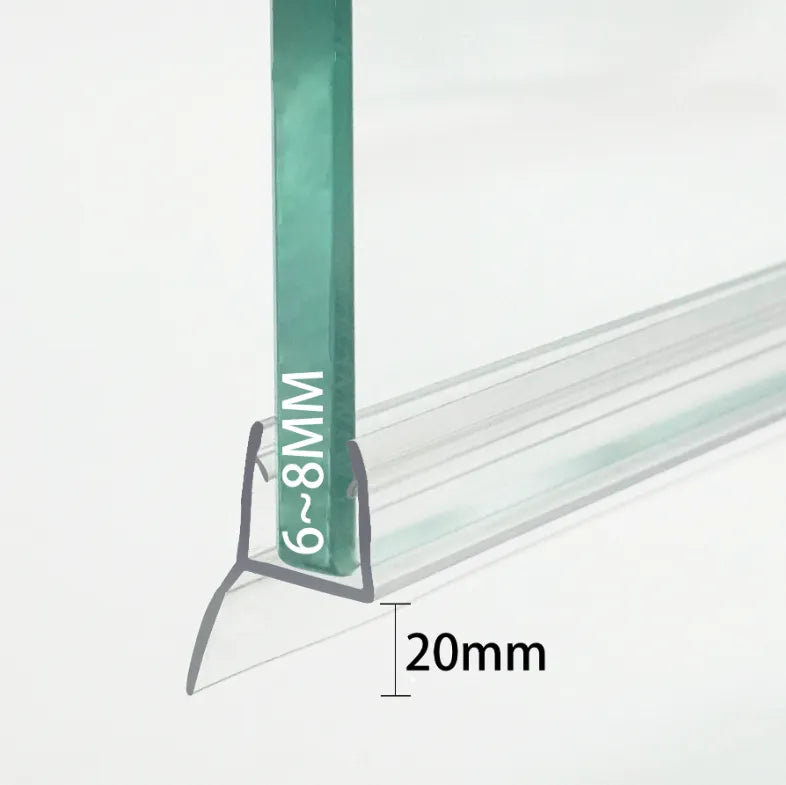

• 135A68S20 Y shaped shower door seal for 6-8mm glass with 15mm fin

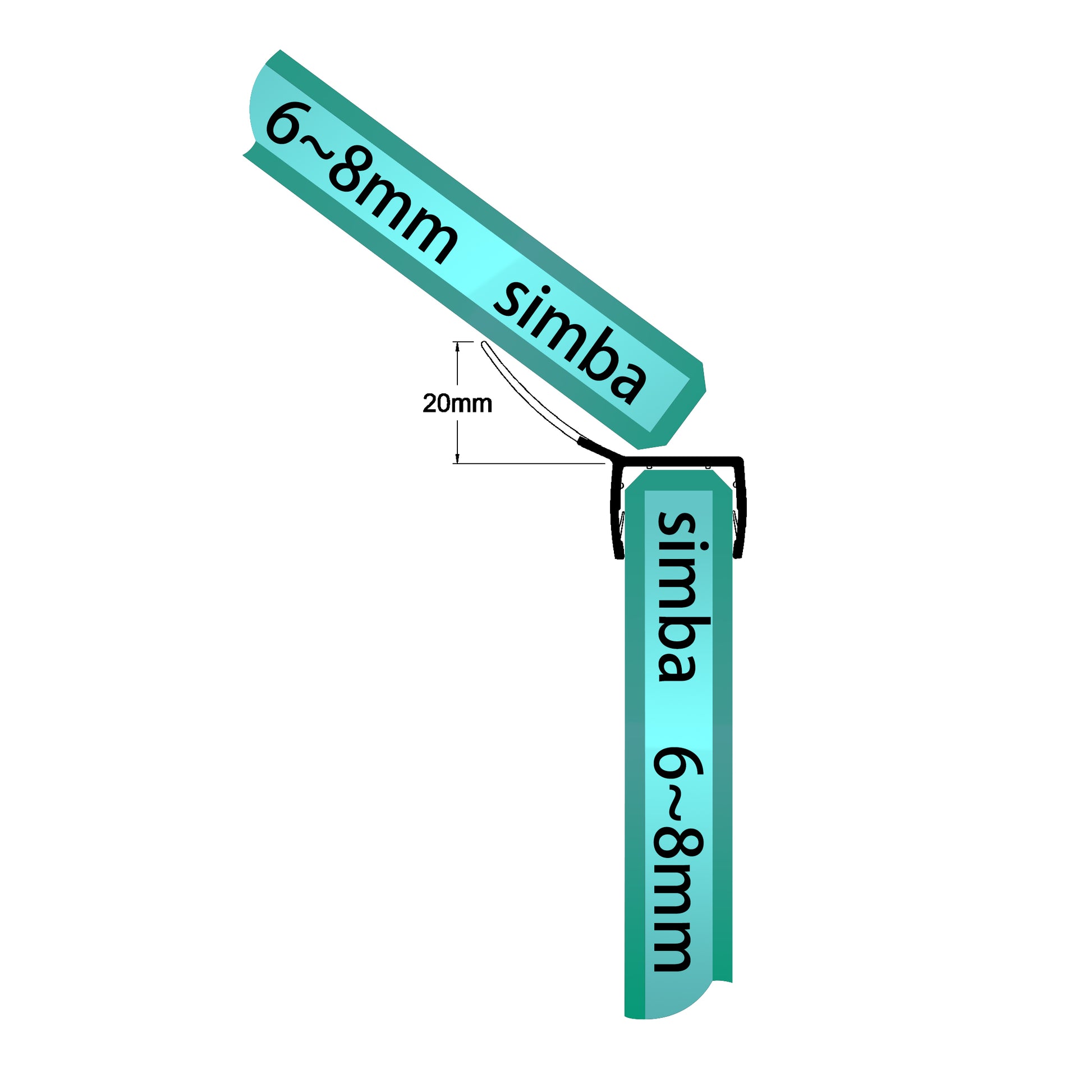

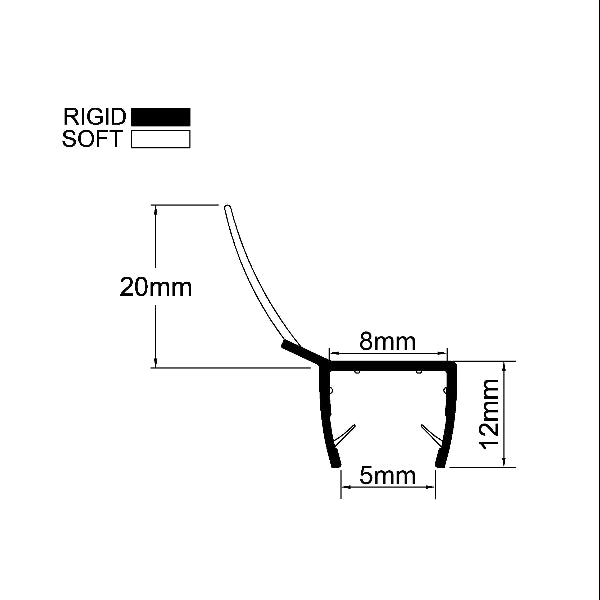

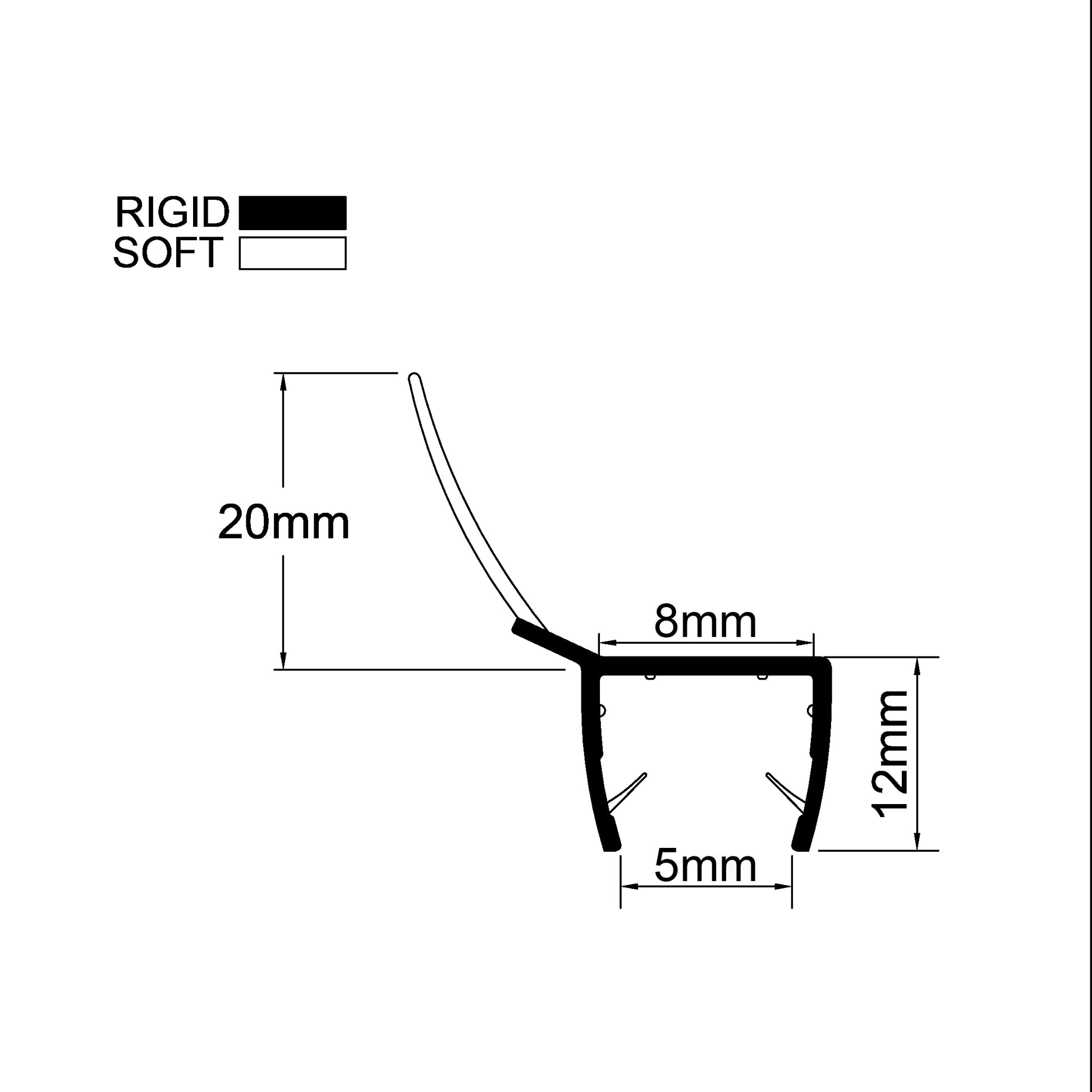

  • 135A68S20 shower door seal size diagram for 6-8mm glass and 15mm fin

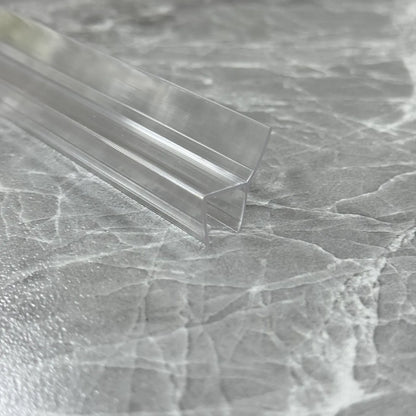

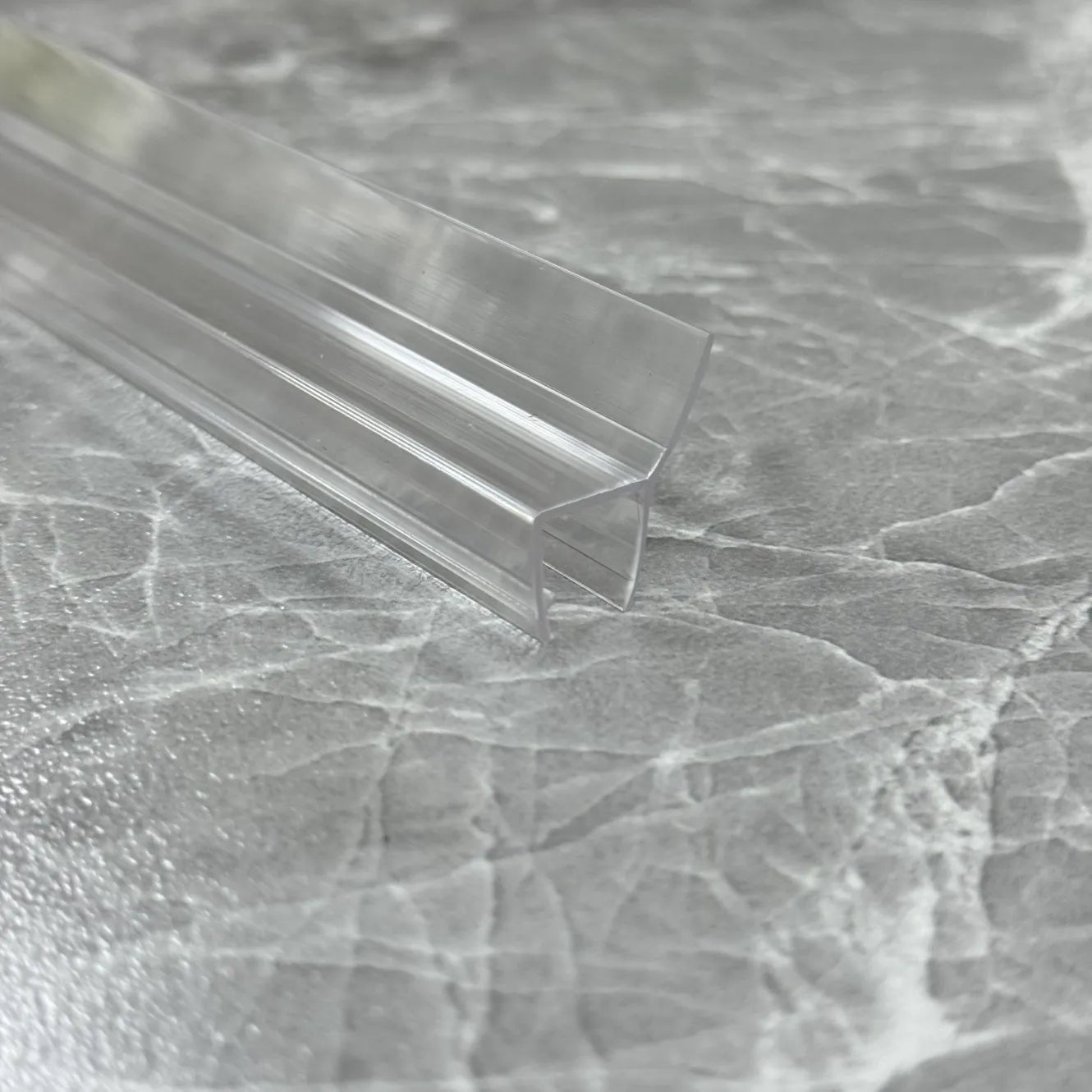

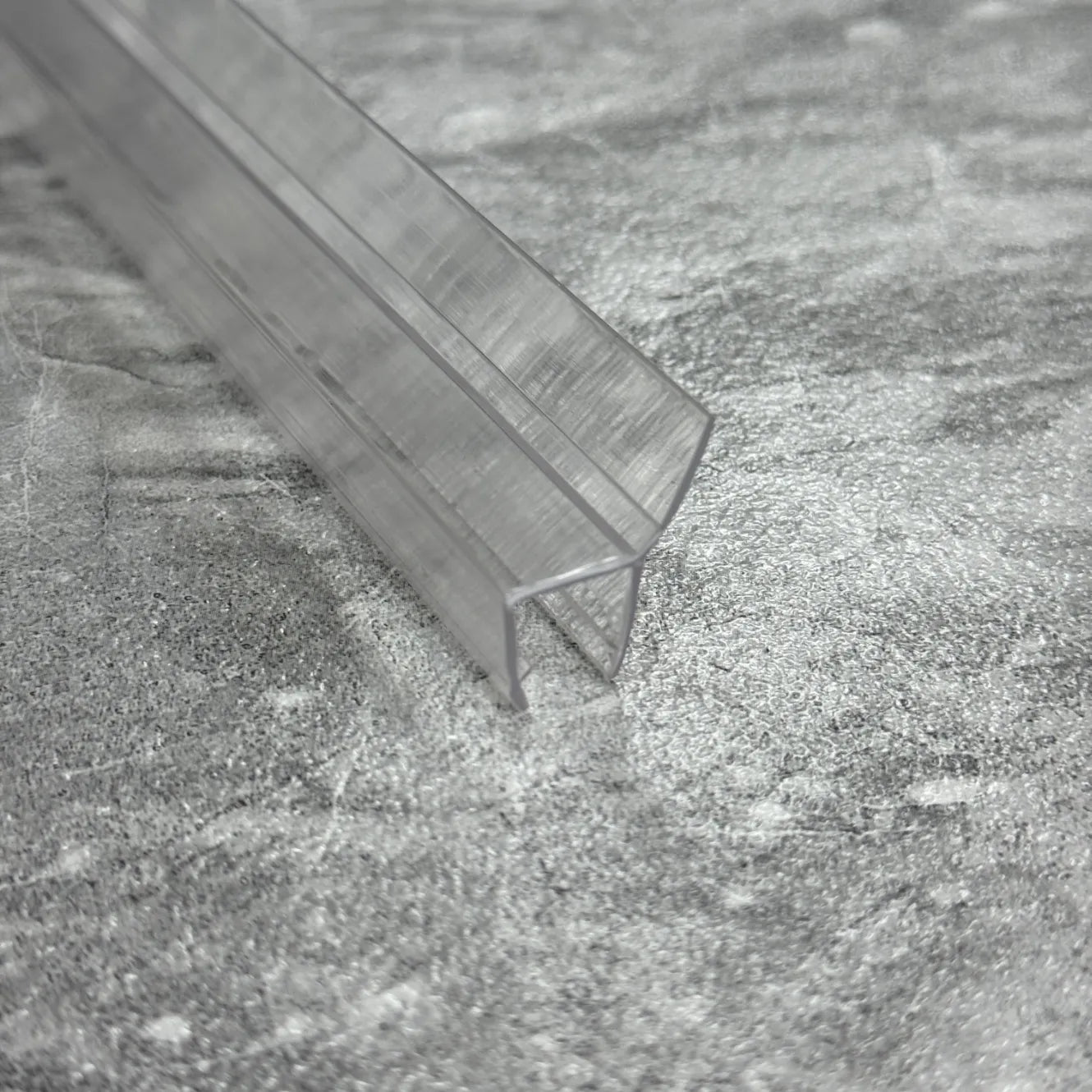

  • Clear PVC Y shaped shower door seal 135A68S20 side profile
  • 135A68S20 flexible fin shower screen seal for vertical side edge

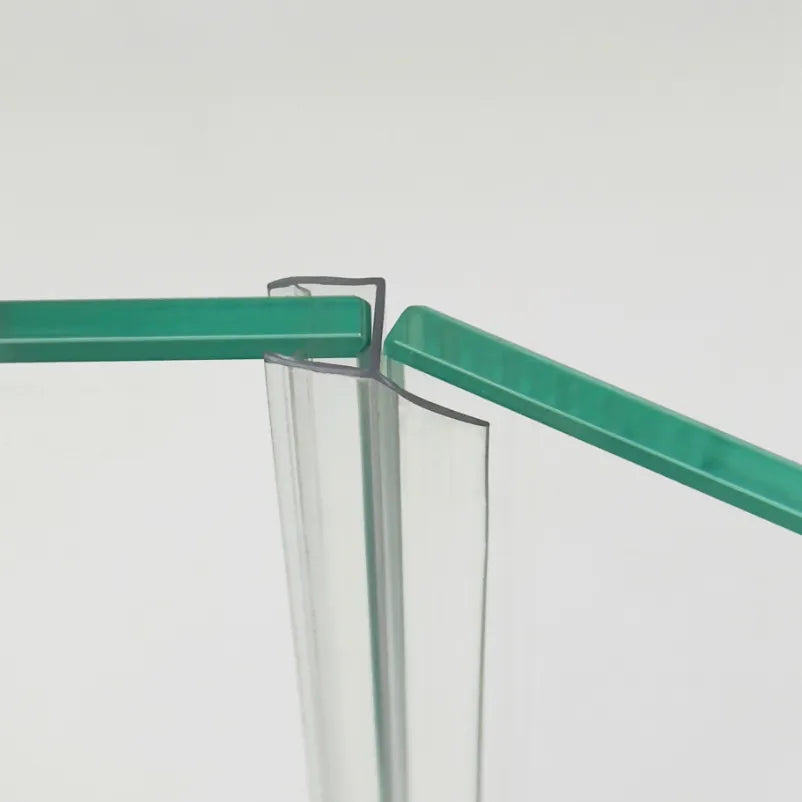

  • 135A68S20 shower door seal for 135 degree glass to glass side sealing
1 5

6–8mm 135° Y-Shape Vertical Shower Door Seal – 3–18mm Gap 135A68S20

£29.99
£38.70 £29.99
Sold out
-23%
Taxes included. Shipping calculated at checkout.
Total Length: 2000mm
Gap: Seal 18mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down



Technical Specifications

Model
135A68S20
Glass Thickness
6mm / 7mm / 8mm glass
Fin Length
15mm
Gap Sealing Range
Glass-to-glass closing gap: 3–13mm
Glass-to-wall or glass-to-frame gap: up to 12mm
Angle Suitability
For 135° glass-to-glass edges, or glass-to-wall / glass-to-frame side sealing
Seal Type
Y-shaped shower door seal for vertical side edges
Material
Clear PVC
Length
2000mm, easily trimmed to size
Installation
Push-fit installation, no adhesive required
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Please Check Before Buying

This seal is suitable if:

  • Your glass is 6mm, 7mm or 8mm thick.
  • You need a vertical side seal, not a bottom shower door seal.
  • Your glass panels meet at a 135° angle, or you need to seal between glass and a wall/frame.
  • Your glass-to-glass closing gap is between 3mm and 13mm.
  • Your glass-to-wall or glass-to-frame gap is no more than 12mm.
  • You need a 2000mm seal that can be cut to size.

Please choose a different seal if:

  • Your glass is not 6mm, 7mm or 8mm thick.
  • Your gap is outside the stated range.
  • You need a bottom seal, drip seal, deflector seal, track seal, or magnetic closing seal.
  • Your shower door has a thick metal edge or frame that prevents push-fit fitting.

Looking for a different fit? Browse our full range of vertical shower door seals for 135°, pivot and side-gap applications.

Suitable Use + Installation

The 135A68S20 Y-shaped shower door seal is designed for 6mm, 7mm and 8mm glass and is fitted vertically onto the side edge of a shower door or shower screen.

It can be used between two glass panels meeting at a 135° angle, helping to seal a 3–13mm closing gap and reduce water escaping from the side. It can also be used where glass meets a wall or frame, with the 15mm flexible fin helping to cover gaps up to 12mm and provide cushioning against contact.

This seal is suitable for many frameless or semi-frameless shower enclosures, including corner enclosures, diamond-shaped shower enclosures, hinged shower doors, fixed panels, and side edges where the glass thickness and gap size match the specifications.

To fit, clean and dry the glass edge, then push the seal onto the glass from top to bottom. The 2000mm length can be trimmed to suit your shower screen.

Need the version for 10mm glass?
Choose 135A10S20. It has the same design, 15mm fin, gap sealing range, clear PVC material, and 2000mm length. The only difference is that it is made for 10mm glass.
