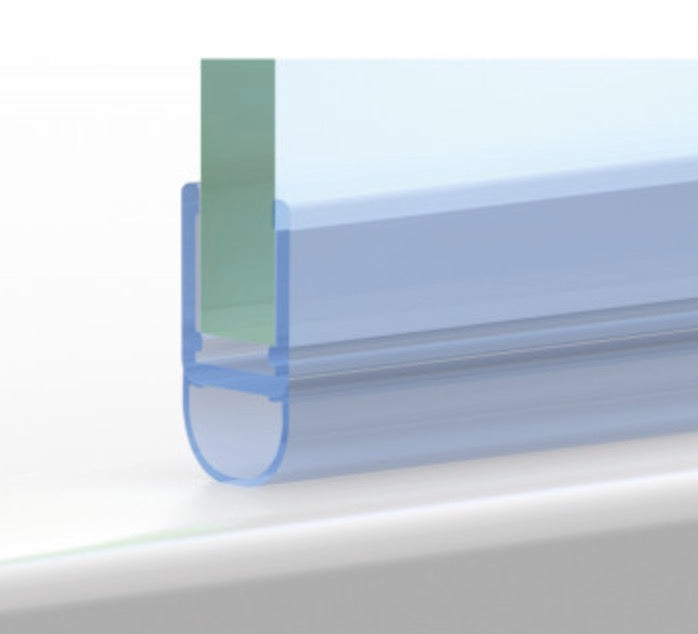

A bubble seal can look great when you first fit it.
It sits neatly along the bottom of the glass and makes the gap look well sealed. But the trouble is in the shape. Because the bubble part is hollow, water and soap residue can work their way inside.
Once that happens, it is difficult to clean properly. The outside may look fine, but moisture can sit inside the seal, turn cloudy, and eventually go mouldy.
That is why bubble seals are not always the best choice for the bottom of a shower door. For this area, a bottom seal with a drip edge, soft fin, or water-deflecting lip is usually a better option. It helps send water back into the shower tray, rather than trapping it inside the seal.
The Bottom Edge Has a Different Job
A thicker seal can feel reassuring. On a side edge, that can sometimes be useful because the seal may need to compress gently into a gap.
The bottom edge is different.
Here, the seal is not just closing a gap. It is moving across, or very close to, the shower tray every time the door is used. A good bottom seal needs to control water while keeping the door easy to open and close.
This is where many people get caught out.
After a shower, the door may look fully closed. The seal may appear to touch the tray. Yet a thin line of water still finds its way out across the bathroom floor.
That usually means the seal is not guiding water in the right direction.
A well-designed bottom shower door seal often uses a drip rail, angled fin, or straight fin to send water back towards the shower tray. A plain bulb profile, without any real water-deflecting edge, can add contact without doing much to control the flow of water.
That is why a door can feel tighter after fitting a bubble-style seal, while the leak itself barely improves.
Why a Bulb Profile Can Wear Quickly at the Bottom
A bulb profile works well when it is allowed to compress. That is why it can be useful on side gaps, closing edges, or areas where the door needs a little cushioning.
At the bottom of the door, though, compression is only part of the story.
If the rounded section is constantly rubbing against the shower tray or threshold, it becomes a wear point. At first, you may only notice a little resistance. Later, the clear PVC starts to whiten, flatten, or crack where it has been dragging.
“Why has it worn out so quickly?”
The answer is not always poor-quality material. A seal can be well made and still wear quickly if it is being used in a position it was not really designed for.
Water control is another issue. A purpose-made bottom seal usually has a fin or drip rail to move water back into the tray. A simple bulb profile can hold water briefly, but without a directional edge, water may still travel along the underside of the glass or around the seal.
Cleaning can also become more of a nuisance. The bottom of a shower door is already a favourite spot for limescale, soap residue, and grime. A rounded hollow section, especially if open at the ends, can give water and residue more places to sit. In hard-water areas, that often shows up as yellowing, dark marks, or cloudy patches.
None of this means bulb seals are bad. It simply means the bottom edge is a demanding place, and not every bulb profile is made for it.
“But My Old Bottom Seal Had a Rounded Section”
This is a fair question, and it comes up often.
Some bottom seals do have a rounded or hollow section. That does not automatically mean they are the same as a standard side bulb seal.
A purpose-designed bottom seal may use a hollow chamber for flexibility, but it will usually have something else doing the water-control work: a drip fin, a deflecting edge, or a shape that helps send water back into the tray.
That is the detail to look for.
The question is not simply, “Does it have a rounded section?”
The better question is, “Is it designed to work along the bottom edge of the door?”
Look at how the old seal handled water. Did it have an inward-facing fin? Did the lower edge sit smoothly against the tray? Was there a clear drip rail or water deflector? If the only feature is a plain round bulb, it may not be the best match for the bottom of the door.
If you are unsure whether the old profile is a side bulb seal or a specialist bottom seal, our Bulb Seal vs Other Shower Door Seals guide explains where bulb profiles are usually most useful.
Signs the Bottom Seal Is Not Quite Right
You do not necessarily need to remove the seal straight away. The door will often tell you whether the profile is working.
A bottom seal that is too bulky can make the final part of the closing movement feel heavy. You may notice a slight dragging sensation as the door opens, or a rubbing sound where the seal meets the tray.
Water behaviour matters too. If the seal looks tight but water still creeps along the outside of the bottom edge, it is probably not directing the water back into the tray effectively.
The material can give clues as well. Cloudy white patches, flattening, early splits, black marks, or limescale gathering around the rounded section can all suggest that the profile is under more friction or moisture than it was designed to handle.
These signs do not always mean the seal was fitted badly. They often point to a mismatch between the profile and the bottom edge of the door.
What Type of Seal Works Better at the Bottom?
For a leak coming from the bottom of the shower door, it is usually better to start with a dedicated bottom shower door seal rather than treating a standard bulb profile as a direct replacement.
For many frameless shower doors, pivot doors, and standard shower screens, a single-fin bottom seal is the most straightforward option. It helps guide water back into the tray without adding the bulk of a rounded bulb section. For everyday bottom-edge leaks, this is often a sensible first choice.
If you are comparing single-fin and double-fin bottom seals, start with the size of the bottom gap first. The number of fins matters less than whether the seal can move freely and cover the gap properly.
Where the gap under the glass is very small, a clip-on bottom seal can sometimes drag or fail to fit properly. In that situation, an adhesive shower seal or threshold seal may work better because it sits on the tray or water-stop area rather than clipping onto the glass.
Uneven bottom gaps need a little more care. One side of the door may sit close to the tray while the other leaves a visible opening. Choosing a thicker bottom seal can solve one side and create friction on the other. In that situation, a more flexible water-deflecting profile may be worth considering.
Sliding shower doors are another case where it pays not to guess. Tracks, rollers, overlapping panels, and limited clearance can all affect which seal will work.
In short, the right bottom seal depends on the space under the glass, the direction of the leak, and the way the door moves. If you are still comparing angled drip rails, straight fins, U-shape seals, and threshold seals, our complete guide to shower door bottom seals gives a broader overview before you choose a product.
Measure the Bottom Gap Before Buying
Once you know the leak is coming from the bottom of the door, the next step is not to look for the thickest seal. It is to measure the space properly.
Start with the glass thickness. Most shower doors use 4mm, 6mm, 8mm, or 10mm glass, and the seal’s U-channel needs to match that thickness.
Then measure the bottom gap: the distance from the lower edge of the glass to the shower tray or threshold. This tells you how deep the fin or drip rail needs to be.
One common mistake is using the old seal as the measuring guide. If it has flattened, stretched, or distorted, it may no longer represent the real gap. It is better to remove it and measure directly from the glass to the tray.
Too little clearance, and the new seal may drag. Too much clearance, and water may still escape underneath.
If the gap looks too large, do not automatically choose the longest blade you can find. It is worth checking why a longer fin is not always better before buying another bottom seal.
Finally, check the width of the door. Most seals can be trimmed, but the replacement still needs to be long enough to cover the full bottom edge.
For a more detailed walkthrough, see our Step-by-Step Measuring Guide.
Final Advice: Choose for the Position, Not Just the Shape
Bulb seals can be excellent for side compression and cushioning. Some bubble-style bottom seals can also work well when they are designed specifically for that position.
Problems tend to appear when a standard side bulb profile is used directly on the bottom edge. It may grip the glass and look substantial, but that does not guarantee smooth movement or good water control.
If your current bottom seal is dragging, turning cloudy, flattening, or still allowing water out after only a short time, check the glass thickness and bottom gap before buying another like-for-like replacement.
If the leak is coming from the bottom edge, start with purpose-made shower screen bottom seals rather than choosing a profile simply because it looks thicker.
The best shower door seal is not always the one with the largest profile. It is the one that suits the position on the door, moves comfortably in use, and solves the leak you actually have.
FAQ
Can I use a bulb seal on the bottom of a shower door?
Yes, but it should be a bottom seal designed for that position. A standard side-mounted bulb profile often lacks the drip rail or water-deflecting fin needed to guide water back into the shower tray.
Why does my shower door seal drag on the tray?
This usually happens when the bottom gap is too small, the seal profile is too bulky, or the seal is not suited to repeated contact with the tray. Measuring the gap before buying is the best way to avoid this.
What type of seal is best for the bottom of a shower door?
For many shower doors, a single-fin bottom seal or a drip-rail bottom seal is a good starting point. The best choice depends on the glass thickness, bottom gap, door type, and where the water is escaping.
