When you are replacing the seal along the bottom of a shower screen, the choice can look a little more confusing than expected.
A single-fin seal may look right.
A double-fin seal may look right too.
It is tempting to think the double-fin version must be the safer option because it has an extra blade. In some cases, it can be. But it is not automatically the better fit.
The detail that matters most is the space under the glass — the gap between the bottom edge of the shower screen and the tray.
In the current SIMBA range, our double-fin bottom seals are mainly suited to smaller gaps of around 6–9mm. Once the gap is over 9mm, it usually makes more sense to look at a single-fin bottom seal with the correct gap coverage, rather than choosing a double fin simply because it looks more substantial.
This is something we see quite often in customer enquiries. People compare the profile shape first, then measure the gap afterwards. By then, they may already be leaning towards a seal that looks stronger but is not actually the best match for the door.
If you have already measured your glass thickness and bottom gap, you can browse our shower door bottom seals.

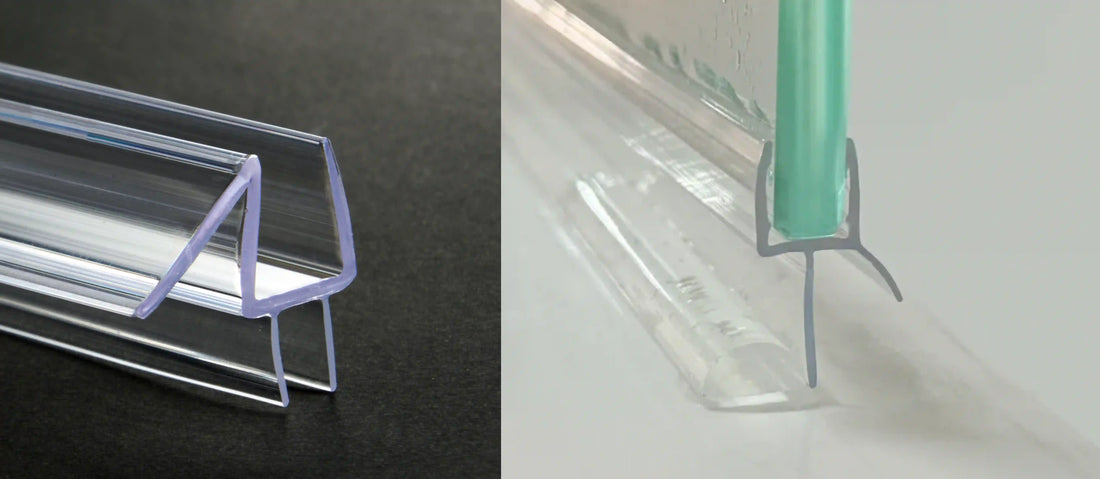

The Real Difference Between Single Fin and Double Fin Seals
A single-fin bottom seal has one main flexible blade. That blade sits close to the tray, or lightly touches it, and helps guide water back into the shower area.
Because there is only one main blade beneath the glass, the door usually feels easier to open and close. For many shower screens, hinged doors, frameless doors and bath screens, a single-fin profile is a very practical choice, provided the gap is right.
A double-fin bottom seal adds a second flexible blade. Water has to pass one edge, then the other, so it can give a little more control where the gap is small and the door still has enough clearance.
The important point is that a double fin does not cover a bigger gap just because it has two blades. If the space under the glass is too deep, the fins may not reach far enough to work properly.
A better way to think about it is this:
If you are replacing an old seal on a standard hinged door, frameless door or bath screen, start by checking the gap coverage in our replacement bottom shower door seals, rather than choosing by the number of fins alone.
When Does a Double Fin Make Sense?
A double-fin seal is worth considering when the gap under the glass is around 6–9mm.
At this size, you usually do not need a deep blade. What you may want is a little extra contact at the bottom edge of the screen. A double fin can help here, especially if the old seal was not guiding water back into the tray quite as well as you wanted.
From the replacement cases we see, double fin tends to suit doors where the glass sits fairly close to the tray and still moves freely. The door should not already be dragging, catching or needing a firm push to close.
Clearance is the key. If the space is too tight, the extra blade can add friction. If the gap is too large, it may not make useful contact at all.
When Is a Single Fin the Better Choice?
If your bottom gap is over 9mm, a single-fin seal is usually the more sensible place to start.
Single-fin seals come in more fin lengths, such as 12mm, 16mm, 20mm and 23mm. That gives you more room to match the seal to the gap you have actually measured.
For example, a gap of around 9–12mm may suit a 12mm fin. A gap of around 13–16mm may need a 16mm fin. Larger gaps, such as 17–20mm or 21–23mm, usually need a deeper single-fin option.
That is where single fin has the advantage. It is not a compromise because it looks simpler. It often gives you the correct reach.
If your old seal was a single-fin profile and it worked well before it became yellowed, stiff, cracked or worn, replacing it with a similar style is often a good starting point. Just do not copy the old shape blindly. Once a seal has been on the door for a while, it may be bent, flattened or distorted.
For bath screens or standard shower screens, our shower screen bottom seal range lets you compare different fin lengths and gap coverage options side by side.
Do Not Choose by Fin Count Alone
“Double” sounds stronger. “Single” can sound basic.
That is not how these seals really work.
The better question is: what gap does the seal need to cover?
A double-fin seal is mainly for smaller gaps of around 6–9mm. A 12mm single fin may be a better match for a gap around 9–12mm. A 16mm single fin may suit a gap around 13–16mm. For larger gaps, a 20mm or 23mm single fin is often the more suitable option.
So if your gap is around 15mm, a double fin may look reassuring, but it is unlikely to be the right specification. You need a seal that reaches the gap comfortably without dragging across the tray.
That is why, when a customer has a larger bottom gap, we usually look at the single-fin lengths first. Above 12mm, coverage matters more than the number of blades.
When Should You Avoid a Double Fin?
A double fin is usually not the best starting point if your gap is over 9mm, or if you need more than 12mm of coverage.
It is also worth being careful if the old seal was already rubbing on the tray, or if the door felt tight when closing. Adding another blade puts more material under the glass, and in a tight space that can make the door feel worse.
We have seen this happen when someone changes from single fin to double fin expecting an upgrade. The door then becomes harder to close, while the original problem remains. Once the measurements are checked, the issue is often quite simple: the gap was outside the useful range of that double-fin profile, or the water was actually coming from the side of the enclosure.
Sliding shower doors need a little extra caution as well. Tracks, rollers and guide blocks can all affect the space at the bottom, so it is not always a straight single-fin-versus-double-fin decision.
What Should You Do Next?
If the gap under your shower screen is around 6–9mm, the door moves freely, and you want a little extra water deflection, compare the double-fin options.
If the gap is over 9mm, especially if you need coverage around 9–12mm, 13–16mm, 17–20mm or 21–23mm, start with the single-fin range instead.
When we help customers choose a replacement seal, we usually look at three things first: the glass thickness, the bottom gap and a photo of the old seal. Those details tell us much more than the number of fins on its own.
Once you have measured the bottom gap, go back to our shower door bottom seals category. Start with Glass Thickness, then choose Gap Coverage. If your gap is 6–9mm, compare Double Fin. If it is over 9mm, start with Single Fin and choose the closest range.
If you would rather understand the main seal types, measuring method and common replacement issues first, read our complete guide to shower door bottom seals before choosing a product.
FAQ
Is a double-fin seal always better than a single-fin seal?
No. A double fin gives you an extra flexible edge, but it is mainly useful for smaller gaps of around 6–9mm. For larger gaps, a single-fin seal will usually give you a better size match.
My bottom gap is 12mm. Should I choose a double fin?
Usually not. A 12mm gap is normally better matched with a 12mm single-fin seal, or another single-fin profile designed for around 9–12mm gap coverage.
Is a single fin enough to control water?
Yes, as long as the fin length and gap coverage are right. For gaps above 9mm, single-fin seals usually give you more suitable size options than double-fin seals.
Should I choose by fin type or by gap first?
Start with the gap. The bottom gap tells you how much coverage you need. Single fin and double fin are profile types; the gap coverage tells you whether the seal is likely to fit properly.
