Vertical Framed Folding Shower Door Seal DOU03
100% Guaranteed Safe Checkout
Couldn't load pickup availability
Description
Description
Key Specifications
Check Before You Buy
This seal is suitable if:
- You have a framed folding shower door.
- The seal is required at the vertical centre joint between two moving door panels.
- The distance between the marked measuring points is approximately 14.5mm.
- The channel width on each side is approximately 8.5mm.
- The opening of each frame slot is slightly wider than approximately 3.5mm.
- You need a vertical strip up to 2000mm long.
Choose another seal if:
- Your shower door is frameless.
- You need a bottom seal or another horizontal seal.
- You need a magnetic closing seal.
- Your old profile does not fit into two vertical frame channels.
- The three key measurements differ noticeably from your existing seal.
All measurements are approximate. Please compare the profile shape and the marked measuring points with your existing seal before ordering.
Suitable Applications

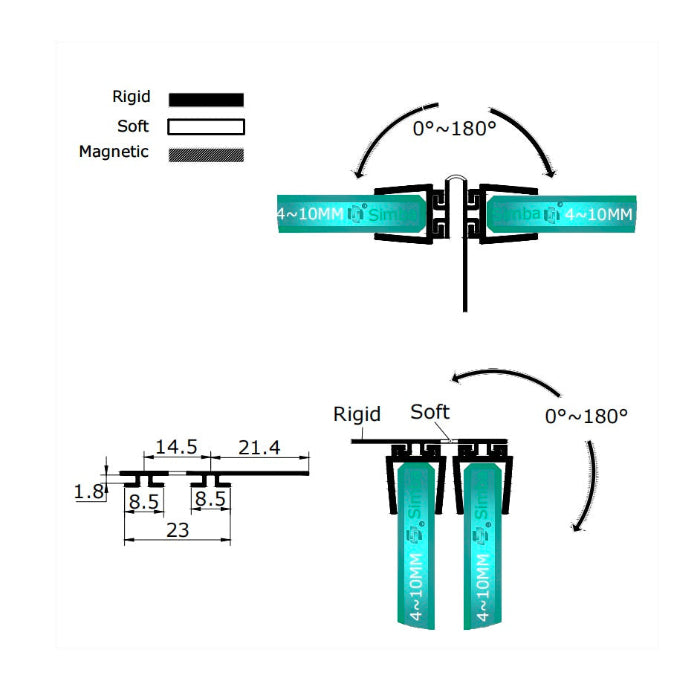

The DOU03 is a framed folding shower seal. It fits between two framed door panels and moves with the joint as the door opens and folds through approximately 0°–180°.
Two rigid PVC channels slide into the existing grooves in the door frames. The flexible centre section connects the two sides and allows the panels to move together without the seal needing to separate.
What makes the DOU03 different is its extended rigid water-deflector wing. This wing provides a firm surface that helps guide water back towards the shower area before it reaches the frame channels. By reducing the amount of water entering the track, it can help limit water collecting inside the framed joint and escaping from the surrounding area.
The extended wing is used for water control and does not determine whether the seal will fit. As long as your framed door matches the three key fitting measurements, the DOU03 may still be suitable even when your original seal does not have the same extended wing.

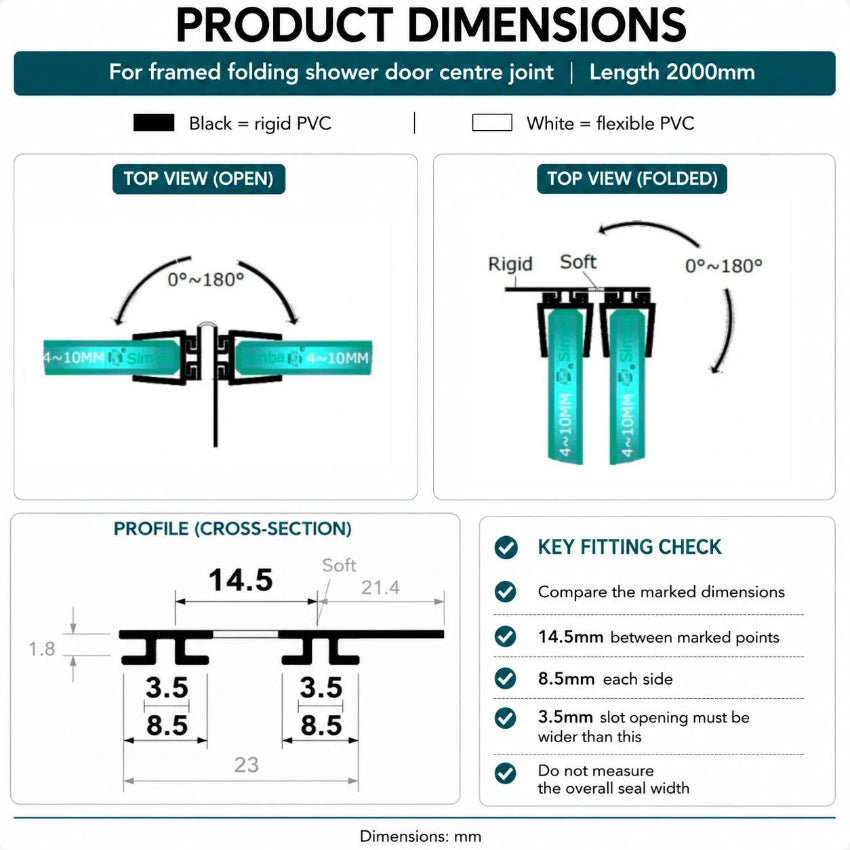

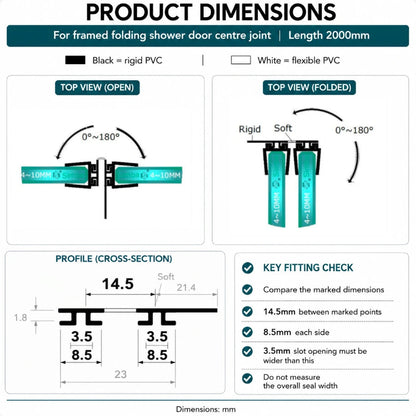

Before ordering, compare:
- approx. 14.5mm between the marked points
- approx. 8.5mm across each side channel
- a frame slot opening slightly wider than approx. 3.5mm
The DOU03 is supplied in a 2000mm length and can be cut shorter to match the height of the door.
It must be installed vertically at the centre joint of a framed folding shower door. It is not suitable for frameless glass, shower door bottoms, horizontal use or magnetic closing edges.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
£29.99
Care & Installation Tips
Ensure a better fit and longer-lasting clarity.
✓ DO’S
- Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
- Deep Clean: Remove all UK hard-water limescale before installation.
- Sharp Tools: Use garden pruners for a clean, professional finish.
- Daily Rinse: Simply wash away soap suds after your shower.
✕ DON’TS
- No Sliding: Never slide the seal along the glass; this risks scratching.
- No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
- No Soapy Water: Do not use lubricants—they accelerate mould growth.
- No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.
Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.
Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
