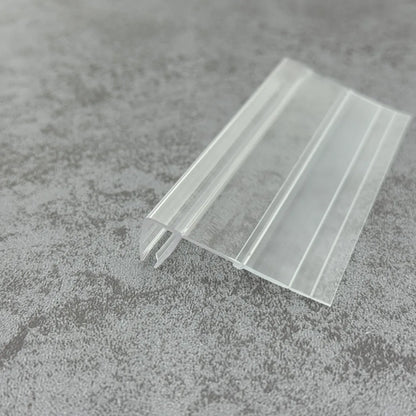

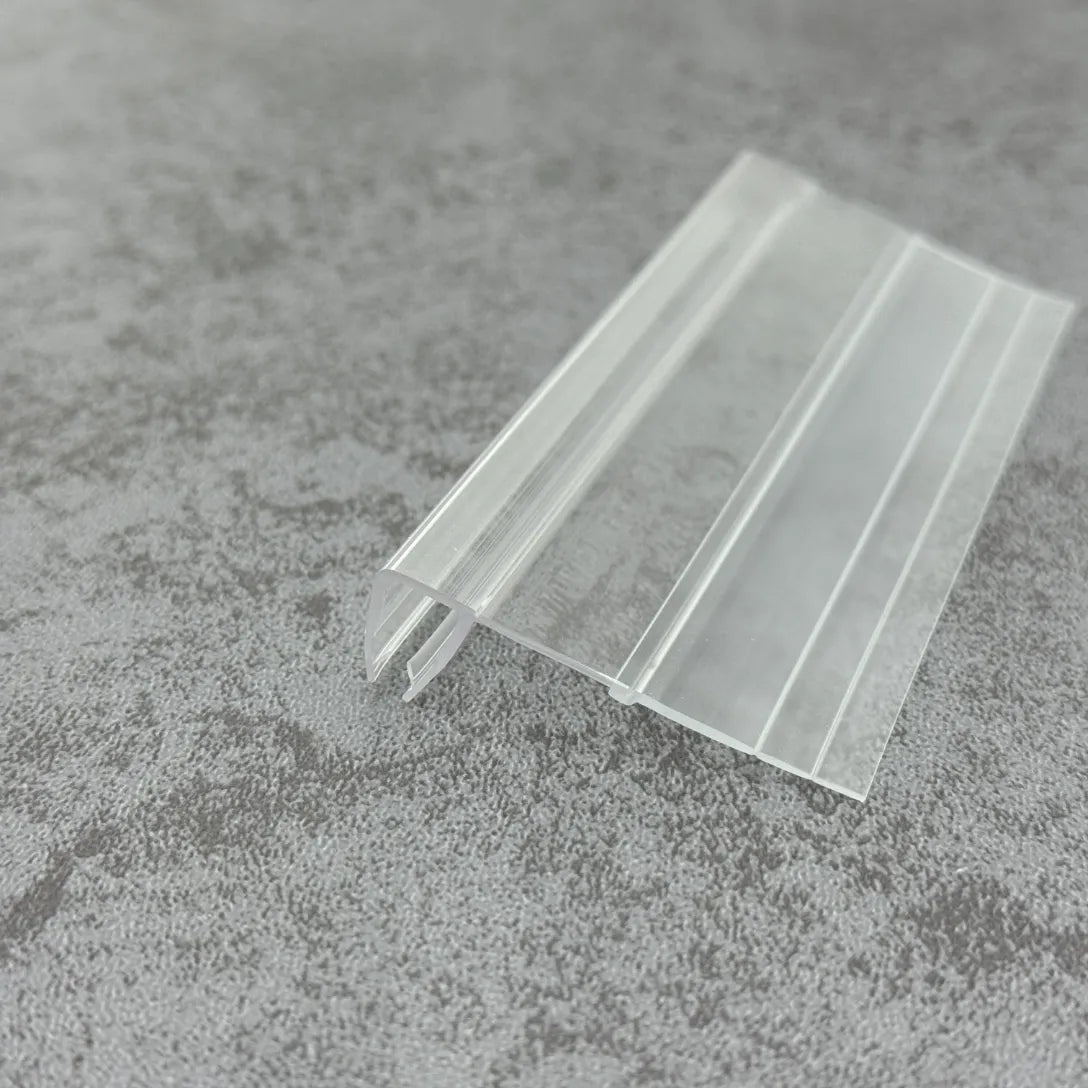

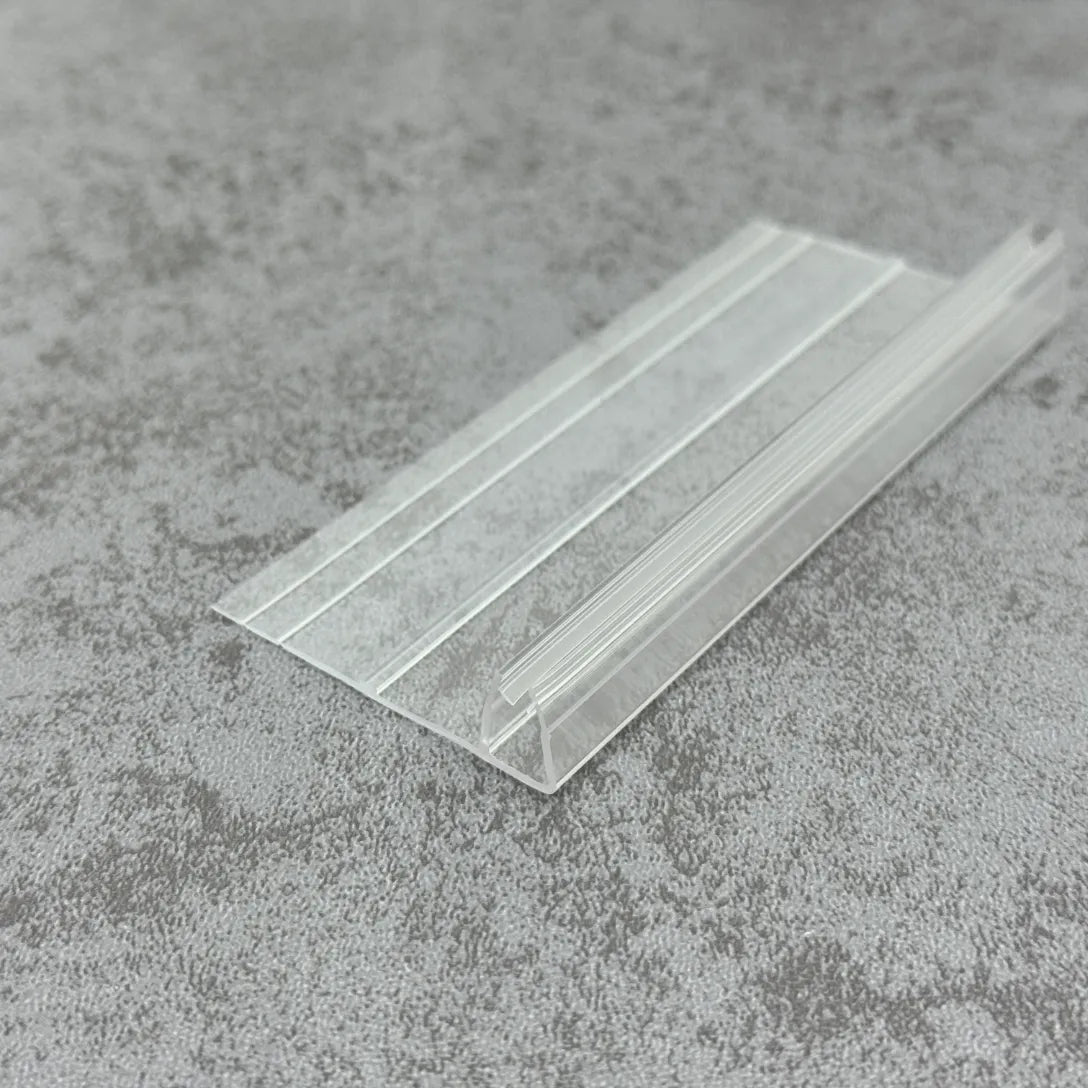

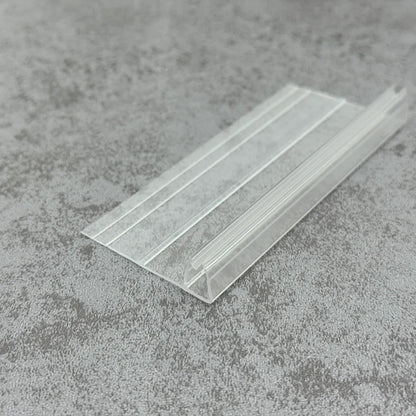

F Shape Vertical Shower Door Seal for 8-10mm Glass 35mm Fin F810S2535

Suitable Applications

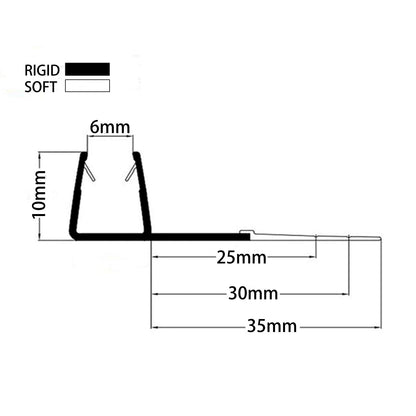

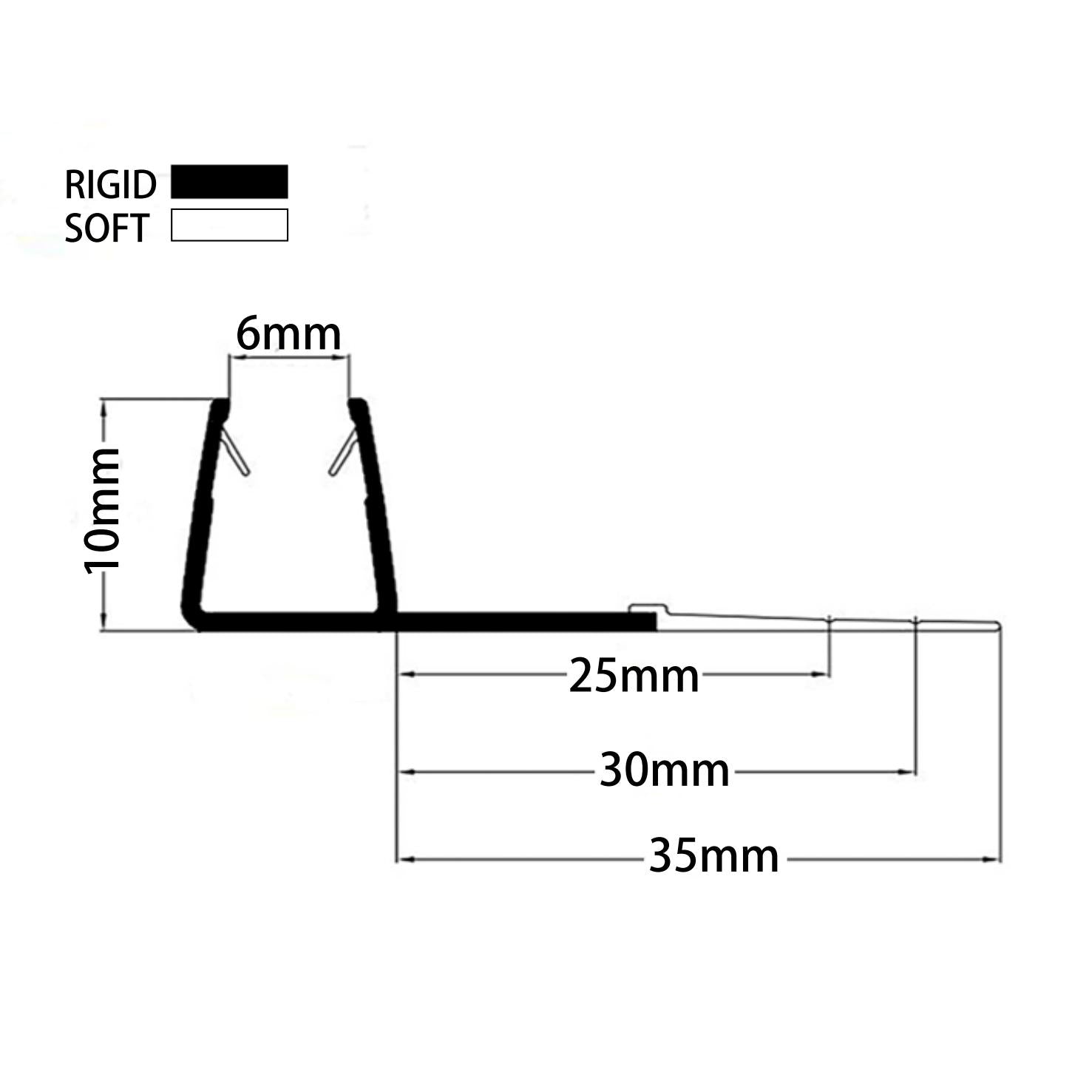

The F810S2535 Standard 35mm Fin F-Type Shower Seal Pair is the maximum fin-size option for frameless sliding shower doors with 8mm, 9mm or 10mm glass.

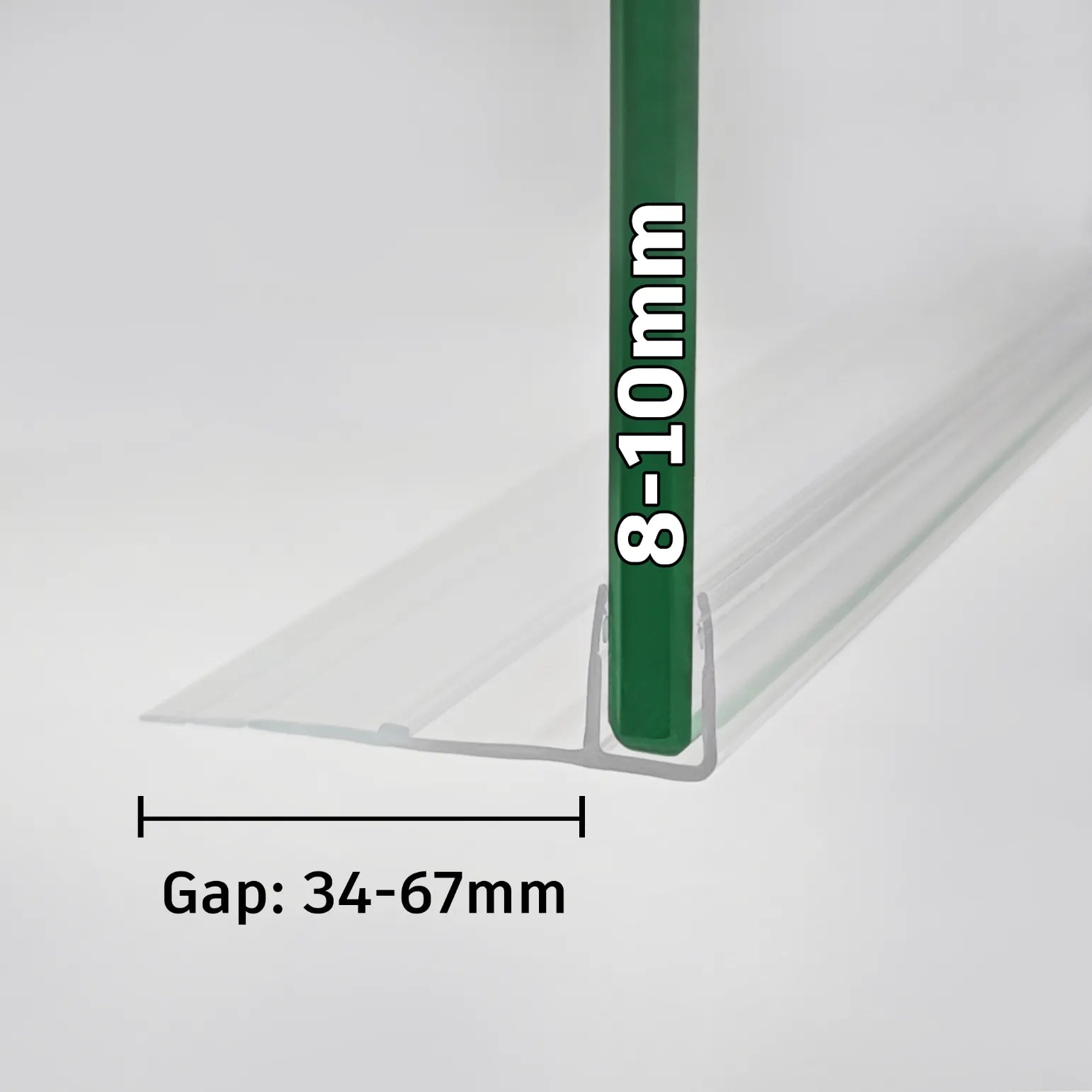

It is designed for extra-wide sliding door overlaps where smaller F-Type seals may leave too much of the side gap exposed. When both strips are fitted as a pair, this seal suits measured overlap gaps of approximately 34mm–67mm.

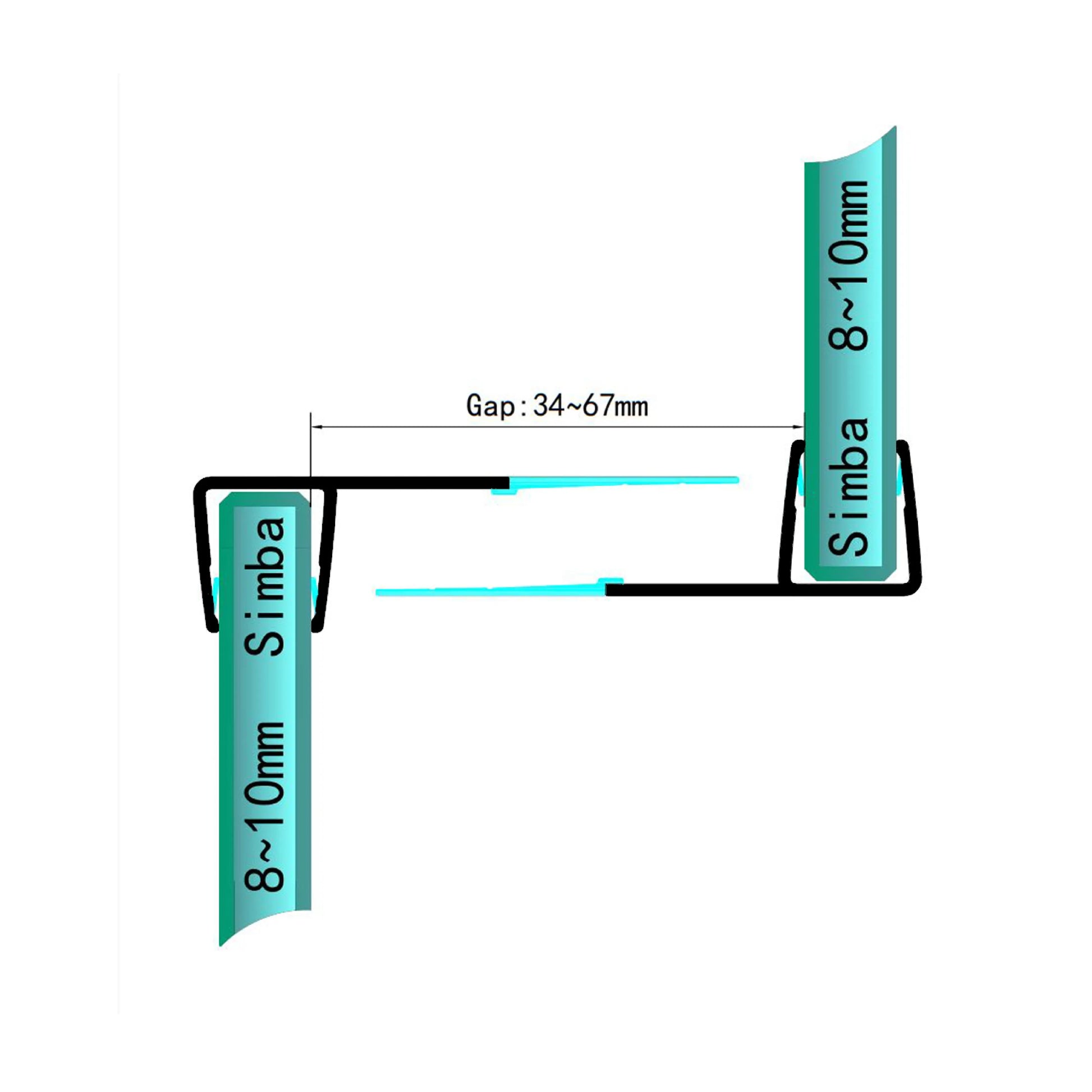

The 34mm–67mm gap range applies when one seal is fitted to each overlapping glass edge. This paired long-fin setup helps improve coverage across large side overlap spaces where standard fin sizes may not be sufficient.

Choose this 35mm fin version when your measured overlap gap is beyond the F810S20 range and you need the largest fin coverage in this series. If your gap is close to 34mm–38mm, compare with F810S20 first, as the 20mm fin may sit more neatly on some doors.

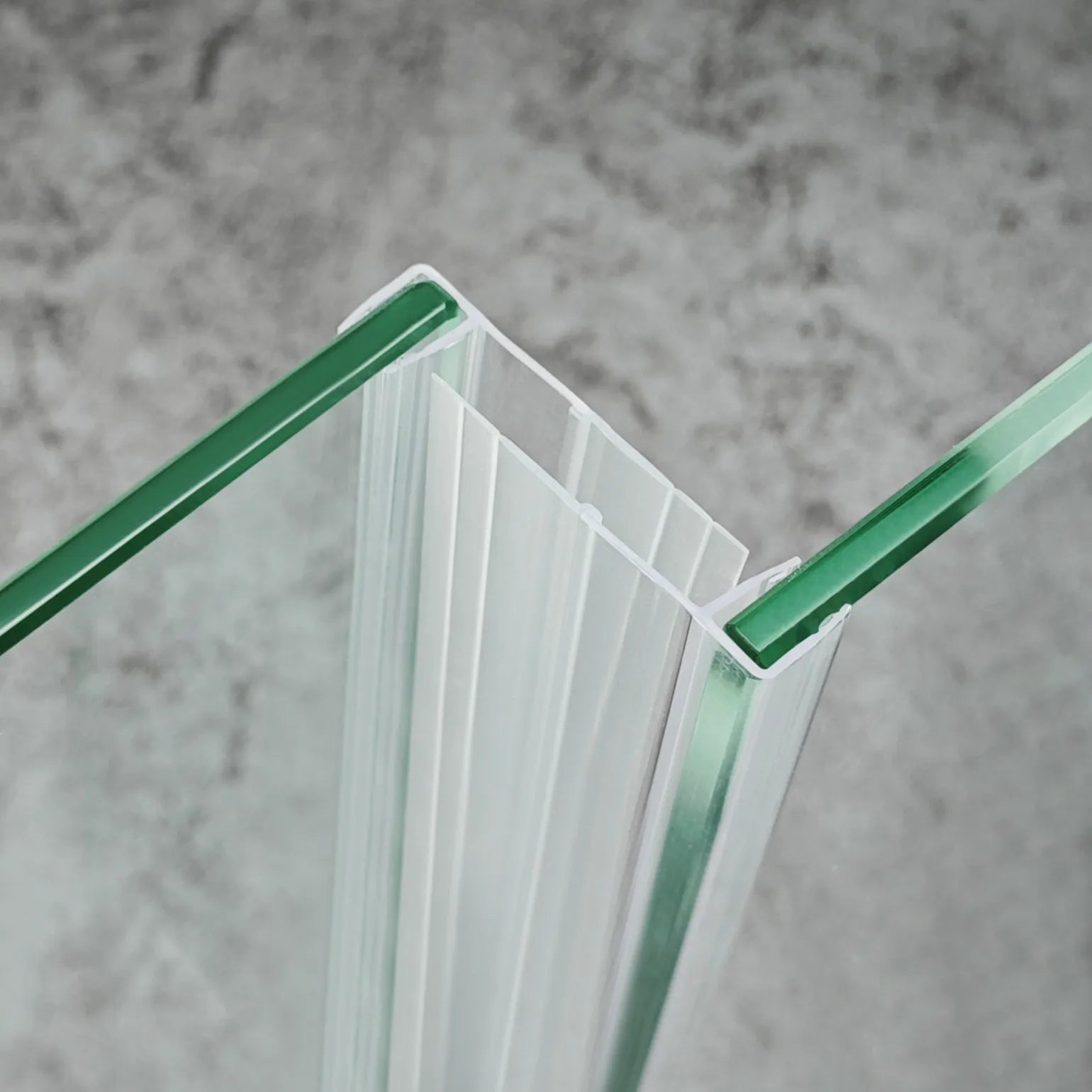

Fit the seals to the overlapping glass edges where the two sliding panels pass each other. The extra-long 35mm flexible fin helps reduce water escaping through a larger side overlap while still using a simple push-fit installation on compatible frameless glass.

To check the size, measure the space between the two overlapping glass panels at the point where they pass each other.

This seal is not intended for magnetic door closing edges, bottom shower door seals, drip seals, guide rail seals, framed metal edges, hinged doors, or glass thinner than 8mm or thicker than 10mm. It is also not the best choice for smaller overlap gaps where a shorter fin would sit more neatly.
