Folding Bath Screen Seal Replacement 7mm Channel 13mm Fin ROT10
100% Guaranteed Safe Checkout
Couldn't load pickup availability
Description
Description
Key Specifications
Check Before You Buy
This seal is suitable if:
- Your folding or framed shower door has an existing retaining track or side channel.
- The internal track can accept a profile approximately 7mm wide.
- The channel opening is around 2.3mm or wider.
- You need a flexible side fin of approximately 13.8mm.
- Your required finished length is 2000mm or less.
Choose another seal if:
- Your track is too narrow for the 7mm insert.
- The slot opening is clearly smaller than 2.3mm.
- Your existing seal clips directly onto exposed glass.
- You need a magnetic, bottom clip-on or T-slot seal.
- Hinges or rollers would interfere with the side fin.
Product Details
ROT10 is a track-insert side seal for folding and framed shower doors, designed to fit into an existing retaining channel rather than clip directly onto glass.

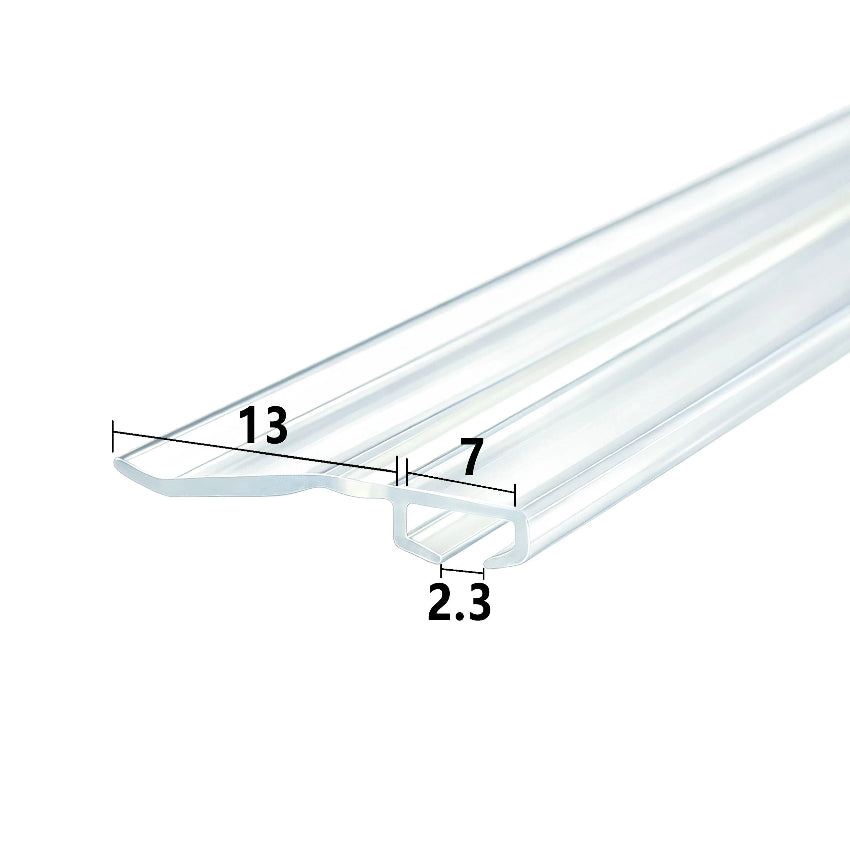

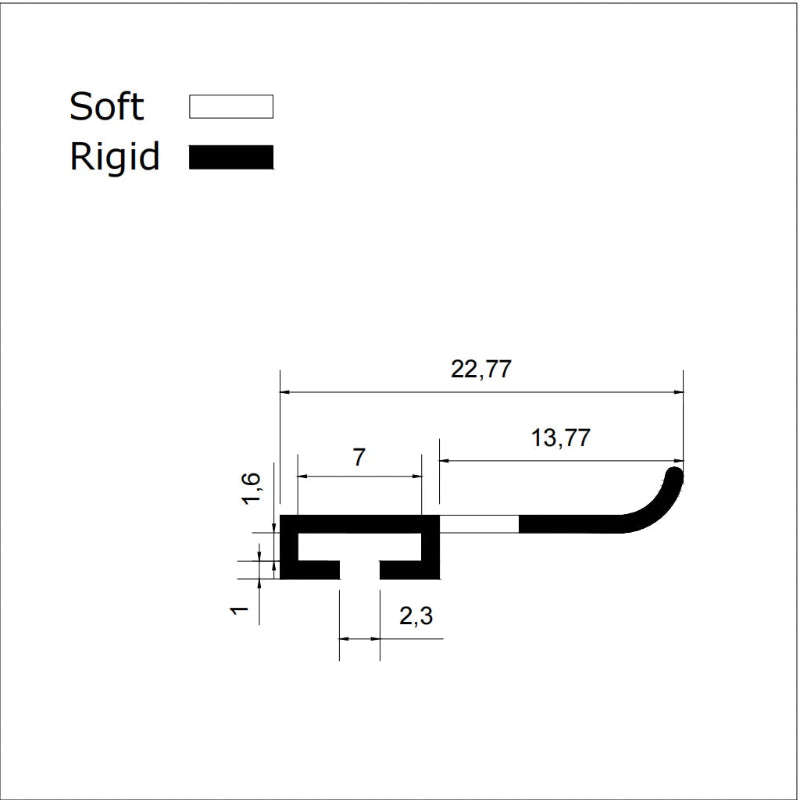

The rigid fixing section is approximately 7mm wide, with a narrow opening of about 2.3mm. These are the main measurements to compare with your existing frame before ordering.
A soft side fin extends approximately 13.8mm from the fixing section to help close the space beside moving door panels or between the door and frame.
The full profile width is around 22.8mm, but for fitting purposes the most important measurements are the 7mm insert width and 2.3mm slot opening.
The flexible PVC fin can move lightly as the door folds or closes, helping create a seal without acting as a rigid stop.
Supplied in a 2000mm length and can be trimmed before fitting.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
Care & Installation Tips
Ensure a better fit and longer-lasting clarity.
✓ DO’S
- Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
- Deep Clean: Remove all UK hard-water limescale before installation.
- Sharp Tools: Use garden pruners for a clean, professional finish.
- Daily Rinse: Simply wash away soap suds after your shower.
✕ DON’TS
- No Sliding: Never slide the seal along the glass; this risks scratching.
- No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
- No Soapy Water: Do not use lubricants—they accelerate mould growth.
- No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.
Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.
Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
