8–10mm Heavy-Duty Side-Fin Shower Door Bottom Seal – 3–5mm Gap S810DTL
8–10mm Glass Side-Fin Shower Door Bottom Seal 5mm Fin S810DTL
Regular price
£14.88
Regular price
£20.88
Sale price
£14.88
Unit price
per
-29%
Taxes included.
Shipping calculated at checkout.
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Key Specifications
Catalog no.
S810DTL
Glass thickness
8mm / 9mm / 10mm
Suitable bottom gap
Recommended approx. 2–4mm
Maximum approx. 5mm
Maximum approx. 5mm
Seal design
Rigid side deflector with soft bottom fin
Material
Clear PVC
Length
950mm – can be trimmed to size
Pack quantity
Single piece / 1 strip
Installation
Push-fit onto straight glass, no adhesive required
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty
Check Before You Buy
This seal is suitable if:
- Your shower glass is 8mm, 9mm or 10mm thick.
- The bottom edge of the glass is straight.
- Your bottom gap is ideally around 2–4mm, with a maximum of 5mm.
- You want a bottom seal with a soft sealing fin underneath and a rigid side deflector.
- You need a replacement for a frameless or semi-frameless shower door or screen.
- There is a raised hinge, bottom fitting or track that makes a standard central fin less practical.
- Your required finished length is 950mm or less.
Choose another seal if:
- Your glass is thinner than 8mm or thicker than 10mm.
- The lower edge of the glass is curved.
- Your bottom gap is clearly larger than 5mm.
- A metal frame prevents the seal from fitting directly onto the glass.
- You need a magnetic or vertical side seal.
Suitable Applications & Installation Notes

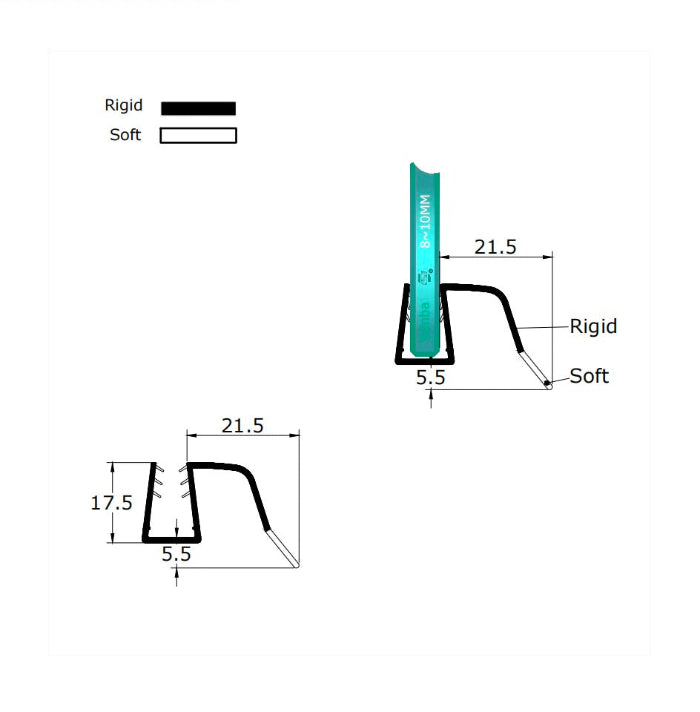

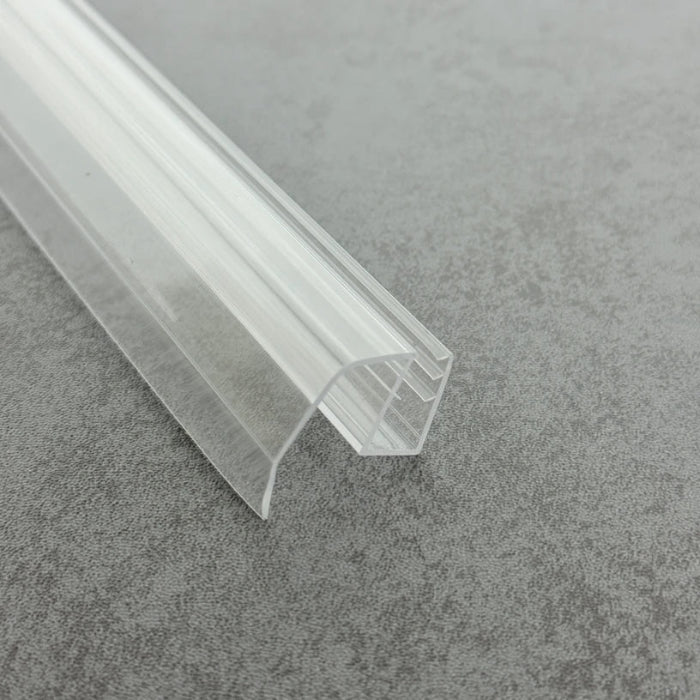

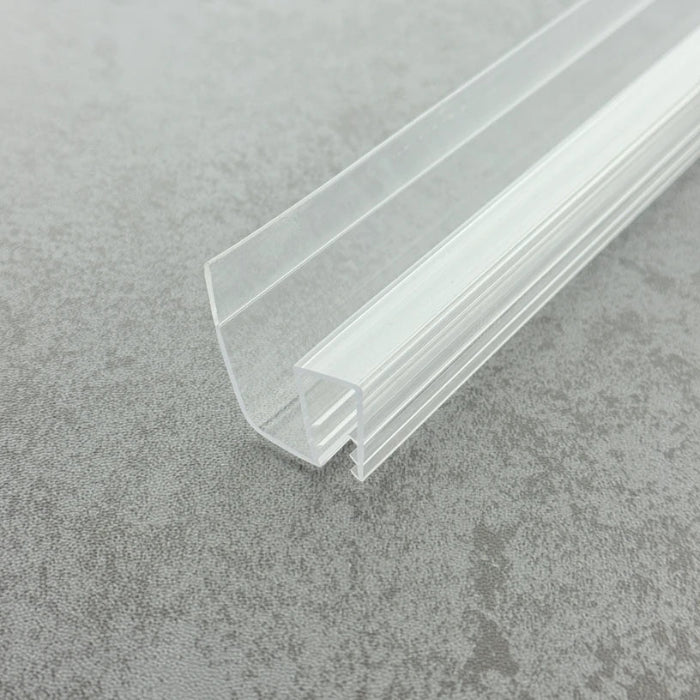

S810DTL is a clear push-fit bottom seal for 8–10mm straight shower glass, designed with a rigid side deflector and a soft flexible bottom fin.

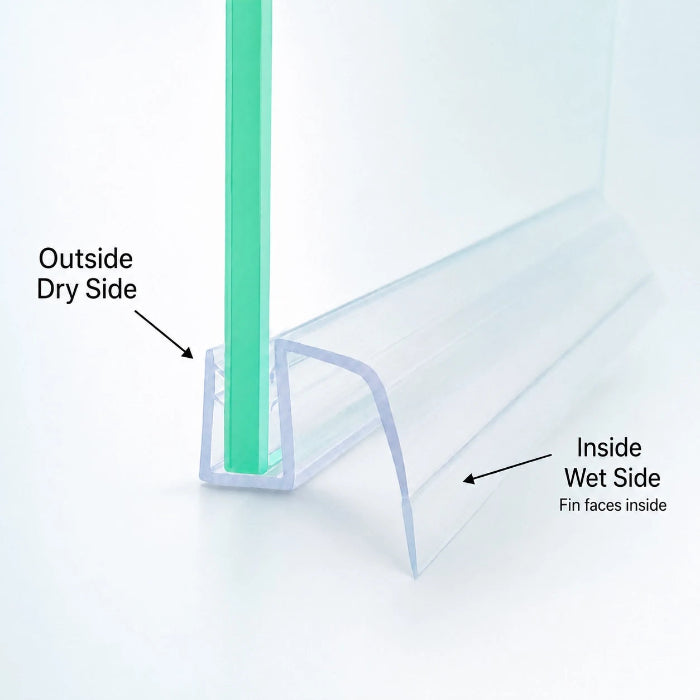

The rigid side section helps direct water back into the shower area as it runs down the glass. Because this deflector extends from the side rather than the centre underneath, this style can be especially useful where the bottom of the door has a raised hinge fitting, hardware piece or track that may interfere with a more conventional bottom-fin seal.

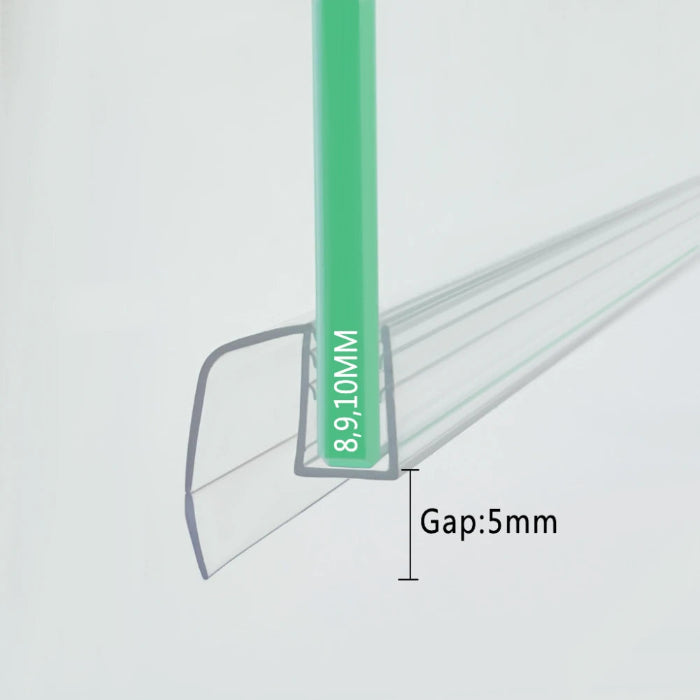

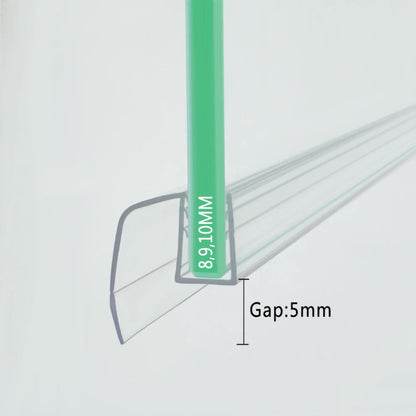

Below the glass, the soft fin provides the sealing contact against the tray or threshold. It is intended for smaller bottom gaps, working best at around 2–4mm and up to approximately 5mm depending on how the fin meets the surface below.
This design is often chosen when a standard bottom seal may be compressed too heavily by nearby fittings, or where the sealing edge needs to sit slightly differently to keep the door moving freely while still helping reduce water escape.
The clear U-shaped channel pushes directly onto the glass without adhesive. The seal is supplied in a 950mm length and can be trimmed before fitting.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
8–10mm Glass Side-Fin Shower Door Bottom..
£14.88
Why Some Orders Include More Than One Seal
For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small differences can be difficult to confirm at home, so we sometimes include a nearby option where this helps with fitting.
Each seal is complete and ready to fit. Simply use the one that suits your shower door best.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.
We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.
