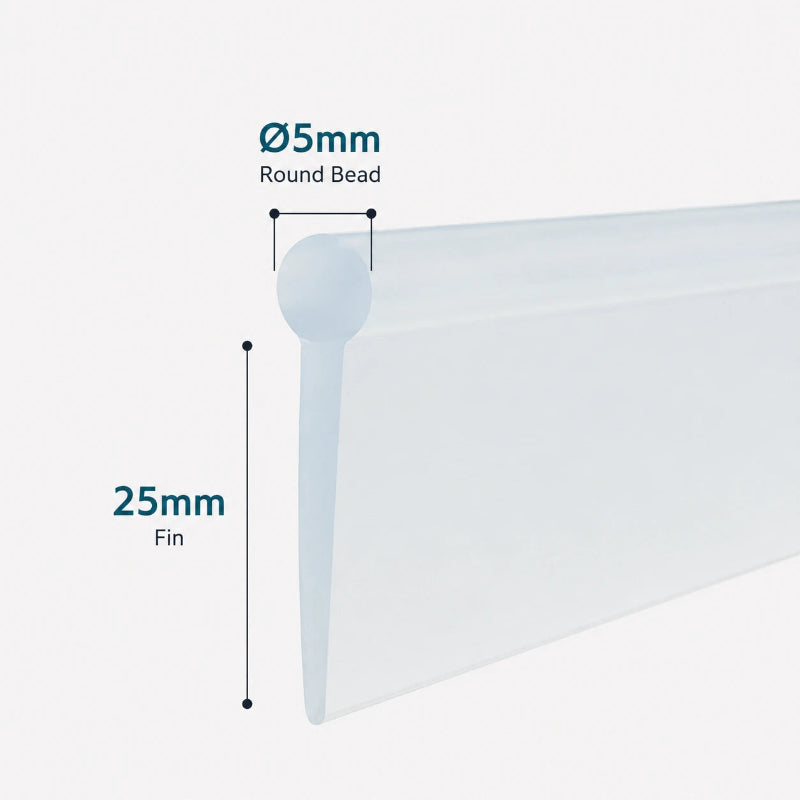

• VF003 framed shower door bottom seal with 5mm round bead and 25mm flexible fin

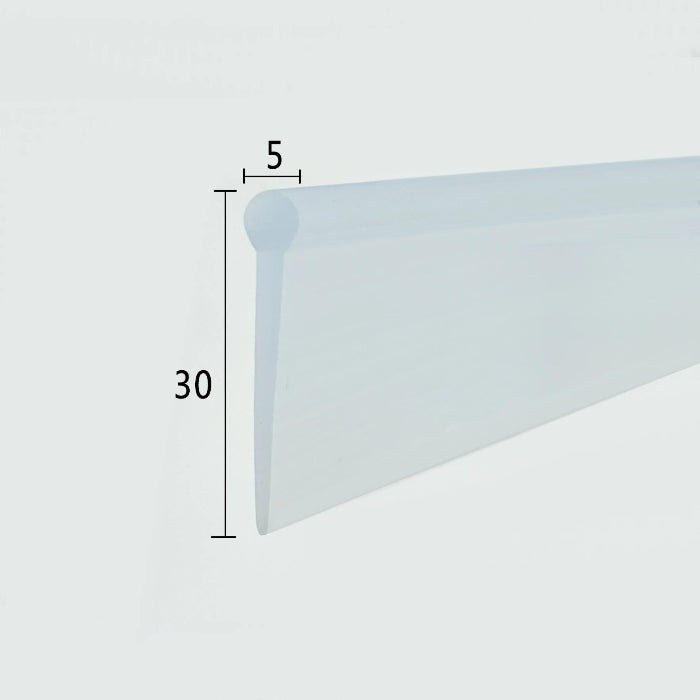

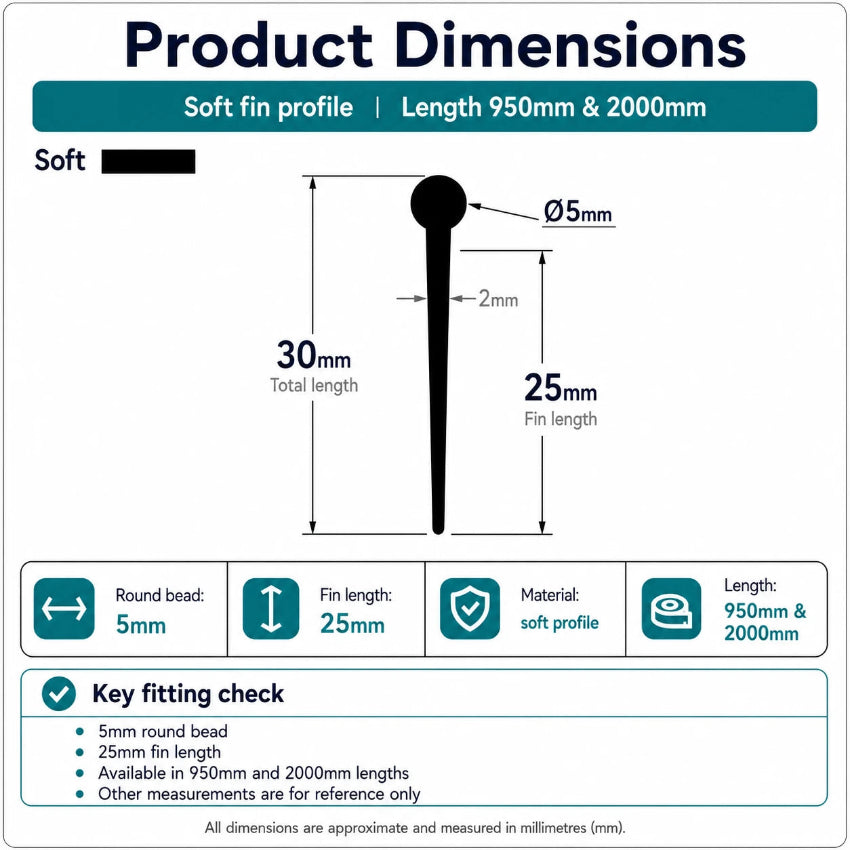

  • VF003 round bead shower door bottom seal dimensions showing the 5mm bead, 25mm fin and 30mm overall profile

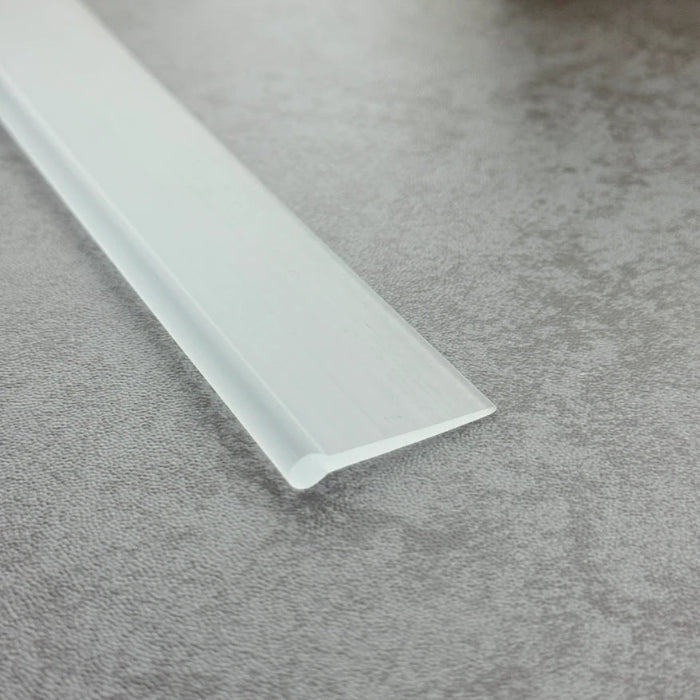

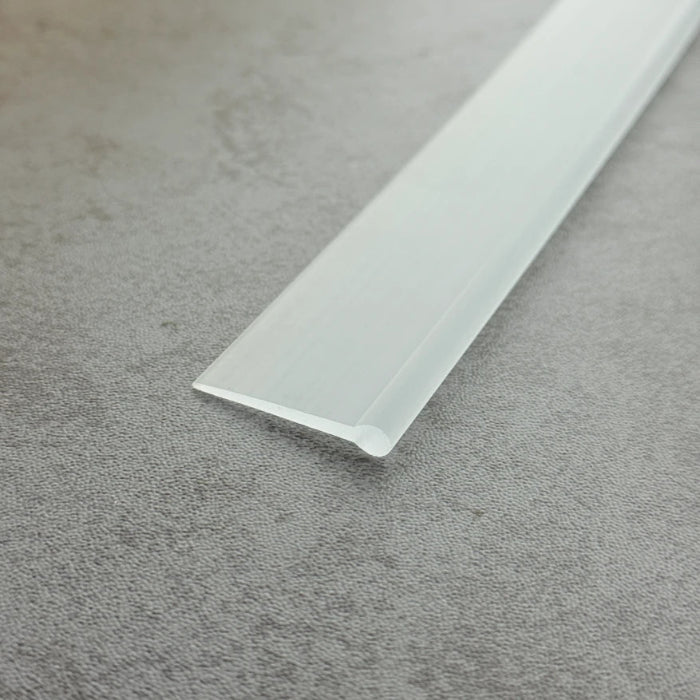

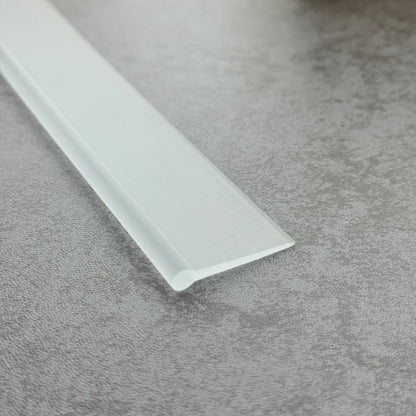

  • Close-up of the clear flexible PVC VF003 round bead bottom seal profile
  • Angled view of the VF003 flexible bottom seal for framed and folding shower doors
1 4

5mm Round Bead Bottom Seals for Framed Shower Doors Fin 25mm VF003

£14.88
£43.19 £14.88
Sold out
-66%
Taxes included. Shipping calculated at checkout.
Total Length: 950mm
Gap: Seal 30mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down


Key Specifications

Catalog no.
VF003
Bead diameter
5mm round bead
Recommended bottom gap
Approx. 15–23mm
Fin length
25mm
Overall profile height
30mm
Material
Clear flexible PVC
Length
950mm / 2000mm – easy to trim
Installation
Push into a compatible round bead track
Pack quantity
Single / 1 piece
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

  • Your shower door has a 5mm round bead channel.
  • The bottom gap is approximately 15–23mm.
  • You need a flexible bottom seal for a framed or bi-fold shower door.
  • Your existing seal slides into a rounded retaining track.
  • You need either a 950mm or 2000mm length that can be trimmed.

Choose another seal if:

  • Your retaining channel is smaller than 5mm.
  • Your bottom gap is much smaller than 15mm or larger than 23mm.
  • Your seal pushes directly onto the glass without a track.
  • Your door uses a T-slot or another fixing style.

Browse our framed shower door seal collection to compare round bead and T-slot replacement seals.

Suitable Applications & Installation Notes

VF003 is a flexible PVC bottom seal designed for framed shower doors that use a 5mm round bead fixing.

Instead of clipping onto the glass, the solid round bead slides into a compatible rounded channel underneath the door. The soft 25mm fin flexes against the shower tray or threshold to help reduce water escaping beneath the door.

The overall shape of your old seal does not have to be identical. If the round bead diameter, bottom gap and track style are compatible, this profile can often be used as a suitable replacement.

Both the 950mm and 2000mm versions can be trimmed before fitting. The longer length is often suitable for cutting into two shorter sections, allowing one to be fitted now and the remaining piece kept as a spare where appropriate.

Simply remove the old seal, clean the retaining channel, then slide the new profile into place.



This seal is available in 950mm and 2000mm lengths. The 2000mm option is currently available for £18.48, only £3.60 more than the 950mm length at £14.88. For many shower doors, it can be cut into two shorter sections, with one fitted now and the remaining section kept as a spare.

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
VF003 framed shower door bottom seal with 5mm round bead and 25mm flexible fin
5mm Round Bead Bottom Seals for..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

5mm Round Bead Bottom Seals for Framed Shower Doors Fin 25mm VF003 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp

About SIMBA Seals UK

SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.

Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.

Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
