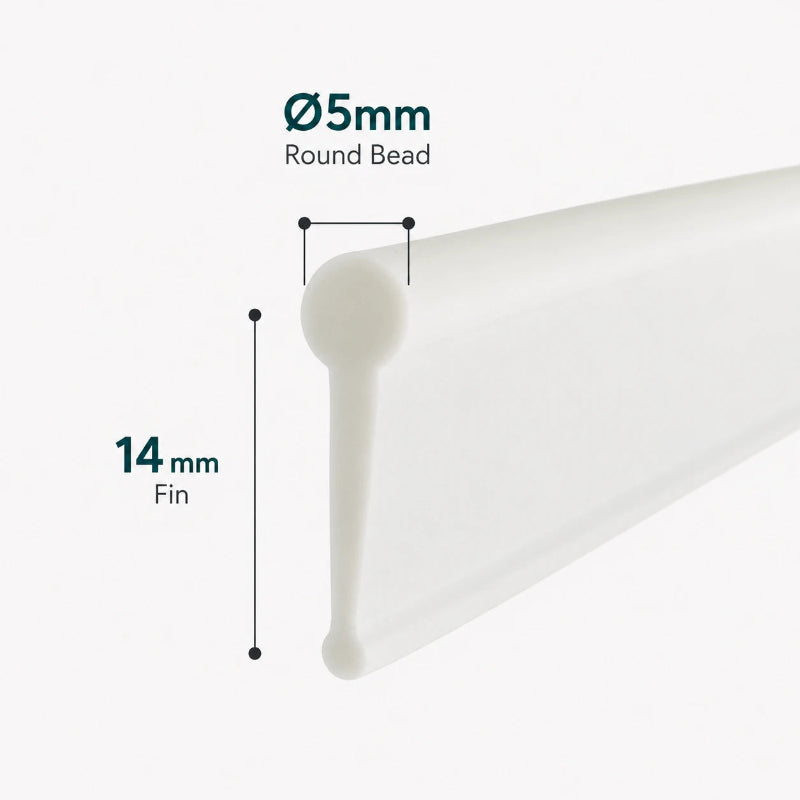

• VF005 white framed shower door bottom seal with 5mm round bead and 14mm flexible fin

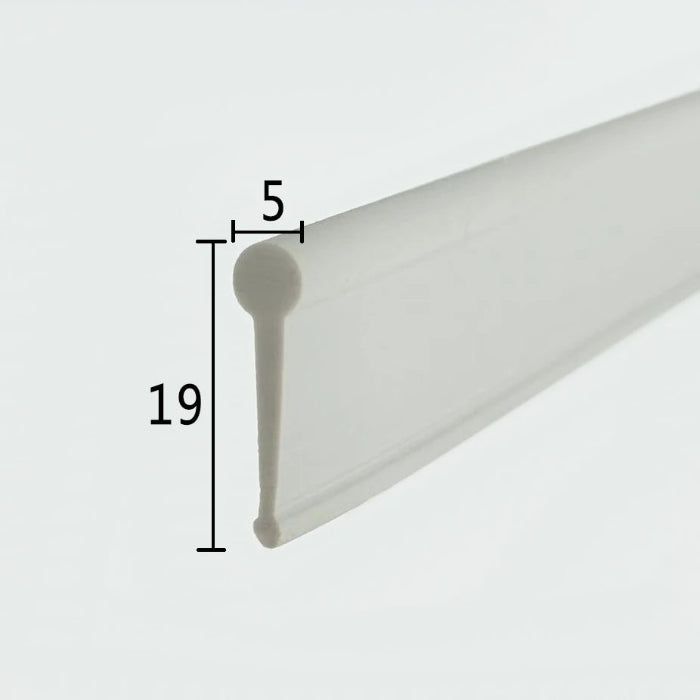

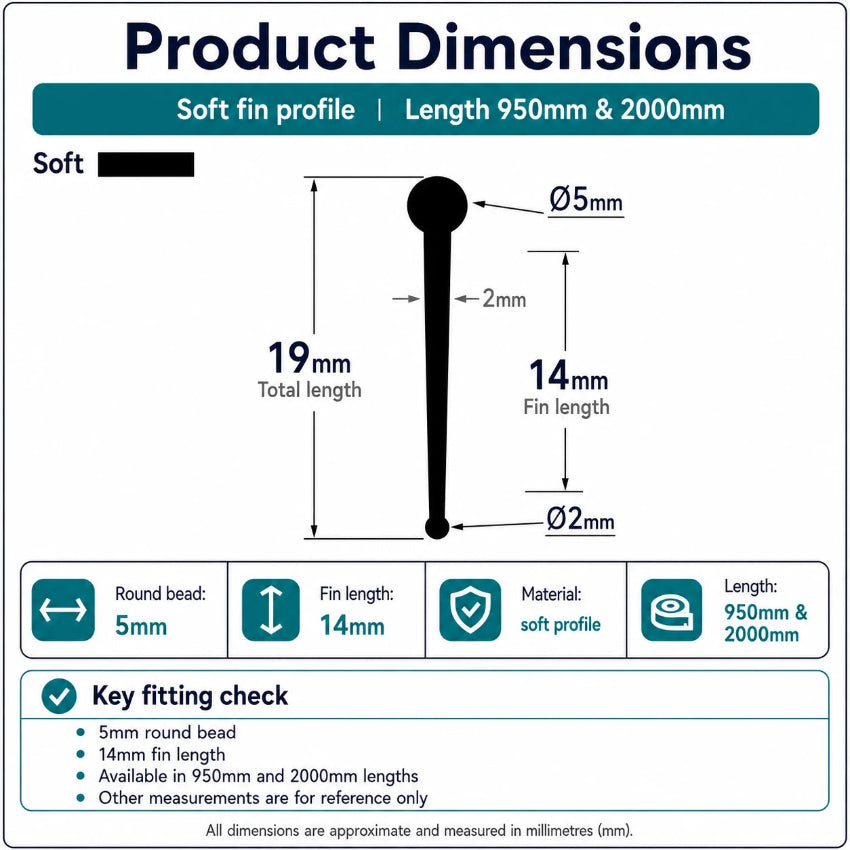

  • VF005 round bead shower door bottom seal dimensions showing the 5mm bead, 14mm fin and 19mm overall profile
  • Close-up of the soft white PVC VF005 round bead bottom seal profile
  • Angled view of the VF005 white flexible bottom seal for framed and folding shower doors
1 4

5mm Round Bead White Framed Shower Door Bottom Seals Fin 14mm VF005

£14.88
£43.19 £14.88
Sold out
-66%
Taxes included. Shipping calculated at checkout.
Total Length: 950mm
Gap: Seal 6-12mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down


Key Specifications

Catalog no.
VF005
Application
Framed or folding shower door bottom seal
Round bead diameter
5mm
Fin length
14mm
Overall profile height
19mm
Recommended bottom gap
Approx. 6–12mm
Material
Soft flexible PVC
Colour
White
Length options
950mm or 2000mm – can be trimmed to size
Pack quantity
Single / 1 piece
Installation
Sliding-fit into a compatible round bead channel
✓ Free UK Mainland Delivery | ✓ Price Includes VAT | ✓ 10-Month Warranty

Check Before You Buy

This seal is suitable if:

  • Your shower door uses a rounded retaining channel.
  • The channel accepts a 5mm round bead.
  • Your bottom gap is approximately 6–12mm.
  • You need a soft white replacement seal for a framed or folding door.
  • You need either a 950mm or 2000mm strip that can be trimmed.

Choose another seal if:

  • Your door uses a T-slot rather than a round bead channel.
  • The retaining channel is not suitable for a 5mm bead.
  • Your bottom gap is much smaller than 6mm or larger than about 12mm.
  • You need a magnetic, side or clip-on glass seal.

Browse our full framed shower door seal range to compare other bead sizes, fin lengths and fixing styles.

Suitable Applications & Installation Notes

VF005 is a soft white PVC bottom seal for framed and folding shower doors fitted with a 5mm round bead channel.

Its shorter 14mm flexible fin is designed for relatively small bottom gaps of approximately 6–12mm. The blade bends gently against the shower tray or threshold, helping reduce water escaping beneath the door without using the longer profile required for a deeper gap.

The white finish makes VF005 particularly suitable for framed enclosures with white tracks or surrounding trim, where a clear or dark grey profile may be more noticeable.

The old seal does not need to have the same overall profile. If the 5mm round bead, retaining channel and bottom gap are compatible, VF005 may still be a suitable replacement.

Both the 950mm and 2000mm lengths can be cut to size before fitting. Where the door requires less than one metre, the 2000mm strip may be divided into two shorter sections, allowing the remaining piece to be kept as a spare.

Remove the old seal, clean the channel and slide the round bead into the track from one end. Do not force the bead into a channel that is too narrow.
