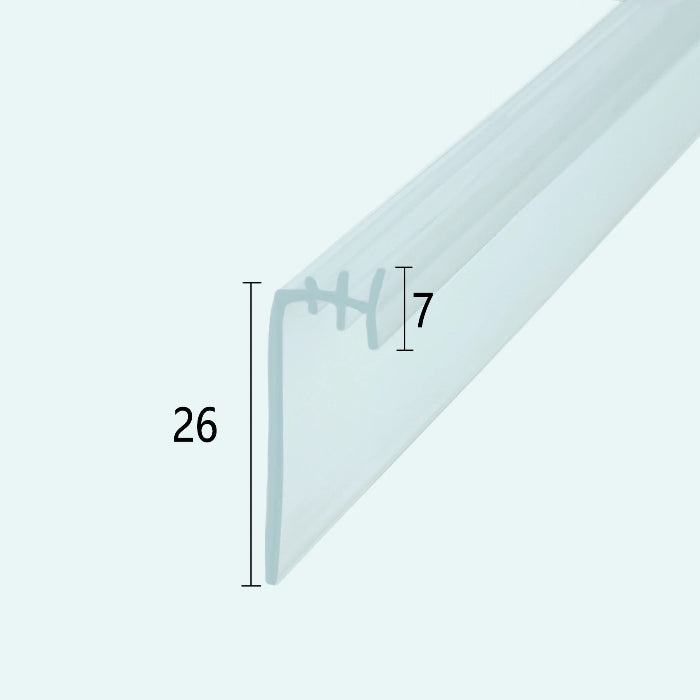

• Cross-section of VG004 7-shape seal with 7mm side-entry bead and 26mm deep fin

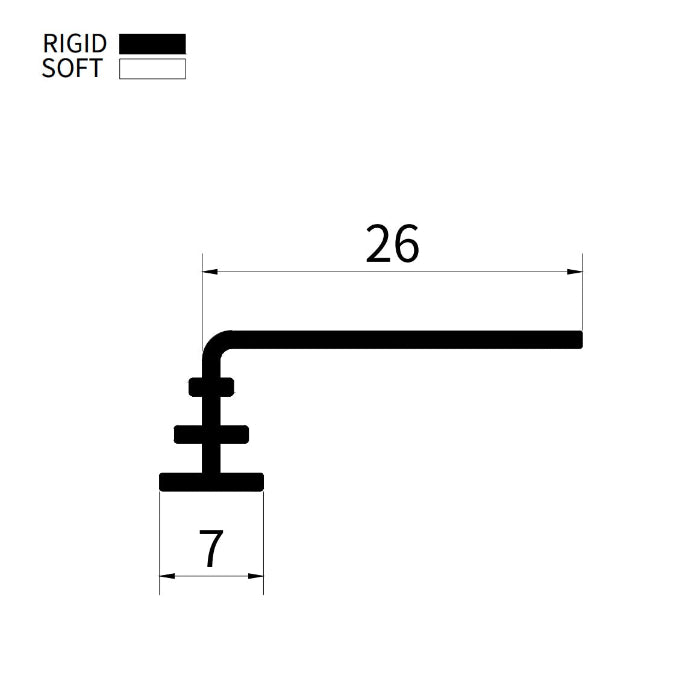

  • Engineering diagram of VG004 showing 7mm insertion width and 26mm vertical fin reach

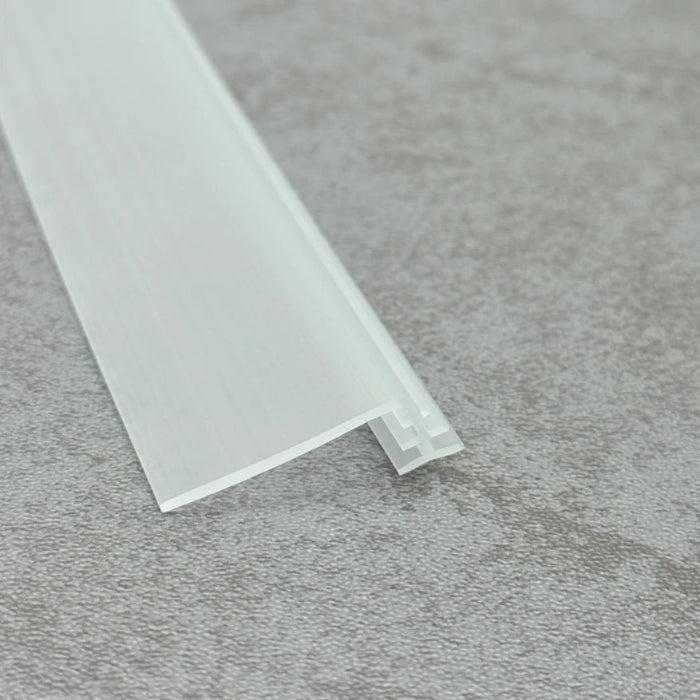

  • VG004 seal sliding into the aluminium bottom track of a framed shower door

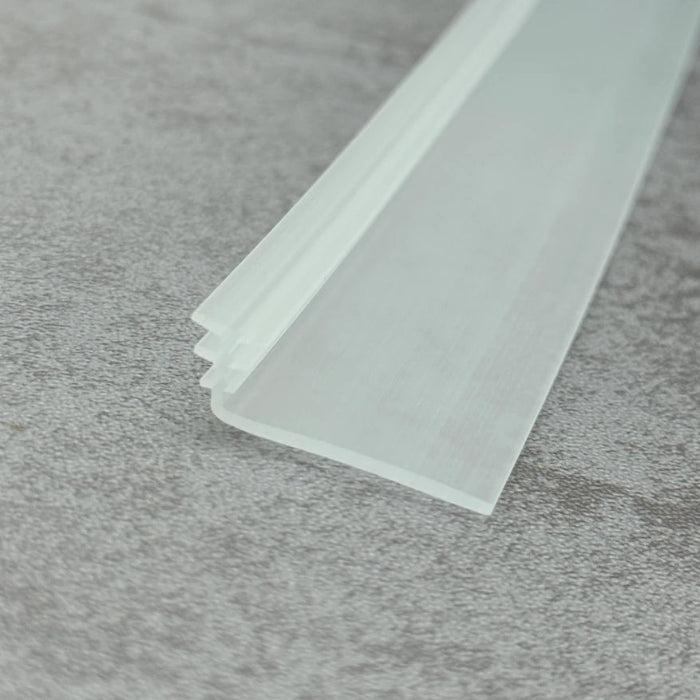

  • Translucent 26mm extra long bottom sweep for framed shower doors
1 4

Side-Entry Framed Door Bottom Seal 7mm Track + 26mm Deep Fin VG004

£29.99
£43.19 £29.99
Sold out
-31%
Taxes included. Shipping calculated at checkout.
Total Length: 2000mm
Gap: Seal 26mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down



Key Specifications

The VG004 is a precision-engineered replacement seal designed specifically for framed shower doors with a side-loading internal track. Unlike standard T-seals or U-channels, this profile features a 7mm lateral insert that slides directly into the door's bottom aluminium rail.

Catalog No: VG004
Application: Bottom Seal for Framed Doors
Insert Profile: 7mm Side-Entry "T" Bead
Fin Length: 26mm (Extra-Deep)
Design: 90-Degree "7-Shape" Offset
Standard Length: 2000mm (Cut-to-fit)
Material: Marine-Grade UV-Stable PVC
Colour: Translucent Clear
✓ Free UK shipping ✓ VAT included ✓ 10-month warranty

Why Choose the VG004?

  • Engineered for Framed Systems: Specifically designed for enclosures where the seal must be housed within a pre-existing metal track.
  • Extra-Long 26mm Fin: The extended 26mm reach is ideal for bridging larger gaps, ensuring even heavy spray is deflected back.
  • Low-Friction Glide: High-quality PVC formula reduces "chattering," allowing the door to slide or pivot smoothly.
  • Secure Fitment: The "7-shape" geometry ensures the seal remains perfectly vertical and cannot be easily dislodged.
  • Universal Length: Supplied at 2000mm to cover extra-wide doors, easily trimmed with standard shears.
Detailed Description & Technical Insight

The VG004 Side-Entry Seal is the definitive solution for refurbishing older framed shower units where the original seal has perished or discoloured. In many British bathroom suites, framed doors rely on a specific internal track; the VG004’s 7mm bead is designed to fit these standard aluminium extrusions perfectly.

The offset "7-shape" design allows the seal to sit flush against the frame while the 26mm soft-fin extends downwards to create a flexible, watertight sweep. This extra-deep fin is particularly useful for trays that may have settled over time, creating an uneven gap.

Constructed from UV-resistant, commercial-grade PVC, the VG004 is built to resist the buildup of limescale and mould, maintaining its flexibility and clarity far longer than generic retail alternatives.

Still searching for the perfect seal?

VIEW ALL FRAME SHOWER SEALS

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Cross-section of VG004 7-shape seal with 7mm side-entry bead and 26mm deep fin
Side-Entry Framed Door Bottom Seal 7mm..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

Side-Entry Framed Door Bottom Seal 7mm Track + 26mm Deep Fin VG004 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Certified Quality: ISO 9001 | ISO 14001 | REACH compliant +

Quality & Environmental Standards

Simba® seals are manufactured to the highest international standards, ensuring safety and sustainability for your home.

ISO 9001:2015 Quality Management

ISO 9001:2015

Premium quality control ensuring consistent product durability and precision fit.

ISO 14001:2015 Eco-Friendly

ISO 14001:2015

Manufactured with a commitment to environmental responsibility and eco-friendly processes.

SVHC REACH Compliant

SVHC / REACH

Certified non-toxic and safe for domestic use, free from harmful substances.

Have feedback on this seal? Tell us — we use customer input to improve future SIMBA designs.
