10mm T-Slot Shower Threshold & Framed Door Seal 10mm Fin VH009
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Product Specifications
Check Before You Buy
This seal is suitable if:
- Your shower tray provides at least 10mm of flat, smooth mounting space.
- You need a raised flexible barrier for a bottom gap of around 10mm.
- Your framed shower door has a compatible T-slot wide enough for the 10mm base.
- The profile will not interfere with normal door movement.
- You want a strip that can be cut to the required length.
Choose another profile if:
- The available tray surface is narrower than 10mm.
- Your framed-door T-slot cannot accept the 10mm base.
- The upright section would prevent the door from opening or closing freely.
- Your existing bottom seal would be excessively compressed against the threshold.
- You need a much lower or narrower threshold.
Suitable Applications & Installation Notes

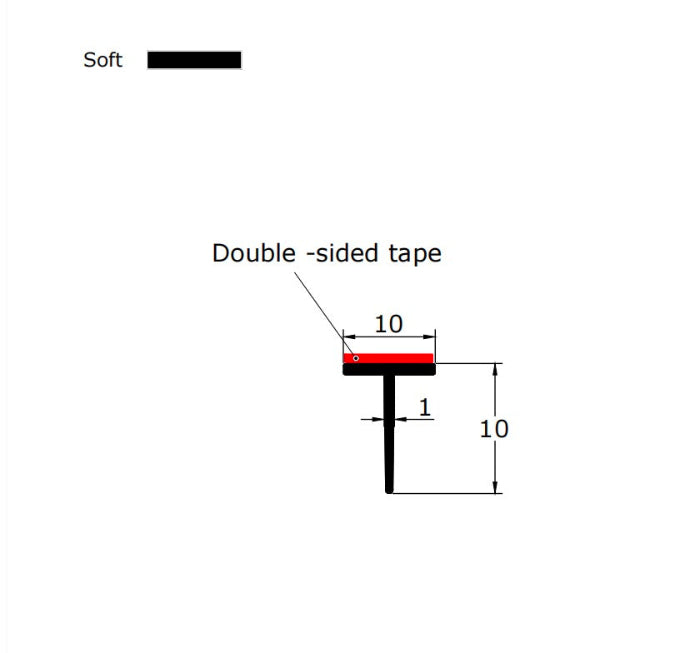

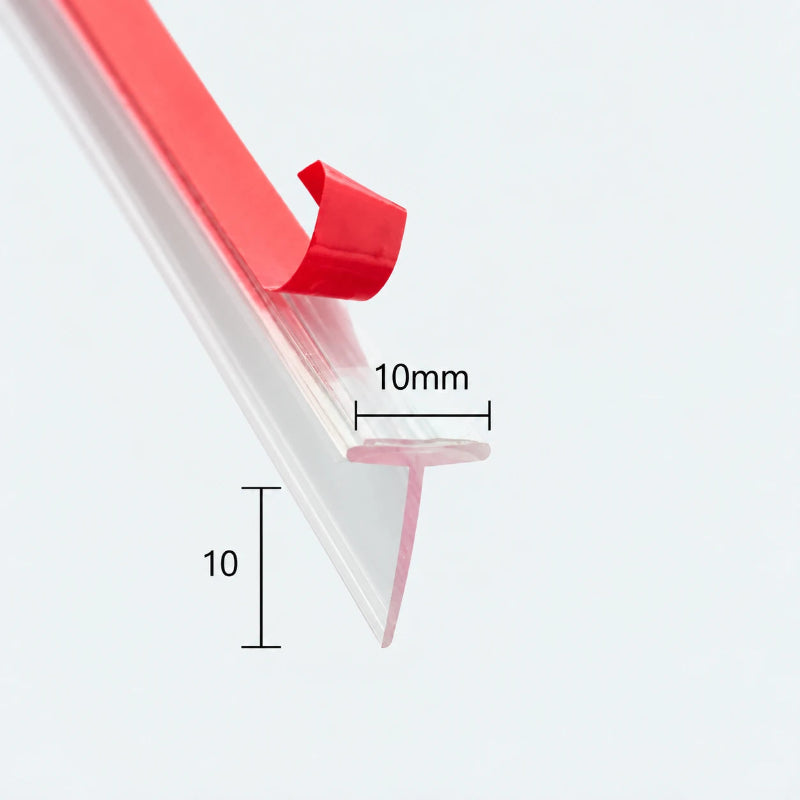

VH009 is a flexible T-profile shower seal designed for two common fitting situations.
It can be bonded directly to a flat shower tray using the pre-applied adhesive backing, creating a raised barrier that works with a compatible bottom shower door seal.

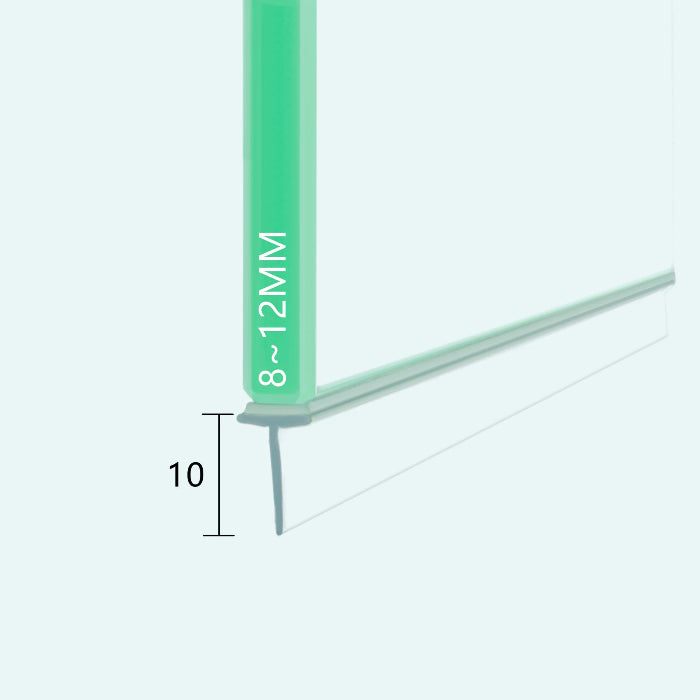

Alternatively, the 10mm base can be inserted into a suitable T-slot on some framed shower doors, making the same profile useful as a replacement framed-door seal.
For tray installation, allow at least 10mm of clean, flat mounting width. The profile is best suited to installations where the working clearance is around 10mm and where it can sit without restricting the movement of the door.
If a separate bottom seal meets VH009, check that the two flexible sections do not overlap excessively. Too much contact can increase drag and make the door harder to move.

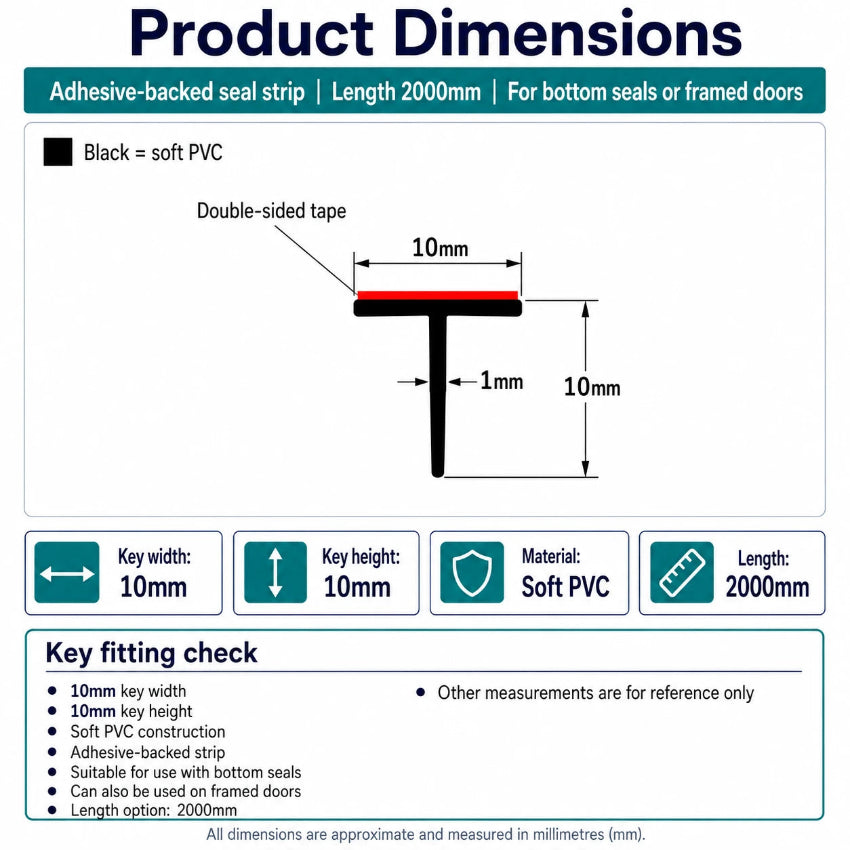

The strip is supplied in a 2000mm length and can be trimmed with heavy-duty scissors.
For adhesive fitting, clean and dry the tray thoroughly, peel away the protective backing and position the strip carefully before pressing it firmly into place. Avoid repeatedly lifting and re-sticking the adhesive.
For the best bond, allow approximately 7–10 hours before using the shower.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
A Better Chance of Getting the Right Fit
For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small measurement differences can be difficult to confirm at home, so we include nearby options where this helps reduce the risk of ordering the wrong fit. Each seal is complete and ready to fit. Simply use the one that suits your shower door best.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.
We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.
