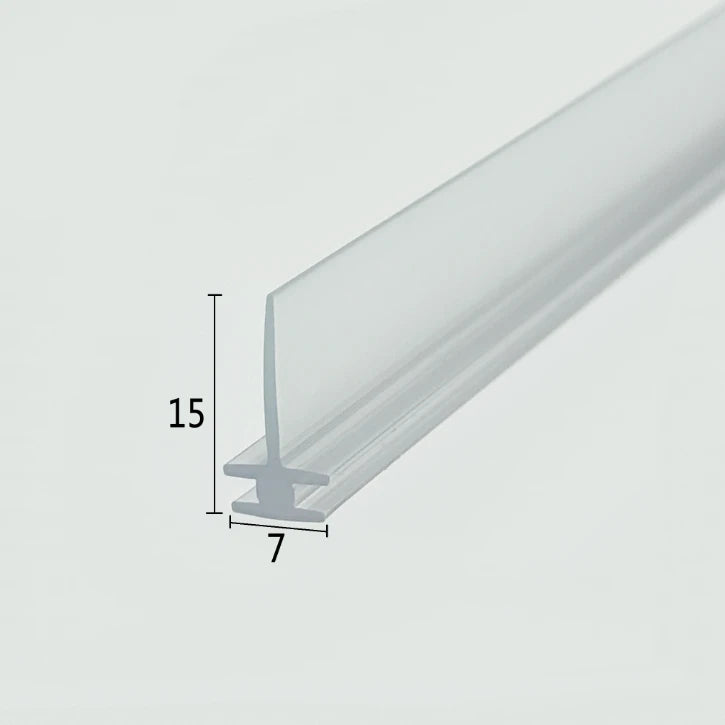

• Cross-section close-up of the VI005 shower door seal for framed door, showcasing the transparent soft PVC with a unique double 7mm T-shaped top design (dual legs), paired with a 15mm long sweeping fin, optimized to fit into extra-wide grooves or dual-track sliding door systems for superior stability and leak protection.

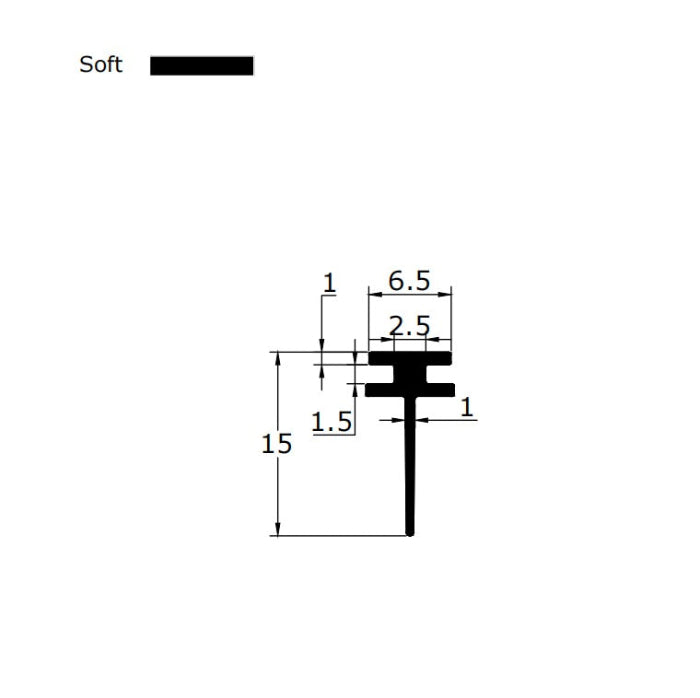

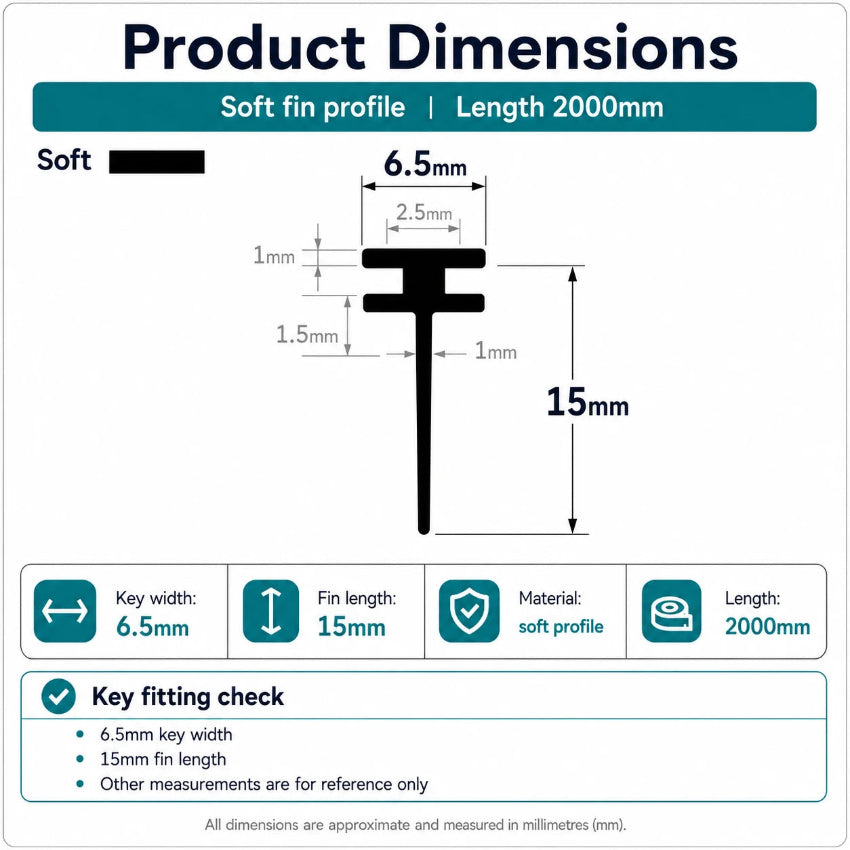

  • Technical dimension diagram for a framed shower door sweep, detailing the rare spacing of the double 7mm T-legs, 15mm fin height, and overall profile, providing critical specification data for users needing an exact match for complex track structures who are seeking a robust locking solution.

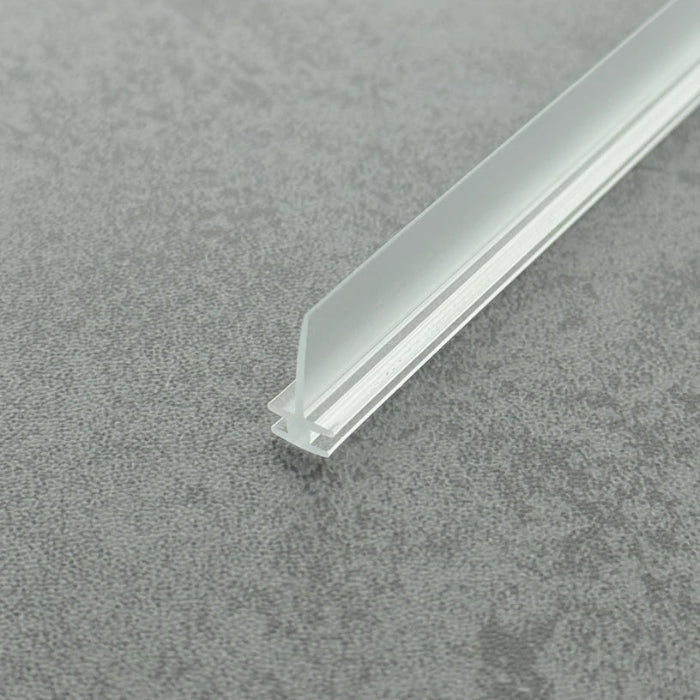

  • High-clarity close-up of a framed bath screen seal (clear version), showcasing the high light transmission, smooth vinyl texture, and exceptional flexibility of the VI005's 15mm fin, highlighting its resistance to ageing as an effective substitute for yellowed or hardened old seals to maintain efficient water containment while remaining virtually invisible beneath the glass.

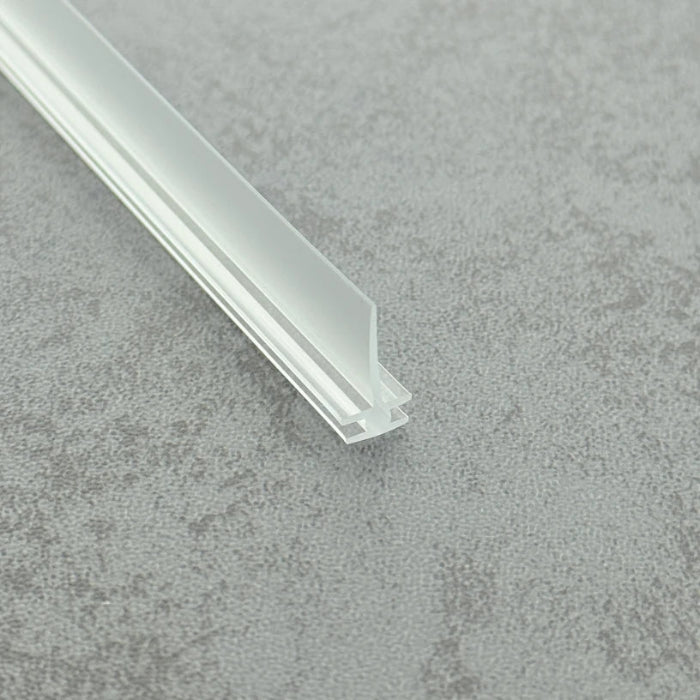

  • Micro-view of a metal framed shower door seal, showing how the double 7mm T-heads achieve a dual interference fit within the wide grooves of metal frames to significantly enhance anti-dislodgement performance, while the 15mm long soft fin makes moderate contact with the floor, providing a lasting waterproof barrier at the base of heavy metal-framed doors.
1 4

15mm Fin Double 7mm T-Bar Shower Door Bottom Seal VI005

£29.88
£43.19 £29.88
Sold out
-31%
Taxes included. Shipping calculated at checkout.
Total Length: 2000mm
Gap: Seal 15mm

100% Guaranteed Safe Checkout

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Maestro
  • Mastercard
  • Union Pay
  • Visa

Description

Caret Down



Key Specifications

Catalog No: VI005
Application: Shower Frame Gasket / Drip Rail
T-Bar Width: 7mm (Double-Ribbed)
Fin Length: 15mm
Material: Durable, Soft-Flex PVC
Length: 2000mm
Free UK Shipping | VAT Inc. 10-Month Warranty
Want other sizes? Check our complete Shower Door Frame Gasket collection for 3mm, 5mm, 8mm, and 10mm T-bar alternatives.

Frequently Asked Questions

How do I know if the 6.5mm T-bar is the right fit? ▼
This is a "Mid-Track" specialist seal. If standard 5mm seals feel too loose or rattle in your metal frame, but 8mm/10mm versions are too thick to fit, the 6.5mm VI005 is your perfect match. It provides a snug, friction-locked fit for a professional, rattle-free finish.
Is the 15mm fin suitable for the bottom of the door? ▼
Yes, it is ideal for doors with a standard 10-15mm gap to the tray.
How do I install this seal in my framed door? ▼

It’s straightforward (a doddle!):

  1. Clean: Thoroughly clean the metal channel to remove any old soap residue.
  2. Slide & Press: Slide the 6.5mm head into the track. For a tighter fit, you can press it in from one end.
  3. Trim: Simply use heavy-duty scissors or a utility knife to trim the 2000mm length to your exact door width.

SIMBA UK | PROFESSIONAL SEALING SOLUTIONS

Delivery & Shipping Information

Caret Down

We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.

Important: Our automated system selects the best courier based on your address, order size, and quantity.

Delivery Summary

  • UK Mainland Standard: 2–3 working days (FREE).
  • Highlands, Islands & NI: 3–7 working days (Calculated at checkout).

A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.

If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.

Compliance Information

Caret Down

Product Safety

Manufacturer Name: SIMBA International Limited

Address:No.25-2, Fuke North Road,

Luosong Village, Fusha Town,

Zhongshan, Guang Dong, China

Contact: support@glassseals.com

View full details
Cross-section close-up of the VI005 shower door seal for framed door, showcasing the transparent soft PVC with a unique double 7mm T-shaped top design (dual legs), paired with a 15mm long sweeping fin, optimized to fit into extra-wide grooves or dual-track sliding door systems for superior stability and leak protection.
15mm Fin Double 7mm T-Bar Shower..
Caret Down

Care & Installation Tips

Ensure a better fit and longer-lasting clarity.

15mm Fin Double 7mm T-Bar Shower Door Bottom Seal VI005 Installation Guide - Simba Anti-Mould Shower Seal

✓ DO’S

  • Direct Press: Fit by pressing directly onto the glass edge to protect the surface.
  • Deep Clean: Remove all UK hard-water limescale before installation.
  • Sharp Tools: Use garden pruners for a clean, professional finish.
  • Daily Rinse: Simply wash away soap suds after your shower.

✕ DON’TS

  • No Sliding: Never slide the seal along the glass; this risks scratching.
  • No Extreme Heat: Avoid water >70°C or hair dryers to prevent warping.
  • No Soapy Water: Do not use lubricants—they accelerate mould growth.
  • No Harsh Chemicals: Avoid bleach or acidic cleaners on the seal.
Photo guide showing what to send for shower door seal matching

Not sure which seal you need?

Send us a photo of your shower door edge and gap — we’ll help you find the right fit.

Contact via WhatsApp

About SIMBA Seals UK

SIMBA Seals UK is a specialist UK shower door seal replacement brand, backed by a glass seal manufacturing team focused on seal profiles since 1998.

Through showerdoorseal.uk, we help customers find the right replacement seal by checking the glass thickness, gap size, seal profile, frame channel and shower door design.

Our range covers common bottom, side, magnetic and framed shower door seals. For older or harder-to-match enclosures, our wider catalogue includes over 9,000 glass seal profiles, giving customers more options when a standard seal is difficult to identify.
