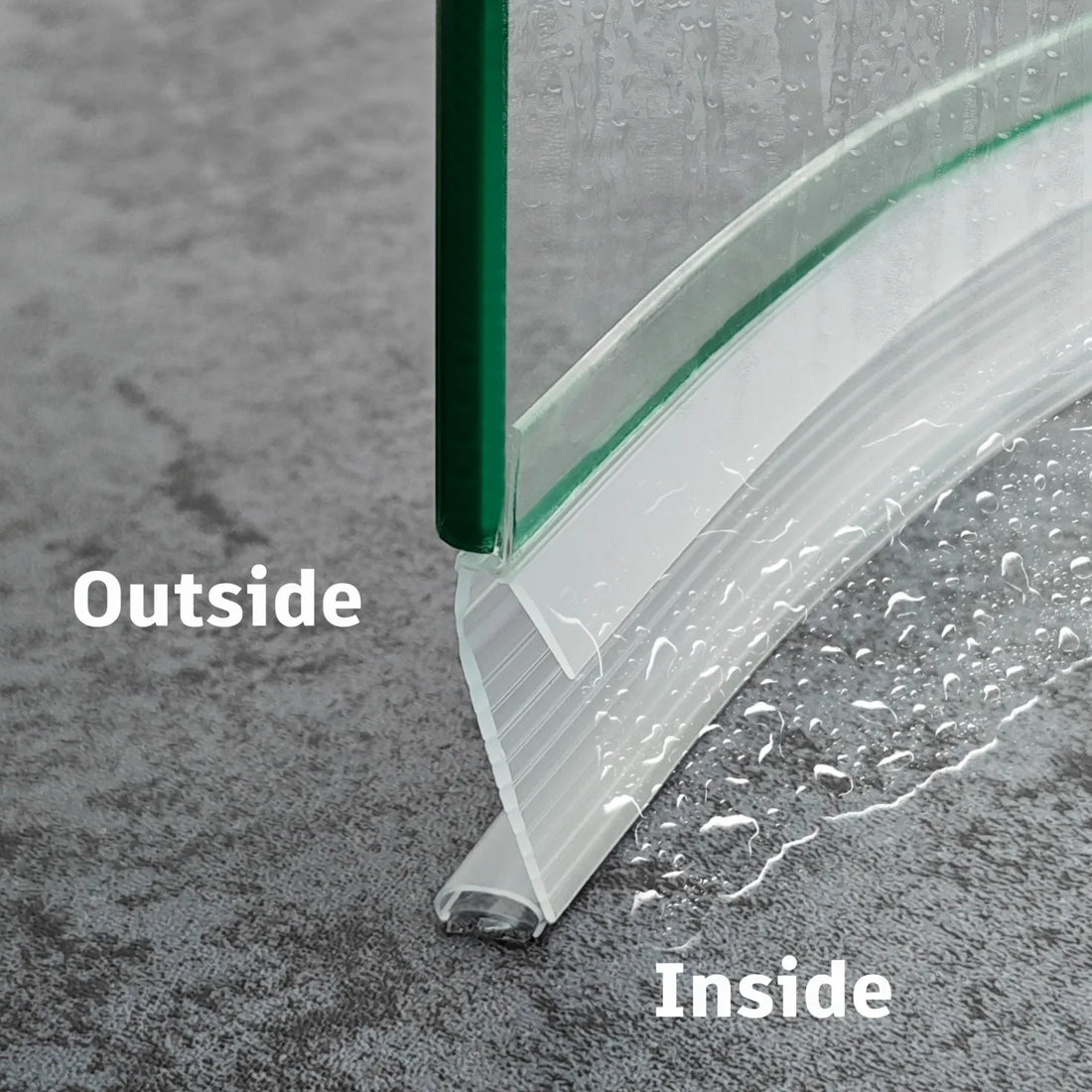

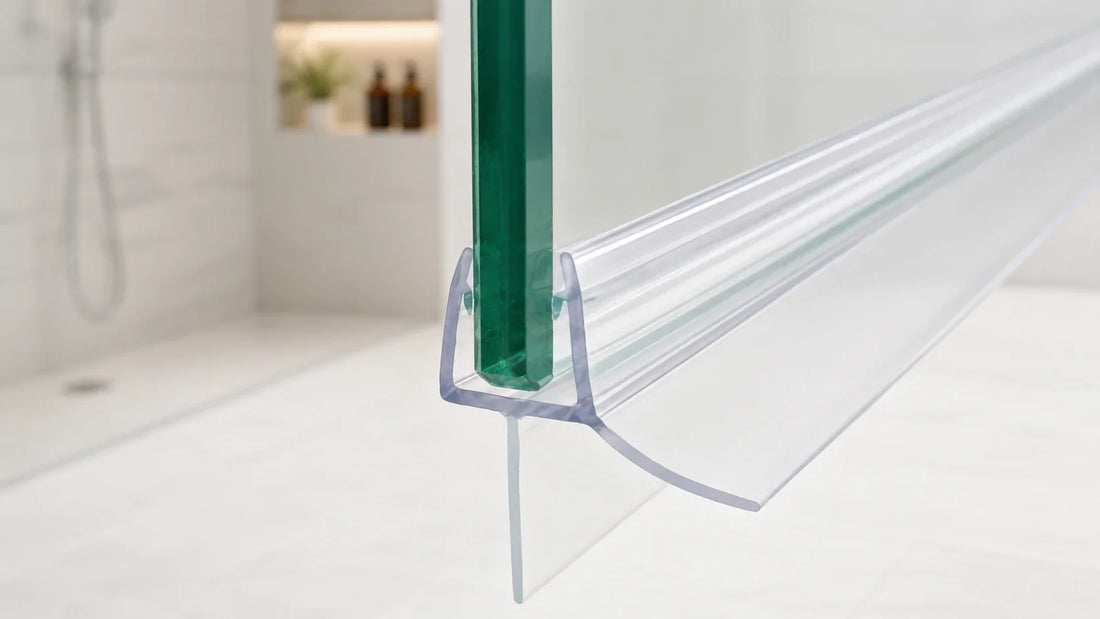

Many shower door bottom seals have a short side rail next to the flexible fin beneath the glass.
This is often referred to as a drip rail.
It is not necessarily a separate type of shower seal. Plenty of standard shower door bottom seals already include this feature; suppliers simply do not always use the same name for it.
What matters more is how the rail sits and works once the seal is fitted.
As water runs down the shower glass, some of it can land on the angled drip rail and follow the rail back towards the shower tray.
The flexible fin underneath has a different job. It covers the gap between the glass and the shower tray, bath rim or threshold, helping to reduce the amount of water that can pass through at the bottom of the door.
A simple way to think about the two parts is:
the drip rail helps guide water back towards the tray, while the bottom fin covers the gap beneath the glass.
Once you know you need a replacement bottom seal, you can compare our shower door bottom seals with the side profile and dimensions of your old seal.
Why Is a Drip Rail Usually Angled?
The angle helps the rail guide water towards the shower tray.
Water running down the glass can land on the projecting edge rather than dropping straight towards the bottom of the door. From there, the slope encourages it to run back towards the tray.
That means it is worth looking at more than whether a seal simply has a side rail.
Its position and direction matter too. Once fitted, the rail should sit in a way that allows water from the glass to be directed towards the shower side.
The lower fin serves a different purpose. It sits closer to the tray or bath rim and covers the gap beneath the glass.
So, in practical terms, the arrangement is:
guide some of the water first, then cover the remaining gap below.
This is also why two bottom seals that look quite similar can behave differently once fitted. Differences in the rail's angle, length or flexibility may affect how well it guides water. These are also useful details to consider when looking at shower door bottom seal quality.
Does a New Drip Rail Need to Match the Old One Exactly?
Not necessarily down to every millimetre.
After several years of use, flexible PVC can bend, wear or lose some of its original shape. Parts of the seal may also have been trimmed when it was first fitted.
For that reason, an old seal is often more useful as a guide to the overall profile than as an exact template for every measurement.
The drip rail is only one part of the seal. Whether a shower door bottom seal is suitable also depends on how it fixes to the door, the glass thickness and the gap beneath the glass.
With a U-channel seal that pushes directly onto the glass, start by checking that the channel suits the actual glass thickness.
The bottom fin should then reach the tray and cover the gap it is intended to seal.
After that, look at the drip rail.
It does not have to copy the old rail exactly, but it should sit on the appropriate side once fitted and remain in a position where water running down the glass can reach it and be guided towards the tray.
In practice, that is usually more useful to check than a small difference of a few millimetres between the old and new rail.
A slightly longer flexible fin does not automatically mean the replacement profile is wrong either. Whether the flexible parts of a replacement shower door seal can be adjusted depends on where the difference is and whether it affects the soft fin or the rigid fixing section.
Other differences are less suitable for adjustment.
A U-channel that does not suit the glass thickness, for example, or a drip rail that ends up facing the wrong way after fitting, points more towards a profile mismatch than a simple trimming issue.
In that case, it makes more sense to check the seal profile again.
Why Do Some Seals Have a Drip Rail but Still Get Called Bottom Seals?
Product names are not completely consistent across the market.
One seal may simply be listed as a:
shower door bottom seal
even though its side profile clearly shows a flexible lower fin and a short projecting rail.
A similar shape from another supplier may be described as a:
drip rail seal
So the wording in the product title is not always the best way to decide whether a replacement has the structure you need.
The side profile is usually more helpful.
Look at how the seal grips the glass, where the lower fin sits, and which way the short side rail will face once fitted.
For an old seal that already includes a drip rail, those details matter more than finding a replacement with exactly the same name.
The aim is to keep the main parts working together in the same way: the side rail helps guide water towards the tray, while the flexible fin below continues to cover the gap beneath the glass.
