H Shape Vertical Shower Door Seal – 10mm Glass, 3-8mm Gap HH10
100% Guaranteed Safe Checkout, Selected profiles may include 2–3 close-fit options at no extra charge.
Couldn't load pickup availability
Description
Description
Product Video
Key specifications
Check Before You Buy
This seal is suitable if:
- Your glass is 10mm thick.
- You need to reduce water escaping between two straight glass panels.
- The gap between the panels is approximately 3mm to 8mm.
- The panels meet edge to edge in a 180-degree glass-to-glass layout.
- You need a firm H-shape profile with an 11mm rigid fin for a more defined barrier.
- Your required length is 2000mm or less.
- You are fitting it to a suitable hinged or folding shower door where the seal will not obstruct the opening path.
Choose another seal if:
- Your glass is thinner or thicker than 10mm.
- Your gap is outside the recommended 3mm to 8mm range.
- You need a seal for a sliding shower door.
- Your shower glass is curved.
- You require a bottom seal, drip seal, threshold strip, guide rail seal or track seal.
- The seal would prevent a hinged or folding door from opening and closing freely.
Browse our full vertical shower door seal strips range to compare other glass thicknesses, profiles and gap sizes.
Suitable Applications and Fitting Notes

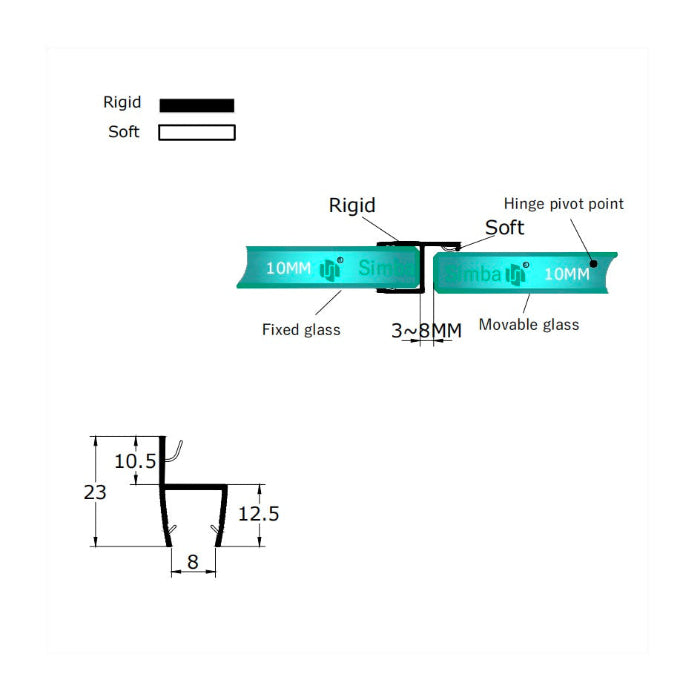

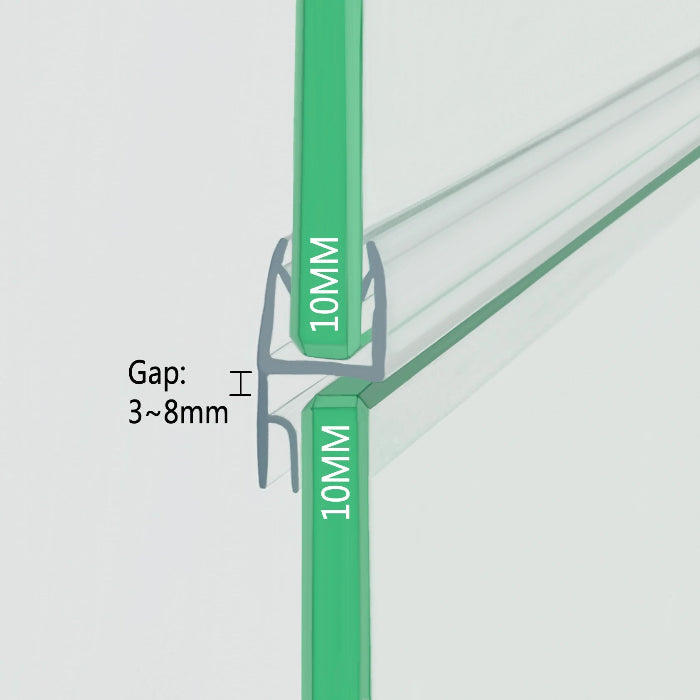

The HH10 H shape shower door seal is designed for 10mm glass and is used between two straight glass panels in a 180-degree glass-to-glass arrangement. It helps close vertical gaps of approximately 3mm to 8mm.

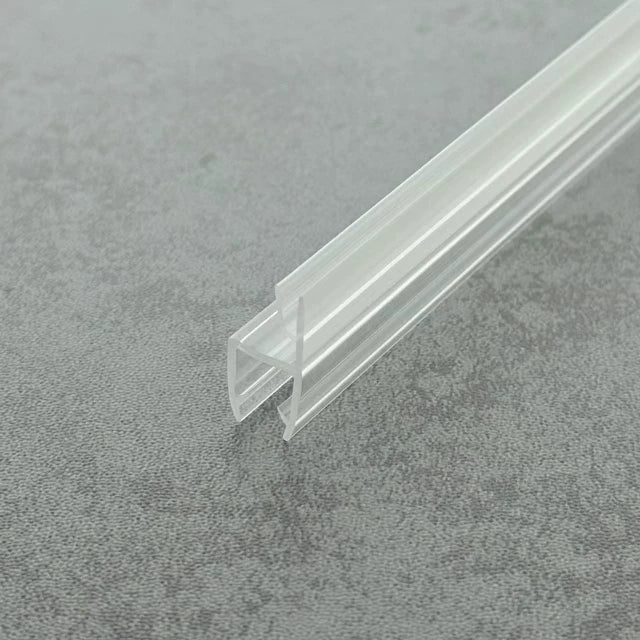

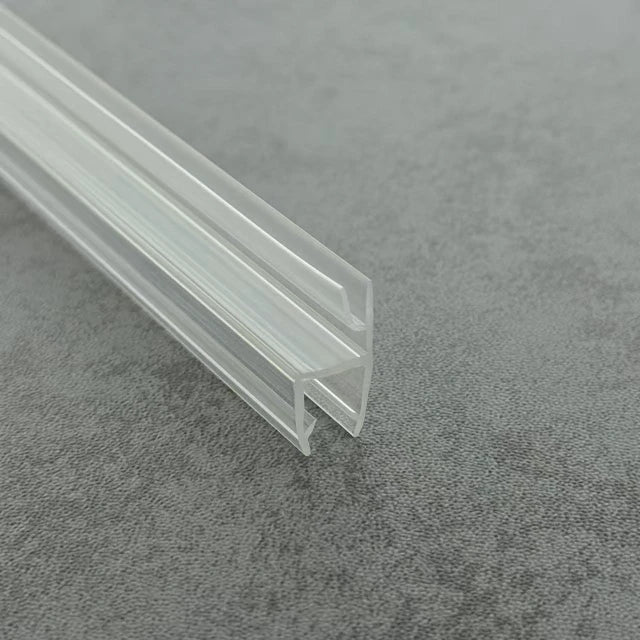

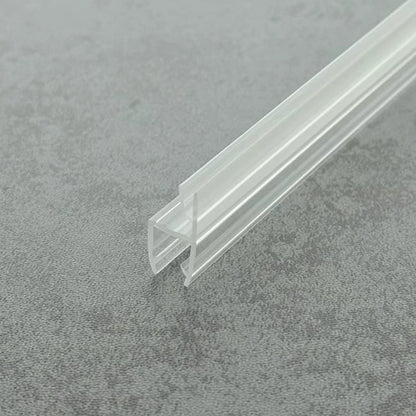

This profile is suitable where a standard H-shape seal does not provide enough coverage between the two glass edges. The clear rigid PVC body pushes onto the glass edge, while the 11mm rigid fin helps form a more structured barrier across the gap.
The rigid fin is usually positioned towards the inside of the shower enclosure to help deflect water back into the shower area.
Depending on the layout of the enclosure, it may also be fitted in the opposite direction if that gives better contact with the adjoining glass edge.
Before trimming the seal, test the position against the door movement. For hinged and folding shower doors, the profile should not catch, rub heavily or restrict the door as it opens and closes.
This seal is not suitable for sliding shower doors, curved shower screens, bottom seals, drip seals, shower tracks or guide rails.
Delivery & Shipping Information
Delivery & Shipping Information
We aim to dispatch all orders placed before 2 PM on the same day. Orders placed after 2 PM usually ship the next working day.
Important: Our automated system selects the best courier based on your address, order size, and quantity.
Delivery Summary
- UK Mainland Standard: 2–3 working days (FREE).
- Highlands, Islands & NI: 3–7 working days (Calculated at checkout).
A small surcharge applies to remote areas (Highlands/Islands/NI). This is clearly calculated when you enter your postcode.
If your order hasn't arrived within 5 working days (any service), please email us immediately at info@showerdoorseal.uk.
Compliance Information
Compliance Information
Product Safety
Manufacturer Name: SIMBA International Limited
Address:No.25-2, Fuke North Road,
Luosong Village, Fusha Town,
Zhongshan, Guang Dong, China
Contact: support@glassseals.com
Notified by email when this product becomes available
£29.99
A Better Chance of Getting the Right Fit
For selected profiles, your order may include 2–3 closely matched finished seals, packed together at no extra charge. Small measurement differences can be difficult to confirm at home, so we include nearby options where this helps reduce the risk of ordering the wrong fit. Each seal is complete and ready to fit. Simply use the one that suits your shower door best.
Not sure which seal you need?
Send us a photo of your shower door edge and gap — we’ll help you find the right fit.
About SIMBA Seals UK
SIMBA Seals UK specialises in replacement shower door seals, supported by a glass seal manufacturing team working with seal profiles since 1998.
We help customers match seals by glass thickness, gap, profile and door design, with access to over 9,000 profiles for older or harder-to-match enclosures.
