Last updated: 03 March 2026
⏱️ 30-Second Summary
The Problem: 90% of leaks aren't "broken doors." They are caused by PVC degradation (brittleness) or poor Drip Rail alignment.
The 2-Step Solution (Double-Barrier Method):
- Fit a new Bottom Seal (Ensure the drip rail faces inside).
- Add a Threshold Dam (A physical splash barrier on the tray).
UK Pro Tip: Check your floor levels. In older UK homes, a sagging door often needs a Side-Extended Fin to bridge uneven gaps.
⚠️ The Risk: A £15 seal prevents Rotten Floorboards—a repair that isn't always covered by standard UK home insurance.
Is your frameless shower door leaking every time you hop in?
Tired of "sacrificing" fresh towels just to soak up puddles?
Water escaping under your door isn't just a nuisance—it’s a risk. Persistent dampness leads to slippery tiles, water-damaged floorboards, and that stubborn black mould we all dread.
The good news? You don’t need an expensive plumber. In most cases, the fix is a simple, DIY-friendly replacement.
In this guide, we’ll help you spot the culprit and pick the right shower door gasket to stop those drips for good.

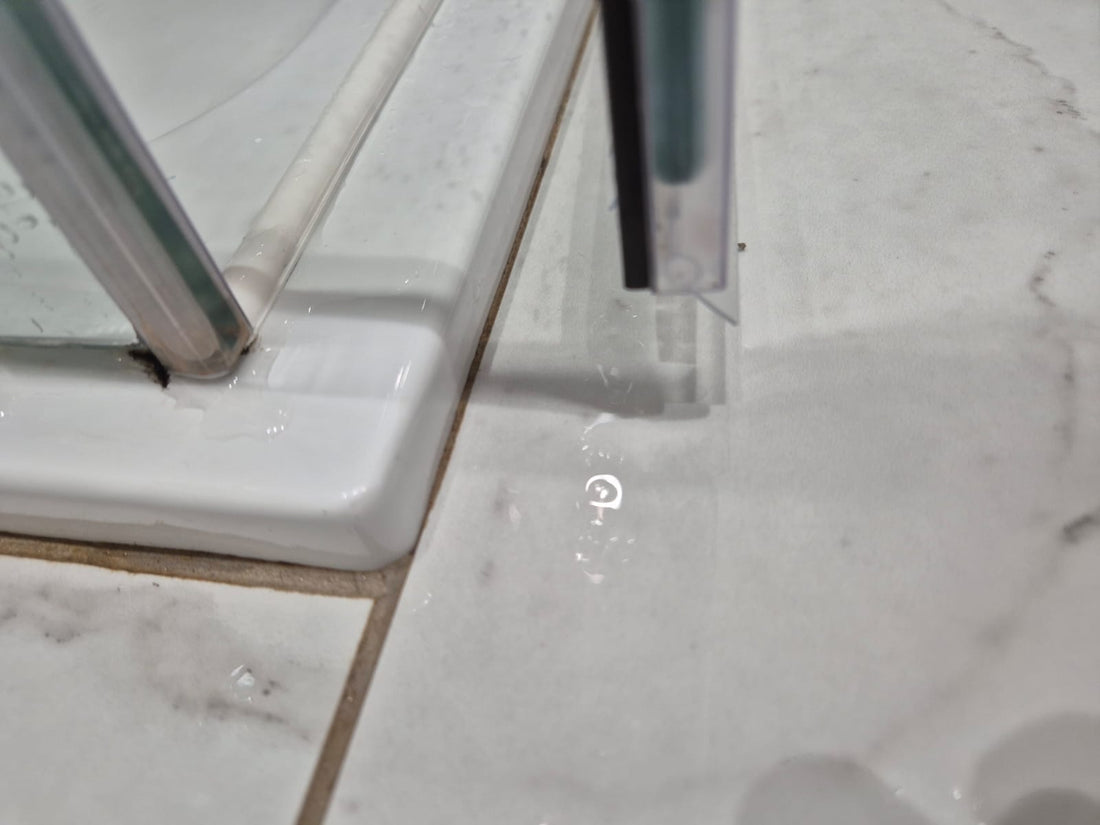

Why Your Shower Door Leaks at the Bottom
A leak isn’t always a gap; often, the material has simply reached the end of its functional life. Before adjusting hinges or applying messy silicone, take our 30-second 'Seal Failure' test.
If your seal shows micro-cracks or yellowing, it’s a chemical failure of the PVC, not a mechanical one.
1. The Sagging Door
All doors need clearance, but loosened hinges can turn a small gap into a "water motorway."
2. Degraded PVC
PVC naturally hardens and discolours due to the natural aging process of polymers. We recommend a fresh seal every 1-2 years for hygiene.
3. Backwards Installation
A seal facing the wrong way acts as a ramp, funneling water out of the tray.
4. The UK Heritage Problem
In Victorian or Edwardian properties, floors are rarely 100% level—and gravity always wins.
5. Missing Thresholds
Without a physical dam, high-pressure Power Showers will always find a way out.
6. The "Side Leak" Illusion
Water often escapes through vertical seals and trickles down, masquerading as a bottom leak.
Sealing Like a Pro: The "Double-Barrier" Method
A bottom seal alone is a fix; using it with a threshold is a system. This duo stops the leaks that a single seal simply can’t handle.
Step 1: Fit a Dedicated Shower Bottom Seal
Built for British Standards: Most "universal" seals fail because they aren't designed for UK water pressure. SIMBA profiles fit major brands like Aqualisa, Mira, and Orchard Bathrooms.
Pro Tip: Always ensure the angled "drip rail" faces the inside of the shower.
[Quality Guide: How to spot a high-quality shower seal]
Why the Drip Rail is a "Make or Break" Factor
If your rail is too short, it's useless. It won't handle the pressure and dumps water directly onto the soft fins, causing them to wear out twice as fast.
Step 2: Add a Shower Tray Threshold Seal
Many UK plumbers now consider a threshold dam mandatory. It is the cheapest insurance policy against a £5,000 joist repair.
Quick Match: Find your seal type in seconds
| Feature | D510 (Hard PVC) | PV29 (Flexible) | RY3463 (T-Shape) |
|---|---|---|---|
| Glass Thickness | 8/10/12mm | 4/6/8mm | 6/8mm |
| Best For | Heavy Straight | Curved Trays | Side Gaps |
| Seal Strength | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ |
Watch: Why use a threshold seal?
How to Choose the Best Threshold
D510: The Heavy-Duty Solid Strip
The D510 is a solid PVC strip. Perfect for straight glass screens with at least 10mm of tray space.
PV29: The Curved Door Hero
The PV29 is flexible and follows the arc of your shower tray effortlessly.
RY3463: The Slimline T-Shape
A brilliant T-shaped seal. Perfect for tight gaps where you don't want to remove the glass.
Selection Guide:
- D510: Straight glass only (Needs >10mm tray space).
- PV29: Straight or Curved (Needs >5mm tray space).
- RY3463: Straight glass (Needs >4mm tray space).
Installation Essentials
All SIMBA thresholds come with pre-applied high-strength adhesive.
- Dry Fit: Ensure it sits flush against the wall to block the corner.
- Peel & Stick: Apply to a clean, dry tray.
- Cure: Wait 10 hours before your first shower to let the adhesive bond.
Case Study: Pivot Door Leaks in the UK
If your pivot door leaks specifically from the corners, standard seals are often useless. You need a side-extending fin to redirect water back into the tray.
The "Zero Obstruction" Fix
If your door and threshold sit in a direct line, standard drip rails will hit the barrier and fail to seal.
To fix this, you need a side-extended fin profile.
The "Gap Trap" in Aluminium Thresholds
Even with a premium metal threshold, water can pour out if the junction isn't addressed. The fix? Precision trimming for a "plug-in" fit.
The SIMBA Solution:
Never just butt two seals together. Trim the bottom seal to a specific profile so it literally "plugs" into the side seal for a watertight junction.
Essential Reading for UK Homeowners
Frequently Asked Questions
Do pivot shower doors always leak? +
How to stop a glass shower door from leaking +
Do frameless shower doors leak more? +
What’s the best way to replace the seal? +
Still Unsure? Send Us a Photo.
Snap a quick photo of your shower door and email it to: info@showerdoorseal.uk. Our UK experts will help you find the perfect fit—completely free of charge.
