Vertical Side Shower Door Seals

How to Choose a Vertical Shower Door Seal

Shop replacement vertical shower door seals for leaking side gaps, glass-to-glass joints, and framed or frameless shower doors.

Choosing the right vertical shower door seal depends on three key checks: your glass thickness, the side clearance gap, and the opening angle of your enclosure. Because vertical shower seal strips sit on moving door edges or glass-to-glass joints, the right fit can help reduce side leaks, door movement, and poor closure.

Not sure which vertical seal you need? Send us a photo of your old seal profile on WhatsApp — we’ll help you find the closest suitable replacement before you order.

1. The Measurement Essentials

Before choosing a replacement vertical shower door seal strip, confirm your glass thickness — usually 4mm, 5mm, 6mm, 8mm, 10mm, or 12mm. Then measure the gap between the glass edge and the wall, frame, or adjacent glass panel in millimetres.

Show more

2. Matching the Profile to Your Enclosure

The correct vertical seal profile depends on how your shower door closes:

Pivot or hinged shower doors: For frameless doors that swing open, an H-shape vertical seal or bulb seal with a flexible fin can help close the side gap between the glass and wall, frame, or fixed panel.

180-degree glass-to-glass joins: To bridge the gap between two inline panels, an H-shape seal or magnetic strip set can help create a secure closure.

135-degree angled enclosures: Angled corner showers need a dedicated 135-degree seal profile so the strip follows the angle of the glass correctly.

90-degree corner shower enclosures: A 90-degree magnetic shower door seal is usually needed where two glass doors or panels meet at a right angle.

3. Check Before You Order

If you are replacing a worn vertical shower door seal strip, remove a small section of the old seal and compare its cross-section with the product images. Matching the profile shape is often the easiest way to choose the correct replacement, especially for framed doors, hinged doors, and older shower enclosures.

Need help? Send us a photo of your old seal profile, glass thickness, and gap size before ordering.

WHY CHOOSE SIMBA?

UK stock, 100% quality checked vertical shower door seals, manufacturer experience since 1998, fit support, and fast free UK delivery on all orders.

Reinforced Bulb Seal Strip - Impact Resistant Vinyl BU005Reinforced Bulb Seal Strip - Impact Resistant Vinyl BU005

Reinforced Bulb Seal Strip - Impact Resistant Vinyl BU005

Regular price £29.99
Regular price £43.19 Sale price £29.99
7mm Base Crystal Clear Vinyl Shower Door Bulb Seal BU0017mm Base Crystal Clear Vinyl Shower Door Bulb Seal BU001

7mm Base Crystal Clear Vinyl Shower Door Bulb Seal BU001

Regular price £29.99
Regular price £43.19 Sale price £29.99
VL005 framed shower door channel insert bumper seal with 7mm profile and 10mm heightVL005 framed shower door seal dimensions showing 7mm insert width and 10mm overall height

Seal for Framed Shower Doors 7mm Width VL005

Regular price £29.88
Regular price £43.19 Sale price £29.88

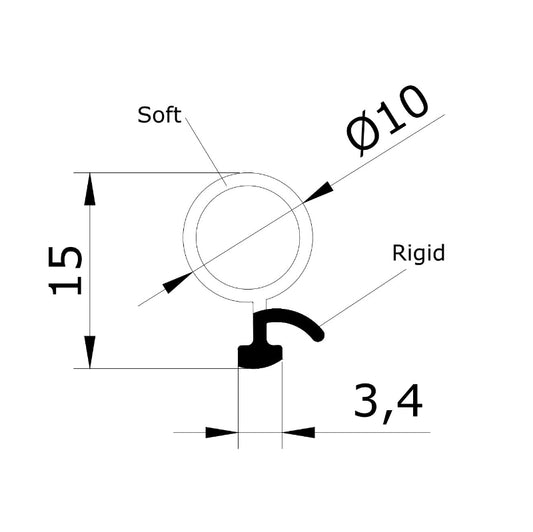

BU922 clear bubble T-slot shower door seal dimensions with 3.4mm retaining foot and 10mm soft bubble

3.4mm Bubble T-Slot Seal for Framed Shower Doors BU922

Regular price £29.99
Regular price £43.19 Sale price £29.99

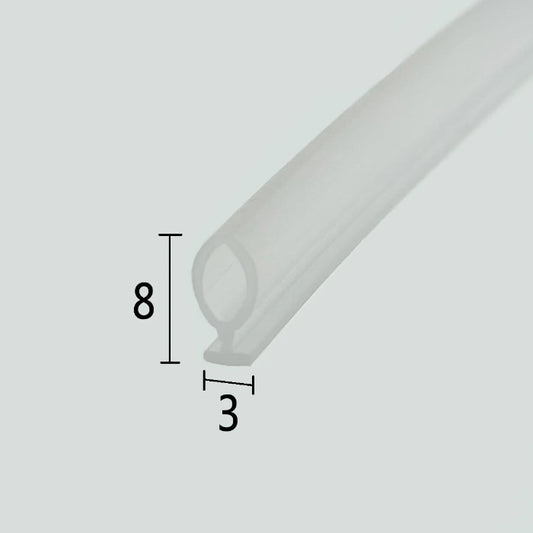

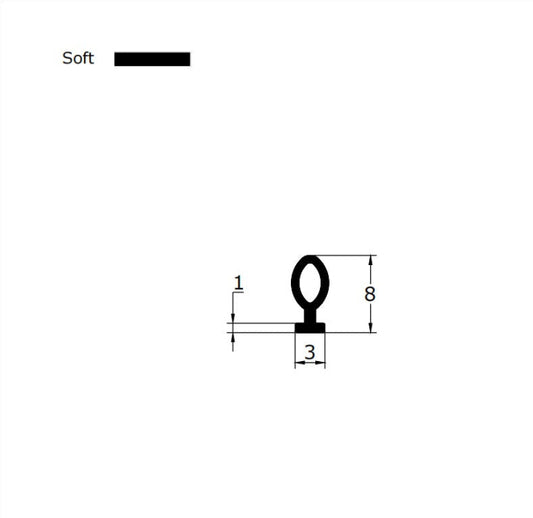

VD001 clear bubble track seal for framed shower doors with 3mm retaining base and 8mm profile heightVD001 bubble shower door seal profile dimensions showing 3mm retaining base and 8mm height

3mm T Bubble Seal for Framed Shower Doors VD001

Regular price £29.99
Regular price £43.19 Sale price £29.99

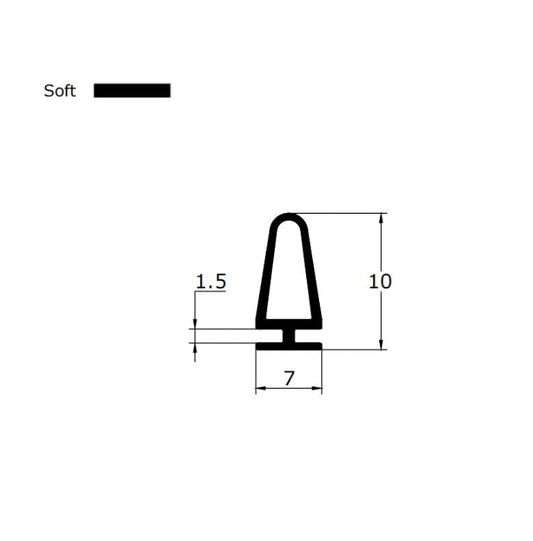

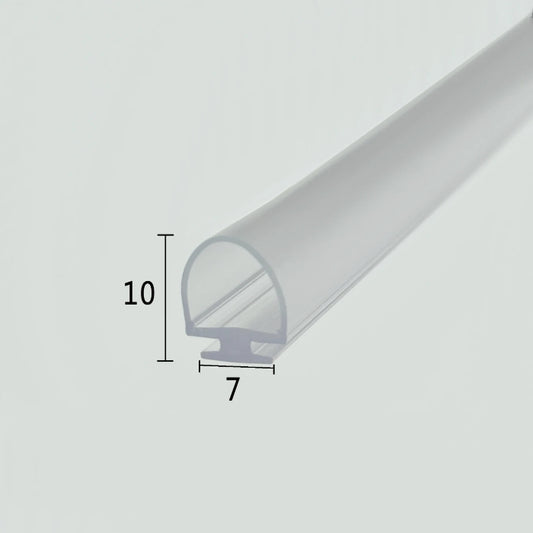

VD002 clear bubble track seal for framed shower doors with 7mm retaining base and 10mm profile heightVD002 bubble shower door seal profile dimensions showing 7mm retaining base and 10mm height

7mm T Bubble Seal for Framed Shower Doors VD002

Regular price £29.99
Regular price £43.19 Sale price £29.99
VD005 clear bubble track seal for framed shower doors with 7mm retaining base and 17mm profile heightVD005 bubble shower door seal profile dimensions showing 7mm retaining base and 17mm height

7mm T-Bar Shower Frame Door Bulb Seal VD005

Regular price £29.99
Regular price £43.19 Sale price £29.99

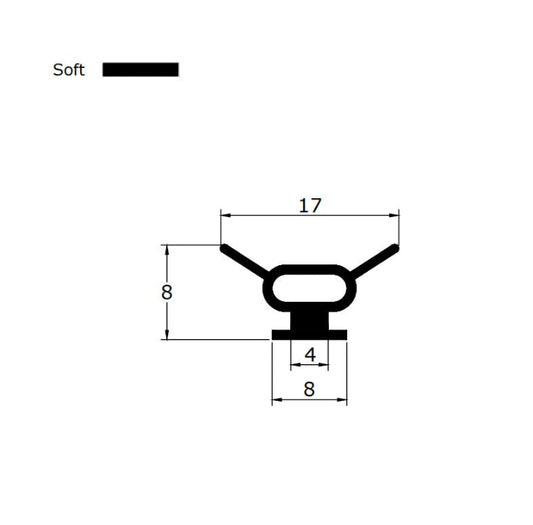

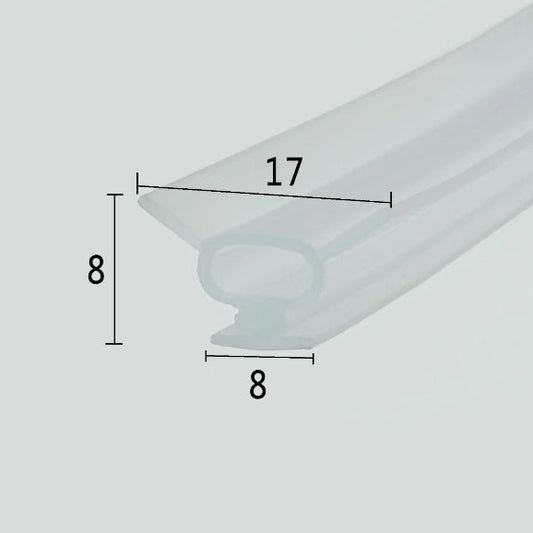

VD003 track-in side seal for framed sliding shower doors with 8mm retaining base and 17mm flexible sealing sectionVD003 framed shower door side seal profile dimensions showing 8mm base and 17mm flexible section

8mm T-Bar Shower Frame Sliding Door Bulb Seal VD003

Regular price £29.99
Regular price £43.19 Sale price £29.99

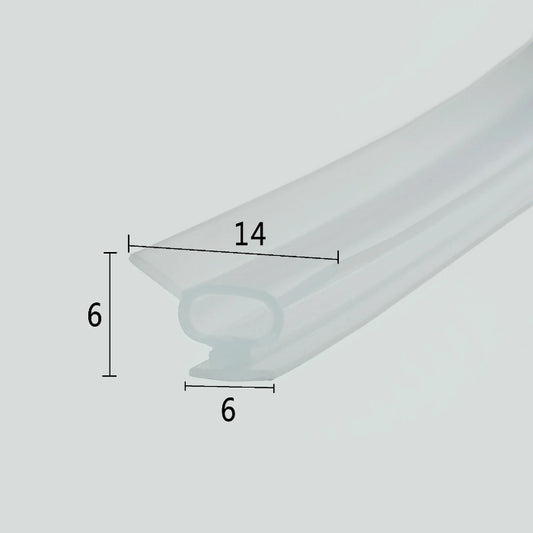

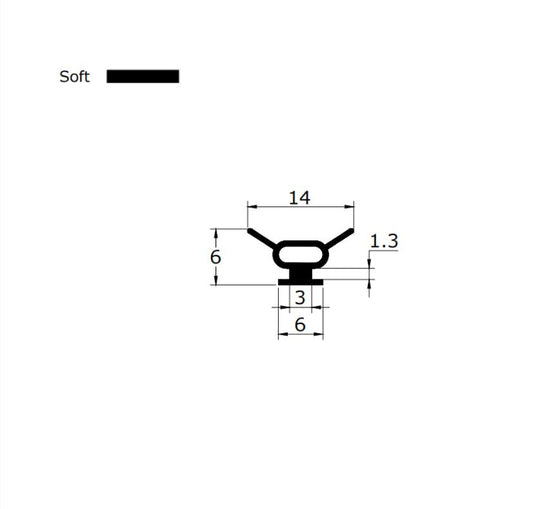

VD004 track-in side seal for framed sliding shower doors with 6mm retaining base and 14mm flexible sealing sectionVD004 framed shower door side seal profile dimensions showing 6mm base and 14mm flexible section

6mm T-Bar Shower Frame Sliding Door Bulb Seal VD004

Regular price £29.99
Regular price £43.19 Sale price £29.99
Glass Edge Protection & Frame Infill Strip VL004Glass Edge Protection & Frame Infill Strip VL004

Glass Edge Protection & Frame Infill Strip VL004

Regular price £14.88
Regular price £43.19 Sale price £14.88
ROT10 folding shower door side insert seal with 7mm track profile, 2.3mm slot opening and 13mm side projectionROT10 folding shower screen seal profile showing 7mm track insert, 2.3mm opening and 13.77mm soft fin

Folding Bath Screen Seal Replacement 7mm Channel 13mm Fin ROT10

Regular price £29.99
Regular price £43.19 Sale price £29.99
ROT11 folding shower door side seal dimensions showing 5.6mm track insert, 2.4mm slot, 14.4mm rigid arm and soft contact tip

Folding Bath Screen Seal Replacement 5mm Channel 14mm Fin ROT11

Regular price £29.99
Regular price £43.19 Sale price £29.99
RY5943 clear T-slot seal for framed shower doors with 6mm retaining base and flexible finRY5943 framed shower door track seal profile dimensions showing rigid base and flexible fin

6mm T-Slot Seal for Framed Shower Doors 6mm Height RY5943

Regular price £29.99
Regular price £43.19 Sale price £29.99
RY6306 clear T-slot seal for framed shower doors with 7mm retaining base and flexible finRY6306 framed shower door track seal profile dimensions showing 7mm base and 9mm overall height

7mm T-Slot Seal for Framed Shower Doors 9mm Height RY6306

Regular price £29.99
Regular price £43.19 Sale price £29.99
RY7746 clear T-slot seal for framed shower doors with 8mm retaining base and 11mm profile heightRY7746 framed shower door track seal dimensions showing 8mm retaining base and 11mm overall height

8mm T-Slot Seal for Framed Shower Doors 11mm Height RY7746

Regular price £29.99
Regular price £43.19 Sale price £29.99

Grey Framed Shower Door Track Insert Seal SV001

Regular price £29.99
Regular price £43.19 Sale price £29.99
Help Choosing the Right Seal
Send us a photo before ordering.
100% Quality Checked
Checked before dispatch.
Manufacturer Since 1998
Experienced shower seal specialists.
Durable vertical side seals for frameless doors

Built for Vertical Shower Door Gaps

Vertical seals need to handle frequent movement while maintaining a clean and consistent seal.

✔ Flexible Yet Secure
Designed to combine a firm grip with a flexible sealing edge, helping maintain contact as the door moves.

✔ Maintains Appearance Over Time
The material is designed to stay clear and resist common signs of wear, helping your shower look well-maintained.

✔ Suitable for Regular Use
Tested for repeated opening and closing, helping ensure consistent performance in everyday use.

Not sure which vertical seal fits? Send us a photo of your old seal, glass thickness and gap size — we’ll help you check the closest suitable replacement.

Vertical Seal Choosing Guide

Not sure which vertical shower seal fits?

If your shower door is old, has no model number, or the original seal is no longer available, send us photos before ordering.

We’ll check the seal profile, glass thickness and fitting position to help you find the closest suitable replacement.

Find a Seal for an Old Shower Door

How to Fit a Vertical Shower Door Seal

Installing a vertical shower door seal is straightforward and requires no specialist tools.

First, remove the old seal by gently pulling it away from the glass edge.

Clean the glass surface with warm soapy water to remove any residue or limescale deposits.

Push the new seal onto the glass edge, starting from the top and working downward, ensuring the rigid U-channel grips the glass firmly.

If the seal is longer than required, mark the desired length and trim with sharp scissors or a craft knife for a precise cut to size.

For magnetic seals, align both strips on opposing glass panels to confirm correct polarity before final fitting.

Replace Vertical Shower Door Seal

Finding the Perfect Vertical Shower Door Seal for Your Enclosure

Water leaking through the vertical gaps of your shower is often caused by more than just a worn strip. It can also be affected by the door type, glass alignment, closing angle and the size of the gap. Whether you are dealing with a 90-degree corner joint on a quadrant enclosure or an 180-degree inline glass-to-glass overlap on a sliding door, the right vertical shower door seal should help close the gap without obstructing the door’s motion.

At SIMBA, we understand that “universal” fixes rarely suit every UK bathroom, where hard water, daily use and constant moisture can all affect shower seals over time.

As a manufacturer-direct supplier with experience since 1998, we can help match many older and current vertical shower door seal profiles, including options for framed, frameless and glass-to-glass enclosures. Our vertical shower door seals are made from clear PVC and are quality checked before dispatch for profile, finish and overall condition.
